Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 9.5 | A |
| Maximum Operating Temperature | 105 | °C |
| Minimum Operating Temperature | -55 | °C |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The ADPFKFK is a 2.92mm Female to 2.92mm Female straight angle coaxial adapter. This adapter features low insertion loss and low VSWR across a DC-40 GHz bandwidth. 3/8" torque wrench and 6 mm fixed wrench recommended.
Features
- Low VSWR
- Low loss
Applications
- Interconnect
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADPFKFK | ADP Series 2.92mm Female to 2.92mm Female Adapter | Standard | REACH RoHS compliant per Annex III, Exemption 6(c) | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADPFKFK | ADP Series 2.92mm Female to 2.92mm Female Adapter | Standard | REACH RoHS compliant per Annex III, Exemption 6(c) | Released | EAR99 |

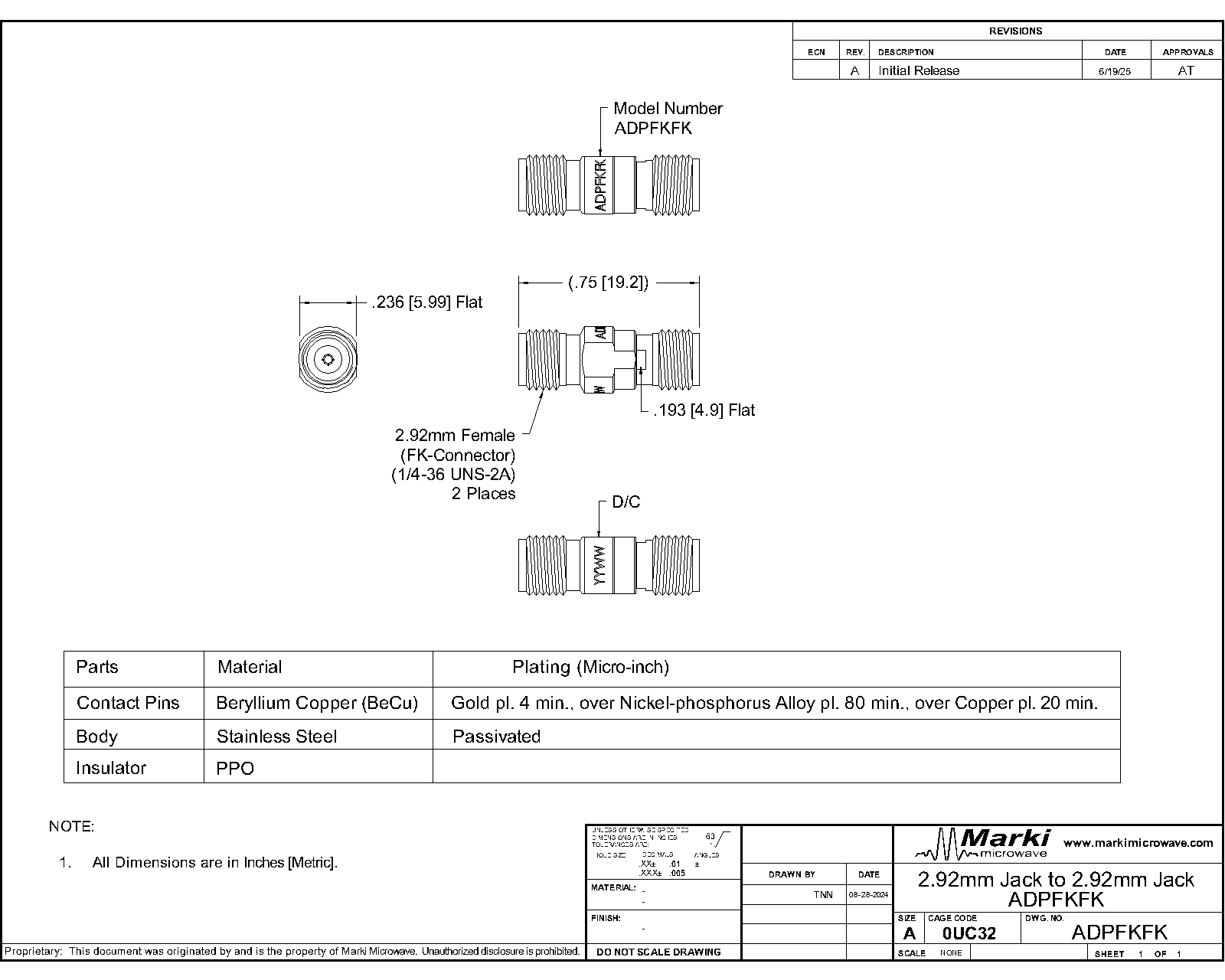

ADPFKFK
ADP Series 2.92mm Female to 2.92mm Female Adapter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-08-29 | Initial Release |
ADPFKFK
ADP Series 2.92mm Female to 2.92mm Female Adapter
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | IN/OUT | 2.92F | - | - |
| Port 2 | IN/OUT | 2.92F | - | - |
ADPFKFK
ADP Series 2.92mm Female to 2.92mm Female Adapter
Specifications
ADPFKFK
ADP Series 2.92mm Female to 2.92mm Female Adapter
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 0 | 40 | - | 0.1 | - | dB |
| Return Loss | - | 0 | 40 | - | 43 | - | dB |
| VSWR | - | 0 | 40 | - | 1.01 | - |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 0 | 40 | - | 0.1 | - | dB |
| Return Loss | - | 0 | 40 | - | 43 | - | dB |
| VSWR | - | 0 | 40 | - | 1.01 | - |
ADPFKFK
ADP Series 2.92mm Female to 2.92mm Female Adapter

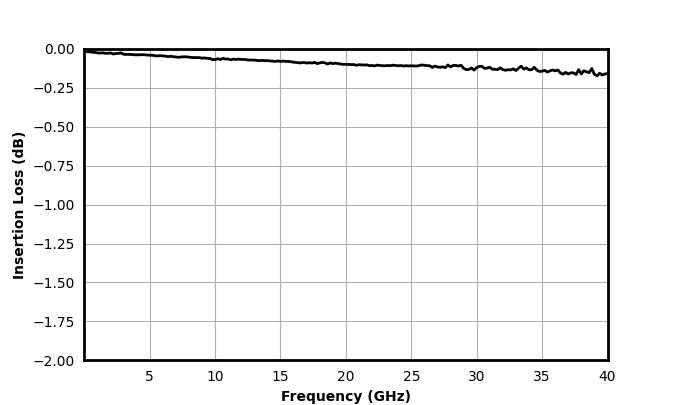

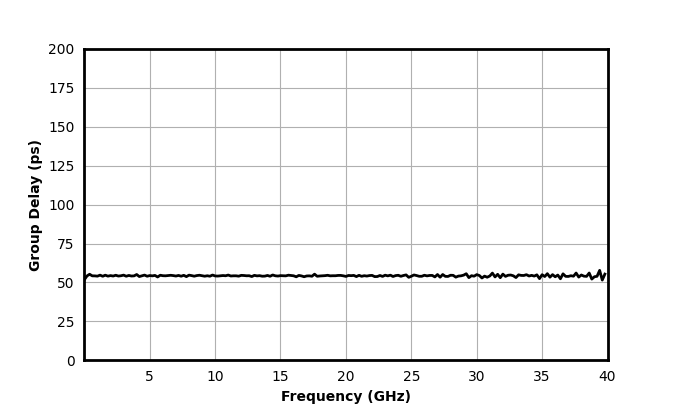

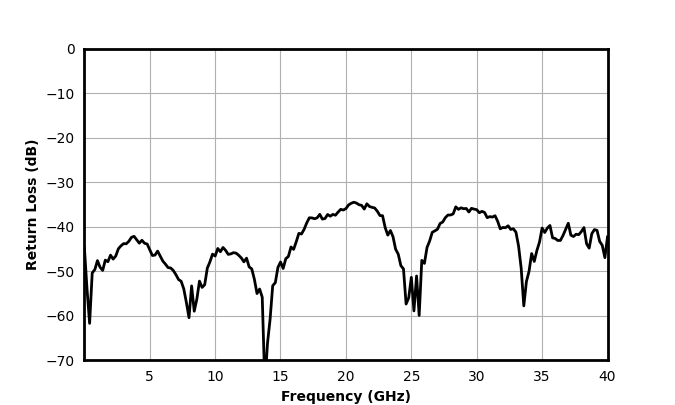

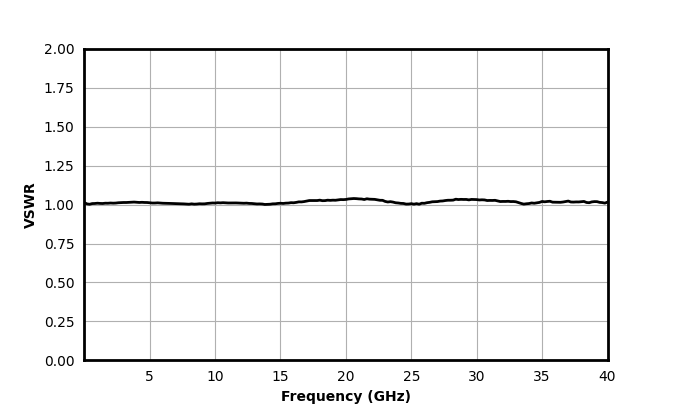

Typical Performance Plot
ADPFKFK
ADP Series 2.92mm Female to 2.92mm Female Adapter
