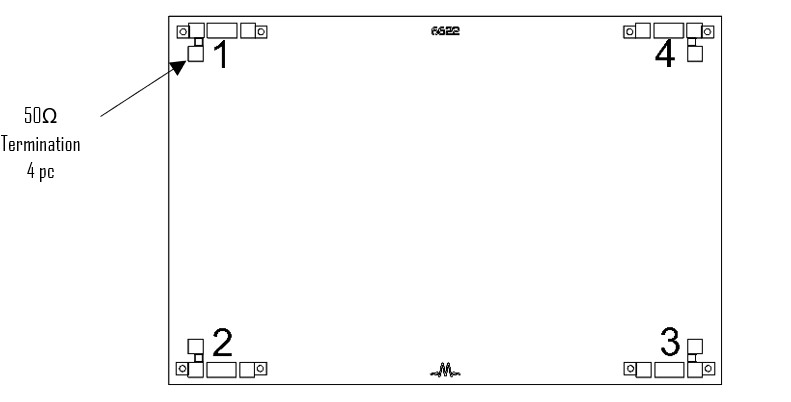

Port Diagram
A top-down view of the MQH-3R510CH package outline drawing is shown below. The MMIC quadrature hybrid are passive reciprocal devices allowing any port to be used as the input. Ports 1 – 4 correspond to the UB package designation.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MQH-3R510 is a MMIC 3.5 GHz – 10 GHz quadrature (90°) hybrid. Wire bondable 50Ω terminations are available on-chip. Passive GaAs MMIC technology allows production of smaller constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional quadrature hybrid technologies. The MQH-3R510 is available as a wire bondable chip or connectorized module. Low variation allows for accurate simulations using the provided S4P file taken from measured production unit. Applications include single sideband upconverters, image rejection downconverters, IQ modulators, balanced amplifiers, microwave correlators, and microwave Butler matrices.
Features
- Designed for S/C-band applications
- High amplitude and phase balance
- High isolation
- Low insertion loss
- On-chip 50Ω load terminations
Applications
- Single Sideband Upconverters
- Image Rejection Downconverters
- IQ Modulators
- Balanced Amplifiers
- Microwave Correlators
- Microwave Butler Matrices
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MQH-3R510UB | MMIC 3.5-10GHz Quadrature Hybrid | UB | Standard | REACH RoHS | Released | EAR99 |
| MQH-3R510CH | MMIC 3.5-10GHz Quadrature Hybrid | CH | - | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MQH-3R510UB | MMIC 3.5-10GHz Quadrature Hybrid | UB | Standard | REACH RoHS | Released | EAR99 |
| MQH-3R510CH | MMIC 3.5-10GHz Quadrature Hybrid | CH | - | RoHS REACH | Released | EAR99 |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Operation

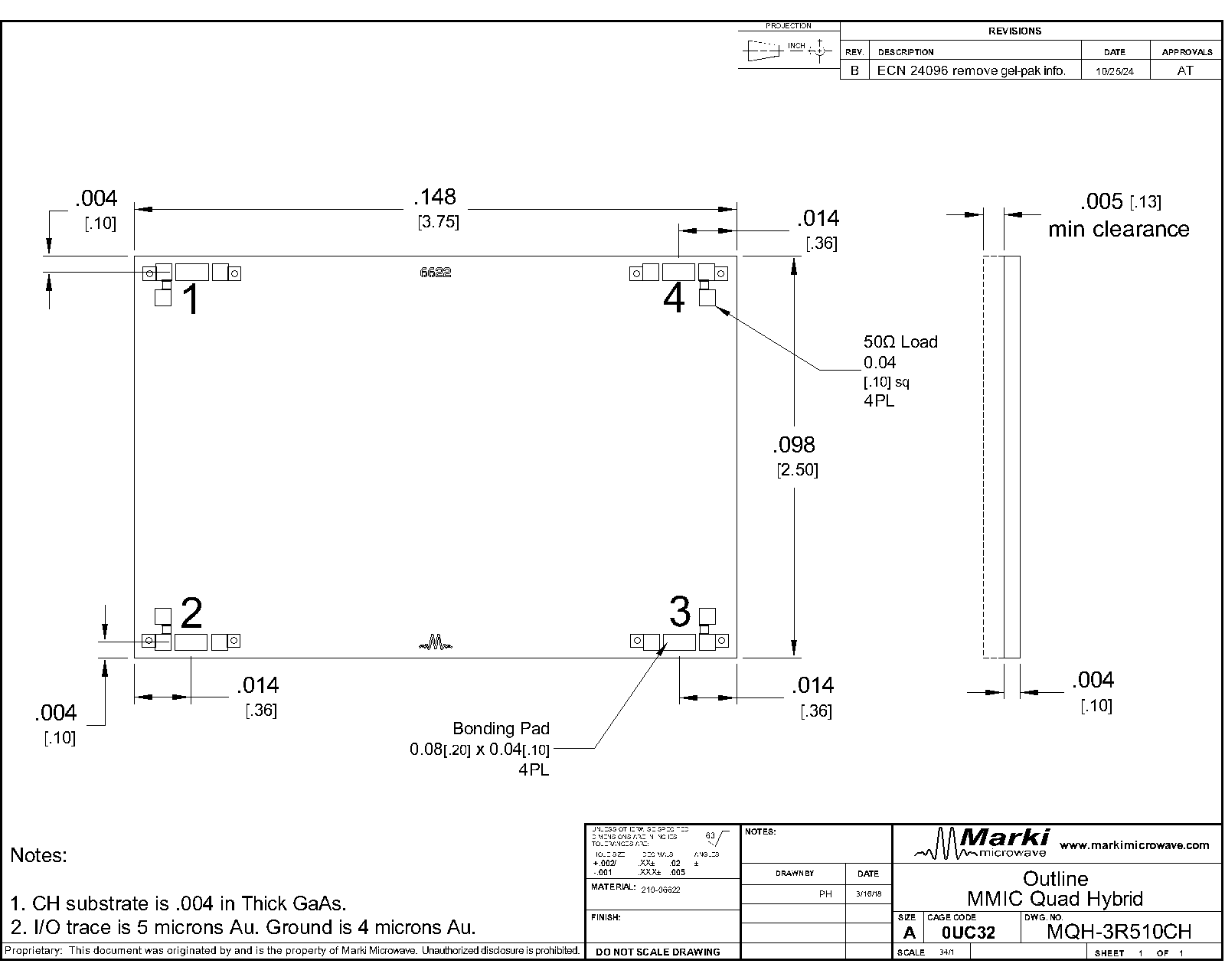

- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-08-01 | Datasheet Initial Release |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Port Configuration and Functions
Port Functions
Configuration A
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input | Port 1 is DC short to port 2 and open to ground. |  |
| Port 2 | 0° Output | Port 2 is DC short to port 1 and open to ground. | |
| Port 3 | 90° Output | Port 3 is DC short to port 4 and open to ground. | |
| Port 4 | Isolated | Port 4 is DC short to port 3 and open to ground. | |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Configuration B
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. | |
| Port 1 | 0° Output | Port 1 is DC short to port 2 and open to ground. | |
| Port 2 | Input | Port 2 is DC short to port 1 and open to ground. | |
| Port 3 | Isolated | Port 3 is DC short to port 4 and open to ground. | |
| Port 4 | 90° Output | Port 4 is DC short to port 3 and open to ground. | |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Configuration C
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. | |
| Port 1 | 0° Output | Port 1 is DC short to port 2 and open to ground. | |
| Port 2 | Isolated | Port 2 is DC short to port 1 and open to ground. | |
| Port 3 | Input | Port 3 is DC short to port 4 and open to ground. | |
| Port 4 | 90° Output | Port 4 is DC short to port 3 and open to ground. | |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Configuration D
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. | |
| Port 1 | Isolated | Port 1 is DC short to port 2 and open to ground. | |
| Port 2 | 90° Output | Port 2 is DC short to port 1 and open to ground. | |
| Port 3 | 0° Output | Port 3 is DC short to port 4 and open to ground. | |
| Port 4 | Input | Port 4 is DC short to port 3 and open to ground. | |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3.75 x 2.50 mm |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. Quadrature hybrid is reciprocal. Reverse measurement is equivalent to forward measurement.
| Parameter | Port Configuration | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | - | 3.5 | 10 | - | 0.4 | 2 | dB |
| Excess Insertion Loss | - | - | 3.5 | 10 | - | 1.8 | 4 | dB |
| Impedance | - | - | 3.5 | 10 | - | 50 | - | Ω |
| Isolation | - | - | 3.5 | 10 | 14 | 25 | - | dB |
| Mean Coupling | - | - | 3.5 | 10 | - | 3 | - | dB |
| Nominal Phase Shift | - | - | 3.5 | 10 | - | 90 | - | ° |
| Phase Balance | - | - | 3.5 | 10 | - | 1.5 | 5 | ° |
| VSWR | - | - | 3.5 | 10 | - | 1.2 | - |
| Parameter | Port Configuration | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | - | 3.5 | 10 | - | 0.4 | 2 | dB |
| Excess Insertion Loss | - | - | 3.5 | 10 | - | 1.8 | 4 | dB |
| Impedance | - | - | 3.5 | 10 | - | 50 | - | Ω |
| Isolation | - | - | 3.5 | 10 | 14 | 25 | - | dB |
| Mean Coupling | - | - | 3.5 | 10 | - | 3 | - | dB |
| Nominal Phase Shift | - | - | 3.5 | 10 | - | 90 | - | ° |
| Phase Balance | - | - | 3.5 | 10 | - | 1.5 | 5 | ° |
| VSWR | - | - | 3.5 | 10 | - | 1.2 | - |
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Typical Performance Plots
Insertion Loss, Return Loss, and Isolation
All measurements taken in a 50Ω environment. Phase balance spread is shown due to large performance spread. Minimal variance observed in amplitude balance and insertion loss. Performance spread is related to packaging and bond wire inductance variation. On-chip load was not used when taking measurements.
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
Amplitude and Phase Balance
All measurements taken in a 50Ω environment. Phase balance spread is shown due to large performance spread. Minimal variance observed in amplitude balance and insertion loss. Performance spread is related to packaging and bond wire inductance variation. On-chip load was not used when taking measurements.
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
MQH-3R510UB - Typical Performance Plots
Insertion Loss, Return Loss, and Isolation
All measurements taken in a 50Ω environment. Phase balance spread is shown due to large performance spread. Minimal variance observed in amplitude balance and insertion loss. Performance spread is related to packaging and bond wire inductance variation. On-chip load was not used when taking measurements.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MQH-3R510CH
MMIC 3.5-10GHz Quadrature Hybrid
MQH-3R510UB - Amplitude and Phase Balance
All measurements taken in a 50Ω environment. Phase balance spread is shown due to large performance spread. Minimal variance observed in amplitude balance and insertion loss. Performance spread is related to packaging and bond wire inductance variation. On-chip load was not used when taking measurements.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
