MPD-0226CH
2-26.5 GHz MMIC 2-way Power Divider/Combiner

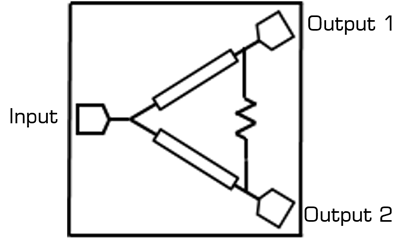

MPD-0226CH is a MMIC 2-way Wilkinson power divider. Passive GaAs MMIC technology allows production of smaller constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances result in less unit to unit variation than traditional power divider technologies. Low unit to unit variation allows for accurate simulations using the provided measured S3P files which include the effects of the bond wires for the die and the housing for the module. Power dividers are passive reciprocal devices that can be used either as power combiners or as power dividers. Applications include Radar, Satcom, EW and test equipment. The MPD-0226CH is available as a bare die.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 2 to 26.5 | GHz |
| Phase Balance | 2 | ° |
| Excess Insertion Loss | 1 | dB |
| No. Ways | Wilkinson 1:2 | - |
| RF Power Handling as a Power Divider | 20 | W |
| Amplitude Balance | 0.2 | dB |
| Isolation | 20 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD-0226CH | 2-26.5 GHz MMIC 2-way Power Divider/Combiner | CH | REACH RoHS | Released | EAR99 |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 2 | 26.5 | - | - | - | GHz |
| Amplitude Balance | - | 2 | 26.5 | - | 0.2 | 1.2 | dB |
| Excess Insertion Loss 1 | - | 20 | 26.5 | - | 1.5 | 2 | dB |
| Excess Insertion Loss 2 | - | 2 | 20 | - | 1 | 1.5 | dB |
| Impedance | - | - | - | - | 50 | - | Ω |
| Isolation | - | 2 | 26.5 | - | 20 | - | dB |
| Nominal Phase Shift | - | 2 | 26.5 | - | 0 | - | ° |
| Nominal Power Splitting | - | 2 | 26.5 | - | 3 | - | dB |
| Phase Balance | - | 2 | 26.5 | - | 2 | 10 | ° |
| VSWR | - | 2 | 26.5 | - | 1.35 | - | - |
[1][2] Excess Insertion Loss = (Input Port to Common Port Insertion Loss) - 3dB
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 60 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling as a Power Combiner 1 | 2 | W |
| RF Power Handling as a Power Divider 2 | 20 | W |
[1] Based on 3W failure with out of phase signals at room temperature at 2.5GHz with matched loads
[2] Based >40W Power handling test as a splitter without failure at room temperature at 2.5GHz with matched loads
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.44 x 2.44 mm |

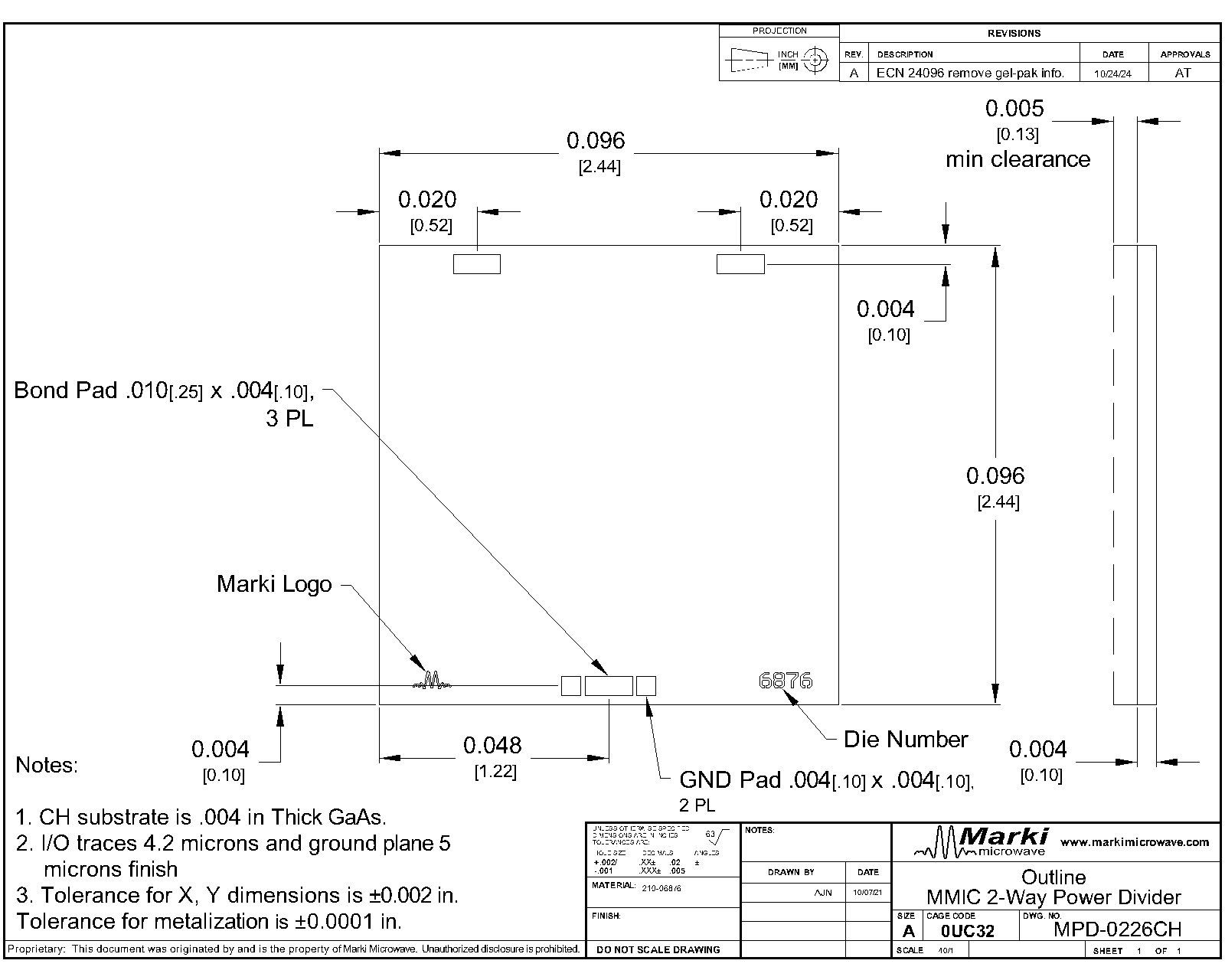

A top-down view of the MPD-0226CH’s bare die outline drawing is shown below. The MMIC Power dividers are passive reciprocal devices allowing either power splitting or power combining.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Pad 1 | Output 1 | The output 1 port is DC short to the other two ports and open to ground. |  |
| Pad 2 | Output 2 | The output 2 port is DC short to the other two ports and open to ground | |
| Pad 3 | Input/Common | The common port is DC short to the other two ports and open to ground. | |
Marki MMICs should be attached directly to a ground plane with conductive epoxy. The ground plane electrical impedance should be as low as practically possible. This will prevent resonances and permit the best possible electrical performance. Datasheet performance is only guaranteed in an environment with a low electrical impedance ground.
Mounting - To epoxy the chip, apply a minimum amount of conductive epoxy to the mounting surface so that a thin epoxy fillet is observed around the perimeter of the chip. Cure epoxy according to manufacturer instructions.
Wire Bonding - Ball or wedge bond with 0.025 mm (1 mil) diameter pure gold wire. Thermosonic wirebonding with a nominal stage temperature of 150 °C and a ball bonding force of 40 to 50 grams or wedge bonding force of 18 to 22 grams is recommended. Use the minimum level of ultrasonic energy to achieve reliable wirebonds. Wirebonds should be started on the chip and terminated on the package or substrate. All bonds should be as short as possible <0.31 mm (12 mils).
Circuit Considerations – 50 Ω transmission lines should be used for all high frequency connections in and out of the chip. Wirebonds should be kept as short as possible, with multiple wirebonds recommended for higher frequency connections to reduce parasitic inductance. In circumstances where the chip more than .001” thinner than the substrate, a heat spreading spacer tab is optional to further reduce bondwire length and parasitic inductance.
Chips should be handled with care using tweezers or a vacuum collet. Users should take precautions to protect chips from direct human contact that can deposit contaminants, like perspiration and skin oils on any of the chip's surfaces.
Static Sensitivity
GaAs MMIC devices are sensitive to ESD and should be handled, assembled, tested, and transported only in static protected environments.
Cleaning and Storage: Do not attempt to clean the chip with a liquid cleaning system or expose the bare chips to liquid. Once the ESD sensitive bags the chips are stored in are opened, chips should be stored in a dry nitrogen atmosphere.
Download : Outline 2D Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2021-11-01 | Initial Datasheet Release |
| G0 | 2025-12-17 | Power Handling Updated |
