Device Overview
General Description
The MMD-2060H is a MMIC millimeter wave doubler fabricated with GaAs Schottky diodes. This operates over a guaranteed 10 to 30 GHz input frequency range or a doubled output frequency range of 20 to 60 GHz. It features excellent conversion loss, superior isolations and harmonic suppressions across a broad bandwidth. Both the wire bondable die and connectorized units are available.
Features
- High fundamental rejection
- Millimeter wave output frequencies
Applications
- High frequency synthesis
- LO signal chain
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-2060HU | GaAs MMIC Millimeter Wave Doubler | U | Standard | REACH RoHS | Released | EAR99 |
| MMD-2060HCH | GaAs MMIC Millimeter Wave Doubler | CH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-2060HU | GaAs MMIC Millimeter Wave Doubler | U | Standard | REACH RoHS | Released | EAR99 |
| MMD-2060HCH | GaAs MMIC Millimeter Wave Doubler | CH | - | REACH RoHS | Released | EAR99 |
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations

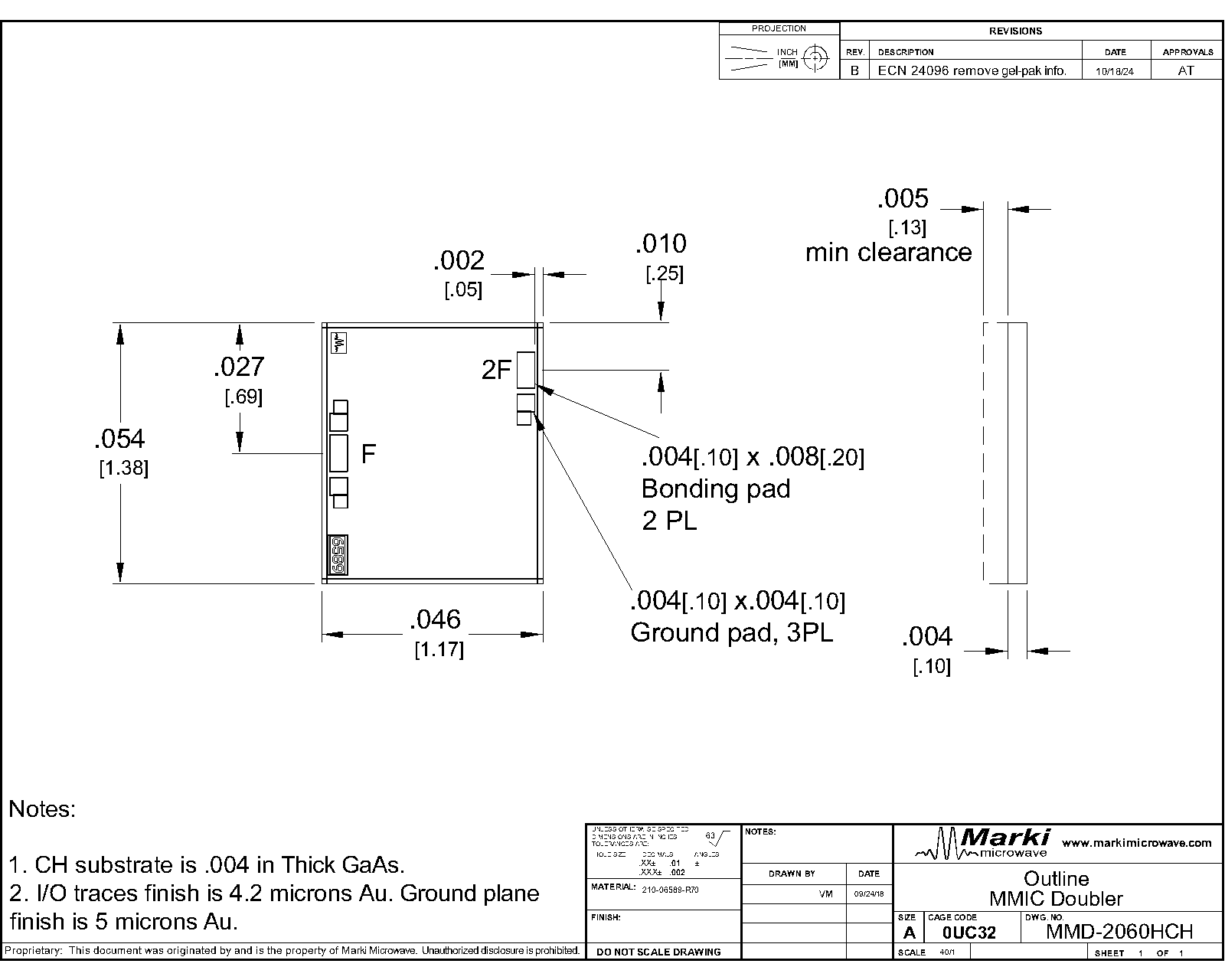

- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-11-01 | Datasheet Initial Release |
| A | 2018-11-01 | Correction to Performance Plots Limits |
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input | Input 1x Frequency Port. Port 1 is DC coupled to the diodes for the CH package. Blocking capacitor is optional. |  |
| Port 2 | Output | 2x Input Frequency output port. Port 2 is DC open for the CH package. |  |
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -55 | °C |
| Port 1 DC Current | 25 | mA |
| Power Handling, at any Port | 23 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 1.17 x 1.38 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| Input Power | 10 | - | 15 | dBm |
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized U package doubler used in the forward direction with a +11 dBm sine wave input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. RF testing of our die is performed on a sample basis to verify conformance to datasheet guaranteed specifications.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Input Frequency Range | - | - | - | 10 | - | 30 | GHz |
| Output Frequency Range | - | - | - | 20 | - | 60 | GHz |
| Conversion Loss | Second Harmonic Output | 20 | 60 | - | 10.5 | 13 | dB |
| Input Power | - | - | - | 10 | - | 15 | dBm |
| Isolation, 1F 1 | Input = 10 – 30 GHz Output = 10 - 30 GHz | 10 | 30 | - | 49.7 | - | dB |
| Isolation, 3F 2 | Input = 10 – 20 GHz Output = 30 – 60 GHz | 30 | 60 | - | 50 | - | dB |
| Isolation, 4F 3 | Input = 10 – 15 GHz Output = 40 - 60 GHz | 40 | 60 | - | 22.5 | - | dB |
| Suppression, 1F 4 | Input = 10 - 30 GHz Output = 10 - 30 GHz | 10 | 30 | - | 38 | - | dBc |
| Suppression, 3F 5 | Input = 10 – 20 GHz Output = 30 - 60 GHz | 30 | 60 | - | 39.5 | - | dBc |
| Suppression, 4F 6 | Input = 10 – 15 GHz Output = 40 - 60 GHz | 40 | 60 | - | 12.5 | - | dBc |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Input Frequency Range | - | - | - | 10 | - | 30 | GHz |
| Output Frequency Range | - | - | - | 20 | - | 60 | GHz |
| Conversion Loss | Second Harmonic Output | 20 | 60 | - | 10.5 | 13 | dB |
| Input Power | - | - | - | 10 | - | 15 | dBm |
| Isolation, 1F 1 | Input = 10 – 30 GHz Output = 10 - 30 GHz | 10 | 30 | - | 49.7 | - | dB |
| Isolation, 3F 2 | Input = 10 – 20 GHz Output = 30 – 60 GHz | 30 | 60 | - | 50 | - | dB |
| Isolation, 4F 3 | Input = 10 – 15 GHz Output = 40 - 60 GHz | 40 | 60 | - | 22.5 | - | dB |
| Suppression, 1F 4 | Input = 10 - 30 GHz Output = 10 - 30 GHz | 10 | 30 | - | 38 | - | dBc |
| Suppression, 3F 5 | Input = 10 – 20 GHz Output = 30 - 60 GHz | 30 | 60 | - | 39.5 | - | dBc |
| Suppression, 4F 6 | Input = 10 – 15 GHz Output = 40 - 60 GHz | 40 | 60 | - | 12.5 | - | dBc |
[1][2][3] Isolation is defined as the harmonic power relative to the 1F fundamental input power.
[4][5][6] Suppressions and isolations measured with an input source with >60dBc (relative to fundamental input) harmonic suppression. Suppression is defined as the harmonic power relative to the 2F doubled output power.
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
Typical Performance Plots
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
MMD-2060HU - Typical Performance Plots
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
MMD-2060HCH
GaAs MMIC Millimeter Wave Doubler
