Device Overview
General Description
The MMD-1648L is a balanced MMIC doubler covering 16 to 48 GHz on the output. It features superior isolations and harmonic suppressions across a broad bandwidth in a highly miniaturized form factor. Accurate, nonlinear simulation models are available for Microwave Office® through the Marki Microwave PDK. The MMD-1648L is available as a wire bondable chip or a connectorized package. The MMD-1648L is a superior alternative to Marki Microwave carrier and packaged doublers.
Features
- Compact Chip Style Package (0.058” x 0.096”x0.004”)
- CAD Optimized for Superior Suppressions and Efficiency
- Broadband Performance
- Excellent Unit-to-Unit Repeatability
- Fully nonlinear software models available with Marki PDK for Microwave Office®
- RoHS Compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-1648LS | High Isolation GaAs MMIC Doubler | S | Standard | REACH RoHS | Released | EAR99 |
| MMD-1648LCH | High Isolation GaAs MMIC Doubler | CH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMD-1648LS | High Isolation GaAs MMIC Doubler | S | Standard | REACH RoHS | Released | EAR99 |
| MMD-1648LCH | High Isolation GaAs MMIC Doubler | CH | - | REACH RoHS | Released | EAR99 |
MMD-1648LCH
High Isolation GaAs MMIC Doubler
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations

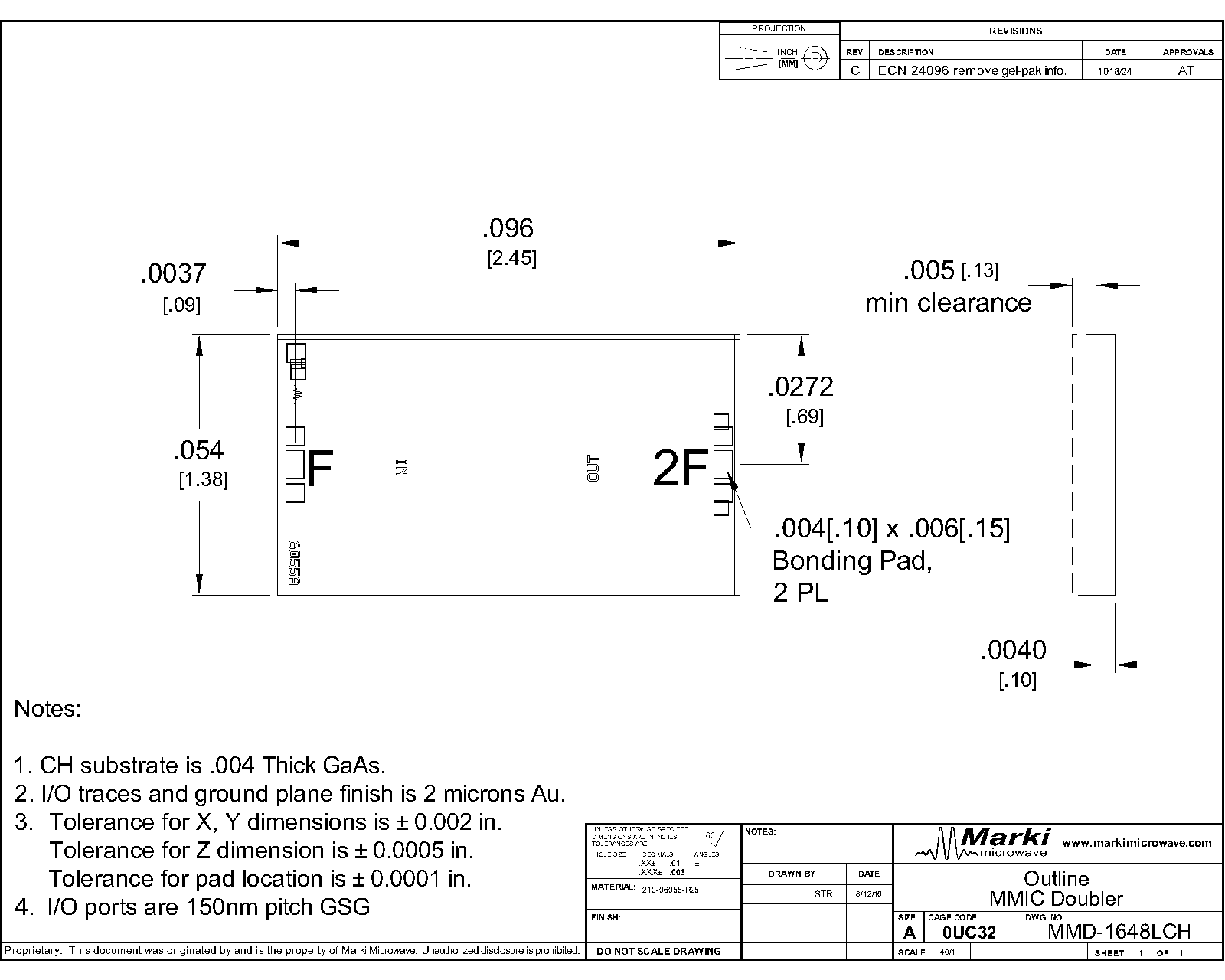

- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2016-08-01 | Initial Release |
| A | 2019-09-01 | Added CH Package Dimensions |
| B | 2020-01-01 | Die Shrink |
MMD-1648LCH
High Isolation GaAs MMIC Doubler
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| 2F | Output | 2x Input Frequency output port. The output port is DC open and AC matched to 50 Ohms from 16 to 48 GHz. Blocking capacitor is optional. |  |
| F | Input | Input 1x Frequency Port. The input port is DC open and AC matched to 50 Ohms from 8 to 24 GHz. Blocking capacitor is optional. | |
MMD-1648LCH
High Isolation GaAs MMIC Doubler
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling (RF+LO), 100°C | 20 | dBm |
| RF Power Handling (RF+LO), 25°C | 25 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.45 x 1.38 mm |
MMD-1648LCH
High Isolation GaAs MMIC Doubler
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Conversion Loss | Second Harmonic Output | 16 | 48 | - | 15 | 20 | dB |
| Isolation, 1F 1 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 8 | 24 | - | 59 | - | dB |
| Isolation, 3F 2 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 85 | - | dB |
| Isolation, 4F 3 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 33 | - | dB |
| Isolation, 5F 4 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 57 | - | dB |
| Suppression, 1F 5 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 8 | 24 | - | 44 | - | dBc |
| Suppression, 3F 6 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 69 | - | dBc |
| Suppression, 4F 7 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 33 | - | dBc |
| Suppression, 5F 8 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 58 | - | dBc |
| Input Frequency Range | - | - | - | 8 | - | 24 | GHz |
| Output Frequency Range | - | - | - | 16 | - | 48 | GHz |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Conversion Loss | Second Harmonic Output | 16 | 48 | - | 15 | 20 | dB |
| Isolation, 1F 1 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 8 | 24 | - | 59 | - | dB |
| Isolation, 3F 2 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 85 | - | dB |
| Isolation, 4F 3 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 33 | - | dB |
| Isolation, 5F 4 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 57 | - | dB |
| Suppression, 1F 5 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 8 | 24 | - | 44 | - | dBc |
| Suppression, 3F 6 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 69 | - | dBc |
| Suppression, 4F 7 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 33 | - | dBc |
| Suppression, 5F 8 | Input = 8 - 24 GHz Output = 16 - 48 GHz Diode Option Input drive level = 10 - 15 dBm | 16 | 48 | - | 58 | - | dBc |
| Input Frequency Range | - | - | - | 8 | - | 24 | GHz |
| Output Frequency Range | - | - | - | 16 | - | 48 | GHz |
[1][2][3][4] Isolation is defined as relative to the 1F fundamental input power.
[5][6][7][8] Suppression is relative to 2F doubled output power.
