Port Diagram

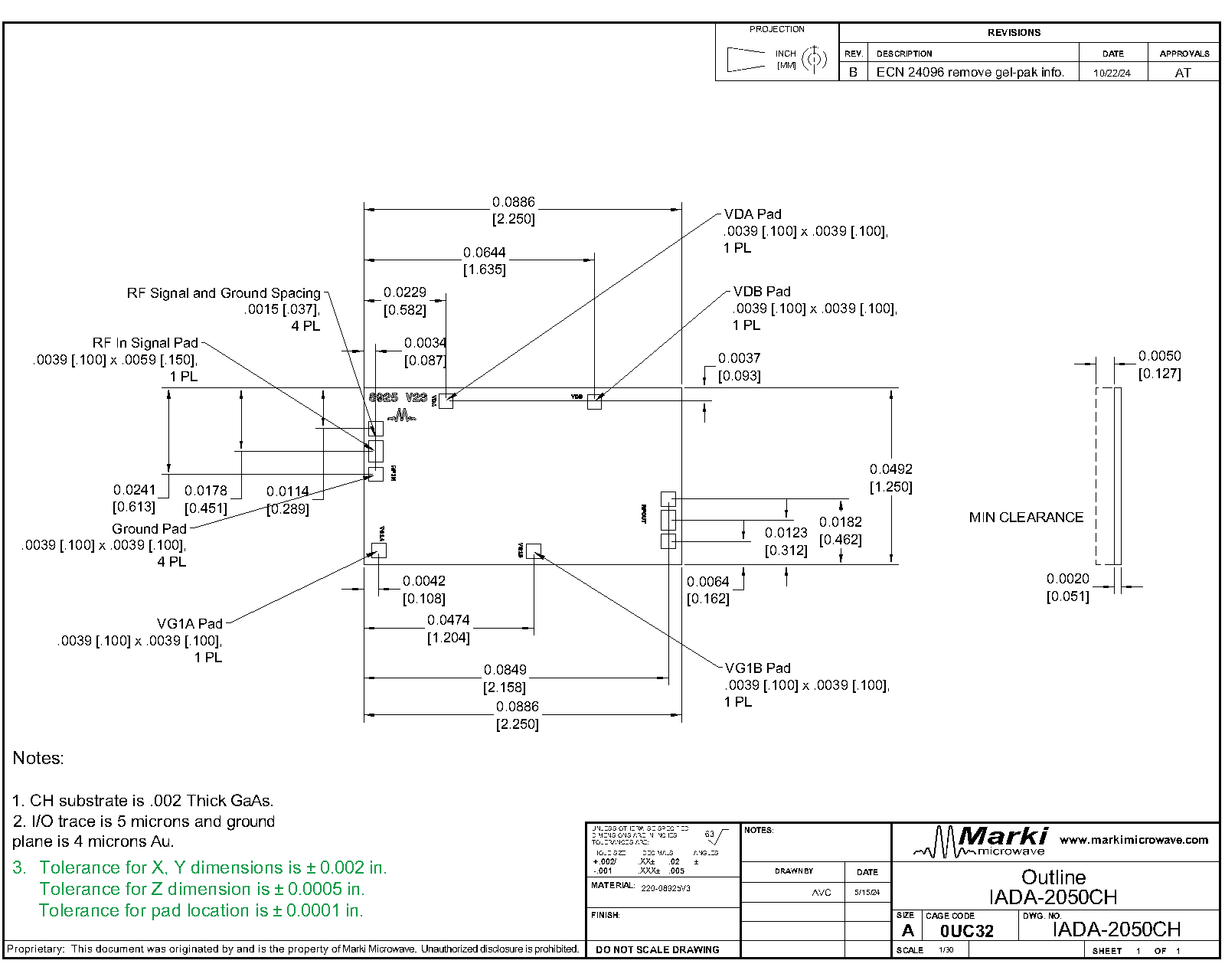

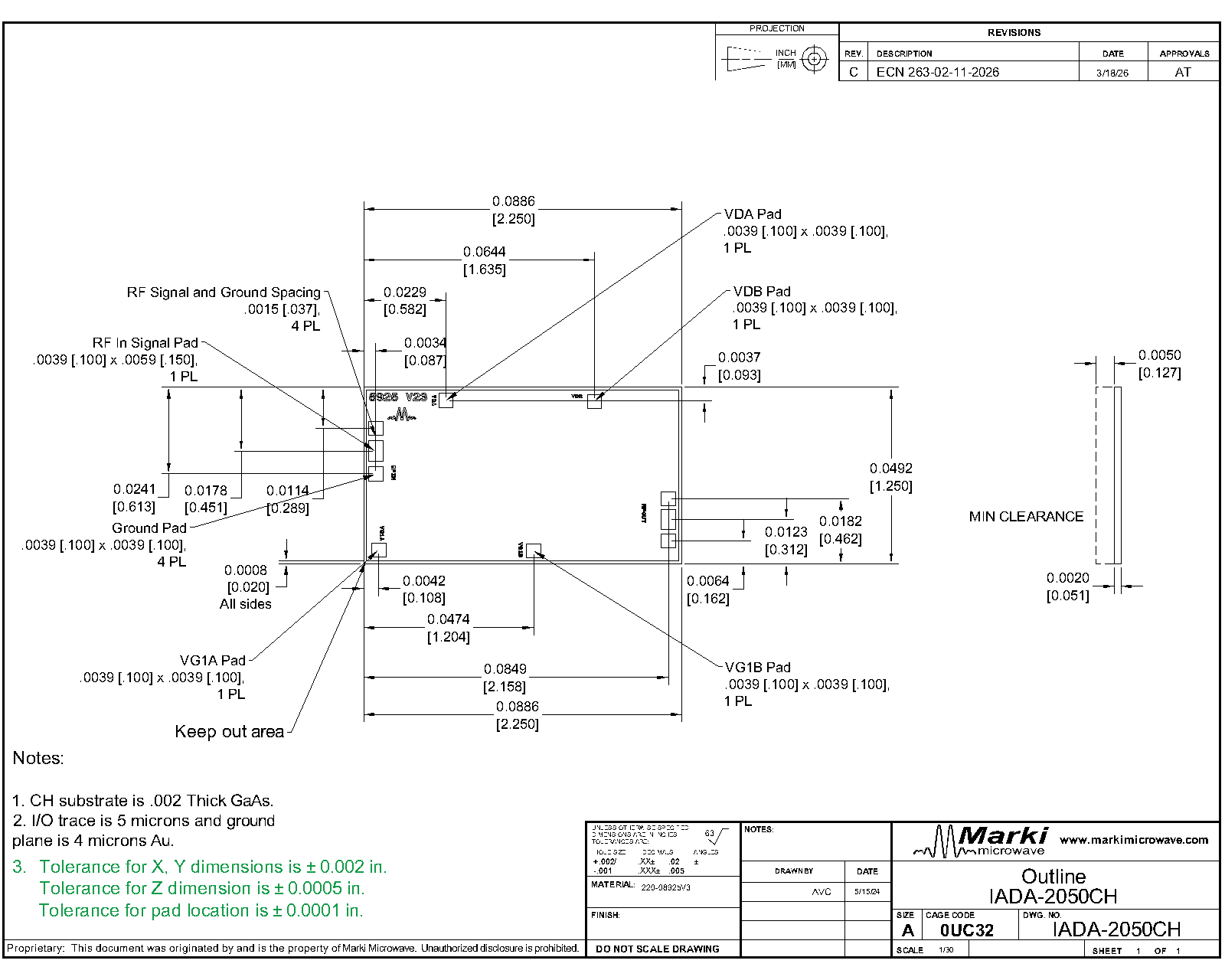

A top-down view of the IADA-2050 outline drawing is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The IADA-2050CH is an integrated MMIC active doubler fabricated with GaAs Schottky diodes. This operates over a guaranteed 10 to 25 GHz input frequency range or a doubled output frequency range of 20 to 50 GHz. It features excellent conversion loss, superior isolations and harmonic suppressions across a broad bandwidth. This device is offered as a wirebondable die.
Features
- Input Frequency Range 10 – 25 GHz
- Output Frequency Range 20 - 50 GHz
- Input Power +5 dBm
- Output Power +18 dBm
- 1F Harmonic suppression 24 dBc
- 3F Harmonic suppression 21 dBc
Applications
- High frequency synthesis
- LO signal chain
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| IADA-2050CH | Amplifier/Doubler/Amplifier | CH | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| IADA-2050CH | Amplifier/Doubler/Amplifier | CH | REACH RoHS | Released | EAR99 |
IADA-2050CH
Amplifier/Doubler/Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Operation
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-07-11 | Initial Release |
IADA-2050CH
Amplifier/Doubler/Amplifier
Port Configuration and Functions
IADA-2050CH
Amplifier/Doubler/Amplifier
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | Ground is provided through the backside of the die. The backside must be connected to a DC/RF ground with high thermal and electrical conductivity. |  |
| RF In | Input | This pad is the RF input of the device. This pad is DC open and matched to 50 Ω at frequency range 10 - 25 GHz. |  |
| RF Out | Output | This is the RF output of the device. This pad is DC open and matched to 50 Ω at frequency range 20 – 50 GHz. | |
| VDA | Positive bias | Drain bias for the input amplifier. This pad must be connected to a positive power supply. Set this voltage to +5V for normal operation. |  |
| VDB | Positive bias | Drain bias for the output amplifier. This pad must be connected to a positive power supply. Set this voltage to +5V for normal operation. | |
| VG1A | Negative bias | Gate control for the input amplifier. This pad must be connected to a negative power supply. Set this voltage to -0.15V for normal operation. |  |
| VG1B | Negative bias | Gate control for the output amplifier. This pad must be connected to a negative power supply. Set this voltage to -0.15V for normal operation. | |
IADA-2050CH
Amplifier/Doubler/Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature for MTTF > 1E6 hours | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature for MTTF > 1E6 hours | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Negative Bias Voltage | -1.5 | V |
| Positive Bias Voltage | 6 | V |
| RF Input Power | 10 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 2.25 x 1.25 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Positive DC Voltage (Vd) | - | 5 | - | V |
| Gate Bias DC Voltage (Vg) | - | -0.15 | - | V |
IADA-2050CH
Amplifier/Doubler/Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Suppression is specified relative to doubled output power.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | VDA,VDB = 5V | - | - | - | 130 | - | mA |
| Current Consumption 2 | VG1A,VG1B = -0.15V | - | - | - | 0 | - | mA |
| Input Frequency Range | - | - | - | 10 | - | 25 | GHz |
| Input Power | Input = 10.0 - 25.0 GHz | 10 | 25 | - | 5 | - | dBm |
| Input Return Loss | Input = 10.0 - 25.0 GHz | 10 | 25 | - | -14 | - | dB |
| Output Converted Power, 2F (out) | Output = 20.0 - 50.0 GHz | 20 | 50 | - | 18 | - | dBm |
| Output Frequency Range | - | - | - | 20 | - | 50 | GHz |
| Output Return Loss | Output = 20.0 - 50.0 GHz | 20 | 50 | - | -11 | - | dB |
| Suppression, 1F | Output = 20.0 - 50.0 GHz | - | - | - | 24 | - | dBc |
| Suppression, 3F | Output = 20.0 - 50.0 GHz | - | - | - | 21 | - | dBc |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | VDA,VDB = 5V | - | - | - | 130 | - | mA |
| Current Consumption 2 | VG1A,VG1B = -0.15V | - | - | - | 0 | - | mA |
| Input Frequency Range | - | - | - | 10 | - | 25 | GHz |
| Input Power | Input = 10.0 - 25.0 GHz | 10 | 25 | - | 5 | - | dBm |
| Input Return Loss | Input = 10.0 - 25.0 GHz | 10 | 25 | - | -14 | - | dB |
| Output Converted Power, 2F (out) | Output = 20.0 - 50.0 GHz | 20 | 50 | - | 18 | - | dBm |
| Output Frequency Range | - | - | - | 20 | - | 50 | GHz |
| Output Return Loss | Output = 20.0 - 50.0 GHz | 20 | 50 | - | -11 | - | dB |
| Suppression, 1F | Output = 20.0 - 50.0 GHz | - | - | - | 24 | - | dBc |
| Suppression, 3F | Output = 20.0 - 50.0 GHz | - | - | - | 21 | - | dBc |
[1] It is required that the negative bias be applied before or concurrent with the positive bias.
[2] It is required that the negative bias be applied before or concurrent with the positive bias.
IADA-2050CH
Amplifier/Doubler/Amplifier
Typical Performance Plots
IADA-2050CH
Amplifier/Doubler/Amplifier
IADA-2050CH
Amplifier/Doubler/Amplifier
Application Circuit
IADA-2050CH
Amplifier/Doubler/Amplifier
