MM1-35130HCH-2_GaAs MMIC Double Balanced mmWave Mixer

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-35130HM	GaAs MMIC Double Balanced mmWave Mixer	M	Standard	REACH RoHS	Released	EAR99
MM1-35130HCH-2	GaAs MMIC Double Balanced mmWave Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-35130HM	GaAs MMIC Double Balanced mmWave Mixer	M	Standard	REACH RoHS	Released	EAR99
MM1-35130HCH-2	GaAs MMIC Double Balanced mmWave Mixer	CH	-	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2022-05-01	Datasheet Initial Release

Port Configuration and Functions

Port Diagram

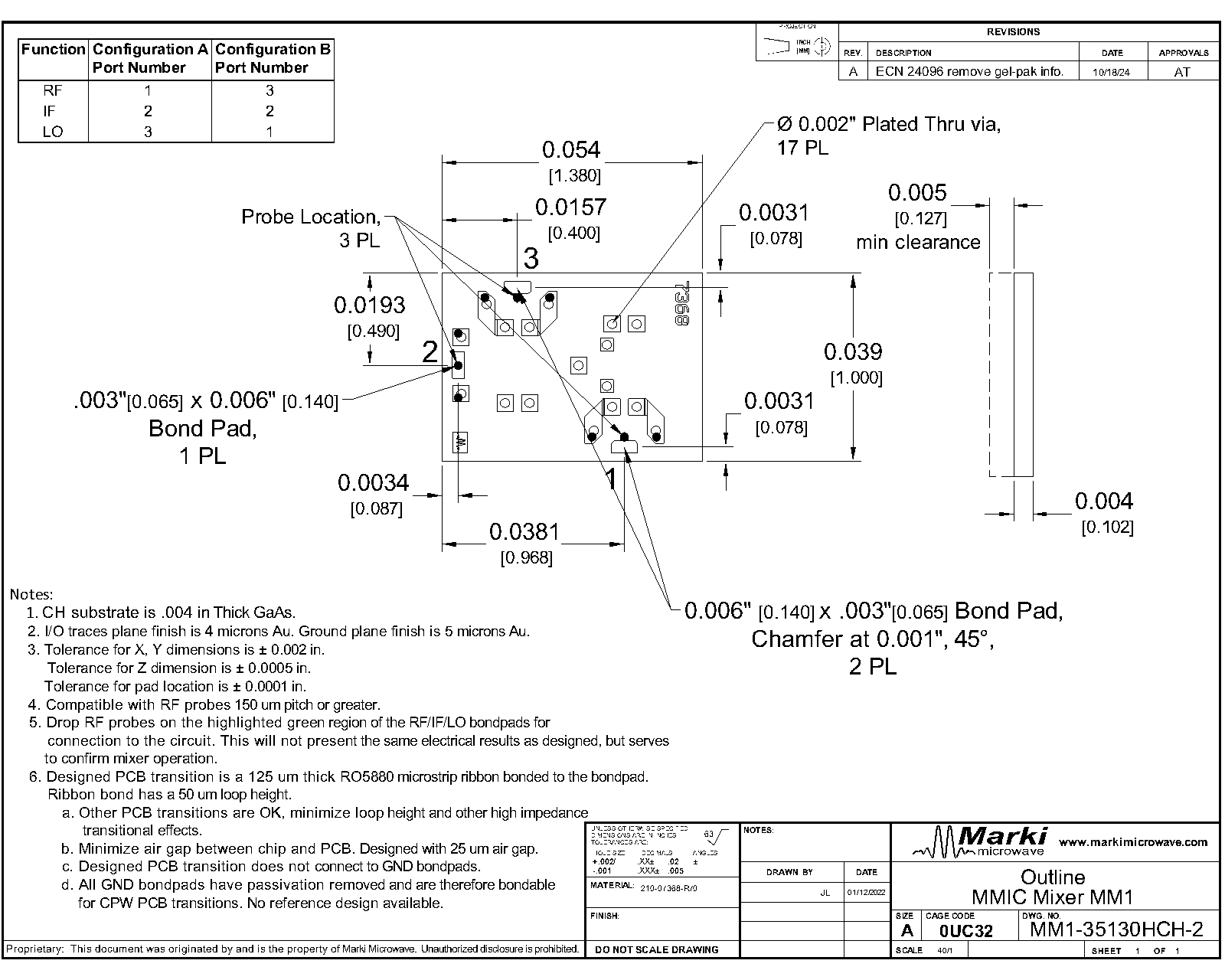

A top-down view of the MM1-35130H’s CH package outline drawing is shown below. The MM1-35130H has the input and output ports given in Port Functions. The MM1-35130H can be used in either an up or down conversion. For configuration A, input the LO into port 3, use port 1 for the RF, and port 2 for the IF. For configuration B, input the LO into port 1, use port 3 for the RF, and port 2 for the IF.

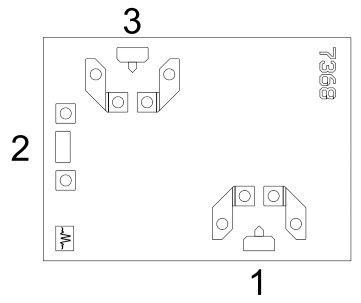

Diagram of the port configuration for MM1-35130HCH-2

Port Functions

Configuration A

Port	Function	Description
GND	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	RF	Port 1 is DC open for the CH and M packages.
Port 2	IF	Port 2 is diode connected for the CH and M package.
Port 3	LO	Port 3 is DC open for the CH and M packages.

Configuration B

Port	Function	Description
GND	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	LO	Port 1 is DC open for the CH and M packages.
Port 2	IF	Port 2 is diode connected for the CH and M package.
Port 3	RF	Port 3 is DC open for the CH and M packages.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Power Handling, at any Port	30	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	1.38 x 1 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
LO Input Power	12	14	-	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized M package mixer used in the forward direction with a sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	-	RF/LO = 35 - 130 GHz I = DC - 0.2 GHz	-	8	-	dB
IF Frequency Range	-	-	0	-	50	GHz
LO Frequency Range	-	-	35	-	130	GHz
Noise Figure ²	-	RF/LO = 35 - 130 GHz I = DC - 0.2 GHz	-	8	-	dB
RF Frequency Range	-	-	35	-	130	GHz

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	-	RF/LO = 35 - 130 GHz I = DC - 0.2 GHz	-	8	-	dB
IF Frequency Range	-	-	0	-	50	GHz
LO Frequency Range	-	-	35	-	130	GHz
Noise Figure ²	-	RF/LO = 35 - 130 GHz I = DC - 0.2 GHz	-	8	-	dB
RF Frequency Range	-	-	35	-	130	GHz

^[1] Measured as a down converter to a fixed 91MHz IF.

^[2] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Typical Performance Plots

Due to difficulty generating strong LO signals at mmWave frequencies LR Isolation is measured with a small signal LO. Isolation will improve with a stronger LO signal. Discontinuity in conversion loss measurement is due to splitting the measurement into multiple bands. IIP3 is only measured up to 67GHz due to limitations in measurement setup. Conversion loss will extend to 135GHz with sufficient LO drive.

Conversion Loss (dB) graph for MM1-35130HCH-2

IF Response (dB) graph for MM1-35130HCH-2

Small-Signal L-R Isolation (dB) graph for MM1-35130HCH-2

MM1-35130HM - Typical Performance Plots

Due to difficulty generating strong LO signals at mmWave frequencies LR Isolation is measured with a small signal LO. Isolation will improve with a stronger LO signal. Discontinuity in conversion loss measurement is due to splitting the measurement into multiple bands. IIP3 is only measured up to 67GHz due to limitations in measurement setup. Conversion loss will extend to 135GHz with sufficient LO drive.

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
