MM1-1857LCH-2_GaAs MMIC Double Balanced Mixer

Device Overview

General Description

The MM1-1857L is a passive double balanced MMIC mixer. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a highly miniaturized form factor. Low LO drive requirement allows operation at as low as +7dBm inputs. The MM1-1857L is available as a wire bondable chip or an SMA connectorized package. The MM1-1857H is a superior alternative to Marki Microwave carrier and packaged M9 mixers.

Features

Compact Chip Style Package (0.054” x 0.046”x0.004”)
CAD Optimized for Superior Isolation and Spurious Response
Broadband Performance
Low LO Drive Requirement
Excellent Unit-to-Unit Repeatability
RoHS Compliant

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-1857LS	GaAs MMIC Double Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM1-1857LCH-2	GaAs MMIC Double Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-1857LS

GaAs MMIC Double Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-1857LCH-2

GaAs MMIC Double Balanced Mixer

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-1857LS	GaAs MMIC Double Balanced Mixer	S	Standard	REACH RoHS	Released	EAR99
MM1-1857LCH-2	GaAs MMIC Double Balanced Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-1857LS

GaAs MMIC Double Balanced Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-1857LCH-2

GaAs MMIC Double Balanced Mixer

REACH

RoHS

Released

EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Operation

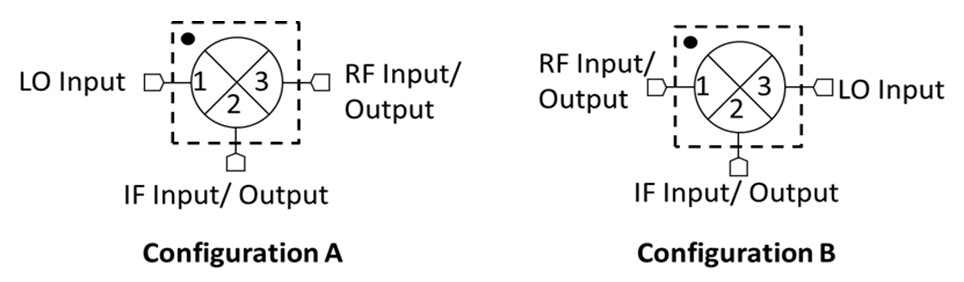

- Application Circuit
- Application Circuit Description
Mechanical Data

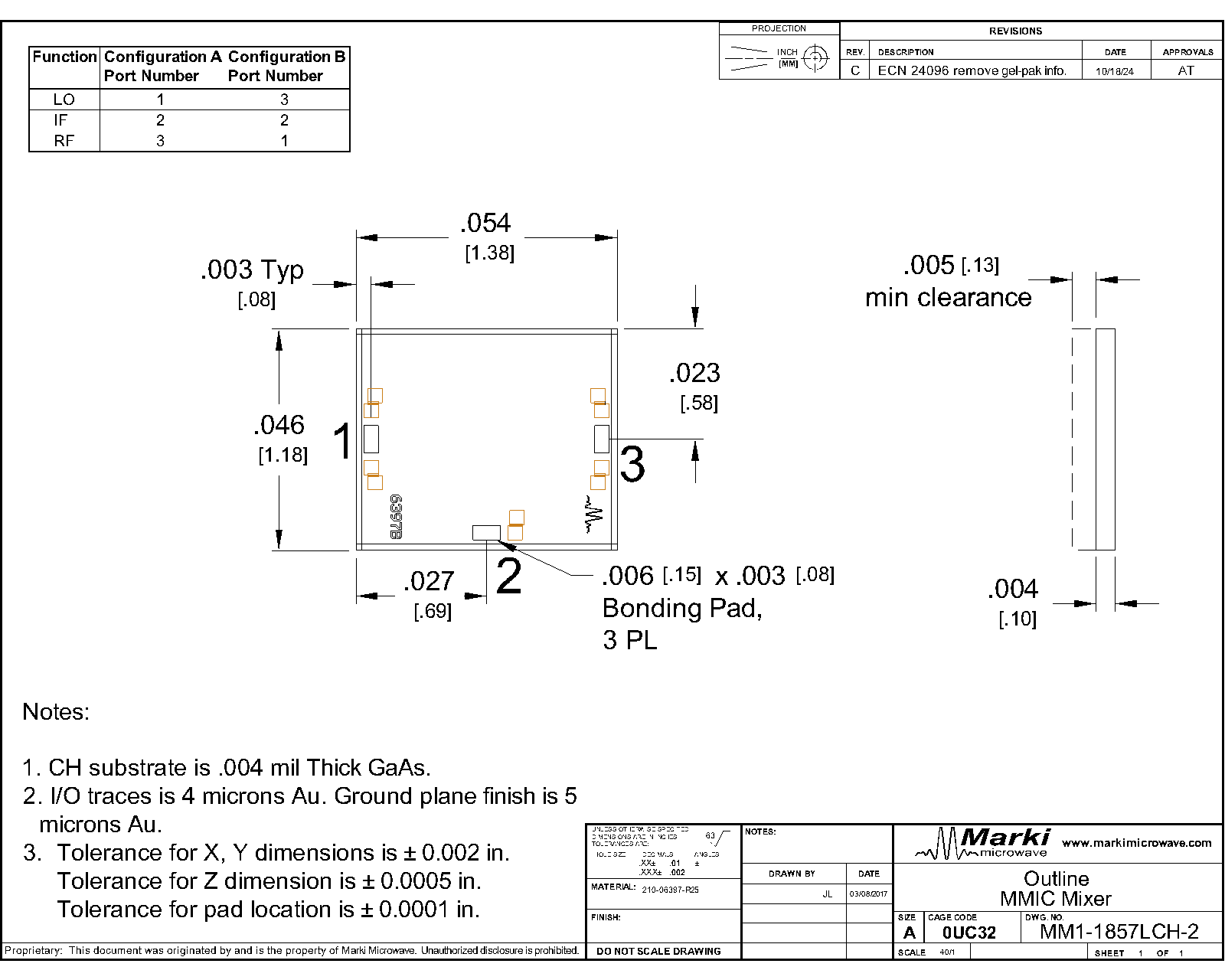

- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
A	2017-11-01	Die shrunk from 1.48 x 1.18 mm2 to 1.37 x 1.17 mm2. CH package tolerance added.
B	2018-10-01	Power Handling rating changed from +25dBm to +28dBm

Port Configuration and Functions

Port Diagram

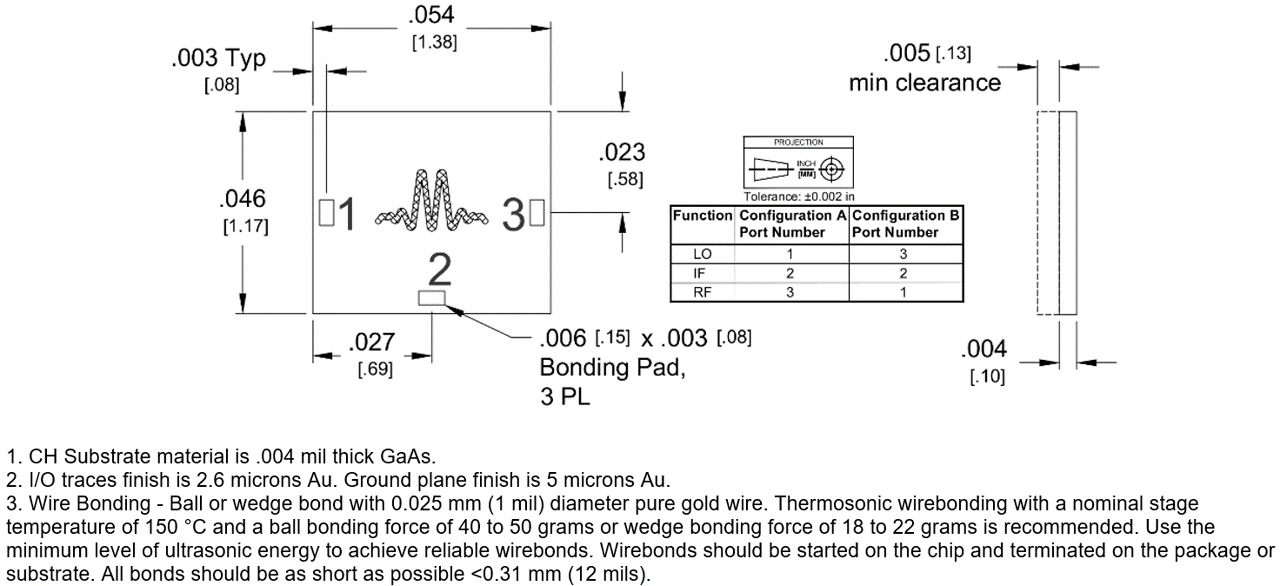

Diagram of the port configuration for MM1-1857LCH-2

Port Functions

Configuration A

Port	Function	Description
Port 1	LO	Port 1 is DC short to ground and AC matched to 50 Ohms from 18 to 57 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	RF	Port 3 is DC open and AC matched to 50 Ohms from 18 to 57 GHz. Blocking capacitor is optional.

Configuration B

Port	Function	Description
Port 1	RF	Port 1 is DC short to ground and AC matched to 50 Ohms from 18 to 57 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	LO	Port 3 is DC open and AC matched to 50 Ohms from 18 to 57 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 1 DC Current	30	mA
Port 2 DC Current	22.5	mA
RF Power Handling (RF+LO), 100°C	23	dBm
RF Power Handling (RF+LO), 25°C	28	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	1.38 x 1.17 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	7	-	15	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. Specifications are shown for Configurations A (B). All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=18-57 GHz IF=0.2-21 GHz LO drive level=13 dBm	-	12	-	dB
Conversion Loss	A	LO/RF=18-57 GHz IF=DC-0.2 GHz LO drive level=13 dBm	-	8	11	dB
Input P1dB	A	LO/RF=18-57 GHz IF=DC-21 GHz LO drive level=7-15 dBm	-	4	-	dBm
LO-RF Isolation	A	-	-	35	-	dB
Conversion Loss	B	LO/RF=18-57 GHz IF=0.2-21 GHz LO drive level=13 dBm	-	13	-	dB
Conversion Loss	B	LO/RF=18-57 GHz IF=DC-0.2 GHz LO drive level=13 dBm	-	9	12.5	dB
Input P1dB	B	LO/RF=18-57 GHz IF=DC-21 GHz LO drive level=7-15 dBm	-	4	-	dBm
IF Frequency Range	-	-	0	-	21	GHz
Input IP3	-	-	-	13	-	dBm
LO Frequency Range	-	-	18	-	57	GHz
RF Frequency Range	-	-	18	-	57	GHz

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=18-57 GHz IF=0.2-21 GHz LO drive level=13 dBm	-	12	-	dB
Conversion Loss	A	LO/RF=18-57 GHz IF=DC-0.2 GHz LO drive level=13 dBm	-	8	11	dB
Input P1dB	A	LO/RF=18-57 GHz IF=DC-21 GHz LO drive level=7-15 dBm	-	4	-	dBm
LO-RF Isolation	A	-	-	35	-	dB
Conversion Loss	B	LO/RF=18-57 GHz IF=0.2-21 GHz LO drive level=13 dBm	-	13	-	dB
Conversion Loss	B	LO/RF=18-57 GHz IF=DC-0.2 GHz LO drive level=13 dBm	-	9	12.5	dB
Input P1dB	B	LO/RF=18-57 GHz IF=DC-21 GHz LO drive level=7-15 dBm	-	4	-	dBm
IF Frequency Range	-	-	0	-	21	GHz
Input IP3	-	-	-	13	-	dBm
LO Frequency Range	-	-	18	-	57	GHz
RF Frequency Range	-	-	18	-	57	GHz

Typical Performance

Conversion Loss (dB) graph for MM1-1857LCH-2

Relative IF Response (dB) graph for MM1-1857LCH-2

Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-1857LCH-2

Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-1857LCH-2

LO to RF Isolation (dB) graph for MM1-1857LCH-2

LO to IF Isolation (dB) graph for MM1-1857LCH-2

RF to IF Isolation (dB) graph for MM1-1857LCH-2

IF Return Loss (dB) graph for MM1-1857LCH-2

RF Return Loss (dB) graph for MM1-1857LCH-2

LO Return Loss (dB) graph for MM1-1857LCH-2

Output IP3 (dBm) graph for MM1-1857LCH-2

Configuration A Output IP3 vs LO Power (dBm) graph for MM1-1857LCH-2

Configuration B Input IP3 vs LO Power (dBm) graph for MM1-1857LCH-2

Configuration A Input IP3 vs LO Power (dBm) graph for MM1-1857LCH-2

Configuration B Output IP3 vs LO Power (dBm) graph for MM1-1857LCH-2

2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-1857LCH-2

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM1-1857LCH-2

MM1-1857LS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
