MM1-1467LCH-2_GaAs MMIC High Dynamic Range Mixer

Device Overview

General Description

MM1-1467L is a GaAs MMIC double balanced mixer with a broad IF bandwidth and low conversion loss. This mixer ideal for applications which require broad IF bandwidths with operation at mmWave frequencies. The MM1-1467L is available as both wire bondable die and as connectorized modules. The -1 option for die is available for this mixer. Both the -1 and -2 mixers are electrically identically but with mirrored footprints.

Features

High LO to RF isolation
Broad IF bands covering critical Ku & K band
Flat IF response through K band
Low LO drive

Applications

Test and Measurement Equipment
Fixed RF up converters
Electronic warfare equipment

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-1467LUB	GaAs MMIC High Dynamic Range Mixer	UB	Standard	REACH RoHS	Released	EAR99
MM1-1467LCH-1	GaAs MMIC High Dynamic Range Mixer	CH	-	REACH RoHS	Released	EAR99
MM1-1467LCH-2	GaAs MMIC High Dynamic Range Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-1467LUB

GaAs MMIC High Dynamic Range Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-1467LCH-1

GaAs MMIC High Dynamic Range Mixer

REACH

RoHS

Released

EAR99

MM1-1467LCH-2

GaAs MMIC High Dynamic Range Mixer

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-1467LUB	GaAs MMIC High Dynamic Range Mixer	UB	Standard	REACH RoHS	Released	EAR99
MM1-1467LCH-1	GaAs MMIC High Dynamic Range Mixer	CH	-	REACH RoHS	Released	EAR99
MM1-1467LCH-2	GaAs MMIC High Dynamic Range Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-1467LUB

GaAs MMIC High Dynamic Range Mixer

Standard

REACH

RoHS

Released

EAR99

MM1-1467LCH-1

GaAs MMIC High Dynamic Range Mixer

REACH

RoHS

Released

EAR99

MM1-1467LCH-2

GaAs MMIC High Dynamic Range Mixer

REACH

RoHS

Released

EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Mechanical Data
- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
A	2023-10-18	Electrical Specifications Conversion Loss Limits Updated

Port Configuration and Functions

Port Diagram

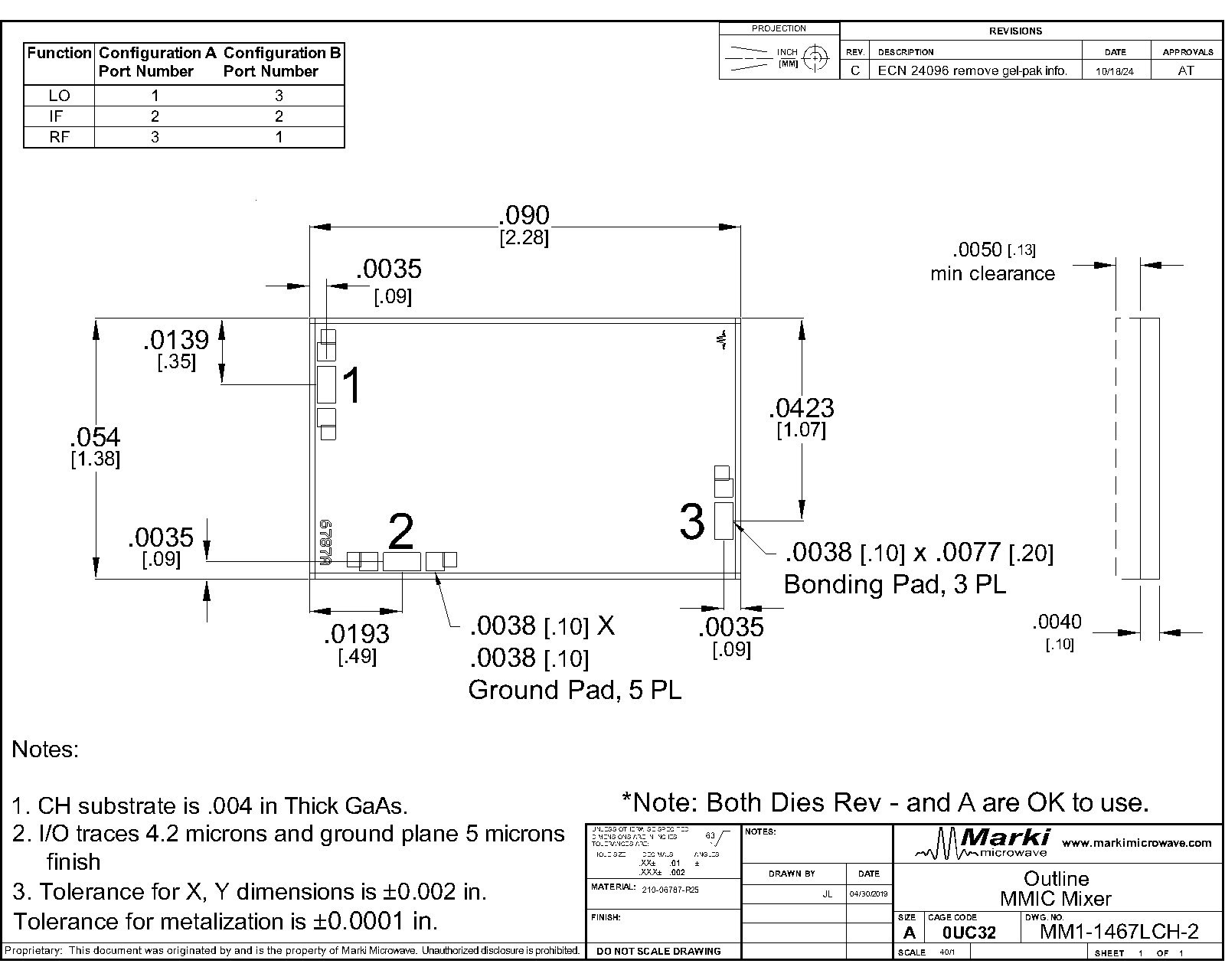

A top-down view of the MM1-1467LCH-2 outline drawing is shown below. Both mixers are electrically identical and have mirrored footprints. The MM1-1467L has the input and output ports given in Port Functions. The MM1-1467L can be used in either an up or down conversion.

Diagram of the port configuration for MM1-1467LCH-2

Port Functions

Configuration A

Port	Function	Description
GND	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	LO	Port 1 is DC open for the CH and UB packages
Port 2	IF	Port 2 is diode connected for the CH and UB package
Port 3	RF	Port 3 is DC open for the CH and UB packages.

Configuration B

Port	Function	Description
GND	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	RF	Port 1 is DC open for the CH and UB packages.
Port 2	IF	Port 2 is diode connected for the CH and UB package.
Port 3	LO	Port 3 is DC open for the CH and UB packages.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Power Handling, at any Port	27	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	2.28x1.38mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
LO Input Power	9	-	13	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized UB package mixer used with a +13 dBm sine wave LO. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	A	RF/LO = 14 - 60 GHz I = 0.091 GHz	-	7	12	dB
Conversion Loss ²	A	RF/LO = 14 - 67 GHz I = 0.091 GHz	-	9	-	dB
Conversion Loss	A	RF/LO = 60 - 67 GHz I = 0.091 GHz	-	7	14	dB
Input IP3	A	RF/LO = 14 - 67 GHz I = 0.091 GHz	-	12	-	dBm
Input P1dB	A	-	-	3	-	dBm
Conversion Loss ³	B	RF/LO = 14 - 60 GHz I = 0.091 GHz	-	8.5	13	dB
Conversion Loss ⁴	B	RF/LO = 14 - 67 GHz I = 0.091- 21 GHz	-	10.5	-	dB
Conversion Loss	B	RF/LO = 60 - 67 GHz I = 0.091 GHz	-	8	15	dB
Input IP3	B	RF/LO = 14 - 67 GHz I = 0.091 GHz	-	13	-	dBm
Input P1dB	B	-	-	3.5	-	dBm
IF Frequency Range	-	-	0	-	21	GHz
LO Frequency Range	-	-	14	-	67	GHz
LO-IF Isolation	-	IF/LO = 14 - 67 GHz	-	33	-	dB
LO-RF Isolation	-	RF/LO = 14 - 67 GHz	-	53	-	dB
Noise Figure ⁵	-	RF/LO = 14 - 67 GHz I = 0.091- 21 GHz	-	8.5	-	dB
RF Frequency Range	-	-	14	-	67	GHz
RF-IF Isolation	-	RF/IF = 14 - 67 GHz	-	48	-	dB

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss ¹	A	RF/LO = 14 - 60 GHz I = 0.091 GHz	-	7	12	dB
Conversion Loss ²	A	RF/LO = 14 - 67 GHz I = 0.091 GHz	-	9	-	dB
Conversion Loss	A	RF/LO = 60 - 67 GHz I = 0.091 GHz	-	7	14	dB
Input IP3	A	RF/LO = 14 - 67 GHz I = 0.091 GHz	-	12	-	dBm
Input P1dB	A	-	-	3	-	dBm
Conversion Loss ³	B	RF/LO = 14 - 60 GHz I = 0.091 GHz	-	8.5	13	dB
Conversion Loss ⁴	B	RF/LO = 14 - 67 GHz I = 0.091- 21 GHz	-	10.5	-	dB
Conversion Loss	B	RF/LO = 60 - 67 GHz I = 0.091 GHz	-	8	15	dB
Input IP3	B	RF/LO = 14 - 67 GHz I = 0.091 GHz	-	13	-	dBm
Input P1dB	B	-	-	3.5	-	dBm
IF Frequency Range	-	-	0	-	21	GHz
LO Frequency Range	-	-	14	-	67	GHz
LO-IF Isolation	-	IF/LO = 14 - 67 GHz	-	33	-	dB
LO-RF Isolation	-	RF/LO = 14 - 67 GHz	-	53	-	dB
Noise Figure ⁵	-	RF/LO = 14 - 67 GHz I = 0.091- 21 GHz	-	8.5	-	dB
RF Frequency Range	-	-	14	-	67	GHz
RF-IF Isolation	-	RF/IF = 14 - 67 GHz	-	48	-	dB

^[1]^[2]^[3]^[4]^[5] Measured as a down converter to a fixed 91 MHz IF. Unless otherwise stated, frequency conversion done using a highside LO.

Typical Performance Plots

Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-1467LCH-2

Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-1467LCH-2

Relative IF Response (dB) graph for MM1-1467LCH-2

IF Return Loss (dB) graph for MM1-1467LCH-2

RF Return Loss (dB) graph for MM1-1467LCH-2

LO Return Loss (dB) graph for MM1-1467LCH-2

LO to RF Isolation (dB) graph for MM1-1467LCH-2

LO to IF Isolation (dB) graph for MM1-1467LCH-2

RF to IF Isolation (dB) graph for MM1-1467LCH-2

Typical Performance Plots: IP3

Output IP3 (dBm) graph for MM1-1467LCH-2

Configuration A Input IP3 vs LO Power (dBm) graph for MM1-1467LCH-2

Configuration A Output IP3 vs LO Power (dBm) graph for MM1-1467LCH-2

Configuration B Input IP3 vs LO Power (dBm) graph for MM1-1467LCH-2

Configuration B Output IP3 vs LO Power (dBm) graph for MM1-1467LCH-2

Typical Performance Plots: LO Harmonic Isolation

Even LO Harmonic to RF Isolation (dB) graph for MM1-1467LCH-2

Even LO Harmonic to IF Isolation (dB) graph for MM1-1467LCH-2

Odd LO Harmonic to RF Isolation (dB) graph for MM1-1467LCH-2

Odd LO Harmonic to IF Isolation (dB) graph for MM1-1467LCH-2

2RF x 2LO Spurious Suppression (dBc) -10 dBm IF Input graph for MM1-1467LCH-2

2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-1467LCH-2

Typical Performance Plots: Tuner Mixer

Tuner mixer performance plots are taken with the following test conditions and frequency plan:

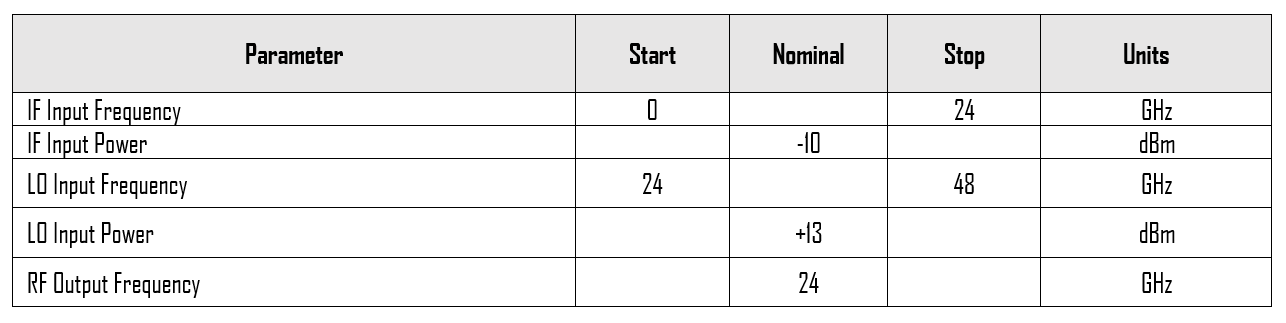

M M1 1467 L Tuner Mixer Test Condition and Frequency Plan

Tuner Conversion Loss (dB) graph for MM1-1467LCH-2

Tuner IIP3 (dBm) graph for MM1-1467LCH-2

Tuner OIP3 (dBm) graph for MM1-1467LCH-2

MM1-1467LUB - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
