The MM1-1044L is a low power GaAs MMIC double balanced mixer that is designed for and operates at the K and Ka band 5G frequencies. MM1-1044L is a low power Ka band mixer that works well as both an up and down converter. This mixer offers low conversion loss and high LO to RF isolations over a broadband Ku to Ka band. The sister MM1-1044H is recommended for high linearity applications. The MM1-1044L is available as both wire bondable die and as connectorized modules.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-1044LS-KKS | Low Power GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MM1-1044LS | Low Power GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MM1-1044LCH-2 | Low Power GaAs MMIC Double Balanced Mixer | CH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-1044LS-KKS | Low Power GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MM1-1044LS | Low Power GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MM1-1044LCH-2 | Low Power GaAs MMIC Double Balanced Mixer | CH | - | REACH RoHS | Released | EAR99 |
MM1-1044LCH-2
Low Power GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-02-01 | Datasheet Initial Release |
| A | 2020-02-01 | Correction to Spur Chart |
| B | 2020-03-01 | Power Handling Update |
MM1-1044LCH-2
Low Power GaAs MMIC Double Balanced Mixer

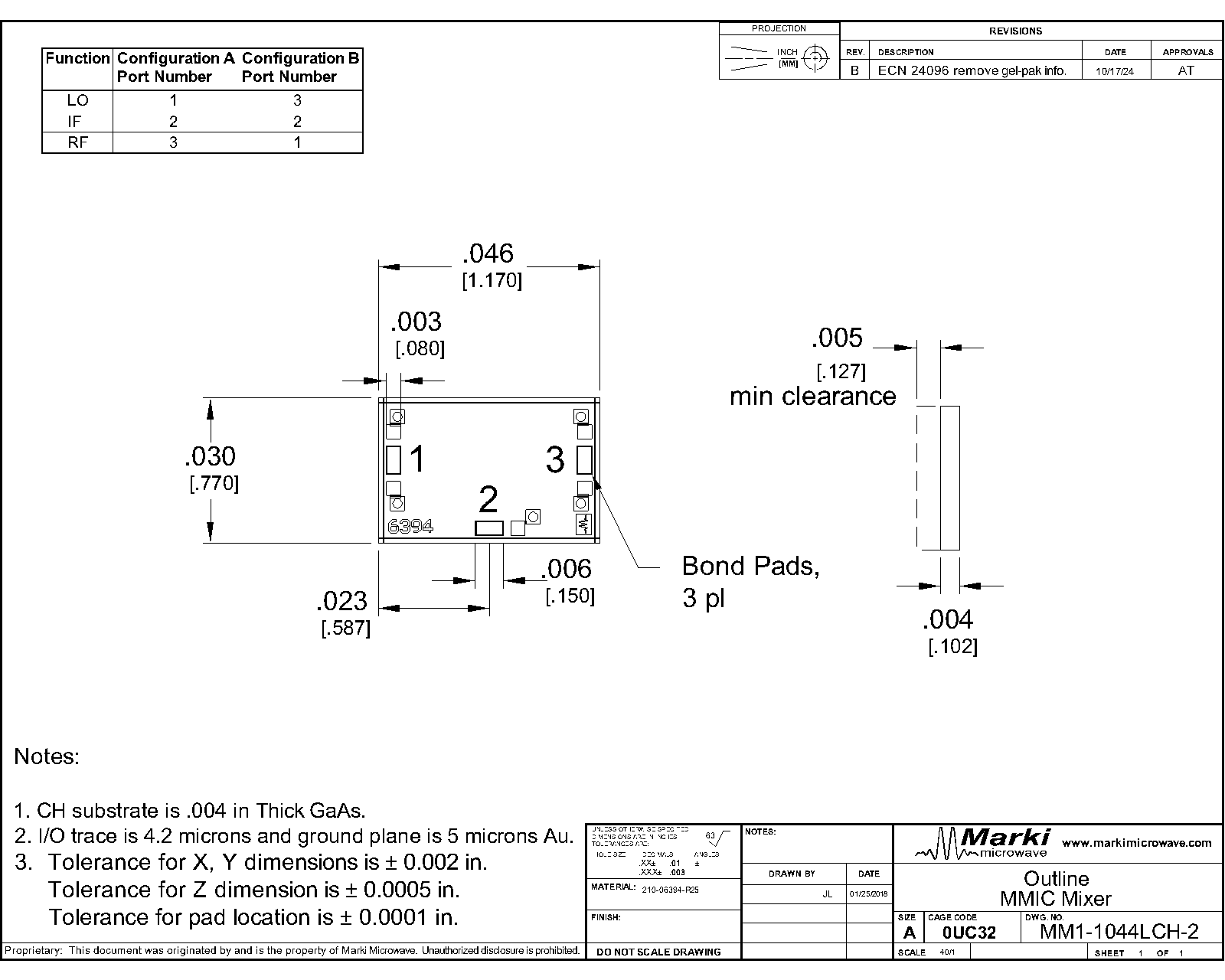

A top-down view of the MM1-1044L’s CH package outline drawing is shown below. The MM1-1044L has the input and output ports given in Port Functions. The MM1-1044L can be used in either an up or down conversion. For configuration A, input the LO into port 1, use port 3 for the RF, and port 2 for the IF. For configuration B, input the LO into port 3, use port 1 for the RF, and port 2 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | LO | Port 1 is DC short for the CH and S packages. |  |
| Port 2 | IF | Port 2 is diode connected for the CH and S package. |  |
| Port 3 | RF | Port 3 is DC open for the CH and S packages. |  |
MM1-1044LCH-2
Low Power GaAs MMIC Double Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. | |
| Port 1 | RF | Port 1 is DC short for the CH and S packages. | |
| Port 2 | IF | Port 2 is diode connected for the CH and S package. | |
| Port 3 | LO | Port 3 is DC open for the CH and S packages. | |
MM1-1044LCH-2
Low Power GaAs MMIC Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling (RF+LO) | 30 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 1.17 x 0.77mm |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 7 | - | 15 | dBm |
| Ambient Temperature | -55 | 25 | 100 | °C |
MM1-1044LCH-2
Low Power GaAs MMIC Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized S package mixer used in the forward direction with a +9 dBm sine wave input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected. RF testing of our die is performed on a sample basis to verify conformance to datasheet guaranteed specifications.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 9 - 44 GHz I = 4 - 14 GHz | - | 9.5 | - | dB |
| Conversion Loss 2 | A | RF/LO = 9 - 44 GHz I = DC - 4 GHz | - | 7.6 | 13.5 | dB |
| Input IP3 | A | RF/LO = 9 - 44 GHz I = DC - 0.2 GHz | - | 12.5 | - | dBm |
| Input P1dB | A | - | - | 5 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 9 - 44 GHz I = 4 - 14 GHz | - | 10 | - | dB |
| Conversion Loss 4 | B | RF/LO = 9 - 44 GHz I = DC - 4 GHz | - | 8.6 | 14.5 | dB |
| Input IP3 | B | RF/LO = 9 - 44 GHz I = DC - 0.2 GHz | - | 13.7 | - | dBm |
| Input P1dB | B | - | - | 6 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 14 | GHz |
| LO Frequency Range | - | - | 10 | - | 44 | GHz |
| LO-IF Isolation | - | IF/LO = 9 - 44 GHz | - | 49 | - | dB |
| LO-RF Isolation | - | RF/LO = 9 - 44 GHz | - | 47 | - | dB |
| Noise Figure 5 | - | RF/LO = 9 - 44 GHz I = DC - 0.2 GHz | - | 7.6 | - | dB |
| RF Frequency Range | - | - | 10 | - | 44 | GHz |
| RF-IF Isolation | - | RF/IF = 9 - 44 GHz | - | 39 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 9 - 44 GHz I = 4 - 14 GHz | - | 9.5 | - | dB |
| Conversion Loss 2 | A | RF/LO = 9 - 44 GHz I = DC - 4 GHz | - | 7.6 | 13.5 | dB |
| Input IP3 | A | RF/LO = 9 - 44 GHz I = DC - 0.2 GHz | - | 12.5 | - | dBm |
| Input P1dB | A | - | - | 5 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 9 - 44 GHz I = 4 - 14 GHz | - | 10 | - | dB |
| Conversion Loss 4 | B | RF/LO = 9 - 44 GHz I = DC - 4 GHz | - | 8.6 | 14.5 | dB |
| Input IP3 | B | RF/LO = 9 - 44 GHz I = DC - 0.2 GHz | - | 13.7 | - | dBm |
| Input P1dB | B | - | - | 6 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 14 | GHz |
| LO Frequency Range | - | - | 10 | - | 44 | GHz |
| LO-IF Isolation | - | IF/LO = 9 - 44 GHz | - | 49 | - | dB |
| LO-RF Isolation | - | RF/LO = 9 - 44 GHz | - | 47 | - | dB |
| Noise Figure 5 | - | RF/LO = 9 - 44 GHz I = DC - 0.2 GHz | - | 7.6 | - | dB |
| RF Frequency Range | - | - | 10 | - | 44 | GHz |
| RF-IF Isolation | - | RF/IF = 9 - 44 GHz | - | 39 | - | dB |
[1][2][3][4] Measured as a down converter to a fixed 91MHz IF.
[5] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
