Device Overview

General Description

The MM1-0626S is a high linearity passive double balanced MMIC mixer. The S diode offers superior 1 dB compression, two tone intermodulation performance, and spurious suppression to other GaAs MMIC mixers. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a miniature form factor. Accurate, nonlinear simulation models are available for Microwave Office® through the Marki Microwave PDK. The MM1-0626S is available as a wire bondable chip or an SMA connectorized package. The MM1-0626S is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers.

Photo of MM1-0626SCH-2

Features

  • Compact Chip Style Package (0.054” x 0.046”x0.004”)
  • CAD Optimized for Superior Isolation and Spurious Response
  • Broadband Performance
  • Excellent Unit-to-Unit Repeatability
  • Fully nonlinear software models available with Marki PDK for Microwave Office®
  • RoHS Compliant

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
MM1-0626SSGaAs MMIC Double Balanced MixerSStandard

REACH

RoHS

ReleasedEAR99
MM1-0626SCH-2GaAs MMIC Double Balanced MixerCH-

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
A2019-02-01Die shrunk from 1.47 x 1.18 mm2 to 1.38 x 1.17 mm2. CH package tolerance added.
B2022-08-01Recommended LO Drive Range Updated

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

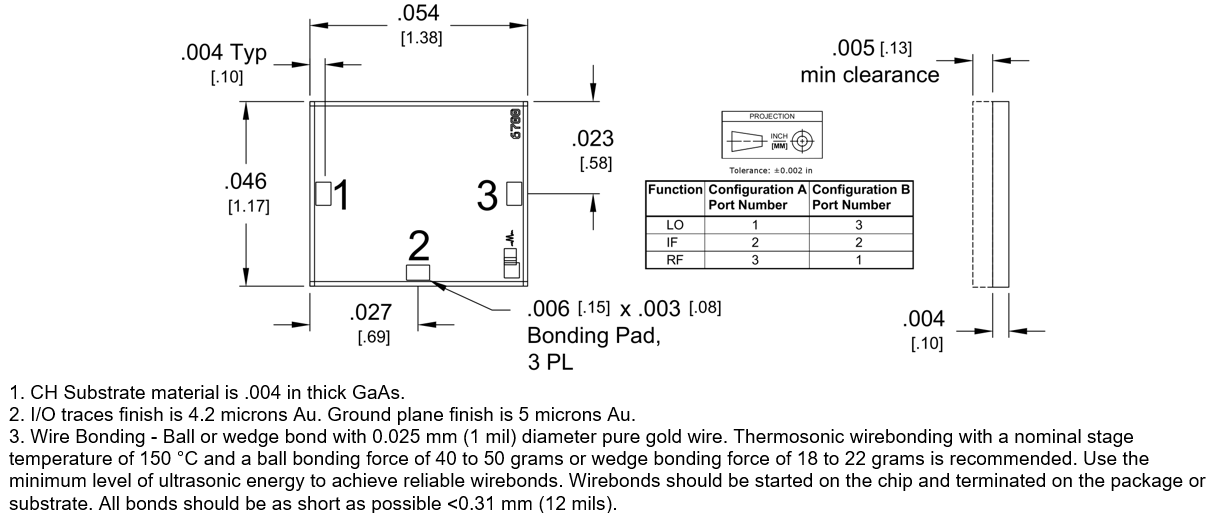

Diagram of the port configuration for MM1-0626SCH-2

Port Functions

Configuration A

PortFunctionDescriptionDC Equivalent
Circuit
Port 1LO Port 1 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
Port 2IF Port 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3RF Port 3 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

3

Configuration B

PortFunctionDescriptionDC Equivalent
Circuit
Port 1RF Port 1 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the RF
Port 2IF Port 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3LO Port 3 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the LO

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. Specifications are shown for Configurations A (B). All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 2 DC Current 15mA
RF Power Handling (RF+LO), 100°C 20dBm
RF Power Handling (RF+LO), 25°C 32dBm

Package Information

ParameterDetailsRating
Dimensions-1.38 x 1.17 mm
ParameterMinNominalMaxUnit
LO Input Power 17-23-

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

5

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. Specifications are shown for Configurations A (B). All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
Conversion Loss ALO=6-26GHz
RF=6-26.5GHz
IF=DC-9GHz
LO drive level=20dBm
-7.5-dB
Input IP3 ALO=6-26GHz
RF=6-26.5GHz
IF=DC-9GHz
LO drive level=17-23dBm
-27-dBm
Input P1dB ALO=6-26GHz
RF=6-26.5GHz
IF=DC-9GHz
LO drive level=17-23dBm
-14-dBm
Conversion Loss BLO=6-26.5GHz
RF=6-26GHz
IF=DC-9GHz
LO drive level=20dBm
-8.5-dB
Input IP3 BLO=6-26.5GHz
RF=6-26GHz
IF=DC-9GHz
LO drive level=17-23dBm
-28-dBm
Input P1dB BLO=6-26.5GHz
RF=6-26GHz
IF=DC-9GHz
LO drive level=17-23dBm
-14-dBm
IF Frequency Range --0-9GHz
LO Frequency Range --6-26.5GHz
LO-IF Isolation -LO=6-26GHz
RF=6-26.5GHz
IF=DC-9GHz
LO drive level=17-23dBm
-34-dB
LO-RF Isolation -LO=6-26GHz
RF=6-26.5GHz
IF=DC-9GHz
LO drive level=17-23dBm
-47-dB
RF Frequency Range --6-26.5GHz
RF Frequency Range --6-26GHz
RF-IF Isolation -LO=6-26GHz
RF=6-26.5GHz
IF=DC-9GHz
LO drive level=17-23dBm
-34-dB

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

6

Typical Performance

Conversion Loss: 100 MHz IF (dB) graph for MM1-0626SCH-2
Relative IF Response (dB) graph for MM1-0626SCH-2
Configuration A Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0626SCH-2
Configuration B Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0626SCH-2
LO to RF Isolation (dB) graph for MM1-0626SCH-2
LO to IF Isolation (dB) graph for MM1-0626SCH-2
RF to IF Isolation (dB) graph for MM1-0626SCH-2
RF Return Loss (dB) graph for MM1-0626SCH-2

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

7

LO Return Loss (dB) graph for MM1-0626SCH-2
IF Return Loss (dB) graph for MM1-0626SCH-2
Input IP3: 100 MHz IF (dBm) graph for MM1-0626SCH-2
Output IP3: 100 MHz IF (dBm) graph for MM1-0626SCH-2
Even LO Harmonic to RF Isolation (dB) graph for MM1-0626SCH-2
Even LO Harmonic to IF Isolation (dB) graph for MM1-0626SCH-2
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0626SCH-2
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0626SCH-2

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

8

Output IP3: 100 MHz IF (dBm) graph for MM1-0626SCH-2
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0626SCH-2

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

9

MM1-0626SS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.

Conversion Loss: 100 MHz IF (dB) graph for MM1-0626SS
Relative IF Response (dB) graph for MM1-0626SS
Configuration A Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0626SS
Configuration B Conversion Loss vs. LO Power: 100 MHz IF (dB) graph for MM1-0626SS
LO to RF Isolation (dB) graph for MM1-0626SS
LO to IF Isolation (dB) graph for MM1-0626SS
RF to IF Isolation (dB) graph for MM1-0626SS
RF Return Loss (dB) graph for MM1-0626SS

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

10

LO Return Loss (dB) graph for MM1-0626SS
IF Return Loss (dB) graph for MM1-0626SS
Input IP3: 100 MHz IF (dBm) graph for MM1-0626SS
Output IP3: 100 MHz IF (dBm) graph for MM1-0626SS
Even LO Harmonic to RF Isolation (dB) graph for MM1-0626SS
Even LO Harmonic to IF Isolation (dB) graph for MM1-0626SS
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0626SS
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0626SS

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

11

2RF x 2LO Spurious Suppression (dBc) graph for MM1-0626SS
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0626SS

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

12

Application Circuit

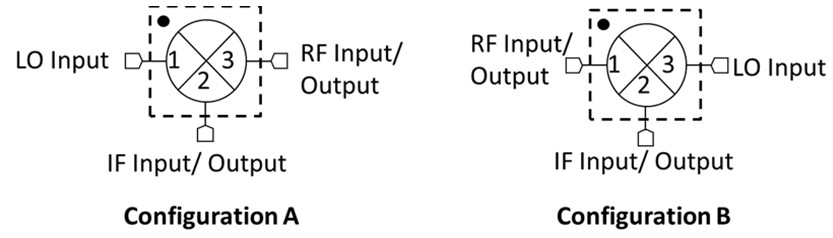

Application Circuit for MM1-0626SCH-2

Rev: B | Copyright © 2019, 2022 Marki Microwave LLC.

13

Mechanical Data

Outline Drawing

Download : Outline 2D Drawing

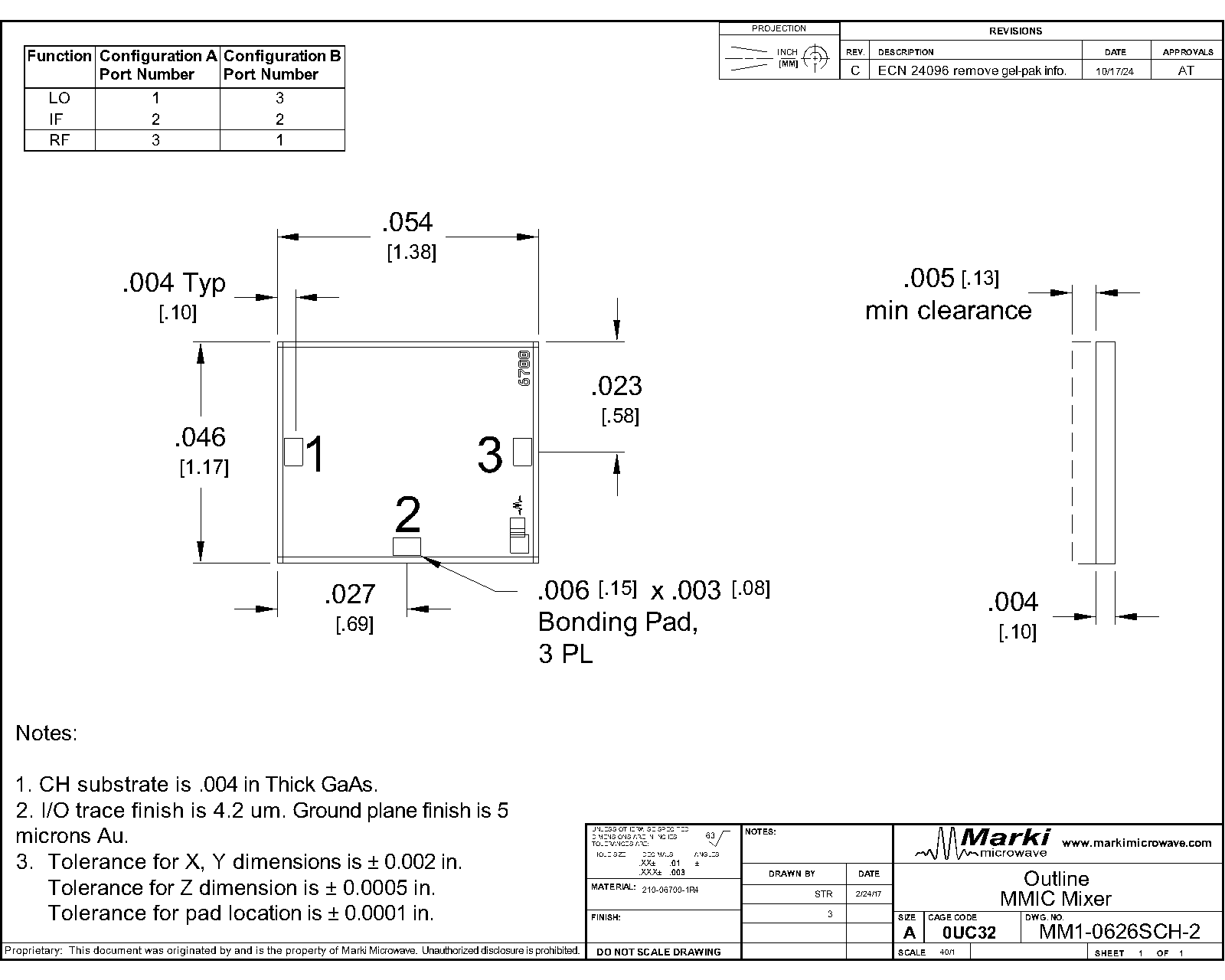

Outline Drawing
