MM1-0320HCH-2_GaAs DOUBLE-BALANCED MIXER

Device Overview

General Description

The MM1-0320H is a passive double balanced MMIC mixer. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a highly miniaturized form factor. Accurate, nonlinear simulation models are available for Microwave Office® through the Marki Microwave PDK. The MM1-0320H is available as a wire bondable chip or an SMA connectorized package. The MM1-0320H is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers

Features

• Compact Chip Style Package (0.058” x 0.046”x0.004”)
• CAD Optimized for Superior Isolation and Spurious Response
• Broadband Performance
• Excellent Unit-to-Unit Repeatability
• Fully nonlinear software models available with Marki PDK for Microwave Office®
• RoHS Compliant

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-0320HS	GaAs DOUBLE-BALANCED MIXER	S	Standard	REACH RoHS	Released	EAR99
MM1-0320HCH-2	GaAs DOUBLE-BALANCED MIXER	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-0320HS

GaAs DOUBLE-BALANCED MIXER

Standard

REACH

RoHS

Released

EAR99

MM1-0320HCH-2

GaAs DOUBLE-BALANCED MIXER

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MM1-0320HS	GaAs DOUBLE-BALANCED MIXER	S	Standard	REACH RoHS	Released	EAR99
MM1-0320HCH-2	GaAs DOUBLE-BALANCED MIXER	CH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MM1-0320HS

GaAs DOUBLE-BALANCED MIXER

Standard

REACH

RoHS

Released

EAR99

MM1-0320HCH-2

GaAs DOUBLE-BALANCED MIXER

REACH

RoHS

Released

EAR99

Port Configuration and Functions

Port Functions

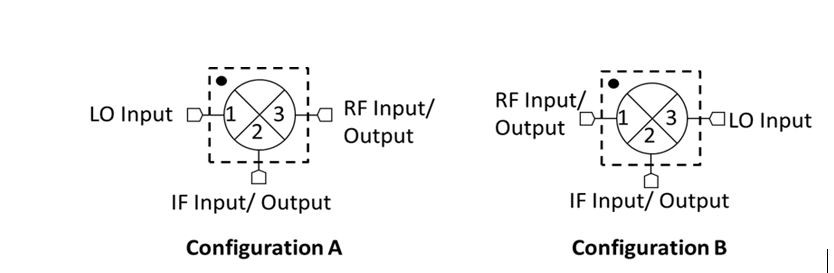

Configuration A

Port	Function	Description
Port 1	LO	Electrical Specifications - Specifications guaranteed from -55 to +100°C, measured in a 50Ω system
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	RF	Port 3 is DC short to ground and AC matched to 50 Ohms from 3.5 to 20 GHz. Blocking capacitor is optional.

Configuration B

Port	Function	Description
Port 1	RF	Port 1 is DC short to ground and AC matched to 50 Ohms from 3.5 to 20 GHz. Blocking capacitor is optional.
Port 2	IF	Port 2 is DC coupled to the diodes. Blocking capacitor is optional.
Port 3	LO	Port 3 is DC short to ground and AC matched to 50 Ohms from 3.5 to 20 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 1 DC Current	15	mA
Port 2 DC Current	30	mA
Port 3 DC Current	15	mA
RF Power Handling (RF+LO), 100°C	21	dBm
RF Power Handling (RF+LO), 25°C	25	dBm

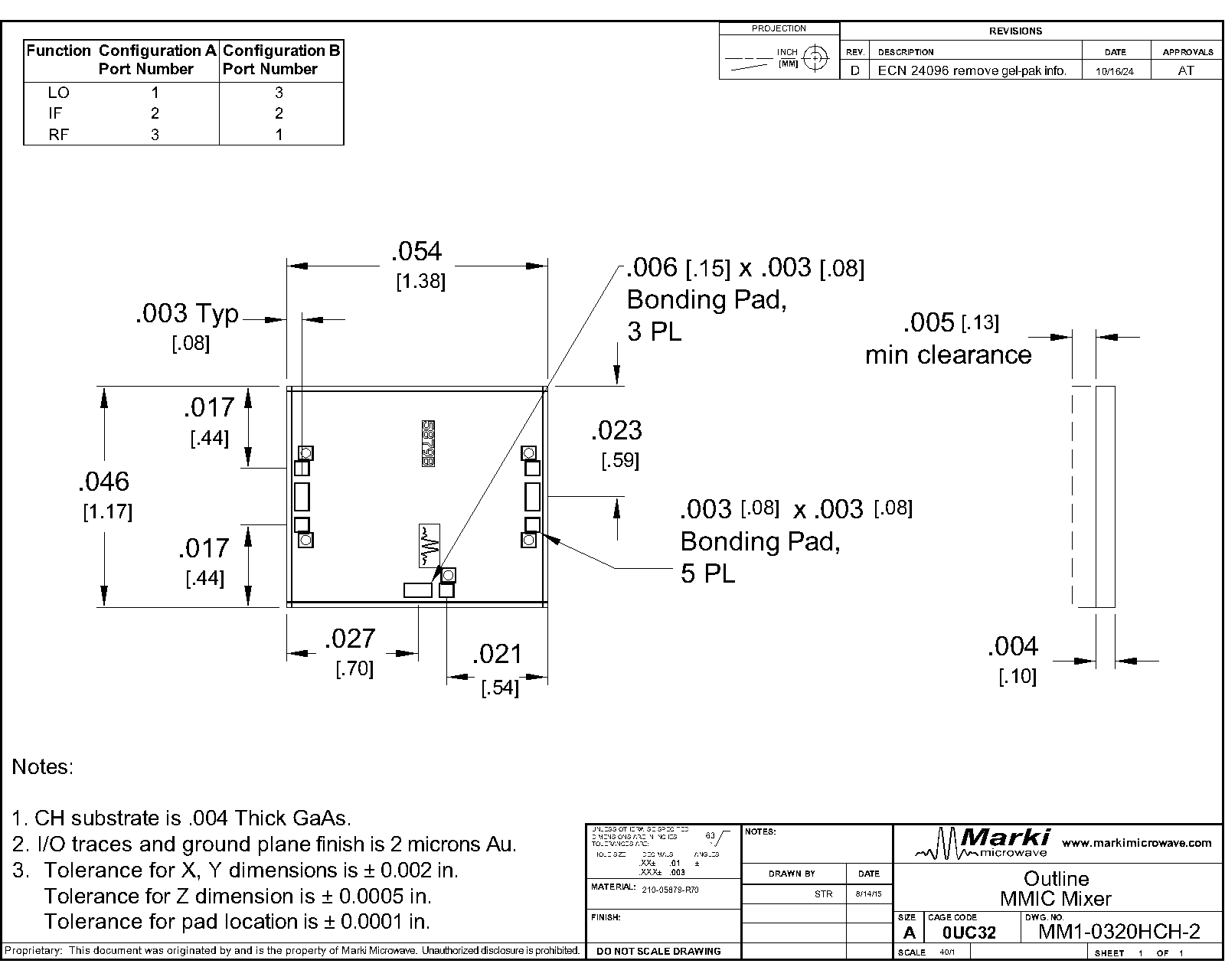

Package Information

Parameter	Details	Rating
Dimensions	-	1.38 x 1.17 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	12	-	20	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=3.5-20GHz IF=DC-4GHz	-	8	13	dB
IF Frequency Range	A	-	0	-	4	GHz
Input IP3	A	LO/RF=3.5-20GHz IF=DC-4GHz LO drive level=13-20dBm	-	20	-	dBm
Input P1dB	A	LO/RF=3.5-20GHz IF=DEC-4GHz LO drive level=13-20dBm	-	9	-	dBm
LO Frequency Range	A	-	3.5	-	20	GHz
LO-RF Isolation	A	-	-	52	-	dB
RF Frequency Range	A	-	3.5	-	20	GHz
Conversion Loss	B	LO/RF=3.5-20GHz IF=DC-4GHz	-	9	16	dB
Input IP3	B	LO/RF=3.5-20GHz IF=DC-4GHz LO drive level=12-17dBm	-	20	-	dBm
Input P1dB	B	LO/RF=3.5-20GHz IF=DC-4GHz LO drive level=12-17dBm	-	9	-	dBm

Parameter	Port Configuration	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	A	LO/RF=3.5-20GHz IF=DC-4GHz	-	8	13	dB
IF Frequency Range	A	-	0	-	4	GHz
Input IP3	A	LO/RF=3.5-20GHz IF=DC-4GHz LO drive level=13-20dBm	-	20	-	dBm
Input P1dB	A	LO/RF=3.5-20GHz IF=DEC-4GHz LO drive level=13-20dBm	-	9	-	dBm
LO Frequency Range	A	-	3.5	-	20	GHz
LO-RF Isolation	A	-	-	52	-	dB
RF Frequency Range	A	-	3.5	-	20	GHz
Conversion Loss	B	LO/RF=3.5-20GHz IF=DC-4GHz	-	9	16	dB
Input IP3	B	LO/RF=3.5-20GHz IF=DC-4GHz LO drive level=12-17dBm	-	20	-	dBm
Input P1dB	B	LO/RF=3.5-20GHz IF=DC-4GHz LO drive level=12-17dBm	-	9	-	dBm

Typical Performance Plots

Conversion Loss (dB) graph for MM1-0320HCH-2

Relative IF Response (dB) graph for MM1-0320HCH-2

Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-0320HCH-2

Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-0320HCH-2

LO to RF Isolation (dB) graph for MM1-0320HCH-2

LO to IF Isolation (dB) graph for MM1-0320HCH-2

RF to IF Isolation (dB) graph for MM1-0320HCH-2

IF Return Loss (dB) graph for MM1-0320HCH-2

RF Return Loss (dB) graph for MM1-0320HCH-2

LO Return Loss (dB) graph for MM1-0320HCH-2

Output IP3 (dBm) graph for MM1-0320HCH-2

Even LO Harmonic to RF Isolation (dB) graph for MM1-0320HCH-2

Even LO Harmonic to IF Isolation (dB) graph for MM1-0320HCH-2

Odd LO Harmonic to RF Isolation (dB) graph for MM1-0320HCH-2

Odd LO Harmonic to IF Isolation (dB) graph for MM1-0320HCH-2

2RF x 2LO Spurious Suppression (dBc) -10 dBm IF Input graph for MM1-0320HCH-2

2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0320HCH-2

MM1-0320HS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
