Device Overview
General Description
The MM1-0312H is a passive double balanced MMIC mixer. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a highly miniaturized form factor. Accurate, nonlinear simulation models are available for Microwave Office® through the Marki Microwave PDK. The MM1-0312H is available as a wire bondable chip or an SMA connectorized package. The MM1-0312H is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers.
Features
- Compact Chip Style Package (0.054” x 0.046”x0.004”)
- CAD Optimized for Superior Isolation and Spurious Response
- Broadband Performance
- Excellent Unit-to-Unit Repeatability
- Fully nonlinear software models available with Marki PDK for Microwave Office
- RoHS Compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0312HS | GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MM1-0312HCH-2 | GaAs MMIC Double Balanced Mixer | CH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0312HS | GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MM1-0312HCH-2 | GaAs MMIC Double Balanced Mixer | CH | - | REACH RoHS | Released | EAR99 |
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations

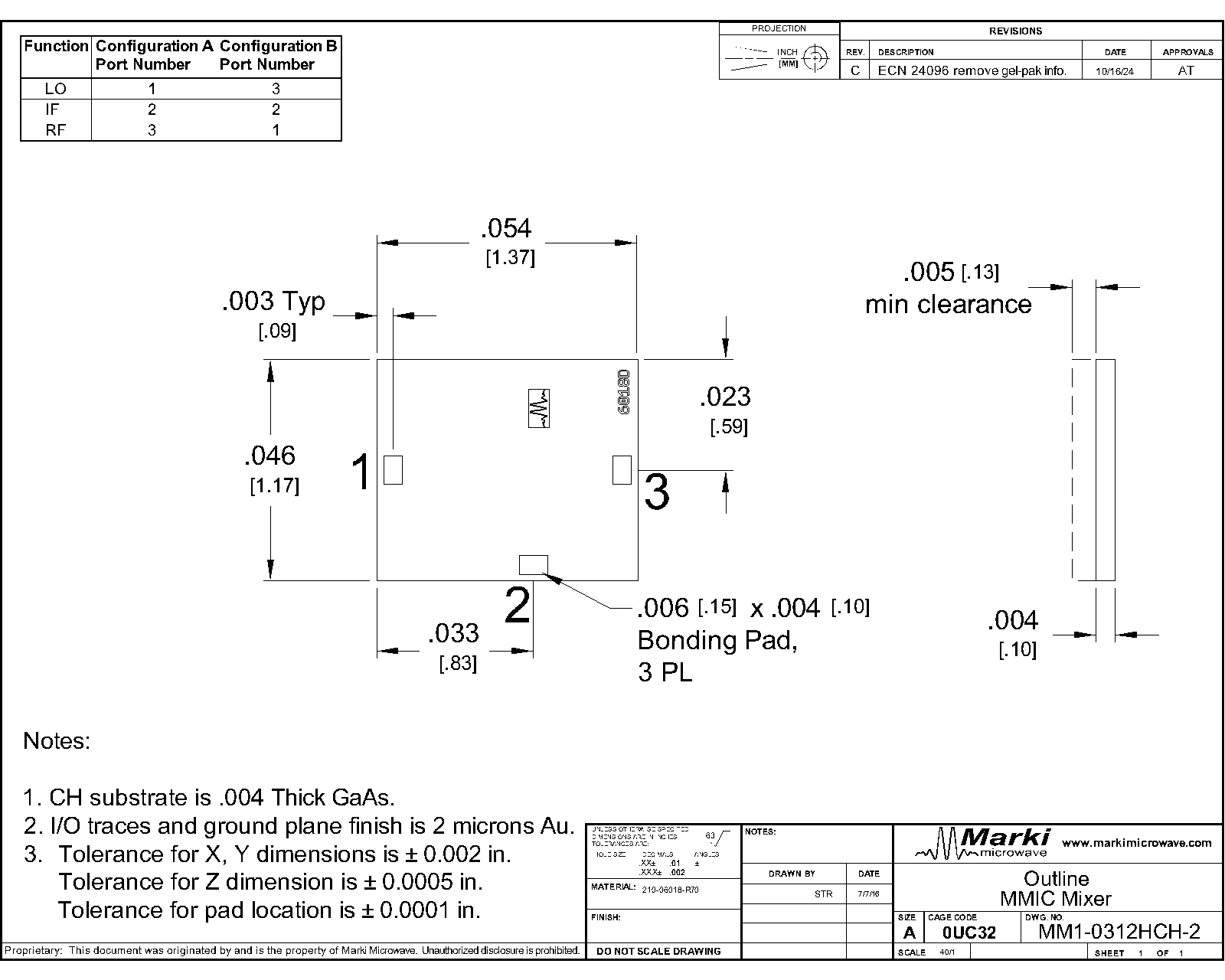

- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| A | 2017-08-01 | Die shrunk from 1.48 x 1.18 mm2 to 1.37 x 1.17 mm2. CH package tolerance added. |
| B | 2020-01-01 | Updated CH package Outline Dimensions |
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
Port Configuration and Functions
Port Functions
Configuration A
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 1 | LO | Port 1 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional. |  |
| Port 2 | IF | Port 2 is DC coupled to the diodes. Blocking capacitor is optional. |  |
| Port 3 | RF | Port 3 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional. | |
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
Configuration B
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 1 | RF | Port 1 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional. | |
| Port 2 | IF | Port 2 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Port 3 | LO | Port 3 is DC short and AC matched to 50 Ω from 3 to 12 GHz. Blocking capacitor is optional. | |
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 2 DC Current | 50 | mA |
| RF Power Handling (RF+LO), 100°C | 20 | dBm |
| RF Power Handling (RF+LO), 25°C | 25 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 1.37 x 1.17 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 13 | - | 20 | - |
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system. All bare die are 100% DC tested and 100% visually inspected. RF testing is performed on a sample basis to verify conformance to datasheet guaranteed specifications. Consult factory for more information.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=15dBm | - | 7.5 | - | dB |
| Input IP3 1 | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 19 | - | dBm |
| Input P1dB | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 9 | - | dBm |
| Conversion Loss | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=15dBm | - | 9 | - | dB |
| Input IP3 2 | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 23 | - | dBm |
| Input P1dB | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 9 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 4.5 | GHz |
| LO Frequency Range | - | - | 3 | - | 12 | GHz |
| LO-IF Isolation | - | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 31 | - | dB |
| LO-RF Isolation | - | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 47 | - | dB |
| RF Frequency Range | - | - | 3 | - | 12 | GHz |
| RF-IF Isolation | - | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 36 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=15dBm | - | 7.5 | - | dB |
| Input IP3 1 | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 19 | - | dBm |
| Input P1dB | A | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 9 | - | dBm |
| Conversion Loss | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=15dBm | - | 9 | - | dB |
| Input IP3 2 | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 23 | - | dBm |
| Input P1dB | B | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 9 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 4.5 | GHz |
| LO Frequency Range | - | - | 3 | - | 12 | GHz |
| LO-IF Isolation | - | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 31 | - | dB |
| LO-RF Isolation | - | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 47 | - | dB |
| RF Frequency Range | - | - | 3 | - | 12 | GHz |
| RF-IF Isolation | - | LO/RF=3-12 GHz IF=DC-4.5 GHz LO drive level=13-20dBm | - | 36 | - | dB |
[1][2] [1] Mixer Conversion Loss Plot IF frequency is 100 MHz. [2] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
Typical Performance
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
MM1-0312HS - Typical Performance Plots
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
MM1-0312HCH-2
GaAs MMIC Double Balanced Mixer
