Device Overview

General Description

MM1-0115H is a GaAs MMIC double balanced mixer that features excellent conversion loss, superior isolations, and spurious performance across a broad 1-15 GHz bandwidth. The MM1-0115H works well as both an up and down converter through the Ku band with an IF response from DC to 2.5 GHz. The MM1-0115H is recommended for frequency conversion applications that require high linearity. It is available as both wire bondable die and as a connectorized module.

Photo of MM1-0115HCH-3

Features

  • High LO to RF isolation
  • Up or down conversion
  • Broadband, high linearity frequency conversion
  • Two identical IF ports available on chip for ease of layout

Applications

  • Test and Measurement Equipment
  • SATCOM
  • Electronic Warfare
  • Radar

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
MM1-0115HSGaAs MMIC Double Balanced MixerSStandard

REACH

RoHS

ReleasedEAR99
MM1-0115HCH-3GaAs MMIC Double Balanced MixerCH-

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2022-05-01Datasheet Initial Release

Rev: - | Copyright © 2022 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

A top-down view of the MM1-0115H’s CH package outline drawing is shown below. The MM1-0115H has the input and output ports given in Port Functions. The MM1-0115H can be used in either an up or down conversion. For configuration A, input the LO into port 1, use port 3 for the RF, and port 2a or 2b for the IF. For configuration B, input the LO into port 3, use port 1 for the RF, and port 2a or 2b for the IF.

Diagram of the port configuration for MM1-0115HCH-3

Port Functions

Configuration A

PortFunctionDescriptionDC Equivalent
Circuit
GNDGround CH package ground path is provided through the substrate and ground bond padsEquivalent circuit for the Ground
Port 1LO Port 1 is DC short for the CH and S packages.Equivalent circuit for the LO
Port 2IF Port 2a and Port 2b are diode connected for the CH and S package.Equivalent circuit for the IF
Port 3RF Port 3 is DC short for the CH and S packages.Equivalent circuit for the RF

Rev: - | Copyright © 2022 Marki Microwave LLC.

3

Configuration B

PortFunctionDescriptionDC Equivalent
Circuit
GNDGround CH package ground path is provided through the substrate and ground bond pads. Equivalent circuit for the Ground
Port 1RF Port 1 is DC short for the CH and S packagesEquivalent circuit for the RF
Port 2IF Port 2a and Port 2b are diode connected for the CH and S package.Equivalent circuit for the IF
Port 3LO Port 3 is DC short for the CH and S packages.Equivalent circuit for the LO

Rev: - | Copyright © 2022 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 1 DC Current 30mA
Port 2 DC Current 30mA
Port 3 DC Current 30mA
Power Handling, at any Port 33dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-2.28x2.09mm

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

ParameterMinNominalMaxUnit
Ambient Temperature -5525100°C
LO Input Power 131721dBm

Rev: - | Copyright © 2022 Marki Microwave LLC.

5

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized S package mixer used in the forward direction with a +17 dBm sine wave input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
Conversion Loss 1ARF/LO = 1 – 15GHz
I = 0.2 – 2.5 GHz
-8.5-dB
Conversion Loss 2ARF/LO = 1 - 15 GHz
I = DC - 0.2 GHz
-7.512.5dB
Input IP3 ARF/LO = 1 - 15 GHz
I = DC - 0.2 GHz
-21-dBm
Input P1dB A--10-dBm
LO-IF Isolation AIF/LO = 1 - 15 GHz
-22-dB
LO-RF Isolation ARF/LO = 1 - 15 GHz
-50-dB
Noise Figure 3ARF/LO = 1 - 15 GHz
I = DC - 0.2 GHz
-7.5-dB
RF-IF Isolation ARF/IF = 1 - 15 GHz
-34-dB
Conversion Loss 4BRF/LO = 1 – 15GHz
I = 0.2 – 2.5 GHz
-11-dB
Conversion Loss 5BRF/LO = 1 - 15 GHz
I = DC - 0.2 GHz
-1017.5dB
Input IP3 BRF/LO = 1 - 15 GHz
I = DC - 0.2 GHz
-24-dBm
Input P1dB B--13-dBm
LO-IF Isolation BIF/LO = 1 - 15 GHz
-32-dB
LO-RF Isolation BRF/LO = 1 - 15 GHz
-51-dB
Noise Figure 6BRF/LO = 1 - 15 GHz
I = DC - 0.2 GHz
-10-dB
RF-IF Isolation BRF/IF = 1 - 15 GHz
-22-dB
IF Frequency Range --0-2.5GHz
LO Frequency Range --1-15GHz
RF Frequency Range --1-15GHz

[1][2][4][5] Measured as a down converter to a fixed 91MHz IF.

[3][6] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Rev: - | Copyright © 2022 Marki Microwave LLC.

6

Typical Performance Plots

Conversion Loss (dB) graph for MM1-0115HCH-3
Conversion Loss vs LO Power, Config A (dB) graph for MM1-0115HCH-3
Conversion Loss vs LO Power, Config B (dB) graph for MM1-0115HCH-3
Relative IF Response: HSLO, 2GHz RF (dB) graph for MM1-0115HCH-3
Relative IF Response: LSLO, 14GHz RF graph for MM1-0115HCH-3
L-R Isolation (dB) graph for MM1-0115HCH-3
L-I Isolation (dB) graph for MM1-0115HCH-3
R-I Isolation (dB) graph for MM1-0115HCH-3

Rev: - | Copyright © 2022 Marki Microwave LLC.

7

LO Return Loss (dB) graph for MM1-0115HCH-3
RF Return Loss (dB) graph for MM1-0115HCH-3
IF Return Loss: HSLO, 2GHz RF (dB) graph for MM1-0115HCH-3
IF Return Loss: LSLO, 14GHz RF (dB) graph for MM1-0115HCH-3

Rev: - | Copyright © 2022 Marki Microwave LLC.

8

Typical Performance Plots: IP3

Input IP3 (dBm) graph for MM1-0115HCH-3
Output IP3 (dBm) graph for MM1-0115HCH-3
Input IP3 vs LO Power, Config A (dBm) graph for MM1-0115HCH-3
Output IP3 vs LO Power, Config A (dBm) graph for MM1-0115HCH-3
Input IP3 vs LO Power, Config B (dBm) graph for MM1-0115HCH-3
Output IP3 vs LO Power, Config B (dBm) graph for MM1-0115HCH-3

Rev: - | Copyright © 2022 Marki Microwave LLC.

9

Typical Performance Plots: LO Harmonic Isolation

Even LO Harmonic to RF Isolation (dB) graph for MM1-0115HCH-3
Even LO Harmonic to IF Isolation (dB) graph for MM1-0115HCH-3
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0115HCH-3
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0115HCH-3
2RF x 2LO Spurious Suppression (dBc) -10 dBm IF Input graph for MM1-0115HCH-3
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0115HCH-3

Rev: - | Copyright © 2022 Marki Microwave LLC.

10

MM1-0115HS - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.

Conversion Loss (dB) graph for MM1-0115HS
Conversion Loss vs LO Power, Config A (dB) graph for MM1-0115HS
Conversion Loss vs LO Power, Config B (dB) graph for MM1-0115HS
Relative IF Response: HSLO, 2GHz RF (dB) graph for MM1-0115HS
Relative IF Response: LSLO, 14GHz RF graph for MM1-0115HS
L-R Isolation (dB) graph for MM1-0115HS
L-I Isolation (dB) graph for MM1-0115HS
R-I Isolation (dB) graph for MM1-0115HS

Rev: - | Copyright © 2022 Marki Microwave LLC.

11

LO Return Loss (dB) graph for MM1-0115HS
RF Return Loss (dB) graph for MM1-0115HS
IF Return Loss: HSLO, 2GHz RF (dB) graph for MM1-0115HS
IF Return Loss: LSLO, 14GHz RF (dB) graph for MM1-0115HS
IF Return Loss: LSLO, 14GHz RF (dB) graph for MM1-0115HS

Rev: - | Copyright © 2022 Marki Microwave LLC.

12

MM1-0115HS - Typical Performance Plots: IP3

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.

Input IP3 (dBm) graph for MM1-0115HS
Output IP3 (dBm) graph for MM1-0115HS
Input IP3 vs LO Power, Config A (dBm) graph for MM1-0115HS
Output IP3 vs LO Power, Config A (dBm) graph for MM1-0115HS
Input IP3 vs LO Power, Config B (dBm) graph for MM1-0115HS
Output IP3 vs LO Power, Config B (dBm) graph for MM1-0115HS

Rev: - | Copyright © 2022 Marki Microwave LLC.

13

MM1-0115HS - Typical Performance Plots: LO Harmonic Isolation

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.

Even LO Harmonic to RF Isolation (dB) graph for MM1-0115HS
Even LO Harmonic to IF Isolation (dB) graph for MM1-0115HS
Odd LO Harmonic to RF Isolation (dB) graph for MM1-0115HS
Odd LO Harmonic to IF Isolation (dB) graph for MM1-0115HS
2RF x 2LO Spurious Suppression (dBc) -10 dBm IF Input graph for MM1-0115HS
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0115HS

Rev: - | Copyright © 2022 Marki Microwave LLC.

14

Mechanical Data

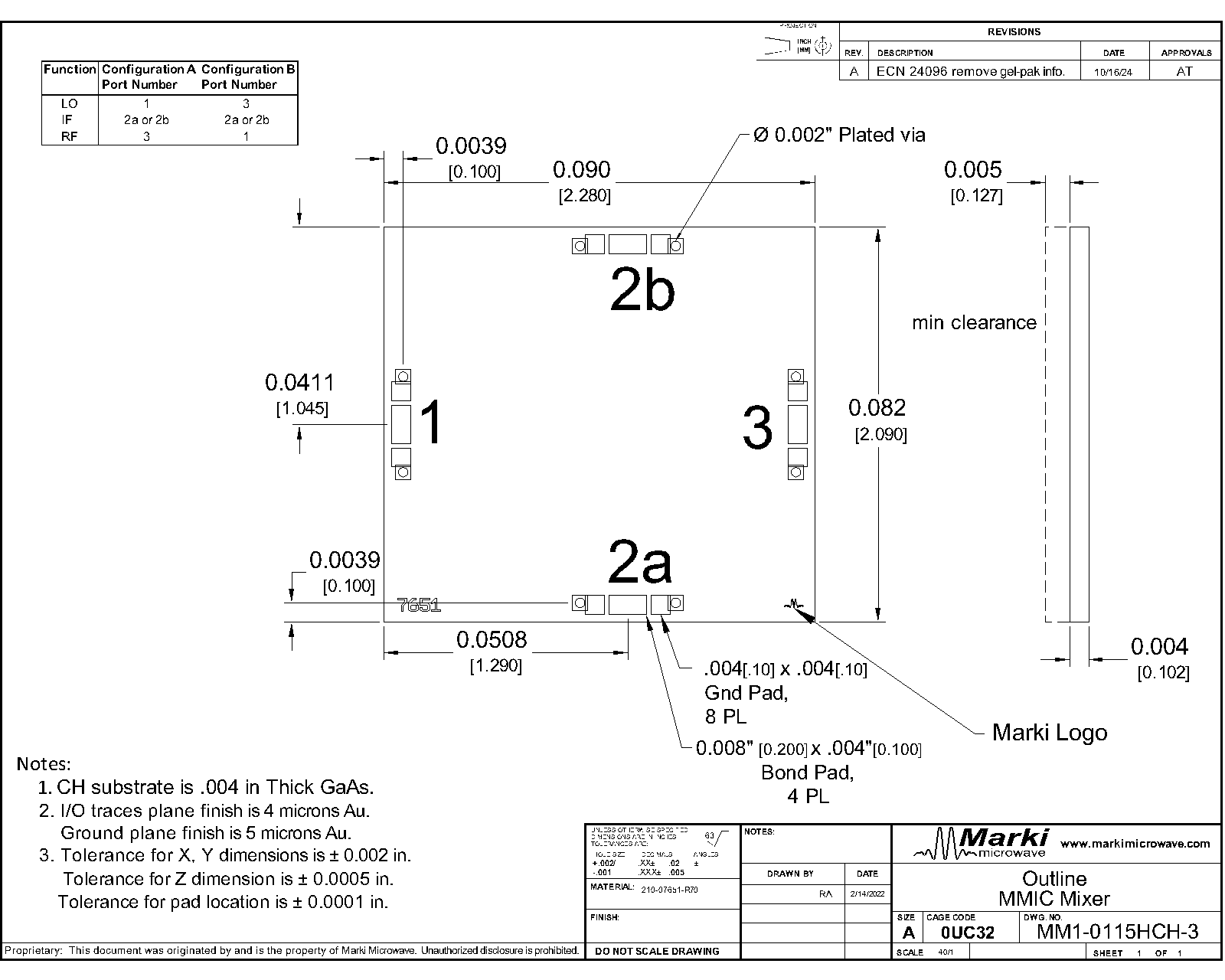

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing
