MMIQ-40100LCH-2_GaAs MMIC mmWave IQ Mixer

Device Overview

General Description

The MMIQ-40100L is a low LO drive, passive GaAs MMIC IQ mixer. This is an ultra-broadband mixer spanning 40 to 100 GHz on the RF and LO ports with an IF from DC to 20 GHz. With a typical image rejection of 30dB from the V through W band, this mixer is an ideal candidate for mmWave I/Q frequency conversion. Both wire bondable die and connectorized modules are available.

Features

RF/LO Frequency Range: 40 - 100 GHz
IF Frequency Range: DC - 20 GHz
I+Q Conversion Loss: 10 dB
Image Rejection: 30 dB

Applications

mmWave Frequency Conversion
Single Sideband and Image Rejection Mixing
IQ Modulation / Demodulation
Vector Amplitude Modulation
Band Shifting

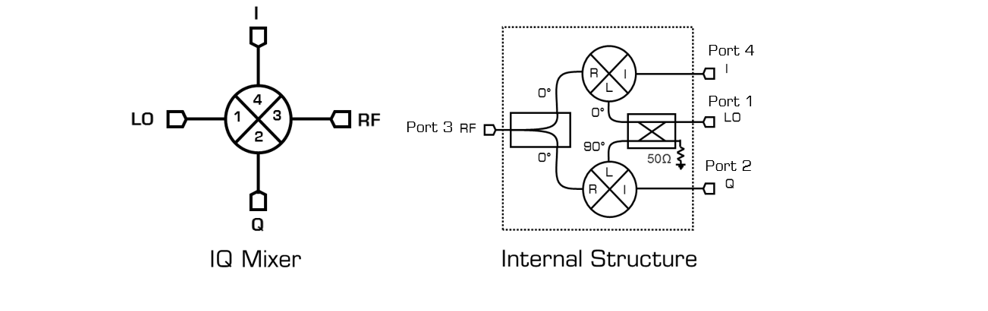

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-40100LM	GaAs MMIC mmWave IQ Mixer	M	Standard	Consult Factory	Released	EAR99
MMIQ-40100LCH-2	GaAs MMIC mmWave IQ Mixer	CH	-	Consult Factory	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-40100LM	GaAs MMIC mmWave IQ Mixer	M	Standard	Consult Factory	Released	EAR99
MMIQ-40100LCH-2	GaAs MMIC mmWave IQ Mixer	CH	-	Consult Factory	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Operation
- Application Circuit
- Application Circuit Description
Mechanical Data

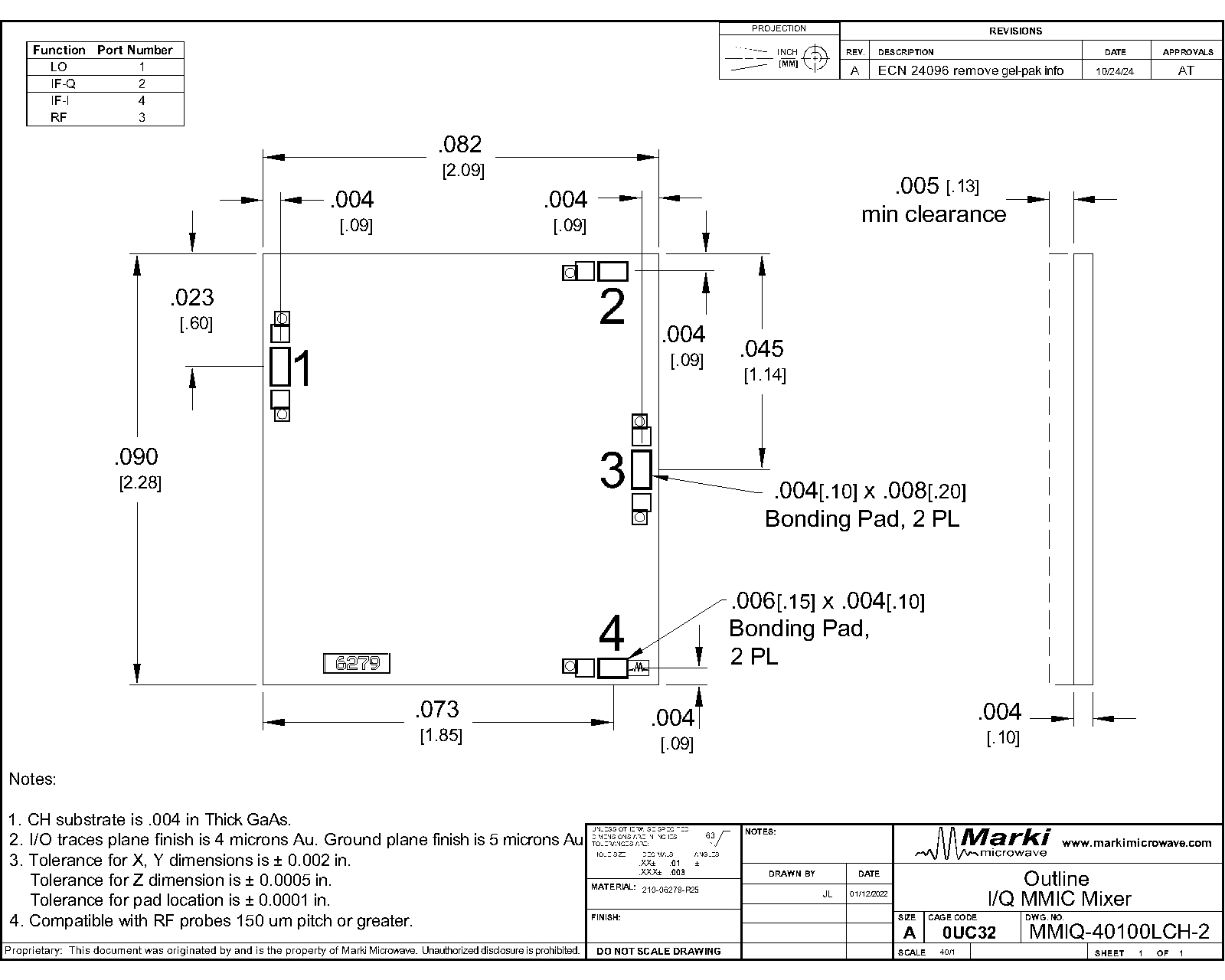

- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2022-05-01	Datasheet Initial Release

Port Configuration and Functions

Port Diagram

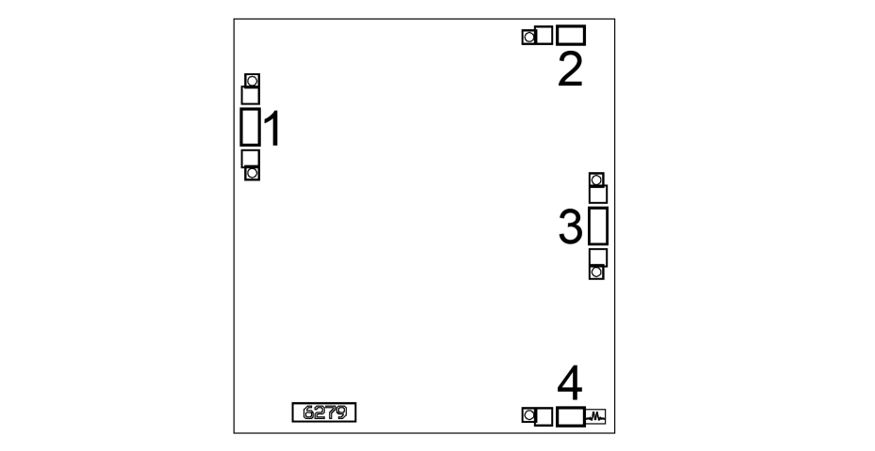

A top-down view of the MMIQ-40100L’s CH-2 package outline drawing is shown below. The mixer may be operated as either a downconverter or an upconverter. Use of the RF or I/Q as the input or output port will depend on the application.

Diagram of the port configuration for MMIQ-40100LCH-2

Port Functions

Port	Function	Description
GND	Ground	CH package ground path is taken through the substrate.
Port 1	LO Input	Port 1 is DC open for the CH and M packages.
Port 2	Q Input / Output	Port 2 is diode coupled and AC matched to 50Ω over the specified Q port frequency range.
Port 3	RF Input / Output	Port 3 is DC open for the CH and M packages.
Port 4	I Input / Output	Port 4 is diode coupled and AC matched to 50Ω over the specified I port frequency range.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	dBm
Minimum Storage Temperature	-65	°C
Power Handling, at any Port	30	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	2.28x2.09mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
LO Input Power	15	-	-	dBm

Electrical Specifications

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 40 - 100 GHz I = DC - 0.2 GHz	40	100	-	12	-	dB
IF Frequency Range	-	-	-	0	-	20	GHz
Image Rejection	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	30	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 40 - 100 GHz I+Q = DC - 0.2 GHz	40	100	-	10	-	dB
LO Frequency Range	-	-	-	40	-	100	GHz
Noise Figure ²	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	10	-	dB
Q (Port 2) Frequency Range	-	-	-	0	-	20	GHz
RF Frequency Range	-	-	-	40	-	100	GHz

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 40 - 100 GHz I = DC - 0.2 GHz	40	100	-	12	-	dB
IF Frequency Range	-	-	-	0	-	20	GHz
Image Rejection	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	30	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 40 - 100 GHz I+Q = DC - 0.2 GHz	40	100	-	10	-	dB
LO Frequency Range	-	-	-	40	-	100	GHz
Noise Figure ²	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	10	-	dB
Q (Port 2) Frequency Range	-	-	-	0	-	20	GHz
RF Frequency Range	-	-	-	40	-	100	GHz

^[1] Measured as an I/Q down converter (i.e., I and Q powers are not combined)

^[2] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Typical Performance Plots

Due to difficulty generating strong LO signals at mmWave frequencies LR Isolation is measured with a small signal LO. Isolation will improve with a stronger LO signal. Discontinuity in conversion loss and Image Rejection measurements is due to splitting the measurement into two bands. IIP3 is only measured up to 67GHz due to limitations in measurement setup.

Conversion Loss, I+Q (dB) graph for MMIQ-40100LCH-2

Image Rejection (dBc) graph for MMIQ-40100LCH-2

I Port, IF Response (dB) graph for MMIQ-40100LCH-2

Small-Signal L-R Isolation (dB) graph for MMIQ-40100LCH-2

Conversion Loss vs LO Power, 50GHz Fixed LO, 50.1 GHz RF (dB) graph for MMIQ-40100LCH-2

MMIQ-40100LM - Typical Performance Plots

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
