MMIQ-1865HCH-2_Passive GaAs MMIC IQ Mixer

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-1865HUB	Passive GaAs MMIC IQ Mixer	UB	Standard	REACH RoHS	Released	EAR99
MMIQ-1865HCH-2	Passive GaAs MMIC IQ Mixer	CH	-	REACH RoHS	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-1865HUB	Passive GaAs MMIC IQ Mixer	UB	Standard	REACH RoHS	Released	EAR99
MMIQ-1865HCH-2	Passive GaAs MMIC IQ Mixer	CH	-	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2019-03-01	Datasheet Initial Release
A	2019-05-01	Added P1dB Data to Electrical Specifications
B	2019-08-01	Changed I/Q Max Current Rating
C	2019-10-01	Updated Max Power Handling
D	2019-10-01	Corrected Port Designations

Port Configuration and Functions

Port Diagram

The mixer may be operated as either a downconverter or an upconverter. Use of the RF or IF as the input or output port will depend on the application.

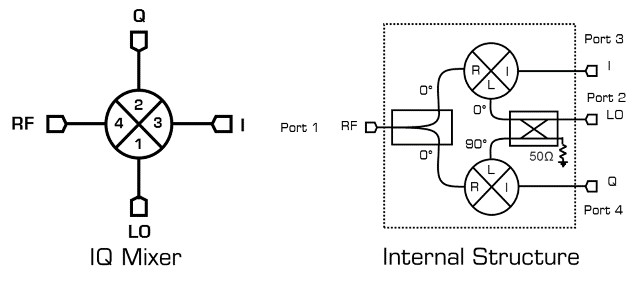

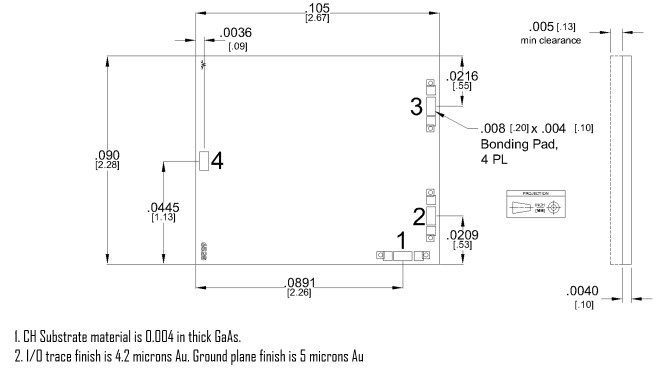

Diagram of the port configuration for MMIQ-1865HCH-2

Port Functions

Port	Function	Description
GND	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	LO Input	Port 1 is DC open and AC matched to 50Ω over the specified LO frequency range.
Port 2	Q Input / Output	Port 2 is diode coupled and AC matched to 50Ω over the specified Q port frequency range.
Port 3	I Input / Output	Port 3 is diode coupled and AC matched to 50Ω over the specified I port frequency range.
Port 4	RF Input / Output	Port 4 is DC open and AC matched to 50Ω over the specified RF frequency range.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 3 DC Current	30	mA
Port 4 DC Current	30	mA
Power Handling, at any Port	26	dBm

Package Information

Parameter	Details	Rating

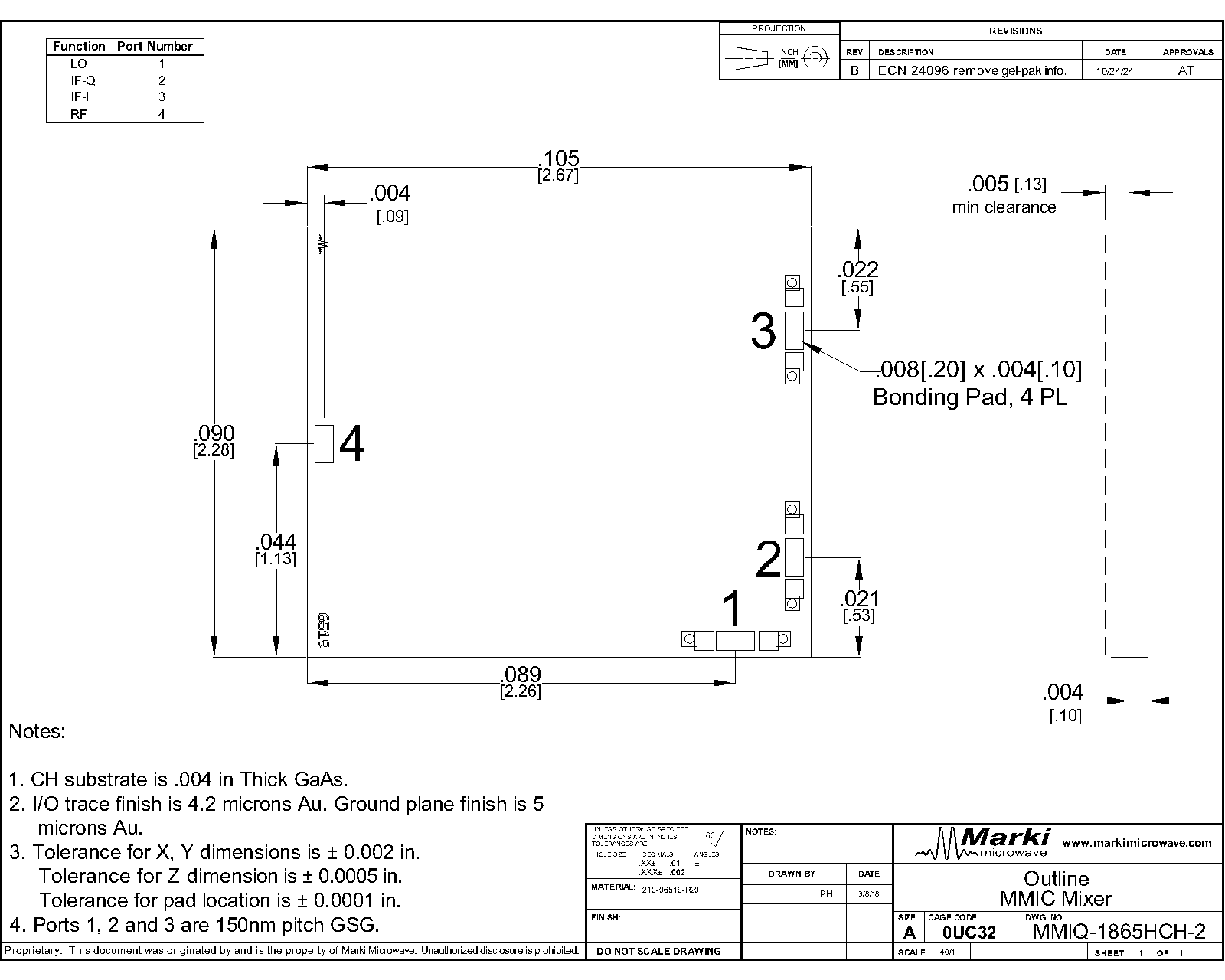

Dimensions	-	2.67x2.28mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
RF/IF Input Power	-	-	12	dBm
LO Input Power	15	18	21	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +18dBm sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 18 - 65 GHz I = 0.2 - 23 GHz	18	65	-	12	-	dB
Conversion Loss ²	RF/LO = 18 - 65 GHz I = DC – 0.2 GHz	18	65	-	11	-	dB
Conversion Loss ³	RF/LO = 18 - 65 GHz Q = 0.2 - 23 GHz	18	65	-	12	-	dB
Conversion Loss ⁴	RF/LO = 18 - 65 GHz Q = DC -0.2 GHz	18	65	-	11	-	dB
IF Frequency Range	-	-	-	0	-	23	GHz
Image Rejection ⁵	RF/LO = 18 - 65 GHz I+Q = DC – 0.2 GHz	18	65	-	35	-	dBc
Input 1 dB Gain Compression Point (P1dB), I	-	-	-	-	12	-	dBm
Input 1 dB Gain Compression Point (P1dB), Q	-	-	-	-	12.4	-	dBm
Input IP3 ⁶	RF/LO = 18 - 65 GHz I = DC – 0.2 GHz	18	65	-	21	-	dBm
Isolation, LO to I	IF/LO = 18-65 GHz	18	65	-	42	-	dB
Isolation, LO to Q	IF/LO = 18-65 GHz	18	65	-	32	-	dB
Isolation, RF to I	RF/IF = 18-65 GHz	18	65	-	50	-	dB
Isolation, RF to Q	RF/IF = 18-65 GHz	18	65	-	56	-	dB
LO Frequency Range	-	-	-	18	-	65	GHz
LO-RF Isolation	RF/LO = 18-65 GHz	18	65	-	48	-	dB
Noise Figure ⁷	RF/LO = 18 - 65 GHz I = DC – 0.2 GHz	18	65	-	11	-	dB
Noise Figure ⁸	RF/LO = 18 - 65 GHz Q = DC – 0.2 GHz	18	65	-	12	-	dB
Q (Port 2) Frequency Range	-	-	-	0	-	23	GHz
RF Frequency Range	-	-	-	18	-	65	GHz

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 18 - 65 GHz I = 0.2 - 23 GHz	18	65	-	12	-	dB
Conversion Loss ²	RF/LO = 18 - 65 GHz I = DC – 0.2 GHz	18	65	-	11	-	dB
Conversion Loss ³	RF/LO = 18 - 65 GHz Q = 0.2 - 23 GHz	18	65	-	12	-	dB
Conversion Loss ⁴	RF/LO = 18 - 65 GHz Q = DC -0.2 GHz	18	65	-	11	-	dB
IF Frequency Range	-	-	-	0	-	23	GHz
Image Rejection ⁵	RF/LO = 18 - 65 GHz I+Q = DC – 0.2 GHz	18	65	-	35	-	dBc
Input 1 dB Gain Compression Point (P1dB), I	-	-	-	-	12	-	dBm
Input 1 dB Gain Compression Point (P1dB), Q	-	-	-	-	12.4	-	dBm
Input IP3 ⁶	RF/LO = 18 - 65 GHz I = DC – 0.2 GHz	18	65	-	21	-	dBm
Isolation, LO to I	IF/LO = 18-65 GHz	18	65	-	42	-	dB
Isolation, LO to Q	IF/LO = 18-65 GHz	18	65	-	32	-	dB
Isolation, RF to I	RF/IF = 18-65 GHz	18	65	-	50	-	dB
Isolation, RF to Q	RF/IF = 18-65 GHz	18	65	-	56	-	dB
LO Frequency Range	-	-	-	18	-	65	GHz
LO-RF Isolation	RF/LO = 18-65 GHz	18	65	-	48	-	dB
Noise Figure ⁷	RF/LO = 18 - 65 GHz I = DC – 0.2 GHz	18	65	-	11	-	dB
Noise Figure ⁸	RF/LO = 18 - 65 GHz Q = DC – 0.2 GHz	18	65	-	12	-	dB
Q (Port 2) Frequency Range	-	-	-	0	-	23	GHz
RF Frequency Range	-	-	-	18	-	65	GHz

^[1]^[2]^[3]^[4] Measured as an I/Q down converter. (i.e., I and Q powers are not combined)

^[5] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.

^[6] Typical IIP3 measured with I and Q ports combined with an external quadrature hybrid coupler.

^[7]^[8] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Typical Performance Plots

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.

I/Q Conversion Loss (dB) graph for MMIQ-1865HCH-2

LO to RF Isolation (dB) graph for MMIQ-1865HCH-2

LO to IF Isolation (dB) graph for MMIQ-1865HCH-2

RF to IF Isolation (dB) graph for MMIQ-1865HCH-2

RF Return Loss (dB) graph for MMIQ-1865HCH-2

LO Return Loss (dB) graph for MMIQ-1865HCH-2

IF Return Loss (dB) graph for MMIQ-1865HCH-2

IF Response (dB) graph for MMIQ-1865HCH-2

USB I+Q Downconversion Loss vs. LO Power (dB) graph for MMIQ-1865HCH-2

USB I+Q Image Rejection vs. LO Power (dB) graph for MMIQ-1865HCH-2

LSB I+Q Downconversion Loss vs. LO Power (dB) graph for MMIQ-1865HCH-2

LSB I+Q Image Rejection vs. LO Power (dB) graph for MMIQ-1865HCH-2

USB I+Q Upconversion Loss vs. LO Power (dB) graph for MMIQ-1865HCH-2

USB I+Q Sideband Suppression vs. LO Power (dB) graph for MMIQ-1865HCH-2

LSB I+Q Upconversion Loss vs. LO Power (dB) graph for MMIQ-1865HCH-2

LSB I+Q Sideband Suppression vs. LO Power (dB) graph for MMIQ-1865HCH-2

Input IP3 vs. LO Power (dBm) graph for MMIQ-1865HCH-2

Output IP3 vs. LO Power (dBm) graph for MMIQ-1865HCH-2

Even LO Harmonic to RF Isolation (dB) graph for MMIQ-1865HCH-2

Odd LO Harmonic to RF Isolation (dB) graph for MMIQ-1865HCH-2

Even LO Harmonic to IF Isolation (dB) graph for MMIQ-1865HCH-2

Odd LO Harmonic to IF Isolation (dB) graph for MMIQ-1865HCH-2

Vector Modulator Insertion Loss (dB) graph for MMIQ-1865HCH-2

Vector Modulator Group Delay (ps) graph for MMIQ-1865HCH-2

MMIQ-1865HUB - Typical Performance Plots

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.

Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
