MMIQ-1040S is a high linearity, passive GaAs MMIC IQ mixer. This is an ultra-broadband mixer spanning 10 to 40 GHz on the RF and LO ports with an IF from DC to 12 GHz. Up to 30 dBc of image rejection is available due to the excellent phase and amplitude balance of its on-chip LO quadrature hybrid. Both wire bondable die and connectorized modules are available.
N/A
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMIQ-1040SS | Passive GaAs MMIC IQ Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MMIQ-1040SCH-2 | Passive GaAs MMIC IQ Mixer | CH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MMIQ-1040SS | Passive GaAs MMIC IQ Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| MMIQ-1040SCH-2 | Passive GaAs MMIC IQ Mixer | CH | - | REACH RoHS | Released | EAR99 |
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2019-11-01 | Datasheet Initial Release |
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer

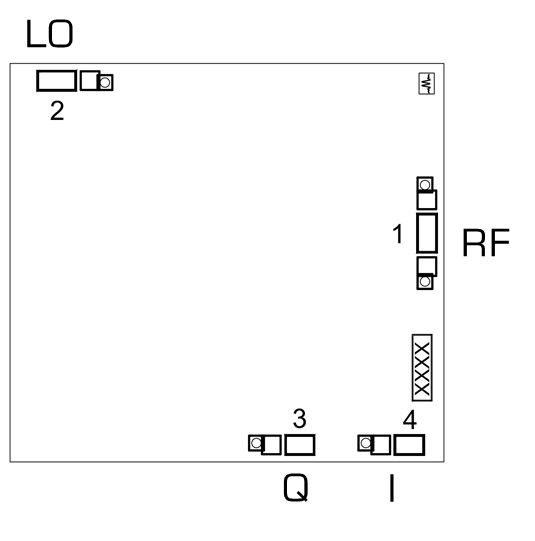

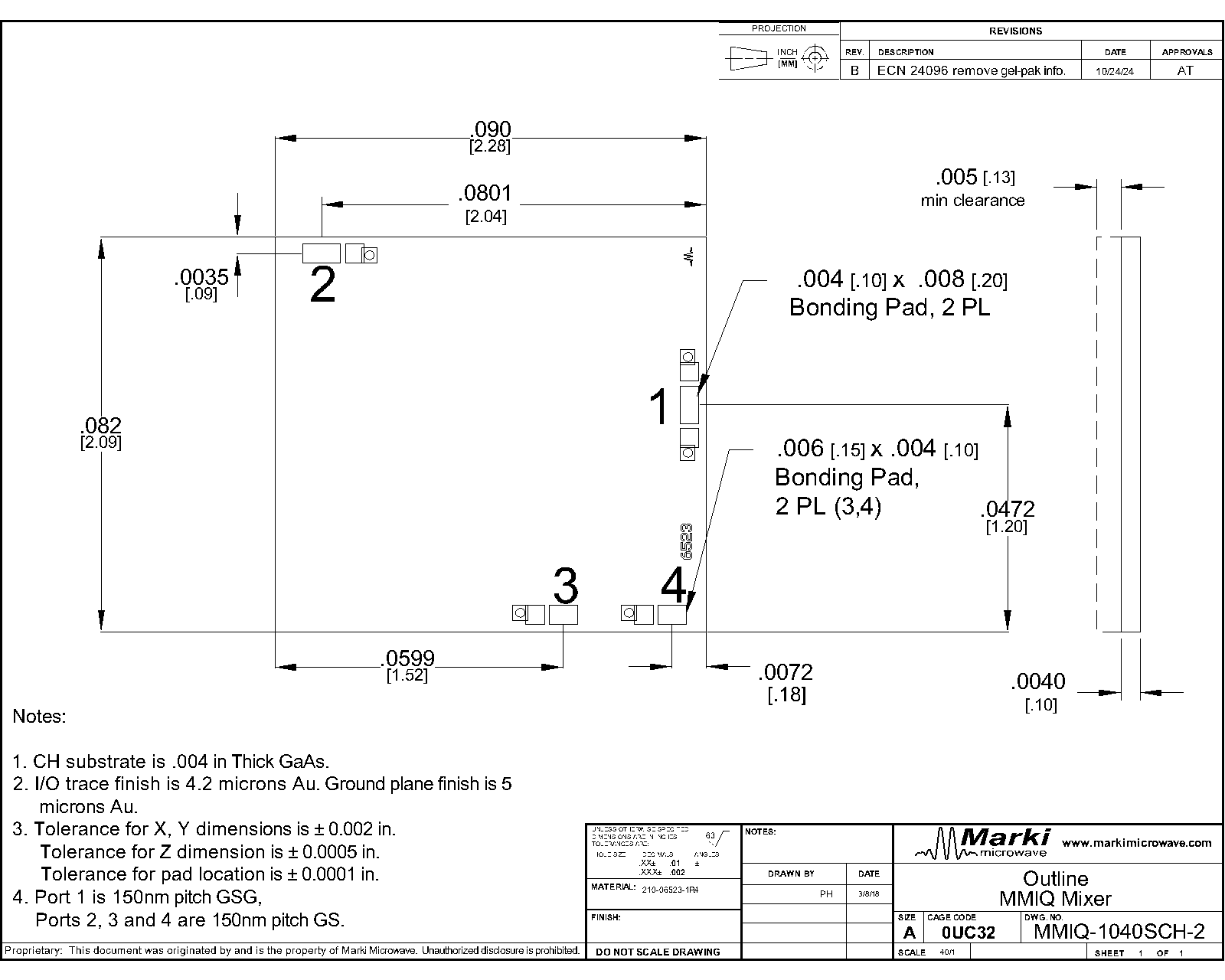

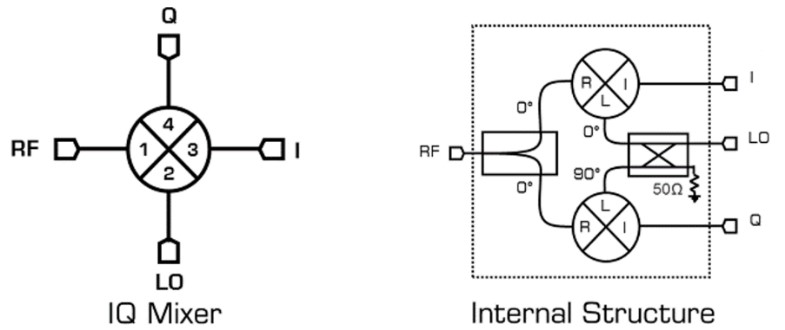

A top-down view of the MMIQ-1040S’s CH package outline drawing is shown below. The mixer may be operated as either a downconverter or an upconverter. Use of the RF or IF as the input or output port will depend on the application. See Application Information for input and output port configuration for common applications.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | RF Input / Output | Port 1 is DC short and AC matched to 50Ω over the specified RF frequency range. |  |
| Port 2 | LO Input | Port 2 is DC open and AC matched to 50Ω over the specified LO frequency range. | |
| Port 3 | Q Input / Output | Port 3 is diode coupled and AC matched to 50Ω over the specified Q port frequency range. |  |
| Port 4 | I Input / Output | Port 4 is diode coupled and AC matched to 50Ω over the specified I port frequency range. | |
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current, at any Ports | 30 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Power Handling, at any Port | 27 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.28x2.09mm |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| RF/IF Input Power | - | - | 16 | dBm |
| LO Input Power | 18 | 20 | 25 | dBm |
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +20dBm sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | - | - | - | 0.1 | - | dB |
| Conversion Loss 1 | RF/LO = 10 - 38 GHz I = DC - 0.2 GHz | 10 | 38 | - | 12 | 15 | dB |
| Conversion Loss 2 | RF/LO = 10 - 38 GHz Q = DC - 0.2 GHz | 10 | 38 | - | 12 | 15 | dB |
| Conversion Loss 3 | RF/LO = 10 - 40 GHz I = 0.2- 12 GHz | 10 | 40 | - | 12 | - | dB |
| Conversion Loss 4 | RF/LO = 10 - 40 GHz Q = 0.2 - 12 GHz | 10 | 40 | - | 14 | - | dB |
| Conversion Loss 5 | RF/LO = 38 - 40 GHz I = DC - 0.2 GHz | 38 | 40 | - | 12.5 | 16 | dB |
| Conversion Loss 6 | RF/LO = 38 - 40 GHz Q = DC - 0.2 GHz | 38 | 40 | - | 13 | 17 | dB |
| IF Frequency Range | - | - | - | 0 | - | 12 | GHz |
| Image Rejection 7 | RF/LO = 10 - 25 GHz I+Q = DC - 0.2 GHz | 10 | 25 | - | 25 | - | dBc |
| Input 1 dB Gain Compression Point (P1dB), I | - | - | - | - | 16 | - | dBm |
| Input 1 dB Gain Compression Point (P1dB), Q | - | - | - | - | 17 | - | dBm |
| Input IP3 8 | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | 10 | 40 | - | 27 | - | dBm |
| LO Frequency Range | - | - | - | 10 | - | 40 | GHz |
| LO-IF Isolation | IF/LO = 10 - 40 GHz | 10 | 40 | - | 49 | - | dB |
| LO-RF Isolation | RF/LO = 10 - 40 GHz | 10 | 40 | - | 44 | - | dB |
| Noise Figure 9 | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | 10 | 40 | - | 12 | - | dB |
| Noise Figure 10 | RF/LO = 10 - 40 GHz Q = DC - 0.2 GHz | 10 | 40 | - | 12 | - | dB |
| Phase Balance | - | - | - | - | 5 | - | ° |
| Q (Port 4) Frequency Range | - | - | - | 0 | - | 12 | GHz |
| RF Frequency Range | - | - | - | 10 | - | 40 | GHz |
| RF-IF Isolation | RF/IF = 10 - 40 GHz | 10 | 40 | - | 41 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | - | - | - | 0.1 | - | dB |
| Conversion Loss 1 | RF/LO = 10 - 38 GHz I = DC - 0.2 GHz | 10 | 38 | - | 12 | 15 | dB |
| Conversion Loss 2 | RF/LO = 10 - 38 GHz Q = DC - 0.2 GHz | 10 | 38 | - | 12 | 15 | dB |
| Conversion Loss 3 | RF/LO = 10 - 40 GHz I = 0.2- 12 GHz | 10 | 40 | - | 12 | - | dB |
| Conversion Loss 4 | RF/LO = 10 - 40 GHz Q = 0.2 - 12 GHz | 10 | 40 | - | 14 | - | dB |
| Conversion Loss 5 | RF/LO = 38 - 40 GHz I = DC - 0.2 GHz | 38 | 40 | - | 12.5 | 16 | dB |
| Conversion Loss 6 | RF/LO = 38 - 40 GHz Q = DC - 0.2 GHz | 38 | 40 | - | 13 | 17 | dB |
| IF Frequency Range | - | - | - | 0 | - | 12 | GHz |
| Image Rejection 7 | RF/LO = 10 - 25 GHz I+Q = DC - 0.2 GHz | 10 | 25 | - | 25 | - | dBc |
| Input 1 dB Gain Compression Point (P1dB), I | - | - | - | - | 16 | - | dBm |
| Input 1 dB Gain Compression Point (P1dB), Q | - | - | - | - | 17 | - | dBm |
| Input IP3 8 | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | 10 | 40 | - | 27 | - | dBm |
| LO Frequency Range | - | - | - | 10 | - | 40 | GHz |
| LO-IF Isolation | IF/LO = 10 - 40 GHz | 10 | 40 | - | 49 | - | dB |
| LO-RF Isolation | RF/LO = 10 - 40 GHz | 10 | 40 | - | 44 | - | dB |
| Noise Figure 9 | RF/LO = 10 - 40 GHz I = DC - 0.2 GHz | 10 | 40 | - | 12 | - | dB |
| Noise Figure 10 | RF/LO = 10 - 40 GHz Q = DC - 0.2 GHz | 10 | 40 | - | 12 | - | dB |
| Phase Balance | - | - | - | - | 5 | - | ° |
| Q (Port 4) Frequency Range | - | - | - | 0 | - | 12 | GHz |
| RF Frequency Range | - | - | - | 10 | - | 40 | GHz |
| RF-IF Isolation | RF/IF = 10 - 40 GHz | 10 | 40 | - | 41 | - | dB |
[1][2][3][4][5][6] Measured as an I/Q down converter. (i.e., I and Q powers are not combined)
[7] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.
[8] Typical IIP3 is measured with I and Q ports combined with an external IF quadrature hybrid coupler.
[9][10] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer

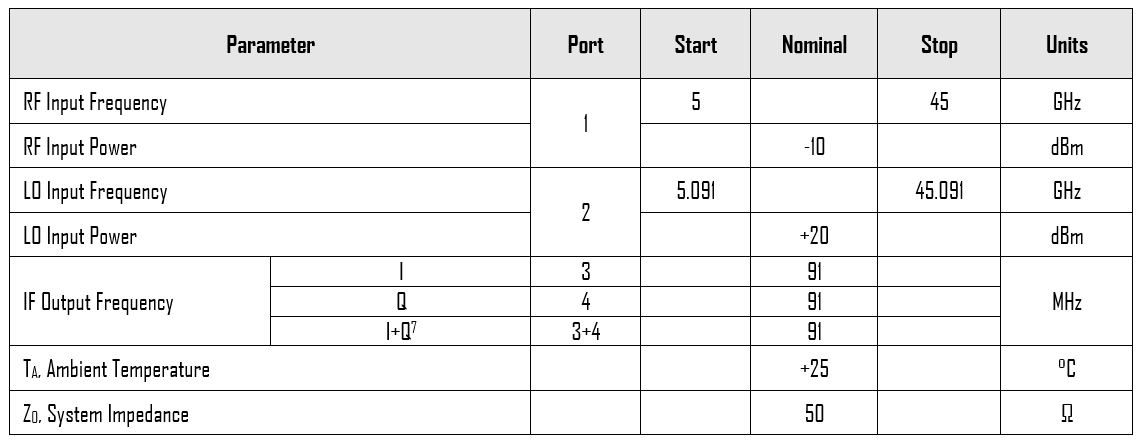

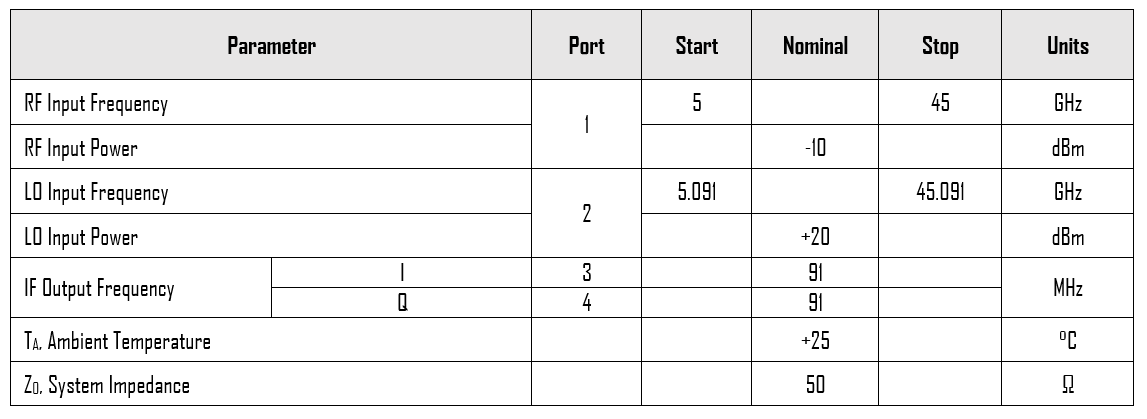

The test conditions and frequency plan below apply to all following sections, unless otherwise specified.
I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.
⁷I+Q measurements taken with an external quadrature hybrid attached to the I and Q ports of the mixer. Orientation depends on up conversion or down conversion measurement.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
LO harmonic isolation plots taken with the following test conditions and based on the following fundamental input signal frequency plan:
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer

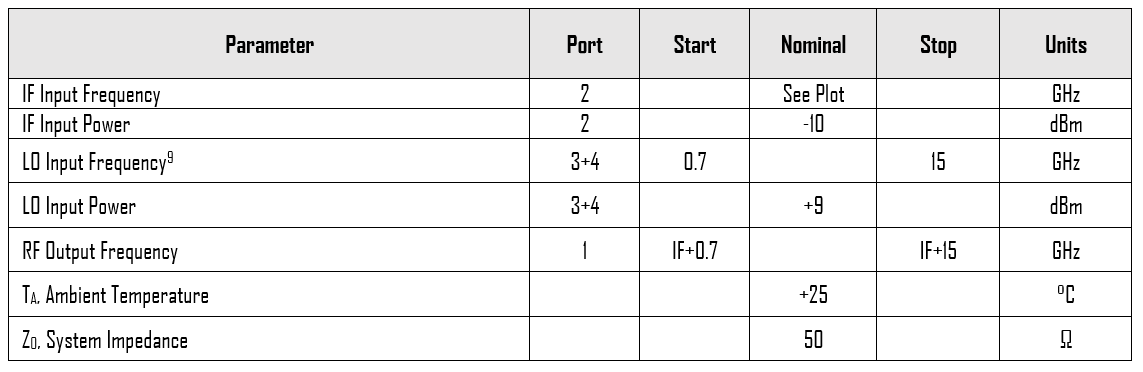

Band Shifter performance plots are taken with the following test conditions and frequency plan:
Band shifter utilizes the mixer in a unique configuration with a low frequency LO signal. Refer to the Application Information for more details.
⁹ Low frequency LO quadrature hybrid used to take data is theQH-0R714.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer

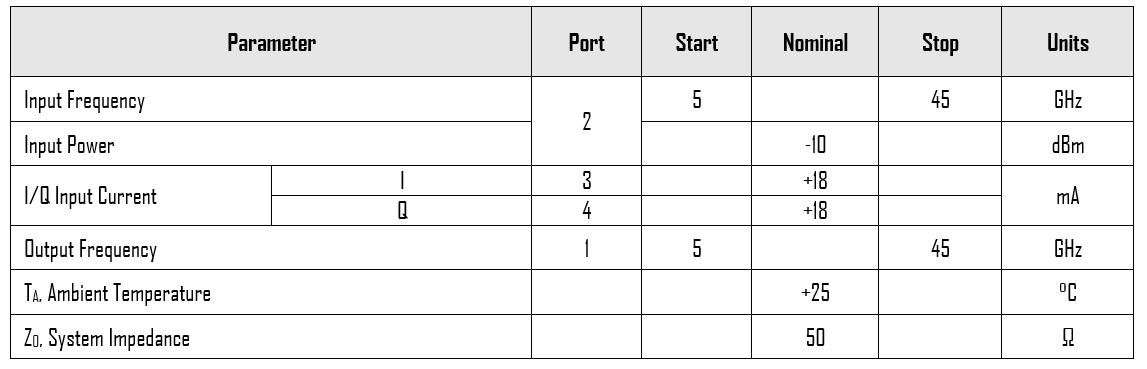

Vector Modulator performance plots are taken with the following test conditions and frequency plan:
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
Typical spurious data is provided by selecting RF and LO frequencies (± m*LO ± n*RF) within the RF/LO bands, to create a spurious output within the IF band. The mixer is swept across the full spurious band. The data shown in the graphs below are for a -10 dBm RF input. Spurious suppression is scaled for different RF power levels by (n-1), where “n” is the RF spur order. For example, the 2LO x 2RF spur is 70 dBc for a -10 dBm input, so a -20 dBm RF input creates a spur that is (2-1) x (-10 dB) lower, or 80 dBc. Data is shown for the frequency plan in Typical Performance unless otherwise stated.
Measured as an I/Q mixer (not IR/SSB mixer). SSB/IR mixers experience additional spurious suppressions.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
Typical spurious data is provided by selecting IF and LO frequencies (± m*LO ± n*RF) within the IF/LO bands, to create a spurious output within the RF band. The mixer is swept across the full spurious band. The data shown in the graphs below are for a -10 dBm IF input. Spurious suppression is scaled for different IF power levels by (n-1), where “n” is the RF spur order. For example, the 1LO x 2IF spur is 73 dBc for a -10 dBm input, so a -20 dBm IF input creates a spur that is (2-1) x (-10 dB) lower, or 83 dBc. Data is shown for the frequency plan inTypical Performance unless otherwise stated.
Measured as an I/Q mixer (not IR/SSB mixer). SSB/IR mixers experience additional spurious suppressions.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
The test conditions and frequency plan below apply to all following sections, unless otherwise specified.
I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.
⁷I+Q measurements taken with an external quadrature hybrid attached to the I and Q ports of the mixer. Orientation depends on up conversion or down conversion measurement.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
LO harmonic isolation plots taken with the following test conditions and based on the following fundamental input signal frequency plan:
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
Band Shifter performance plots are taken with the following test conditions and frequency plan:
Band shifter utilizes the mixer in a unique configuration with a low frequency LO signal. Refer to the Application Information for more details.
⁹ Low frequency LO quadrature hybrid used to take data is theQH-0R714.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
Vector Modulator performance plots are taken with the following test conditions and frequency plan:
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
Typical spurious data is provided by selecting RF and LO frequencies (± m*LO ± n*RF) within the RF/LO bands, to create a spurious output within the IF band. The mixer is swept across the full spurious band. The data shown in the graphs below are for a -10 dBm RF input. Spurious suppression is scaled for different RF power levels by (n-1), where “n” is the RF spur order. For example, the 2LO x 2RF spur is 70 dBc for a -10 dBm input, so a -20 dBm RF input creates a spur that is (2-1) x (-10 dB) lower, or 80 dBc. Data is shown for the frequency plan in Typical Performance unless otherwise stated.
Measured as an I/Q mixer (not IR/SSB mixer). SSB/IR mixers experience additional spurious suppressions.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
MMIQ-1040SCH-2
Passive GaAs MMIC IQ Mixer
Typical spurious data is provided by selecting IF and LO frequencies (± m*LO ± n*RF) within the IF/LO bands, to create a spurious output within the RF band. The mixer is swept across the full spurious band. The data shown in the graphs below are for a -10 dBm IF input. Spurious suppression is scaled for different IF power levels by (n-1), where “n” is the RF spur order. For example, the 1LO x 2IF spur is 73 dBc for a -10 dBm input, so a -20 dBm IF input creates a spur that is (2-1) x (-10 dB) lower, or 83 dBc. Data is shown for the frequency plan inTypical Performance unless otherwise stated.
Measured as an I/Q mixer (not IR/SSB mixer). SSB/IR mixers experience additional spurious suppressions.
Performance plots for the connectorized module are shown for measurements where directly probed measurements of the die are unavailable. Note that the following measurements include losses from connectors and microstrip traces.
