Port Diagram
A top-down view of the MFQH-00001CH package outline drawing is shown below. The MMIC bandpass filters are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MFQH-00001CH passive MMIC reflectionless bandpass filter is an ideal solution for small form factor, high rejection filtering. Reflectionless filters feature excellent return loss for rejected signals as well as in the passband and are suited for applications that demand high signal fidelity. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFQH-00001CH is available as a wire bondable chip. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
Features
- Reflectionless Response
- Excellent Return Loss
- High Stop Band Suppression
- Wide Stop Band with Fast Roll-Off
Applications
- K Band Applications
- Reflectionless Filter Applications
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFQH-00001CH | Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter | CH | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFQH-00001CH | Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter | CH | RoHS REACH | Released | EAR99 |
MFQH-00001CH
Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-08-30 | Datasheet Initial Release |
| A | 2024-01-05 | Updated Production Test Criteria |
MFQH-00001CH
Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input/Output | Port 1 is DC short to ground for the CH package. |  |
| Port 2 | Input/Output | Port 2 is DC short to ground for the CH package. | |
MFQH-00001CH
Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current, at any Port | 24 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3.10 x 3.10 mm |
MFQH-00001CH
Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband 1 | 25°C | 18.52 | 21.27 | - | - | - | GHz |
| 30 dBc Rejection Point 2 | 25°C | 17.11 | 22.41 | - | - | - | GHz |
| 3 dBc Passband 3 | 25°C | 18.25 | 21.6 | - | - | - | GHz |
| Center Freq 4 | 25°C | - | - | - | 19.85 | - | GHz |
| Group Delay 5 | 25°C | - | - | - | 453 | - | ps |
| Impedance 6 | 25°C | - | - | - | 50 | - | Ω |
| Insertion Loss @ fc 7 | 25°C | - | - | - | 3.4 | - | dB |
| Passband Return Loss 8 | 25°C | - | - | - | 39 | - | dB |
| Group Delay | - | 18.5 | 21.3 | - | 469 | - | ps |
| Impedance | - | - | - | - | 50 | - | Ω |
| Passband Return Loss | - | 18.5 | 21.3 | - | 25 | - | dB |
| Stopband Return Loss | - | 23.6 | 48 | - | 12 | - | dB |
| Stopband Return Loss | - | 4 | 15.8 | - | 11 | - | dB |
| Stopband Suppression | - | 0 | 15.8 | - | 65 | - | dB |
| Stopband Suppression | - | 23.6 | 48 | - | 58 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband 1 | 25°C | 18.52 | 21.27 | - | - | - | GHz |
| 30 dBc Rejection Point 2 | 25°C | 17.11 | 22.41 | - | - | - | GHz |
| 3 dBc Passband 3 | 25°C | 18.25 | 21.6 | - | - | - | GHz |
| Center Freq 4 | 25°C | - | - | - | 19.85 | - | GHz |
| Group Delay 5 | 25°C | - | - | - | 453 | - | ps |
| Impedance 6 | 25°C | - | - | - | 50 | - | Ω |
| Insertion Loss @ fc 7 | 25°C | - | - | - | 3.4 | - | dB |
| Passband Return Loss 8 | 25°C | - | - | - | 39 | - | dB |
| Group Delay | - | 18.5 | 21.3 | - | 469 | - | ps |
| Impedance | - | - | - | - | 50 | - | Ω |
| Passband Return Loss | - | 18.5 | 21.3 | - | 25 | - | dB |
| Stopband Return Loss | - | 23.6 | 48 | - | 12 | - | dB |
| Stopband Return Loss | - | 4 | 15.8 | - | 11 | - | dB |
| Stopband Suppression | - | 0 | 15.8 | - | 65 | - | dB |
| Stopband Suppression | - | 23.6 | 48 | - | 58 | - | dB |
[1][2][3][4][5][6][7][8] Bare die probed
All specifications include wire bond effects.
MFQH-00001CH
Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter
Typical Performance Plots
All measurements include wire bond effects.
MFQH-00001CH
Passive GaAs MMIC 18.5 - 21.3 GHz Reflectionless Bandpass Filter
Mechanical Data

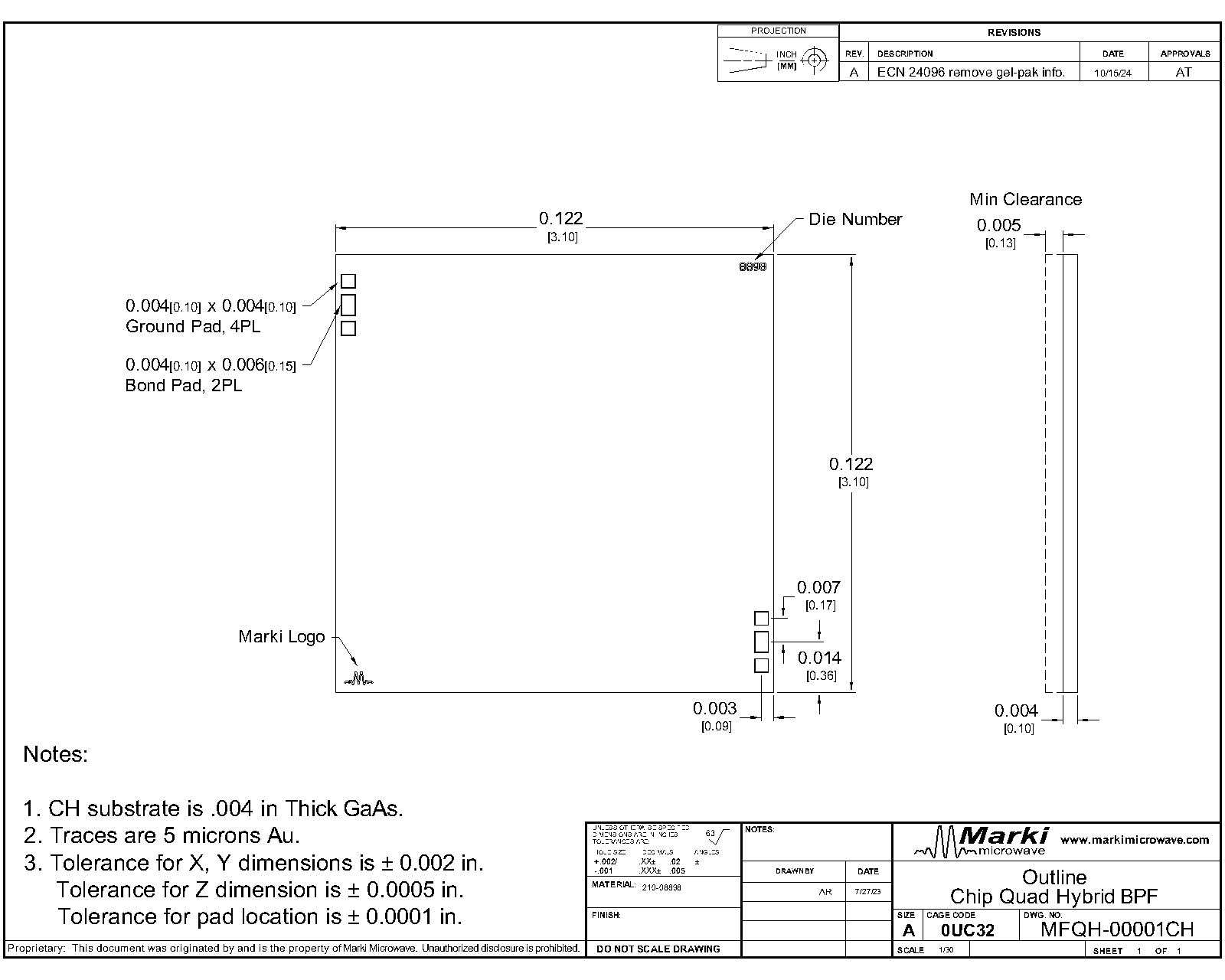

Outline Drawing
Download : Outline 2D Drawing
Notes:
1. CH substrate is .004 in Thick GaAs.
2. Traces are 5 microns Au.
3. Tolerance for X, Y dimensions is ± 0.002 in.
4. Tolerance for Z dimension is ± 0.0005 in.
5. Tolerance for pad location is ± 0.0001 in.
