Port Diagram

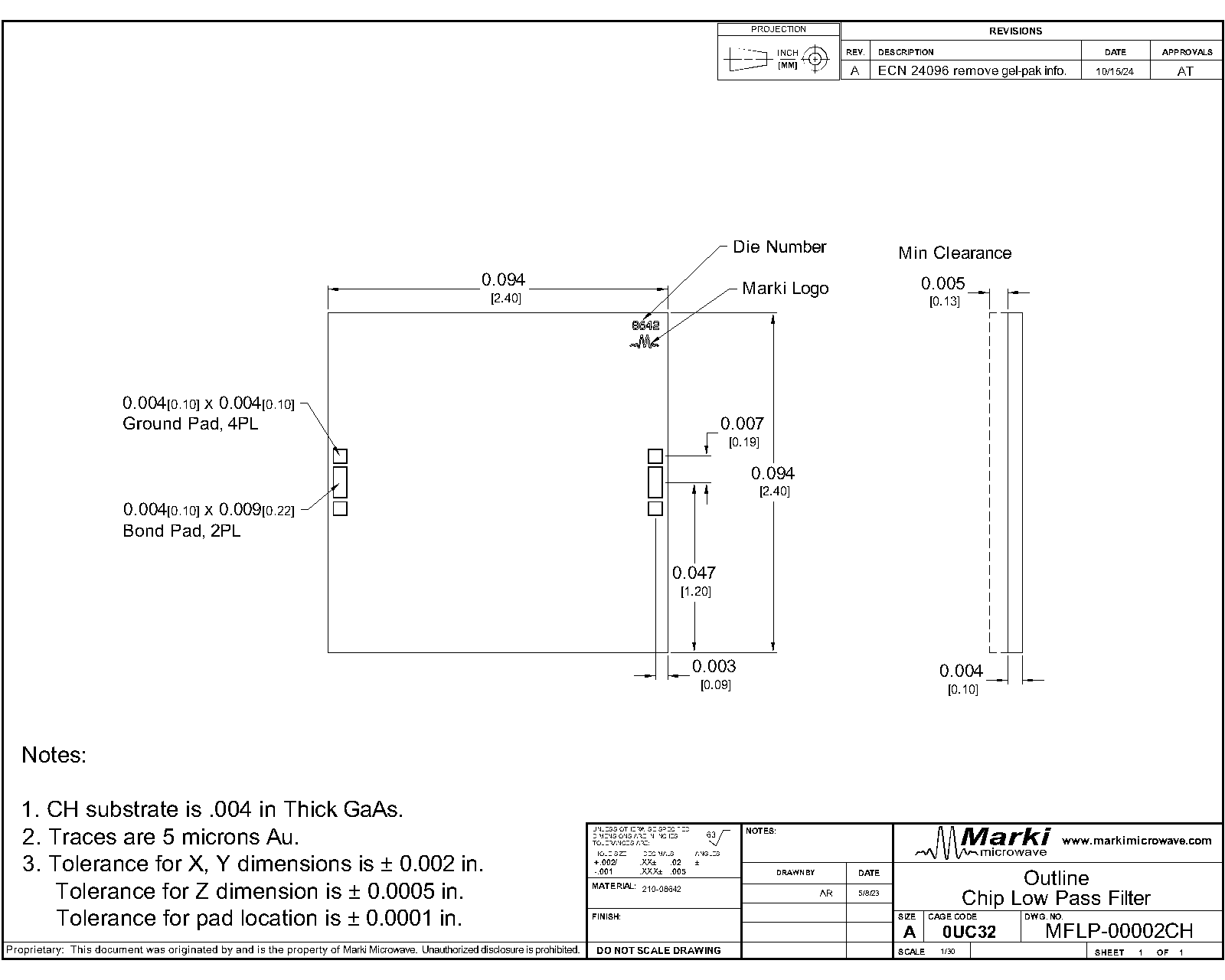

A top-down view of the MFLP-00002CH package outline drawing is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MFLP-00002CH family of passive MMIC lowpass filters are an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFLP-00002CH is available as a wire bondable die. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
Features
- Low Passband Insertion Loss with Fast Roll-off
- Excellent Return Loss
- High Stop Band Suppression
Applications
- Test and Measurement Equipment
- SATCOM
- Radar
- RF Transceivers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00002CH | Passive GaAs MMIC 9.3 GHz Lowpass Filter | CH | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00002CH | Passive GaAs MMIC 9.3 GHz Lowpass Filter | CH | RoHS REACH | Released | EAR99 |
MFLP-00002CH
Passive GaAs MMIC 9.3 GHz Lowpass Filter
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Operation
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-06-30 | Datasheet Initial Release |
MFLP-00002CH
Passive GaAs MMIC 9.3 GHz Lowpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input | Port 1 is DC short to Port 2. |  |
| Port 2 | Output | Port 2 is DC short to Port 1. | |
MFLP-00002CH
Passive GaAs MMIC 9.3 GHz Lowpass Filter
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 240 | mA |
| Port 2 DC Current | 240 | mA |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.40 x 2.40 mm |
MFLP-00002CH
Passive GaAs MMIC 9.3 GHz Lowpass Filter
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a CH package with a sine wave input applied to Port 1.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | - | 7.45 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | - | 11.01 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | - | 9.26 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 3.73 | - | GHz |
| Group Delay | Temp = 25°C | - | - | - | 108 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Passband Return Loss | Temp = 25°C | - | - | - | 26 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | - | 7.45 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | - | 11.01 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | - | 9.26 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 3.73 | - | GHz |
| Group Delay | Temp = 25°C | - | - | - | 108 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Passband Return Loss | Temp = 25°C | - | - | - | 26 | - | dB |
De-embedded to circuit bond pads - wire bonds included.
MFLP-00002CH
Passive GaAs MMIC 9.3 GHz Lowpass Filter
Typical Performance Plots
MFLP-00002CH
Passive GaAs MMIC 9.3 GHz Lowpass Filter
Application Circuit
MFLP-00002CH
Passive GaAs MMIC 9.3 GHz Lowpass Filter
Mechanical Data
Outline Drawing
Download : Outline 2D Drawing
Notes:
- CH substrate is .004 in Thick GaAs.
- Traces are 5 microns Au.
- Tolerance for X, Y dimensions is ± 0.002 in.
Tolerance for Z dimension is ± 0.0005 in.
Tolerance for pad location is ± 0.0001 in.
