Device Overview

General Description

The MFHP-00002CH family of passive MMIC highpass filters are an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFHP-00002CH is available as a wire bondable chip. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Photo of MFHP-00002CH

Features

  • Low Passband Insertion Loss with Fast Roll-off
  • Excellent Return Loss
  • High Stop Band Suppression

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MFHP-00002CHPassive GaAs MMIC 10 GHz Highpass FilterCH

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2023-06-30Datasheet Initial Release
A2024-01-05Updated Production Test Criteria

Rev: A | Copyright © 2023 - 2024 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

A top-down view of the MFHP-00002CH package outline drawing is shown below.

Diagram of the port configuration for MFHP-00002CH

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
PadGround CH package ground path is provided through the substrate and ground bond pads.Equivalent circuit for the Ground
Port 1Input Port 1 is DC open to ground for the CH package.Equivalent circuit for the Input
Port 2Output Port 2 is DC open to ground for the CH package.Equivalent circuit for the Output

Rev: A | Copyright © 2023 - 2024 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded or met simultaneously, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C

Package Information

ParameterDetailsRating
Dimensions-2.40 x 2.40 mm

Rev: A | Copyright © 2023 - 2024 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
3 dBc Passband -10 ----GHz
Group Delay -10 35-42-ps
Passband Insertion Loss -10 35-0.9-dB
Passband Return Loss -10 35713-dB
Stopband Suppression -0 7.54053-dB

Rev: A | Copyright © 2023 - 2024 Marki Microwave LLC.

5

Typical Performance Plots

Insertion Loss (dB) graph for MFHP-00002CH
Insertion Loss (dB) graph for MFHP-00002CH
Return Loss (dB) graph for MFHP-00002CH
Return Loss (dB) graph for MFHP-00002CH
Stop Band Suppression (dB) graph for MFHP-00002CH
Band 1 Group Delay (ps) graph for MFHP-00002CH

Rev: A | Copyright © 2023 - 2024 Marki Microwave LLC.

6

Application Circuit

Application Circuit for MFHP-00002CH

Rev: A | Copyright © 2023 - 2024 Marki Microwave LLC.

7

Mechanical Data

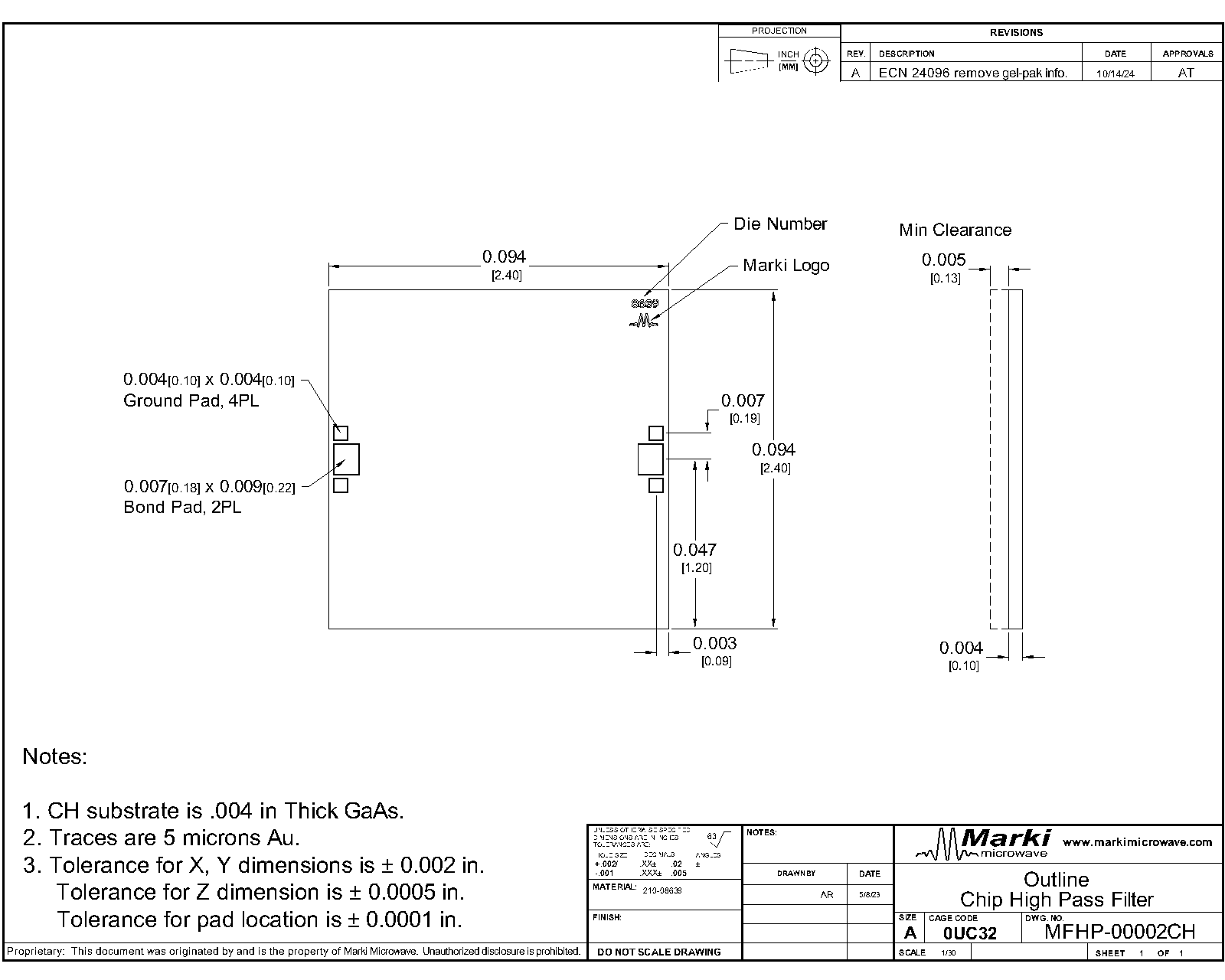

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing
Notes:
  1. CH substrate is .004 in Thick GaAs.
  2. Traces are 5 microns Au.
  3. Tolerance for X, Y dimensions is ± 0.002 in.
    Tolerance for Z dimension is ± 0.0005 in.
    Tolerance for pad location is ± 0.0001 in.

Rev: A | Copyright © 2023 - 2024 Marki Microwave LLC.

8
