Device Overview

General Description

The MFBP-00154CH passive MMIC bandpass filter die is an ideal solution for small form factor, high rejection filtering. The MFBP-00154CH features a 19.8-23.8GHz 1dBc passband and 2.2dB center frequency insertion loss. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFBP-00154CH is available as a wire bondable chip. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Photo of MFBP-00154CH

Features

  • 28 dB Return Loss
  • 2.2 dB Insertion Loss @ Fc
  • High Stop Band Suppression
  • Wide Stop Band with Fast Roll-Off

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MFBP-00154CHPassive GaAs MMIC 19.8 - 23.8 GHz Bandpass Filter CH

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2025-10-06Initial Release

Rev: - | Copyright © 2025 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

A top-down view of the MFBP-00154CH package outline drawing is shown below. The MMIC bandpass filters are symmetrical allowing Port 1 or Port 2 to be used as the input.

Diagram of the port configuration for MFBP-00154CH

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
PadGround CH package ground path is provided through the substrate and ground bond pads.Equivalent circuit for the Ground
Port 1Input/Output Port 1 is DC short to ground for the CH package.Equivalent circuit for the Input/Output
Port 2Input/Output Port 2 is DC short to ground for the CH package.Equivalent circuit for the Input/Output

Rev: - | Copyright © 2025 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 1 DC Current 80mA
Port 2 DC Current 80mA

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-3.10 x 3.10 mm

Rev: - | Copyright © 2025 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Data is measured with 3 wirebonds with approximately 25 μm diameter, 50 μm height and 280 μm length. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
1 dBc Passband Temp = 25°C
19.79 23.82---GHz
3 dBc Passband Temp = 25°C
19.46 24.22---GHz
30 dBc Rejection Point Temp = 25°C
18.32 25.36---GHz
Center Freq Temp = 25°C
- --21.71-GHz
Insertion Loss @ fc Temp = 25°C
- --2.2-dB
Passband Return Loss Temp = 25°C
- --28-dB
Group Delay Temp = 25°C
- --376-ps
Impedance Temp = 25°C
- --50-Ω

Rev: - | Copyright © 2025 Marki Microwave LLC.

5

Typical Performance Plot

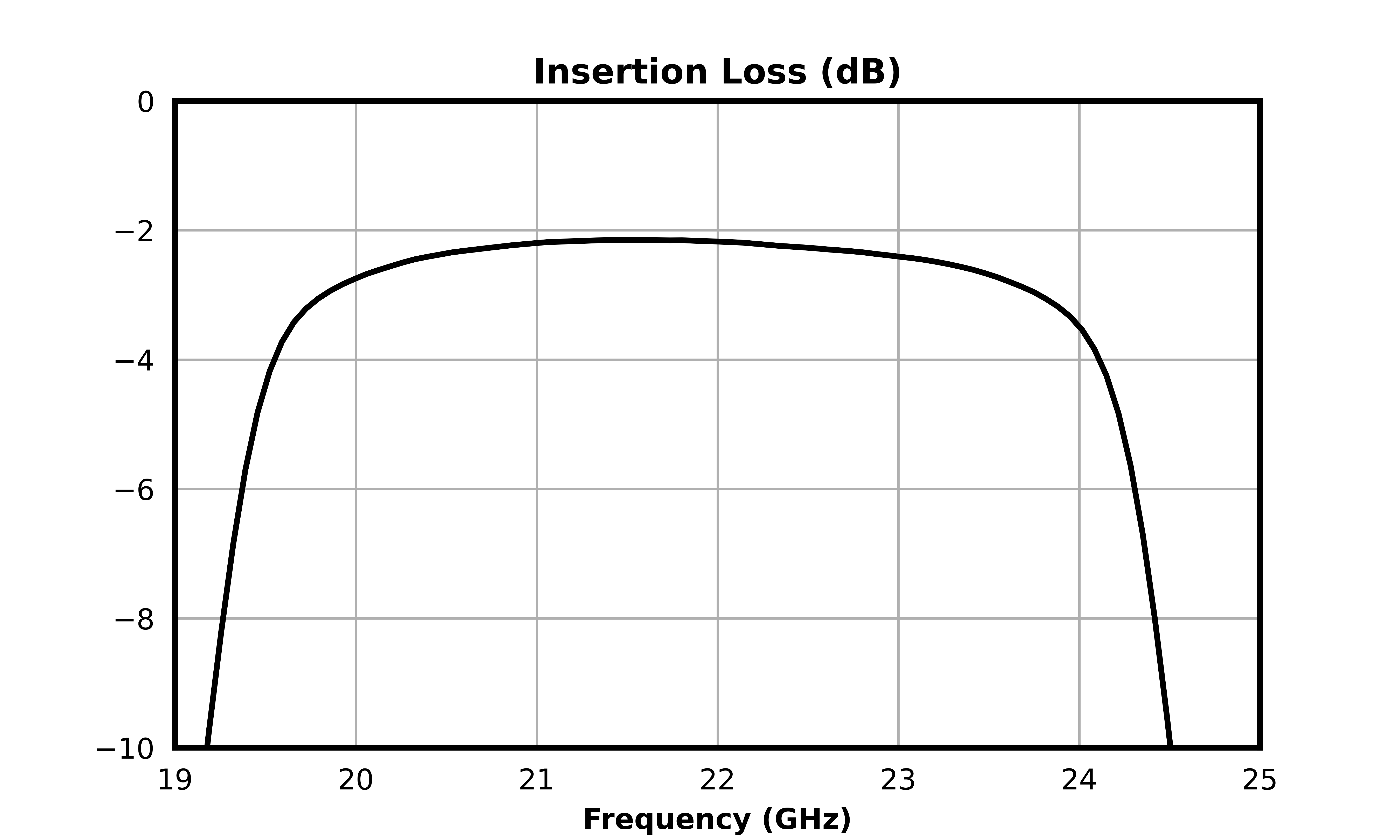

Insertion Loss (dB) graph for MFBP-00154CH

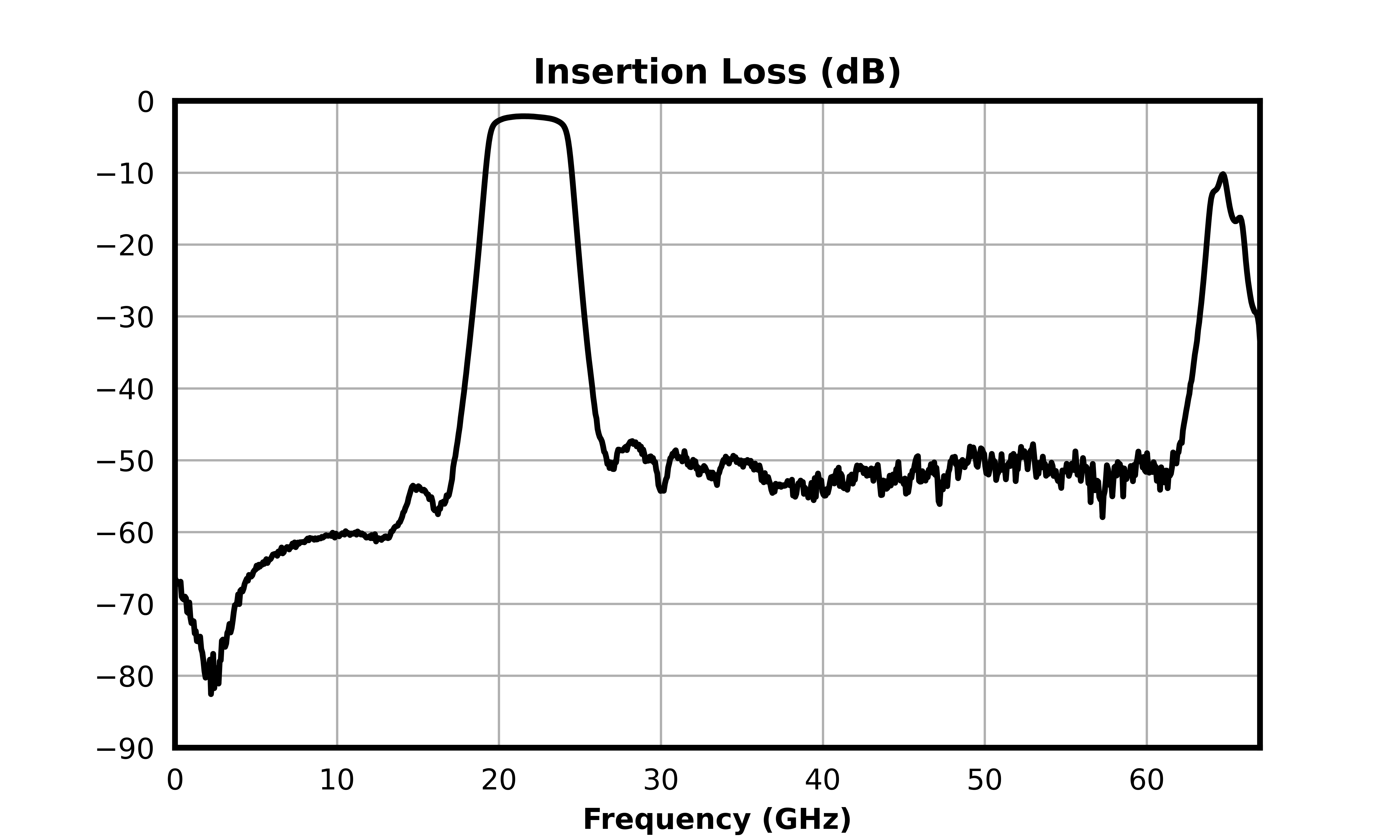

Insertion Loss (dB) graph for MFBP-00154CH

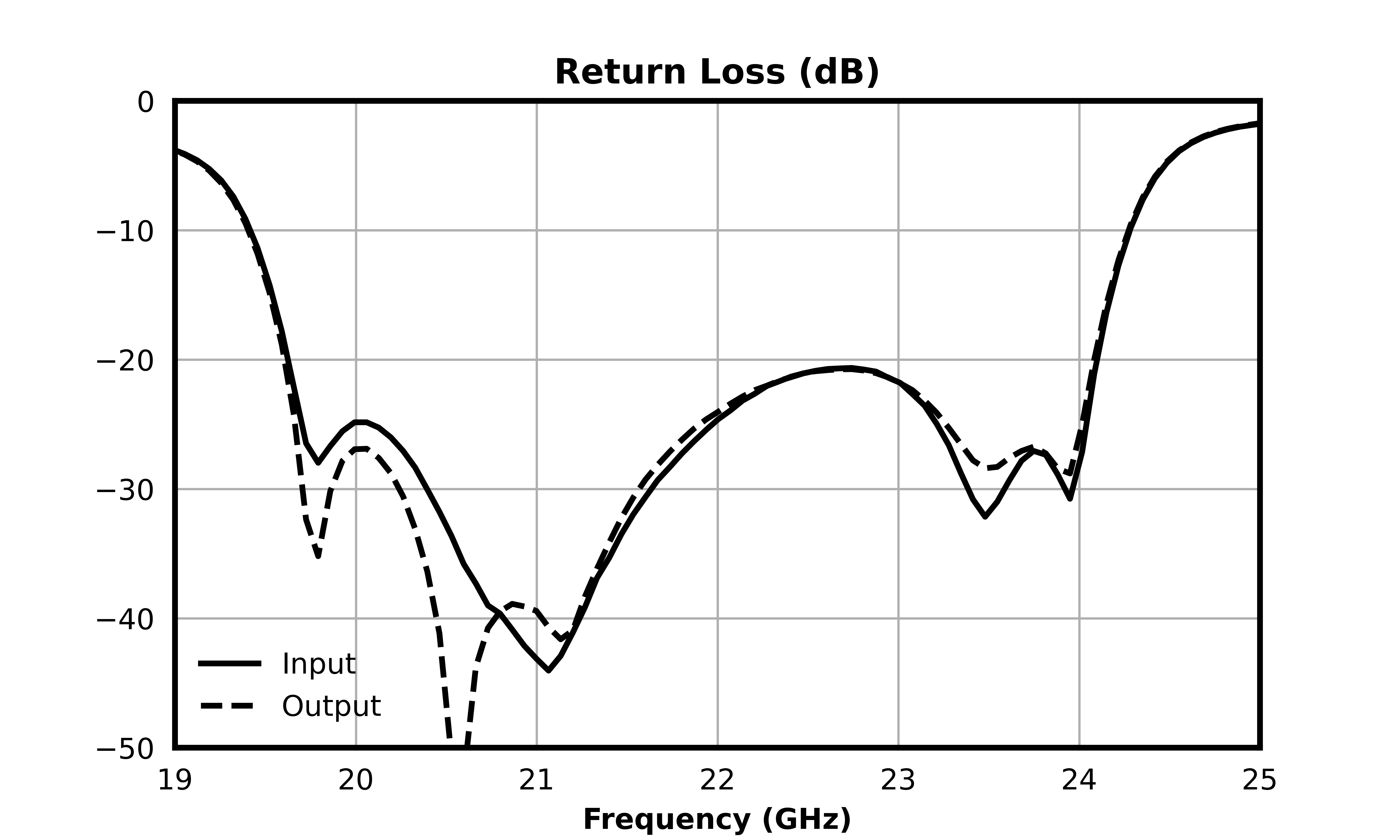

Return Loss (dB) graph for MFBP-00154CH

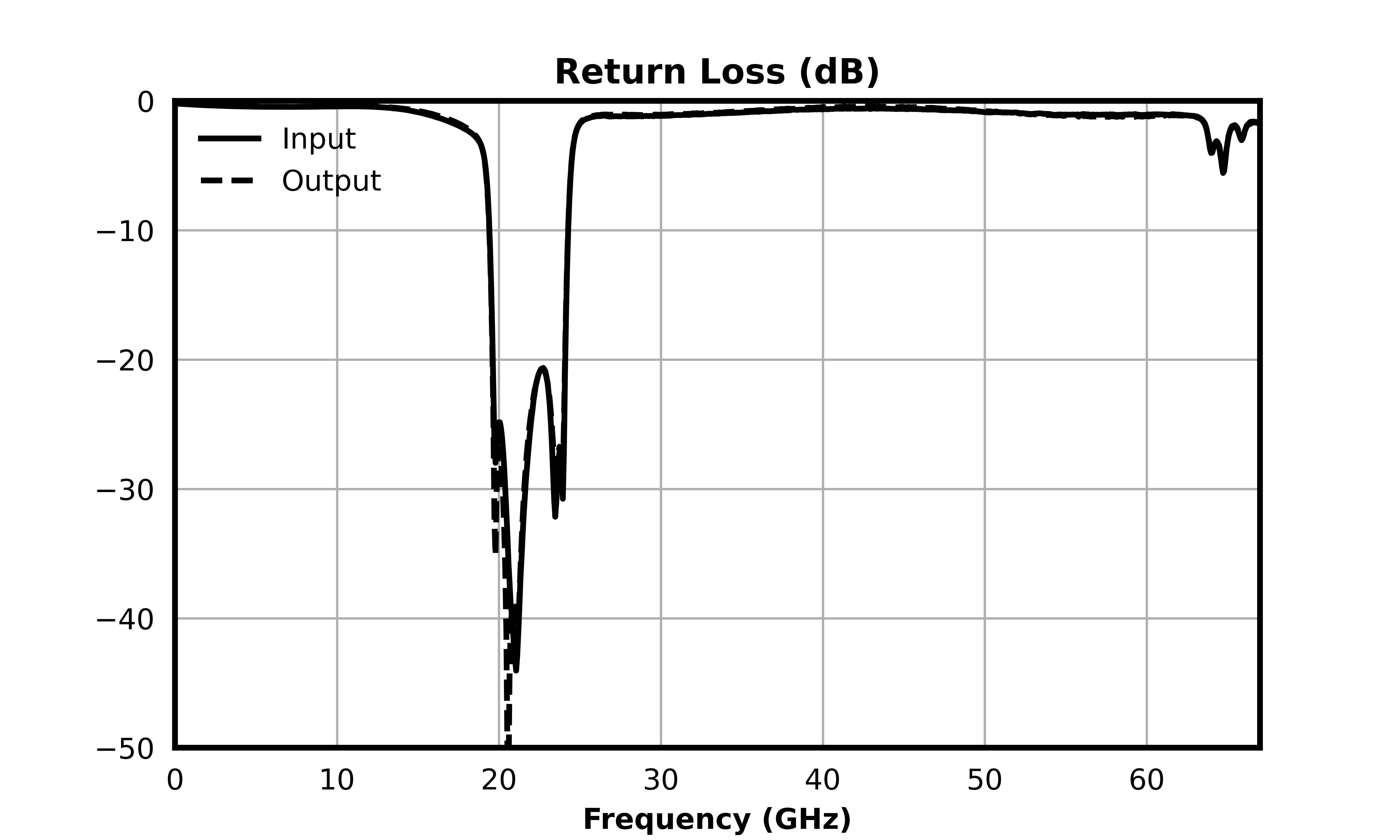

Return Loss (dB) graph for MFBP-00154CH

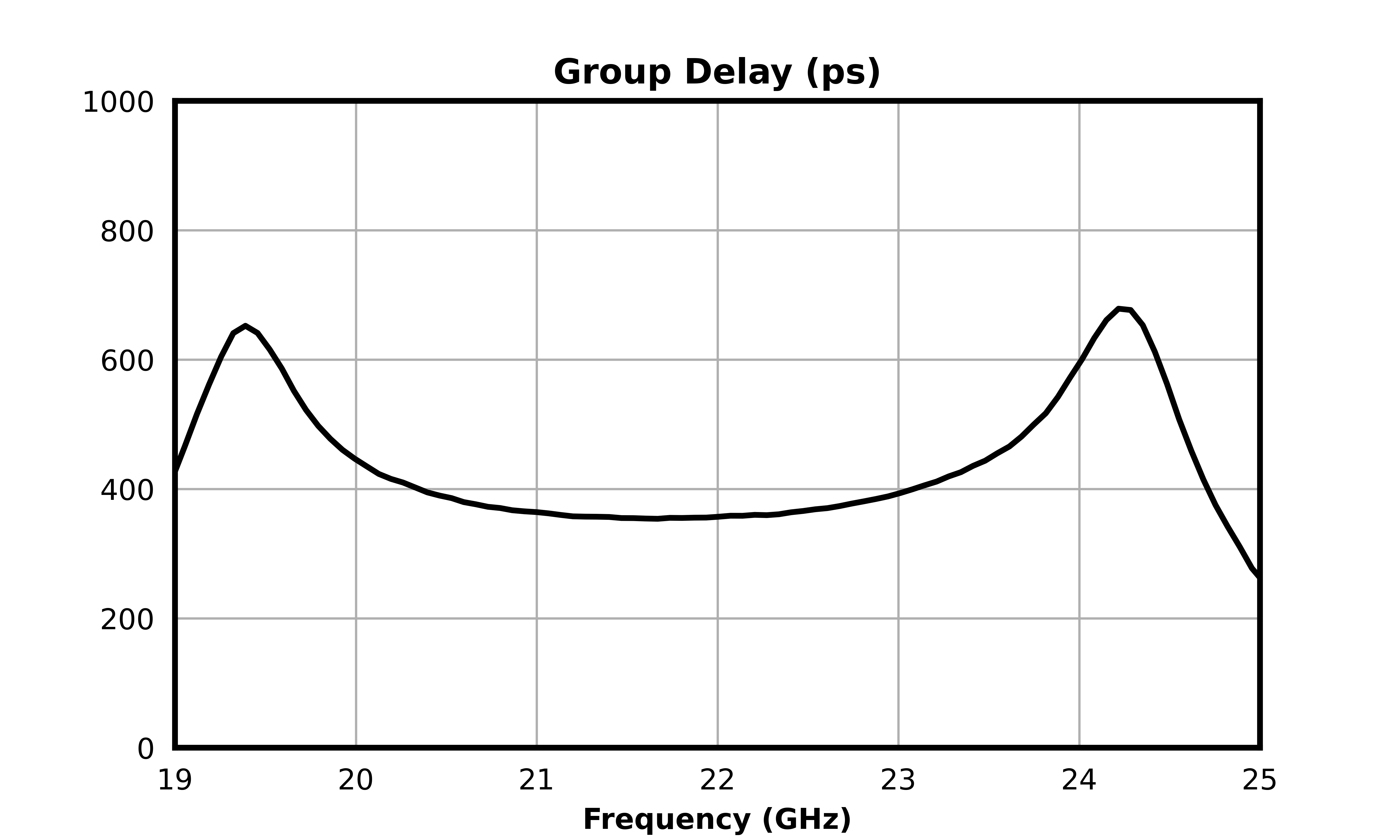

Group Delay (ps) graph for MFBP-00154CH

Rev: - | Copyright © 2025 Marki Microwave LLC.

6

Mechanical Data

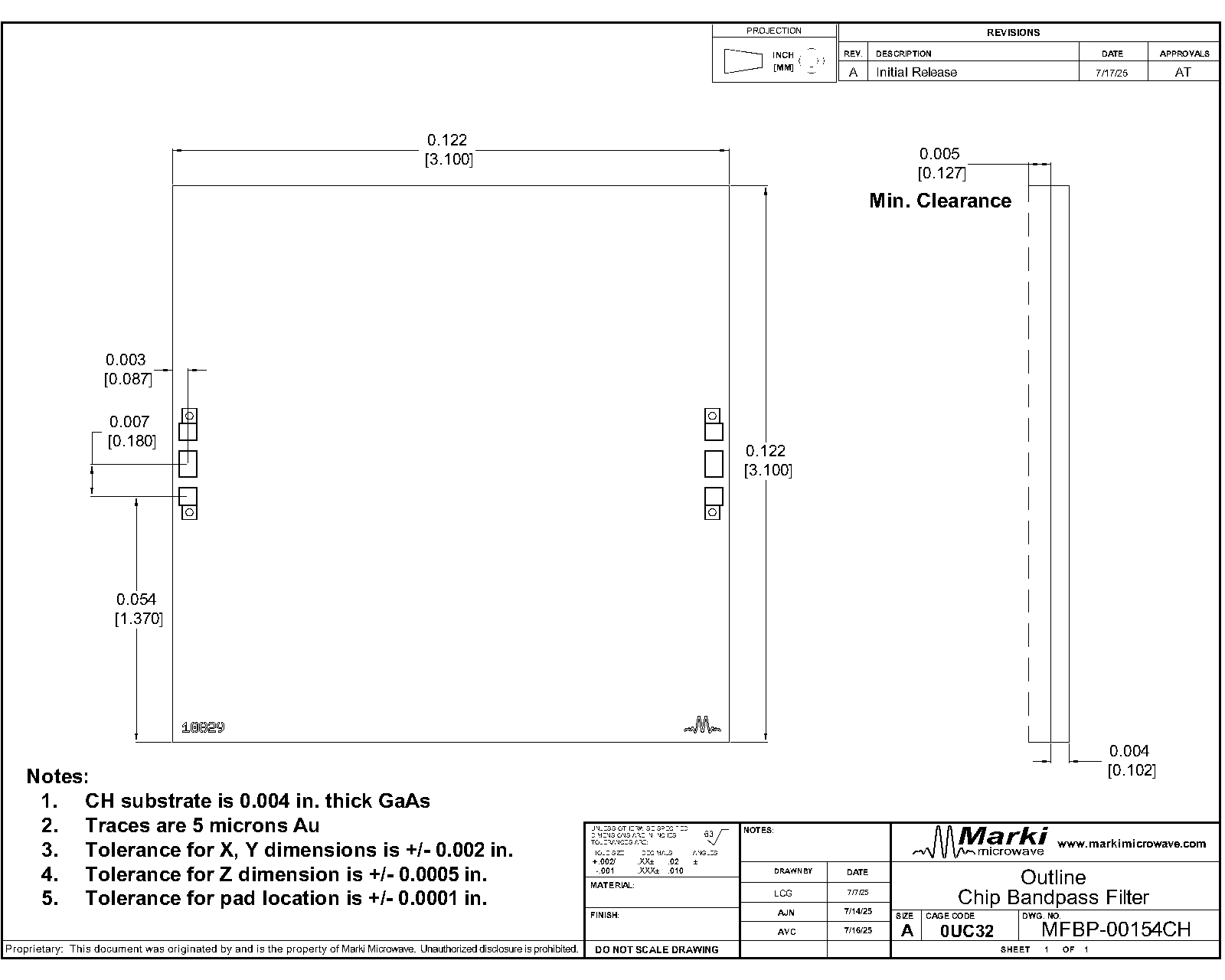

Outline Drawing

Download : Outline 2D Drawing
