Port Diagram

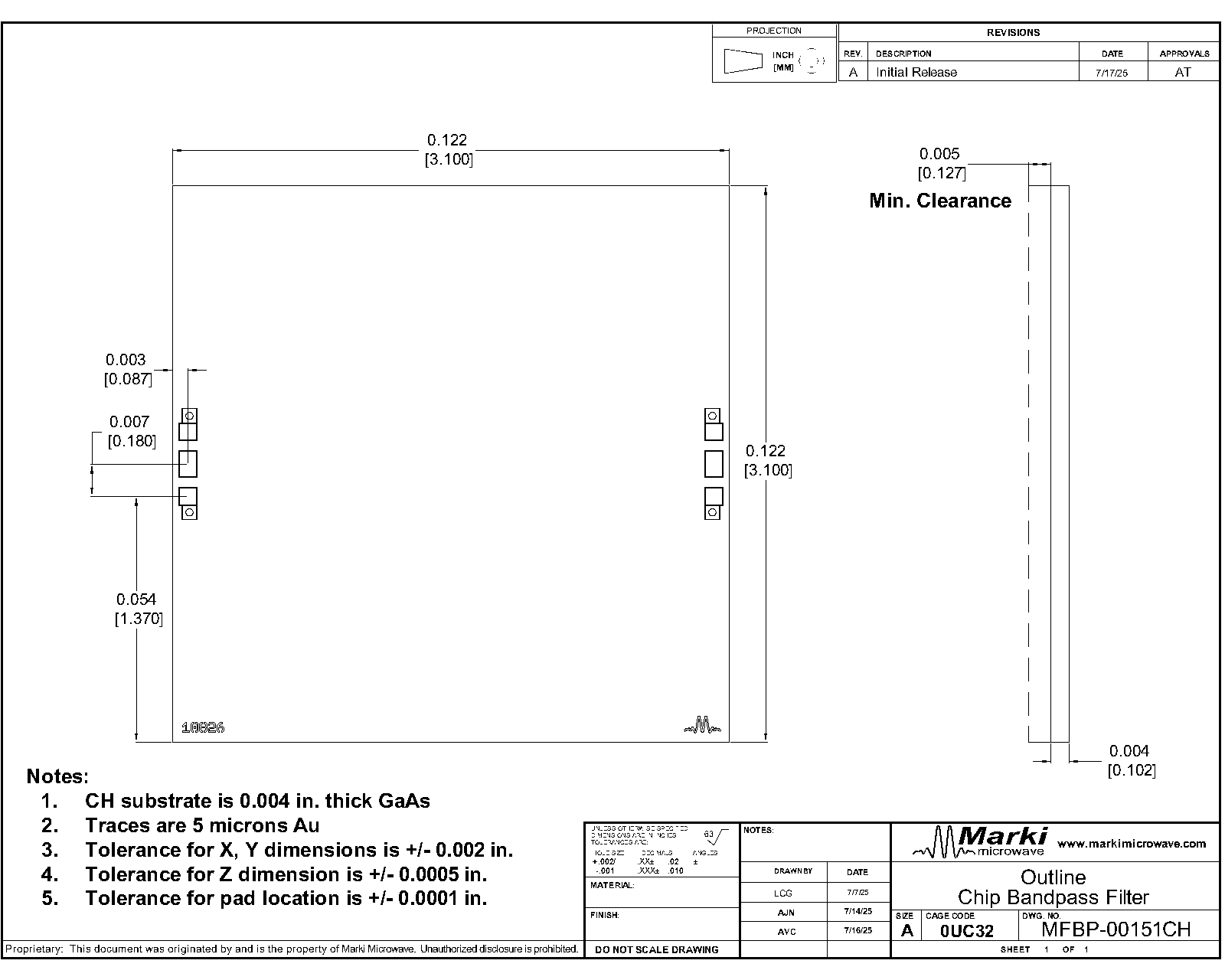

A top-down view of the MFBP-00151CH package outline drawing is shown below. The MMIC bandpass filters are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MFBP-00151CH passive MMIC bandpass filter die is an ideal solution for small form factor, high rejection filtering. The MFBP-00151CH features a 7.8-11.9GHz 1dBc passband and 1.9dB center frequency insertion loss. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFBP-00151CH is available as a wire bondable chip. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
Features
- 31 dB Return Loss
- 1.9 dB Insertion Loss @ Fc
- High Stop Band Suppression
- Wide Stop Band with Fast Roll-Off
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00151CH | Passive GaAs MMIC 7.8 - 11.9 GHz Bandpass Filter | CH | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00151CH | Passive GaAs MMIC 7.8 - 11.9 GHz Bandpass Filter | CH | RoHS REACH | Released | EAR99 |
MFBP-00151CH
Passive GaAs MMIC 7.8 - 11.9 GHz Bandpass Filter
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-10-06 | Initial Release |
MFBP-00151CH
Passive GaAs MMIC 7.8 - 11.9 GHz Bandpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input/Output | Port 1 is DC short to ground for the CH package. |  |
| Port 2 | Input/Output | Port 2 is DC short to ground for the CH package. | |
MFBP-00151CH
Passive GaAs MMIC 7.8 - 11.9 GHz Bandpass Filter
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 80 | mA |
| Port 2 DC Current | 80 | mA |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 3.10 x 3.10 mm |
MFBP-00151CH
Passive GaAs MMIC 7.8 - 11.9 GHz Bandpass Filter
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Data is measured with 3 wirebonds with approximately 25 μm diameter, 50 μm height and 280 μm length. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 7.79 | 11.88 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 7.65 | 12.55 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 6.98 | 13.15 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 9.62 | - | GHz |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 1.9 | - | dB |
| Passband Return Loss | Temp = 25°C | - | - | - | 31 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 515 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 7.79 | 11.88 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 7.65 | 12.55 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 6.98 | 13.15 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 9.62 | - | GHz |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 1.9 | - | dB |
| Passband Return Loss | Temp = 25°C | - | - | - | 31 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 515 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
MFBP-00151CH
Passive GaAs MMIC 7.8 - 11.9 GHz Bandpass Filter

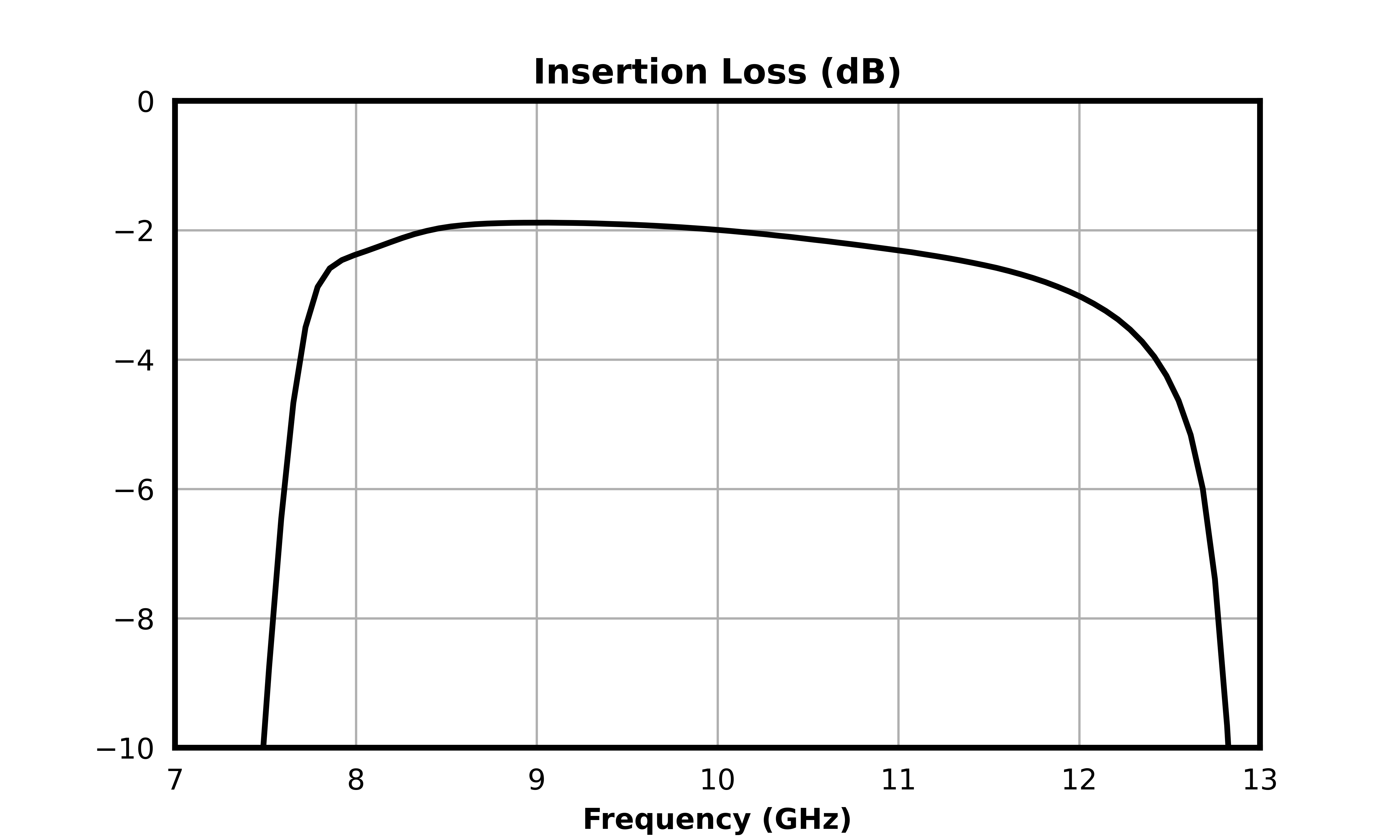

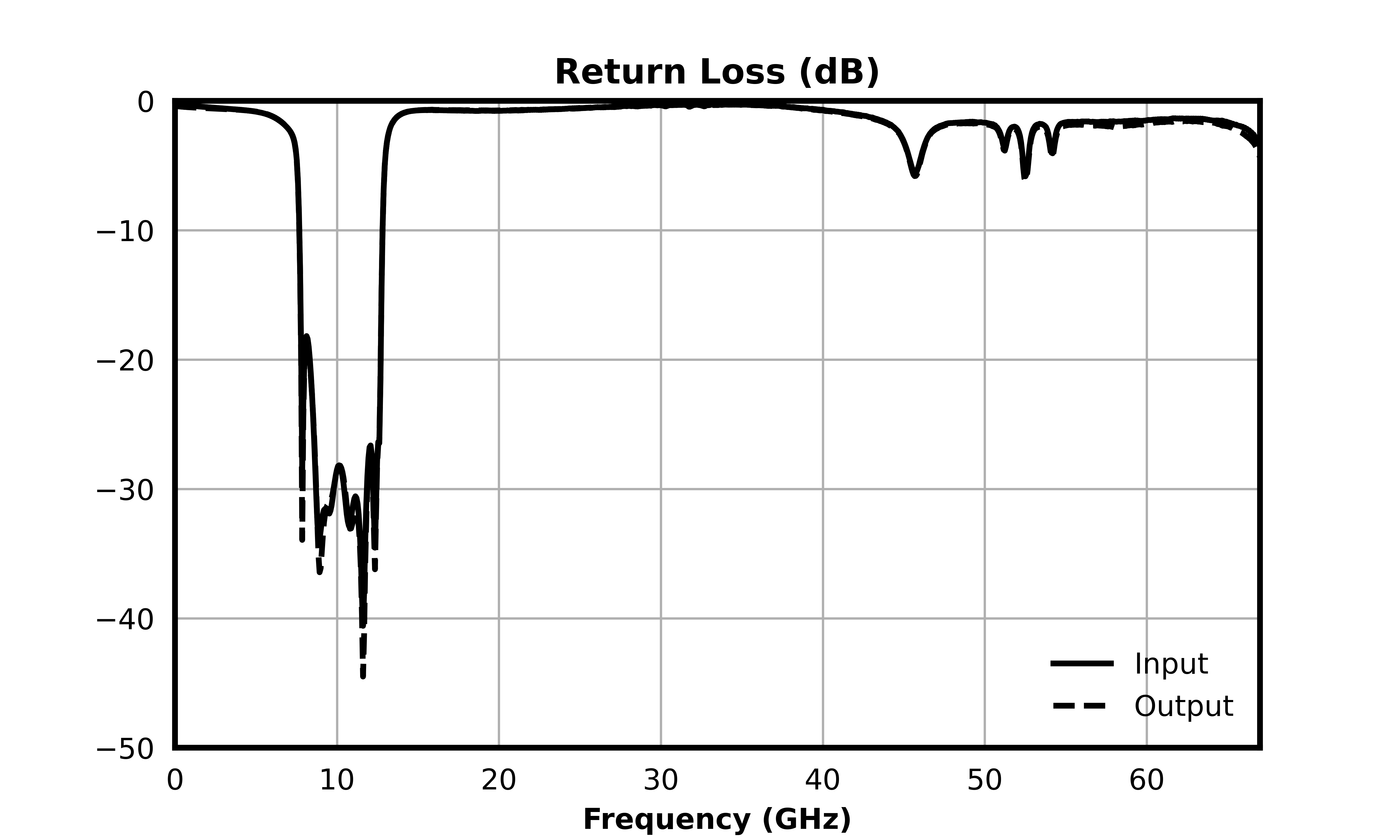

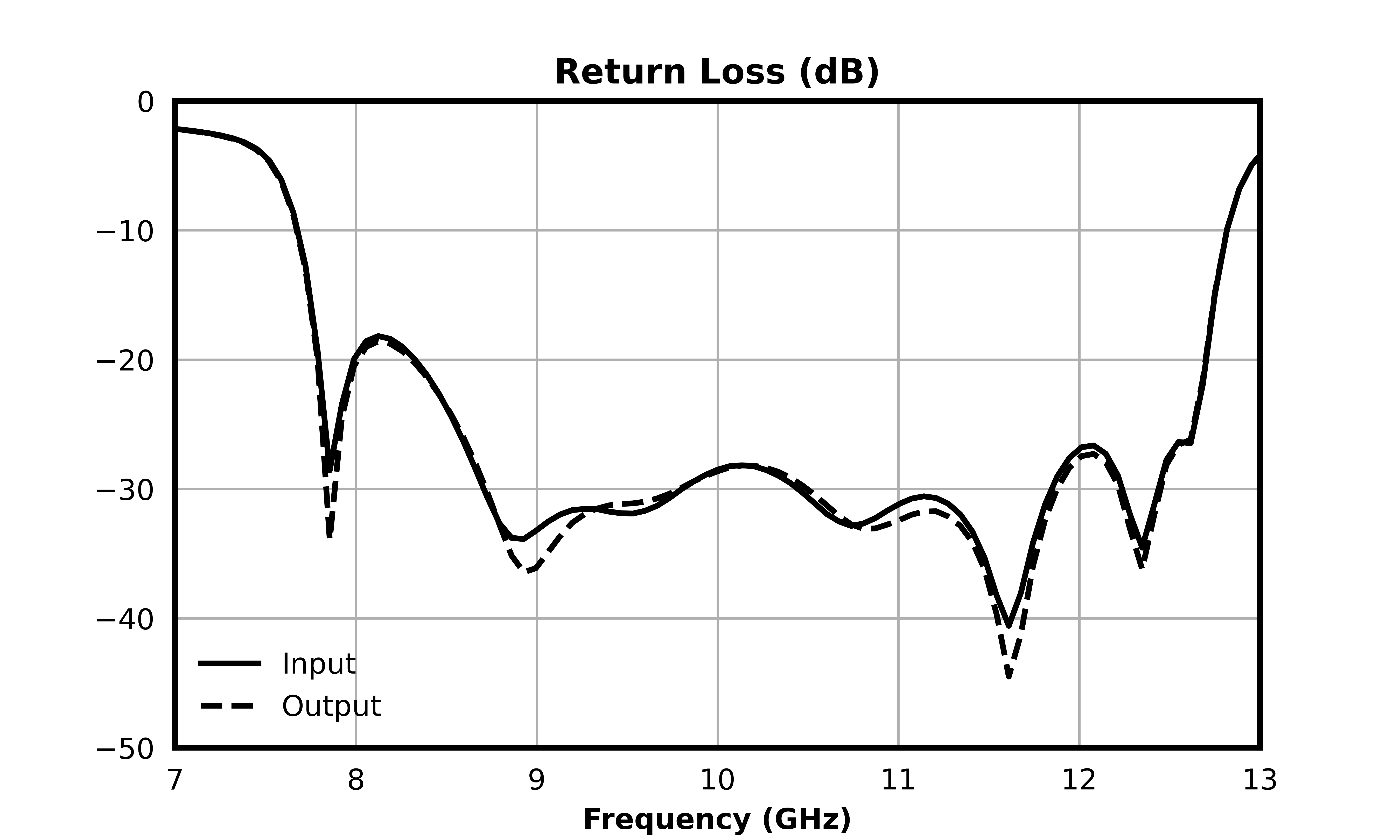

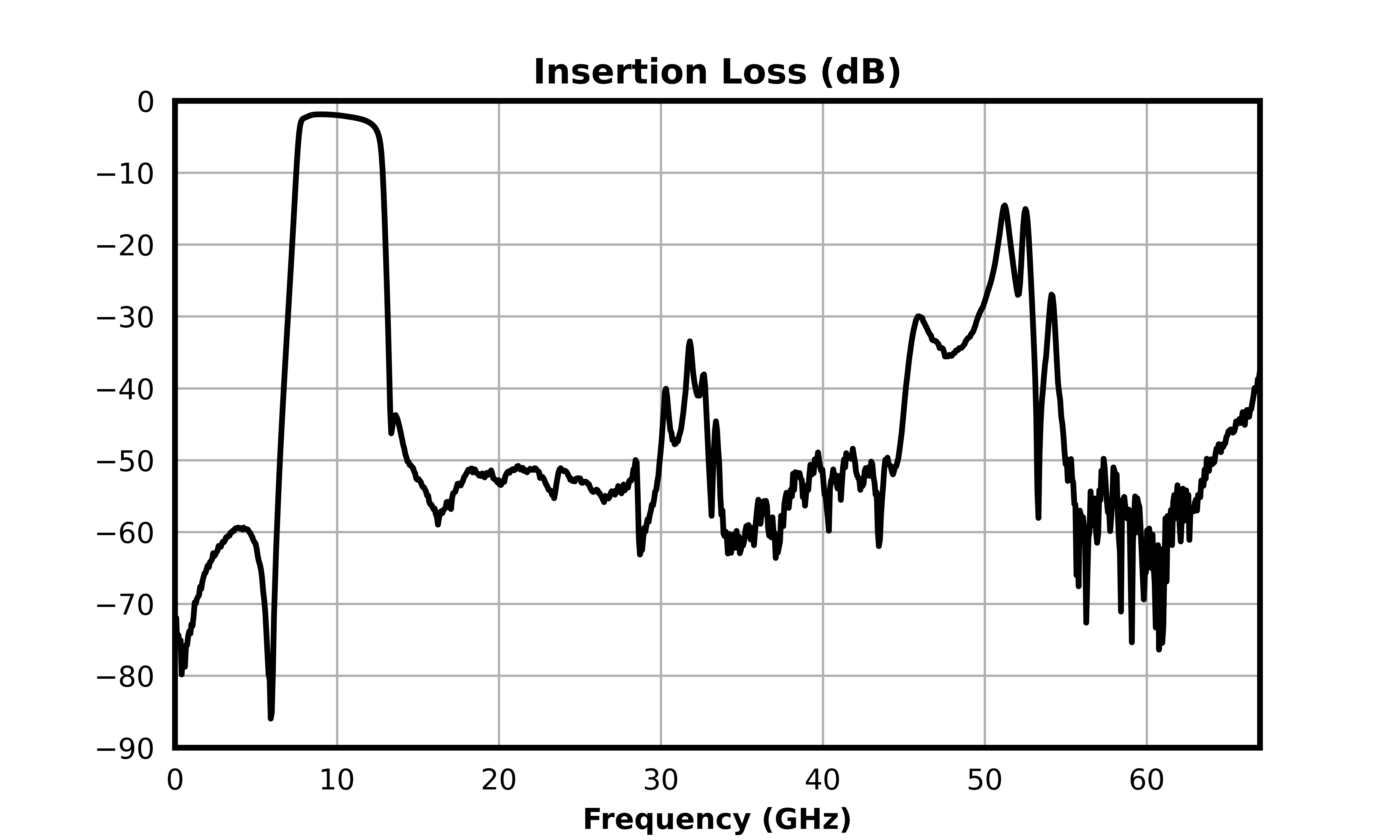

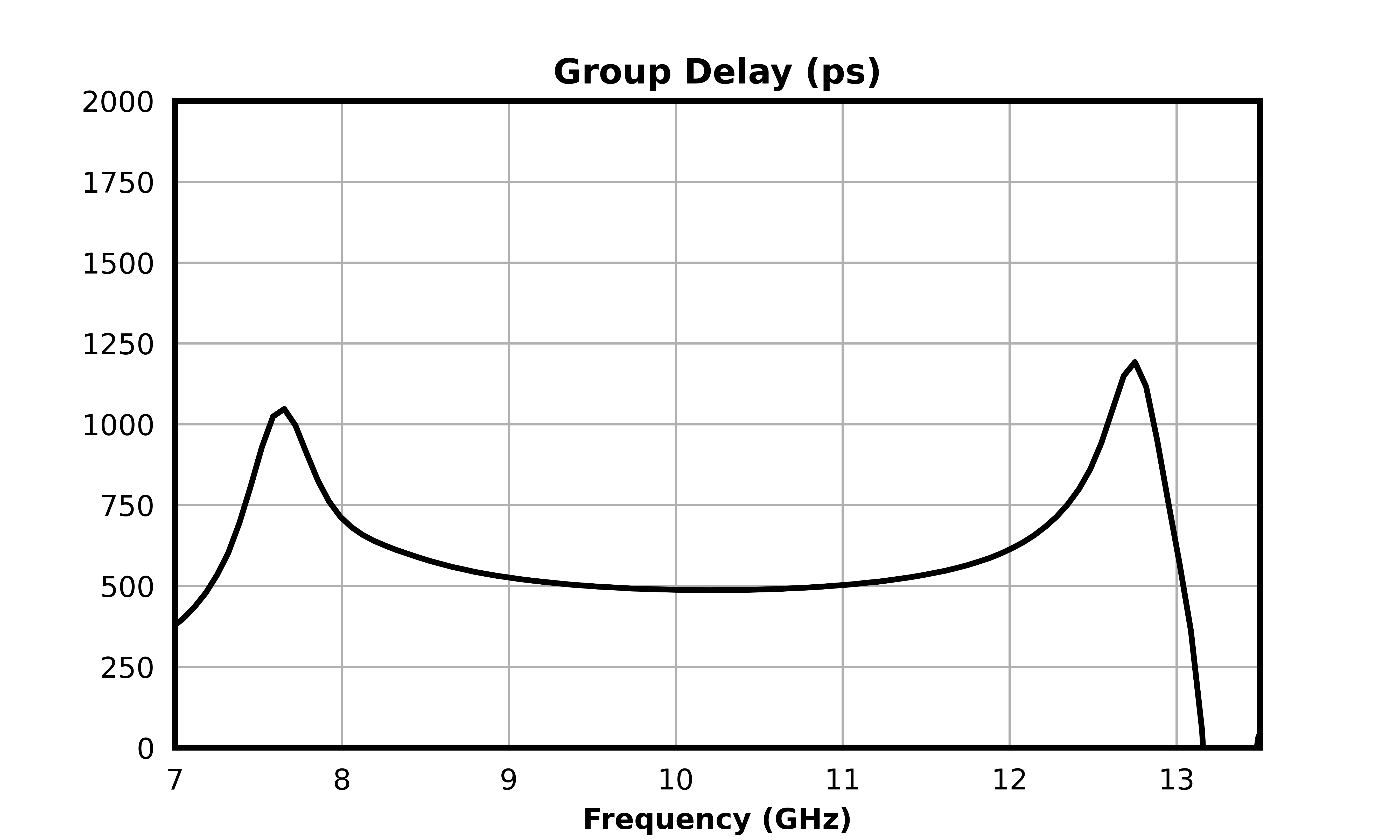

Typical Performance Plot
.png)
.png)
.png)
.png)
.png)
