MFBC-00018CH_Passive GaAs MMIC 44.50 – 62.50 GHz Bandpass Filter

Device Overview

General Description

The MFBC-00018CH family of passive MMIC 44.50 – 62.50GHz bandpass filters are an ideal solution for small form factor, mmWave, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. Low unit-to-unit variation allows for accurate simulations using the provided S2P file taken from measured production units. The MFBC-00018CH is available as a wire bondable die.

Download s-parameters here

Features

Excellent Return Loss
High Stop Band Suppression
Wide Stop Band with Fast Roll-Off

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFBC-00018CH	Passive GaAs MMIC 44.50 – 62.50 GHz Bandpass Filter	CH	RoHS REACH	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

MFBC-00018CH

Passive GaAs MMIC 44.50 – 62.50 GHz Bandpass Filter

RoHS

REACH

Released

EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFBC-00018CH	Passive GaAs MMIC 44.50 – 62.50 GHz Bandpass Filter	CH	RoHS REACH	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Operation

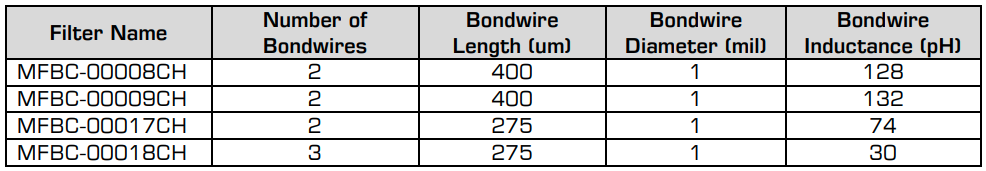

- Application Information
- Application Circuit
Mechanical Data
- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2023-03-28	Datasheet Initial Release
A	2024-01-05	Updated Production Test Criteria

Port Configuration and Functions

Port Diagram

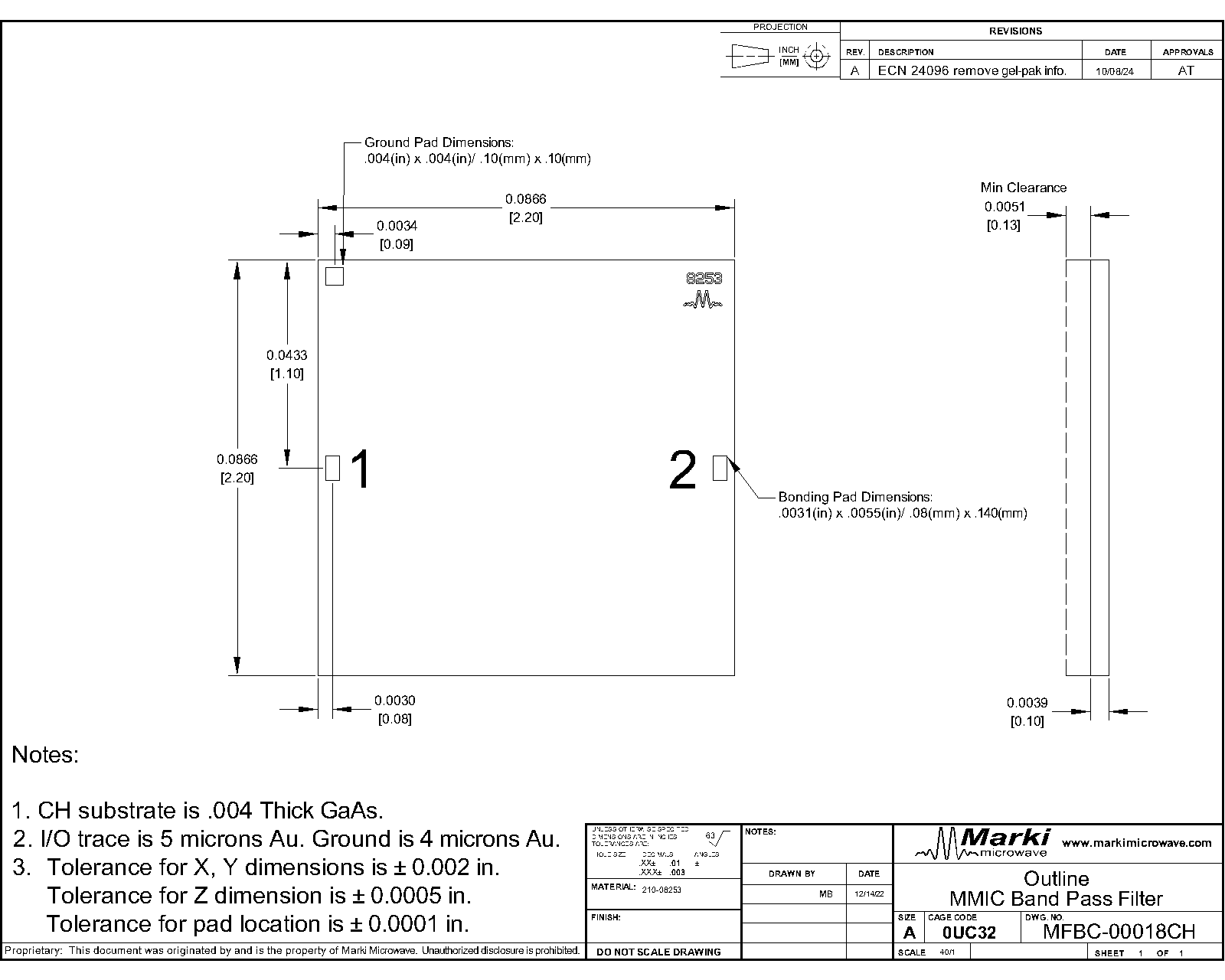

A top-down view of the MFBC-000018 CH package outline drawing is shown below. The MMIC bandpass filters are symmetrical allowing Port 1 or Port 2 to be used as the input.

Diagram of the port configuration for MFBC-00018CH

Port Functions

Port	Function	Description
Pad	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	Input/Output	Port 1 is DC short to ground for the CH package.
Port 2	Input/Output	Port 2 is DC short to ground for the CH package.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded or met simultaneously, the device may be inoperable or have a reduced lifetime

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 1 DC Current	400	mA
Port 2 DC Current	400	mA

Package Information

Parameter	Details	Rating
Dimensions	-	2.20 x 2.20 mm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
