Port Diagram

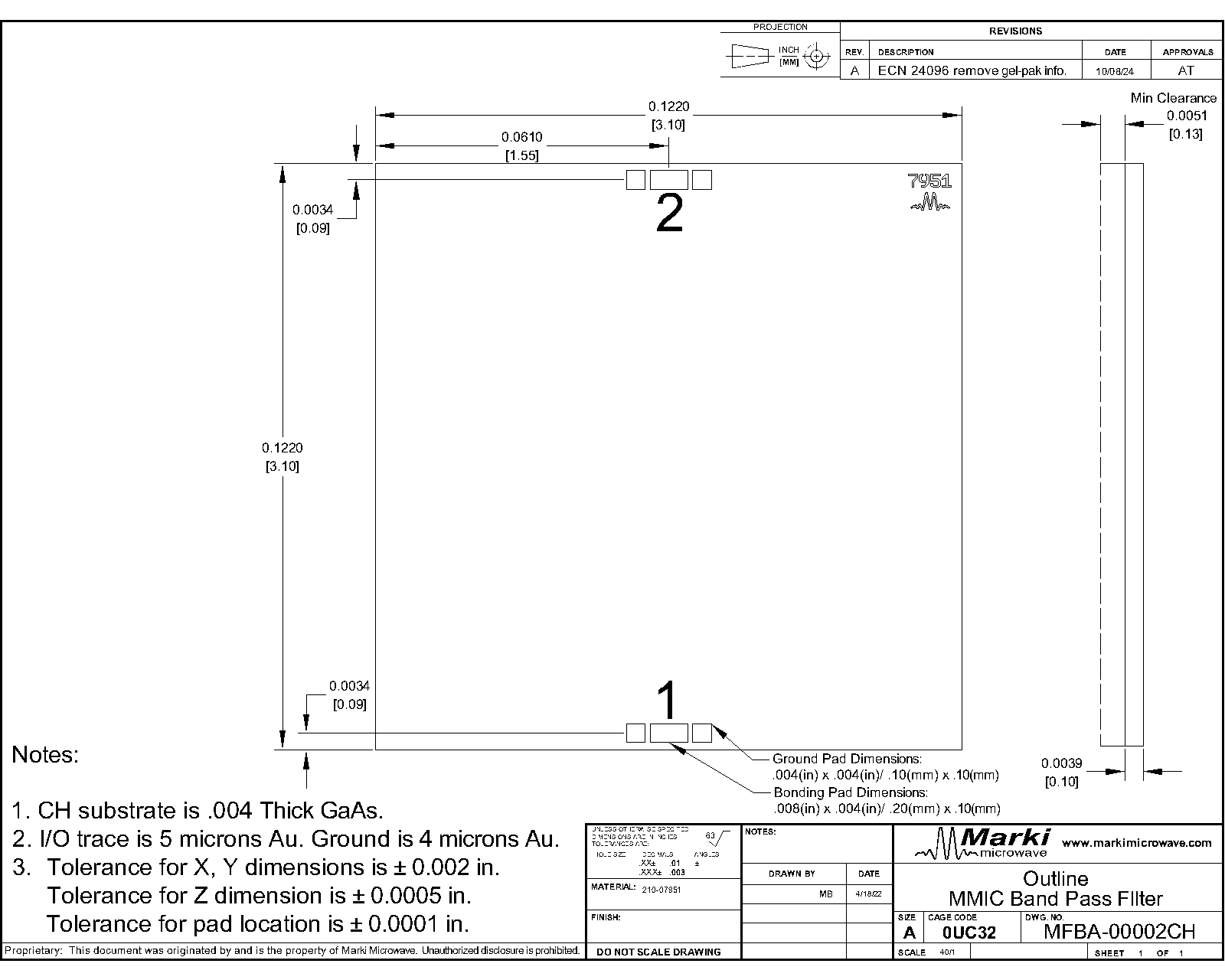

A top-down view of the MFBA-00002CH package outline drawing is shown below. The MMIC bandpass filters are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MFBA-00002CH family of passive MMIC bandpass filter die are an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFBA-00002CH is available as a wire bondable chip. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
Features
- Excellent Return Loss
- High Stop Band Suppression
- Wide Stop Band with Fast Roll-Off
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBA-00002CH | Passive GaAs MMIC 18.10 – 26.00 GHz Bandpass Filter | CH | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBA-00002CH | Passive GaAs MMIC 18.10 – 26.00 GHz Bandpass Filter | CH | REACH RoHS | Released | EAR99 |
MFBA-00002CH
Passive GaAs MMIC 18.10 – 26.00 GHz Bandpass Filter
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| A | 2024-01-05 | Updated Production Test Criteria |
MFBA-00002CH
Passive GaAs MMIC 18.10 – 26.00 GHz Bandpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input/Output | Port 1 is DC open to ground for the CH package. |  |
| Port 2 | Input/Output | Port 2 is DC open to ground for the CH package. | |
MFBA-00002CH
Passive GaAs MMIC 18.10 – 26.00 GHz Bandpass Filter
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 400 | mA |
| Port 2 DC Current | 400 | mA |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3.10 x 3.10 mm |
MFBA-00002CH
Passive GaAs MMIC 18.10 – 26.00 GHz Bandpass Filter
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband 1 | Temp = 25°C | 18.22 | 25.88 | - | - | - | GHz |
| 3 dBc Passband 2 | Temp = 25°C | 17.76 | 26.35 | - | - | - | GHz |
| 30 dBc Rejection Point 3 | Temp = 25°C | 16.21 | 28.19 | - | - | - | GHz |
| Center Freq 4 | Temp = 25°C | - | - | - | 21.72 | - | GHz |
| Insertion Loss @ fc 5 | Temp = 25°C | - | - | - | 1.8 | - | dB |
| Passband Return Loss 6 | Temp = 25°C | - | - | - | 21 | - | dB |
| Group Delay 7 | Temp = 25°C | - | - | - | 287 | - | ps |
| Impedance 8 | Temp = 25°C | - | - | - | 50 | - | Ω |
| Stopband Suppression | - | 0 | 14 | 40 | 78 | - | dB |
| Stopband Suppression | - | 31 | 55 | 40 | 44 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband 1 | Temp = 25°C | 18.22 | 25.88 | - | - | - | GHz |
| 3 dBc Passband 2 | Temp = 25°C | 17.76 | 26.35 | - | - | - | GHz |
| 30 dBc Rejection Point 3 | Temp = 25°C | 16.21 | 28.19 | - | - | - | GHz |
| Center Freq 4 | Temp = 25°C | - | - | - | 21.72 | - | GHz |
| Insertion Loss @ fc 5 | Temp = 25°C | - | - | - | 1.8 | - | dB |
| Passband Return Loss 6 | Temp = 25°C | - | - | - | 21 | - | dB |
| Group Delay 7 | Temp = 25°C | - | - | - | 287 | - | ps |
| Impedance 8 | Temp = 25°C | - | - | - | 50 | - | Ω |
| Stopband Suppression | - | 0 | 14 | 40 | 78 | - | dB |
| Stopband Suppression | - | 31 | 55 | 40 | 44 | - | dB |
[1][2][3][4][5][6][7][8] No
MFBA-00002CH
Passive GaAs MMIC 18.10 – 26.00 GHz Bandpass Filter
Typical Performance Plots
