MFB-5350CH_Passive MMIC 40-67GHz Bandpass Filter

Device Overview

General Description

The MFB-5350 is a passive MMIC bandpass filter. It is a low loss integrated filter that passes most V band frequencies (40-67GHz). Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies.

Download s-parameters here

Features

Insertion Loss Typically 1.5dB at Center Frequency
Excellent Return Loss
High Stop Band Suppression
Wide Stop Band

Applications

Designed for V Band

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFB-5350CH	Passive MMIC 40-67GHz Bandpass Filter	CH	REACH RoHS	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

MFB-5350CH

Passive MMIC 40-67GHz Bandpass Filter

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFB-5350CH	Passive MMIC 40-67GHz Bandpass Filter	CH	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Mechanical Data
- Outline Drawing
Notes

Revision History

Revision Code	Revision Date	Comment
-	2023-05-21	Datasheet Initial Release

Port Configuration and Functions

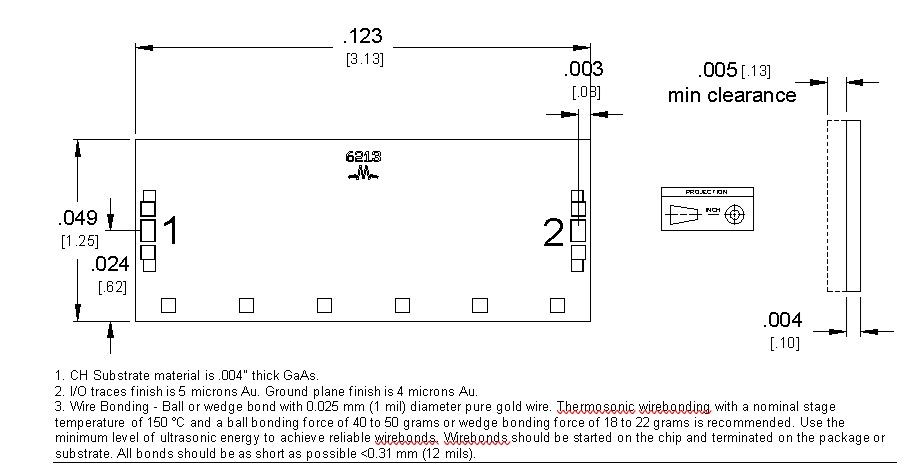

Port Diagram

Diagram of the port configuration for MFB-5350CH

Port Functions

Port	Function	Description
Pad	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	Input/Output	Port 1 is DC open to ground for the CH package.
Port 2	Input/Output	Port 2 is DC open to ground for the CH package.

Specifications

Absolute Maximum Ratings

Note: Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.

Parameter	Maximum Rating	Unit
Maximum Storage Temperature	125	°C
Maximum Survivable Operating Temperature	125	°C
Minimum Storage Temperature	-65	°C
Minimum Survivable Operating Temperature	-65	°C
RF Power Handling	27	dBm
Spec Guaranteed Operating Temperature	25	°C

Package Information

Parameter	Details	Rating
Dimensions	-	3.13 x 1.25 mm

Electrical Specifications

Specifications guaranteed +25°C for chip (CH) package, measured in a 50Ω system.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband ¹	Temp = 25°C	35.26	67	-	-	-	GHz
3 dBc Passband ²	Temp = 25°C	33.51	48.58	-	-	-	GHz
30 dBc Rejection Point ³	Temp = 25°C	20.27	48.58	-	-	-	GHz
Center Freq ⁴	Temp = 25°C	-	-	-	48.61	-	GHz
Insertion Loss @ fc ⁵	Temp = 25°C	-	-	-	0.8	3.0	dB
Passband Return Loss ⁶	Temp = 25°C	-	-	-	14	-	dB
Group Delay ⁷	Temp = 25°C	-	-	-	50	-	ps
Impedance ⁸	Temp = 25°C	-	-	-	50	-	Ω
Stopband Suppression	-	8	8	40	50	-	dB
Stopband Suppression	-	20.7	85	25	30	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband ¹	Temp = 25°C	35.26	67	-	-	-	GHz
3 dBc Passband ²	Temp = 25°C	33.51	48.58	-	-	-	GHz
30 dBc Rejection Point ³	Temp = 25°C	20.27	48.58	-	-	-	GHz
Center Freq ⁴	Temp = 25°C	-	-	-	48.61	-	GHz
Insertion Loss @ fc ⁵	Temp = 25°C	-	-	-	0.8	3.0	dB
Passband Return Loss ⁶	Temp = 25°C	-	-	-	14	-	dB
Group Delay ⁷	Temp = 25°C	-	-	-	50	-	ps
Impedance ⁸	Temp = 25°C	-	-	-	50	-	Ω
Stopband Suppression	-	8	8	40	50	-	dB
Stopband Suppression	-	20.7	85	25	30	-	dB

^[1]^[2]^[3]^[4]^[5]^[6]^[7]^[8] No

Typical Performance Plots

Probed Insertion Loss(dB) graph for MFB-5350CH

Band 1 Group Delay (ps) graph for MFB-5350CH

Mechanical Data

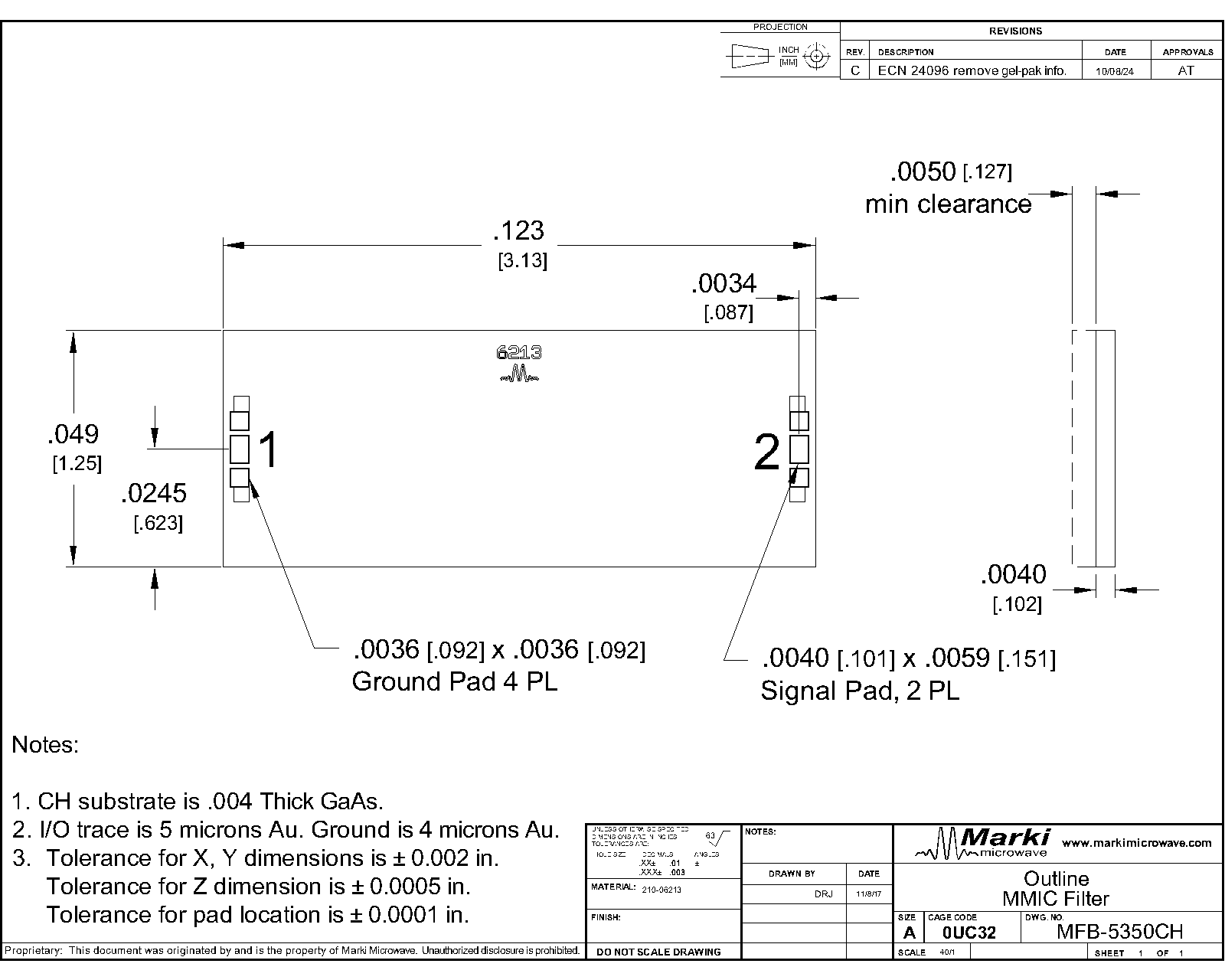

Outline Drawing

Download : Outline 2D Drawing
