MFB-2500CH_Passive MMIC 18-32 GHz Bandpass Filter

Device Overview

General Description

The MFB-2500 is a passive MMIC bandpass filter. It is a low loss integrated filter that passes K-Band and lower Ka-Band frequencies (18-32GHz). Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFB-2500 is available as a wire bondable chip. Low unit to unit variation allow for accurate simulations using the provided S2P file taken from measured production units.

Features

Insertion Loss Typically 1.5dB at Center Frequency
Excellent Return Loss
High Stop Band Suppression
Wide Stop Band

Applications

Designed for K-Band, Ka-Band, 5G, and SATCOM Applications

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFB-2500CH	Passive MMIC 18-32 GHz Bandpass Filter	CH	REACH RoHS	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

MFB-2500CH

Passive MMIC 18-32 GHz Bandpass Filter

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
MFB-2500CH	Passive MMIC 18-32 GHz Bandpass Filter	CH	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Die Mounting Recommendations
- Mounting and Bonding Recommendations
Mechanical Data
- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
A	2024-01-05	Updated Production Test Criteria

Port Configuration and Functions

Port Diagram

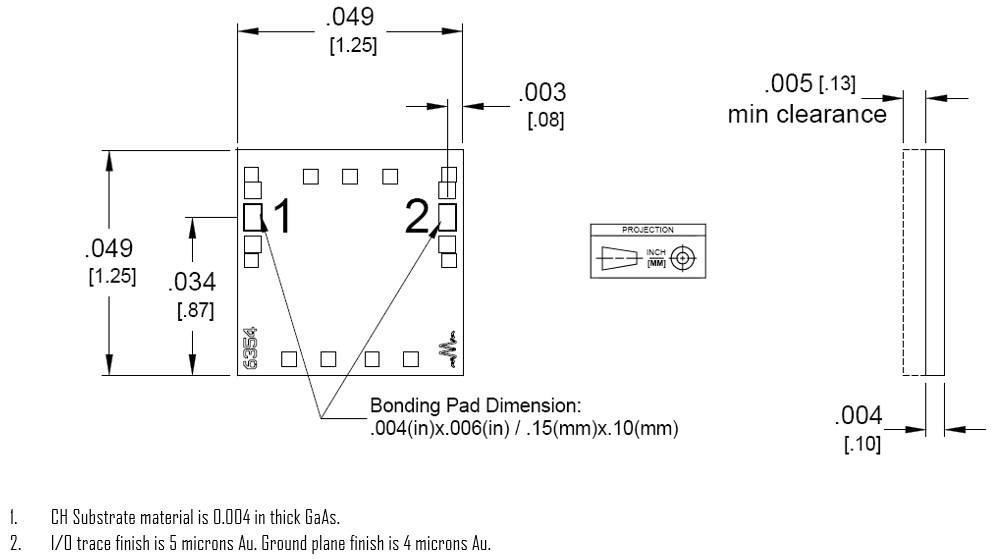

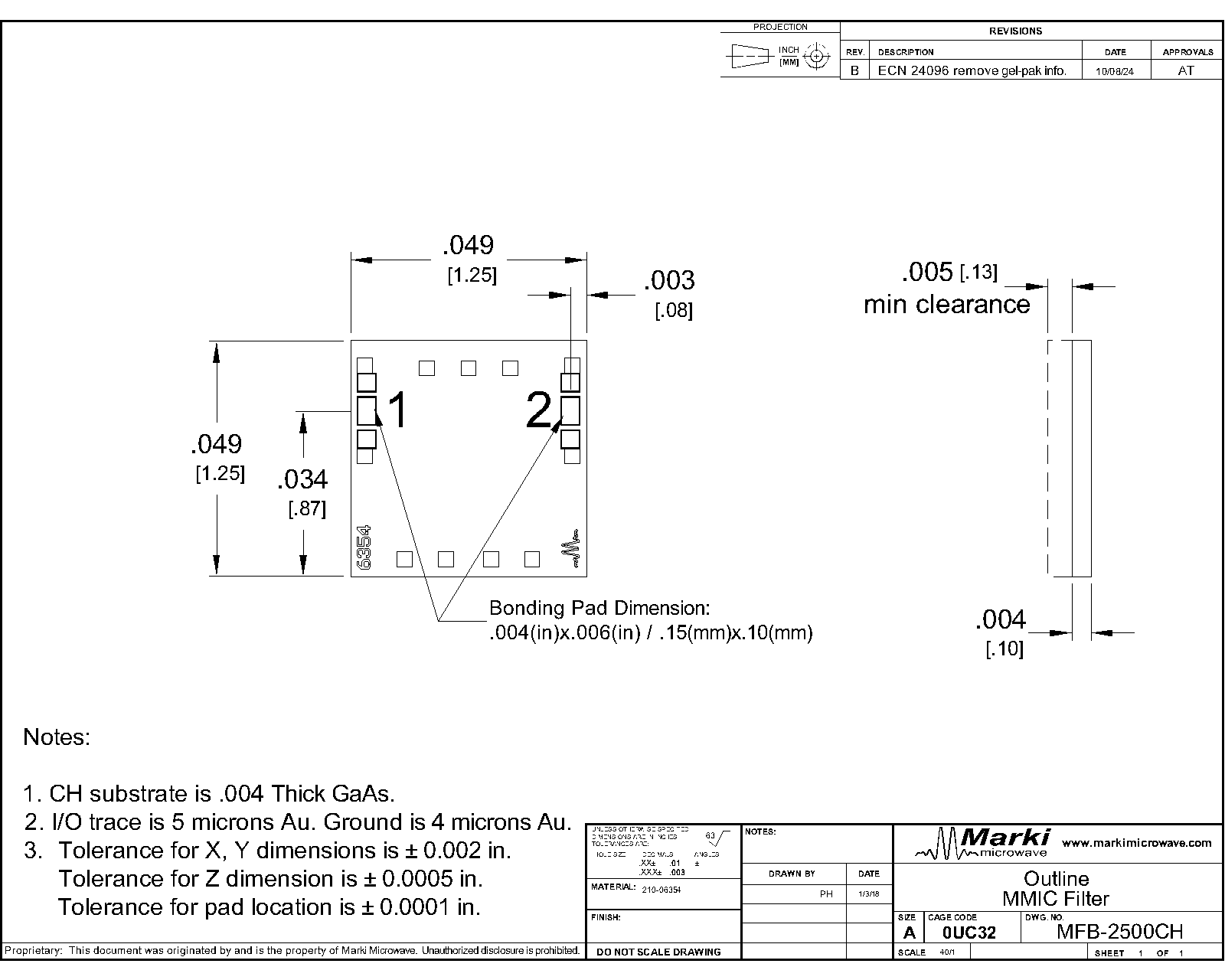

A top-down view of the MFB-2500CH package outline drawing is shown below. The MMIC bandpass filters are symmetrical allowing Port 1 or Port 2 to be used as the input.

Diagram of the port configuration for MFB-2500CH

Port Functions

Port	Function	Description
Pad	Ground	CH package ground path is provided through the substrate and ground bond pads.
Port 1	Input/Output	Port 1 is DC connected to ground through a resistor. DC block is required if voltage present.
Port 2	Input/Output	Port 2 is DC connected to ground through a resistor. DC block is required if voltage present.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Port 1 DC Current	40	mA
Port 2 DC Current	40	mA
Power Handling, at any Port	30	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	1.25 x 1.25 mm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband	25°C	16.42	28.82	-	-	-	GHz
30 dBc Rejection Point	25°C	9.72	33.84	-	-	-	GHz
3 dBc Passband	25°C	15.75	32	-	-	-	GHz
Center Freq	25°C	-	-	-	21.75	-	GHz
Group Delay	25°C	-	-	-	122	-	ps
Impedance	25°C	-	-	-	50	-	Ω
Insertion Loss @ fc	25°C	-	-	-	1.3	-	dB
Passband Return Loss	25°C	-	-	-	24	-	dB
Stopband Suppression	-	10	34	25	30	-	dB
Stopband Suppression	-	2.5	2.5	40	50	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband	25°C	16.42	28.82	-	-	-	GHz
30 dBc Rejection Point	25°C	9.72	33.84	-	-	-	GHz
3 dBc Passband	25°C	15.75	32	-	-	-	GHz
Center Freq	25°C	-	-	-	21.75	-	GHz
Group Delay	25°C	-	-	-	122	-	ps
Impedance	25°C	-	-	-	50	-	Ω
Insertion Loss @ fc	25°C	-	-	-	1.3	-	dB
Passband Return Loss	25°C	-	-	-	24	-	dB
Stopband Suppression	-	10	34	25	30	-	dB
Stopband Suppression	-	2.5	2.5	40	50	-	dB
