Device Overview
General Description
The MEQ6-60A is a passive MMIC equalizer. It is a positive gain slope equalizer designed to pass DC to 60GHz. Equalization can be applied to reduce low pass filtering effects in both RF/microwave and high speed digital systems. Passive GaAs MMIC technology allows production of smaller equalizer constructions that replace larger form factor circuit board constructions. Better IC tolerances allow for less unit to unit variation that traditionally etched circuits have.
Features
- Insertion loss typically 1.5dB at 60GHz
- 6dB low frequency attenuation
- Excellent return loss
- Broadband Operation
- RoHS Compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ6-60ACH | Passive MMIC 60GHz Equalizer | CH | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ6-60ACH | Passive MMIC 60GHz Equalizer | CH | REACH RoHS | Released | EAR99 |
MEQ6-60ACH
Passive MMIC 60GHz Equalizer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations

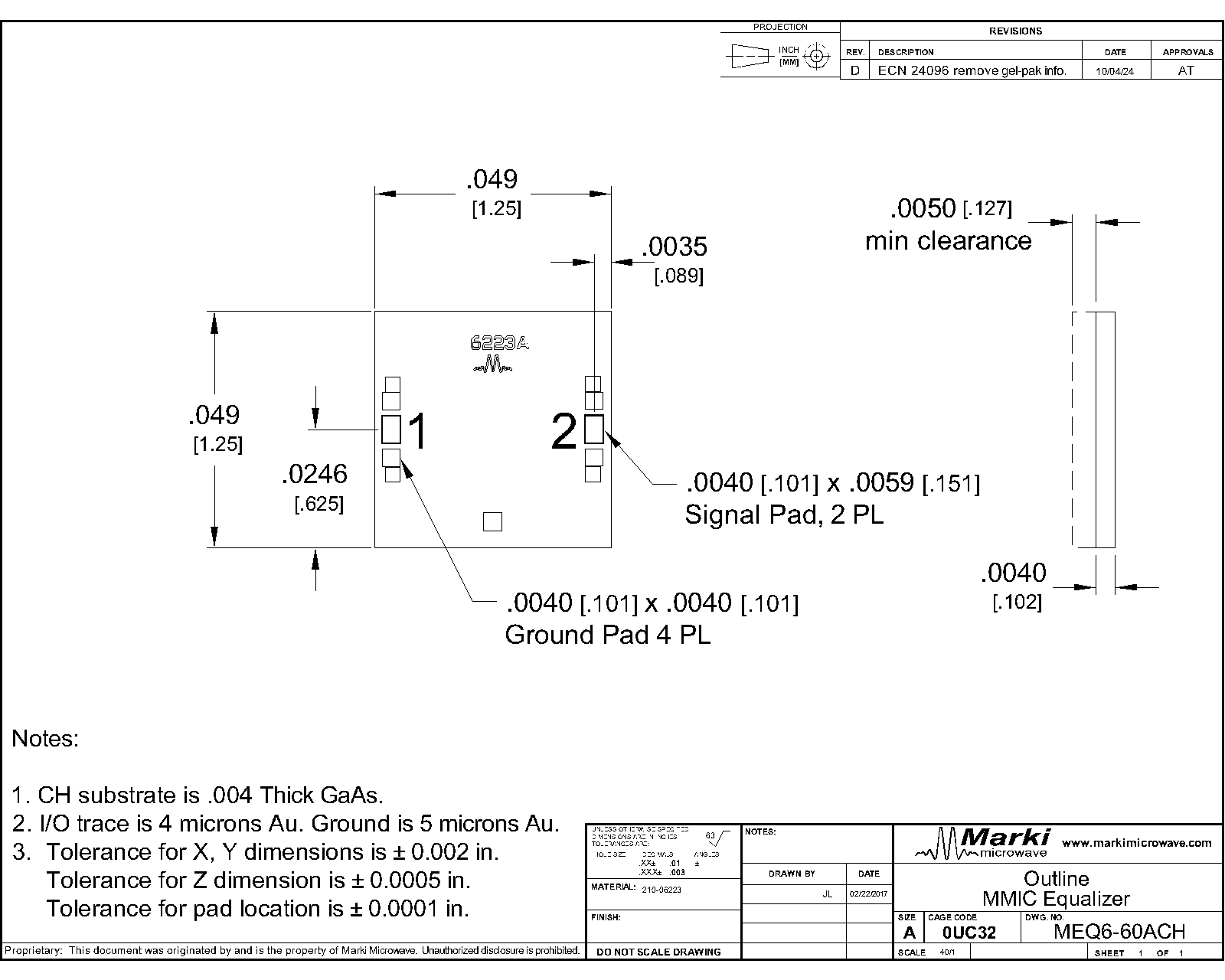

- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2017-01-01 | Datasheet Initial Release |
| A | 2019-03-01 | Added ESD rating |
| B | 2023-01-01 | Added Extended Performance To 67GHz |
MEQ6-60ACH
Passive MMIC 60GHz Equalizer

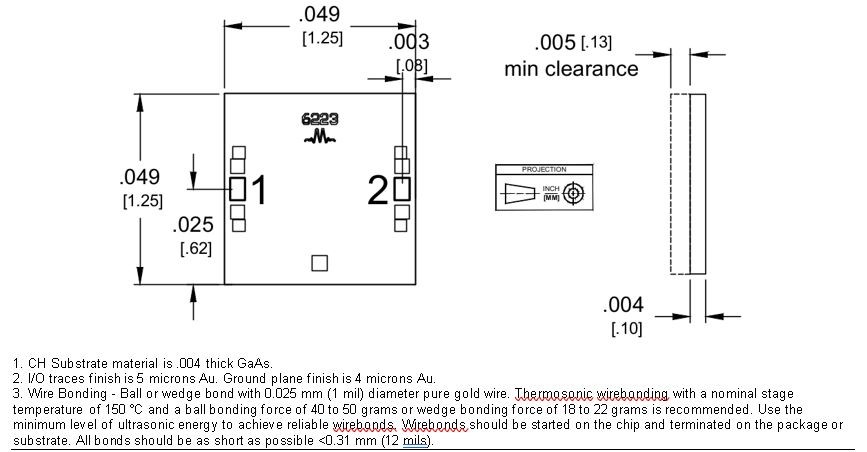

Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 1 | Input/Output | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Port 2 | Input/Output | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ6-60ACH
Passive MMIC 60GHz Equalizer
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Storage Temperature | 125 | °C |
| Maximum Survivable Operating Temperature | 125 | °C |
| Minimum Storage Temperature | -65 | °C |
| Minimum Survivable Operating Temperature | -65 | °C |
| RF Power Handling | 30 | dBm |
| Spec Guaranteed Operating Temperature | 25 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 1.25 x 1.25 mm |
MEQ6-60ACH
Passive MMIC 60GHz Equalizer
Electrical Specifications
Specifications guaranteed for +25°C for chip (CH) package, measured in a 50Ω system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance | - | - | - | - | 50 | - | Ω |
| Insertion Loss | - | 60 | 60 | - | 1.5 | 2.5 | dB |
| Insertion Loss | - | 67 | 67 | - | 1.5 | - | dB |
| Insertion Loss | - | 40 | 40 | - | 1.5 | - | dB |
| Insertion Loss at DC | - | 0 | 0 | - | 6 | - | dB |
| Return Loss | - | 60 | 67 | - | 11 | - | dB |
| Return Loss | - | 40 | 60 | - | 10 | - | dB |
| Return Loss | - | 0 | 40 | 12 | 15 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Impedance | - | - | - | - | 50 | - | Ω |
| Insertion Loss | - | 60 | 60 | - | 1.5 | 2.5 | dB |
| Insertion Loss | - | 67 | 67 | - | 1.5 | - | dB |
| Insertion Loss | - | 40 | 40 | - | 1.5 | - | dB |
| Insertion Loss at DC | - | 0 | 0 | - | 6 | - | dB |
| Return Loss | - | 60 | 67 | - | 11 | - | dB |
| Return Loss | - | 40 | 60 | - | 10 | - | dB |
| Return Loss | - | 0 | 40 | 12 | 15 | - | dB |
MEQ6-60ACH
Passive MMIC 60GHz Equalizer
Typical Performance Plots
MEQ6-60ACH
Passive MMIC 60GHz Equalizer
