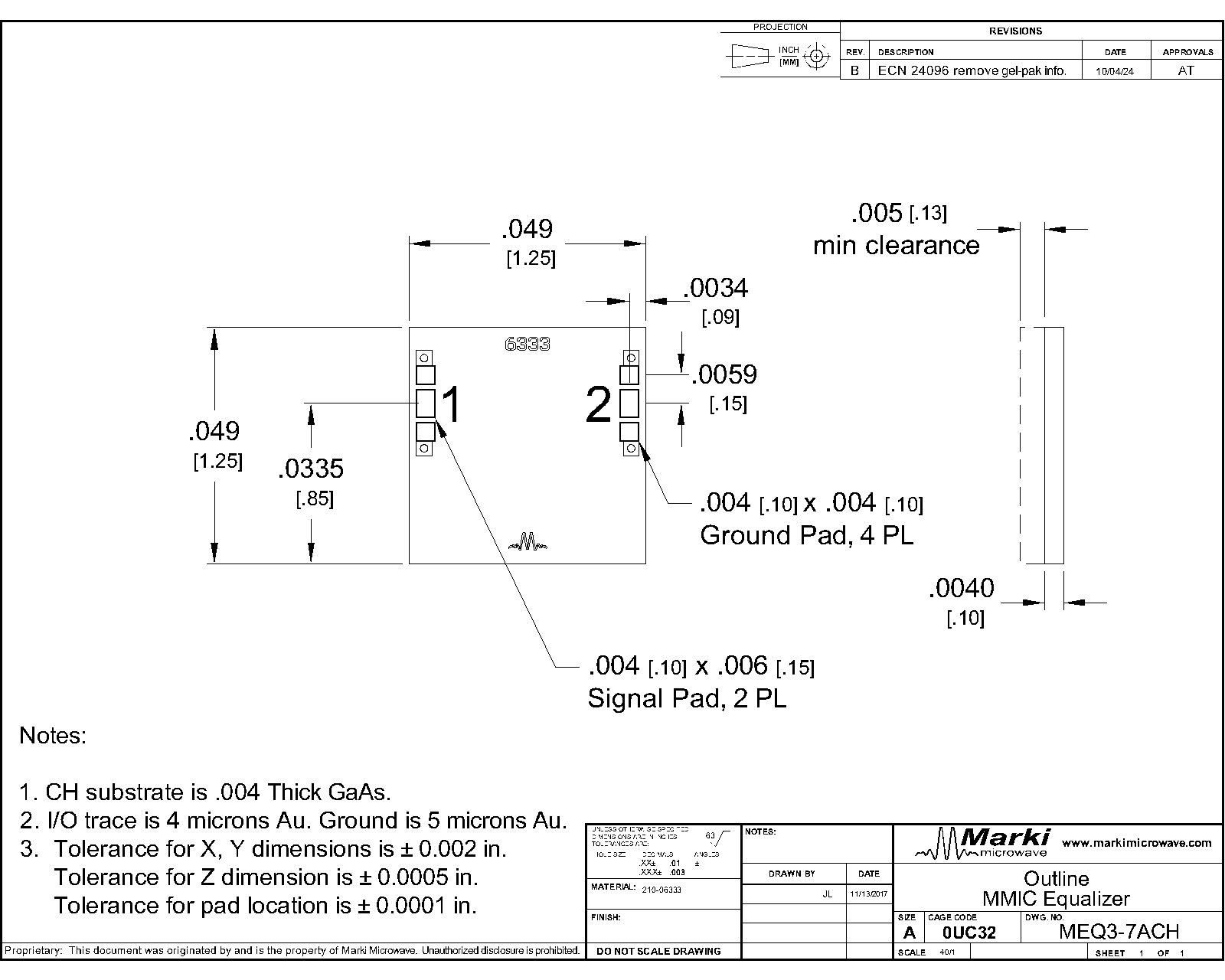

Port Diagram
A top-down view of the MEQ12-7A CH package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MEQ3-7ACH passive MMIC equalizer die is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. They provide positive slope from DC to 7GHz with DC attenuation options between 3 and 12dB. The unique design offers superior return loss to competitors. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.
Features
- DC attenuation options from 3 to 12dB
- Typical Insertion Loss 0.5dB at 7GHz
- VSWR < 1.3:1 Over Entire Band
Applications
- RF Transceivers
- High-Speed Data
- Telecom
- Cable Loss Compensation
- Amplifier Compensation
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ3-7ACH | Passive GaAs MMIC 7 GHz Equalizer | CH | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ3-7ACH | Passive GaAs MMIC 7 GHz Equalizer | CH | REACH RoHS | Released | EAR99 |
MEQ3-7ACH
Passive GaAs MMIC 7 GHz Equalizer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| A | 2024-01-05 | Updated Production Test Criteria |
MEQ3-7ACH
Passive GaAs MMIC 7 GHz Equalizer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Pad 1 | Input/Output | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Pad 2 | Output/Input | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ3-7ACH
Passive GaAs MMIC 7 GHz Equalizer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 40 | mA |
| Port 2 DC Current | 40 | mA |
| Power Handling, at any Port | 30 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 1.25 x 1.25 mm |
MEQ3-7ACH
Passive GaAs MMIC 7 GHz Equalizer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=7GHz | 7 | 7 | - | 0.4 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 3 | - | dB |
| Return Loss | Freq=7GHz | 0 | 7 | - | 29 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=7GHz | 7 | 7 | - | 0.4 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 3 | - | dB |
| Return Loss | Freq=7GHz | 0 | 7 | - | 29 | - | dB |
Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement.
MEQ3-7ACH
Passive GaAs MMIC 7 GHz Equalizer
Typical Performance Plots
MEQ3-7ACH
Passive GaAs MMIC 7 GHz Equalizer
