Device Overview

General Description

The MEQ12-7ACH passive MMIC equalizer die is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. They provide positive slope from DC to 7GHz with DC attenuation options between 3 and 12dB. The unique design offers superior return loss to competitors. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.

Photo of MEQ12-7ACH

Features

  • DC attenuation options from 3 to 12dB
  • Typical Insertion Loss 0.5dB at 7GHz
  • VSWR < 1.3:1 Over Entire Band

Applications

  • RF Transceivers
  • High-Speed Data
  • Telecom
  • Cable Loss Compensation
  • Amplifier Compensation

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MEQ12-7ACHPassive GaAs MMIC 7GHz EqualizerCH

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2017-11-01Datasheet Initial Release
A2018-08-01Evaluation Kit: MEQ7CH-KIT
B2019-03-01Updated ESD Rating
C2019-05-01Added Chip Dimension Tolerance Spec
D2019-08-01Added signal pad dimensions call-out, updated tolerance spec

Rev: D | Copyright © 2017 - 2019 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

A top-down view of the MEQ12-7A CH package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.

Diagram of the port configuration for MEQ12-7ACH

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
PadGround CH package ground path is provided through the substrate and ground bond pads.Equivalent circuit for the Ground
Pad 1Input/Output Port 1 is DC connected to ground through a resistor. DC block is required if voltage present.Equivalent circuit for the Input/Output
Pad 2Output/Input Port 2 is DC connected to ground through a resistor. DC block is required if voltage present.Equivalent circuit for the Output/Input

Rev: D | Copyright © 2017 - 2019 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature 125°C
Minimum Storage Temperature -65°C
Port 1 DC Current 40mA
Port 2 DC Current 40mA
Power Handling, at any Port 30dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
Dimensions-1.25 x 1.25 mm

Rev: D | Copyright © 2017 - 2019 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a CH package with a sine wave input applied to port 1.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Insertion Loss Freq = 7GHz
7 7-0.5-dB
Insertion Loss at DC Freq = 0GHz
0 0-12-dB
Return Loss Freq = 7GHz
0 7-29-dB

Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement.

Rev: D | Copyright © 2017 - 2019 Marki Microwave LLC.

5

Typical Performance Plots

Insertion Loss graph for MEQ12-7ACH
Return Loss graph for MEQ12-7ACH
Group Delay graph for MEQ12-7ACH

Rev: D | Copyright © 2017 - 2019 Marki Microwave LLC.

6

Mechanical Data

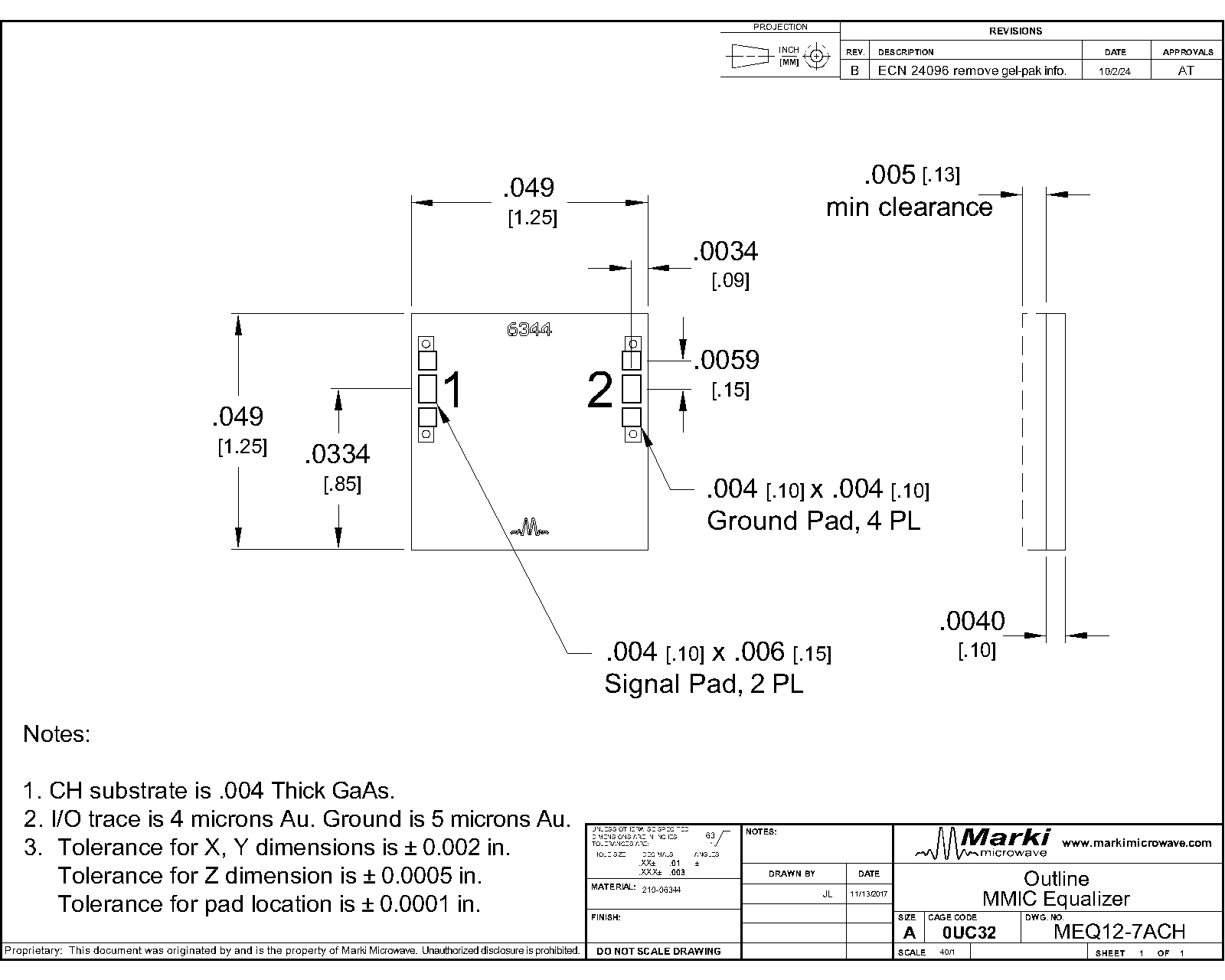

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing
