Device Overview
General Description
The MEQ10-70ACH passive MMIC equalizer die is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. It provides positive slope from DC to 70GHz with 10 dB DC attenuation. The unique design offers superior return loss to competitors. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.
Features
Applications
- RF Transceivers
- High-Speed Data
- Telecom
- Cable Loss Compensation
- Amplifier Compensation
- 5G
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ10-70ACH | Passive GaAs MMIC 70 GHz Equalizer | CH | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MEQ10-70ACH | Passive GaAs MMIC 70 GHz Equalizer | CH | REACH RoHS | Released | EAR99 |
MEQ10-70ACH
Passive GaAs MMIC 70 GHz Equalizer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations

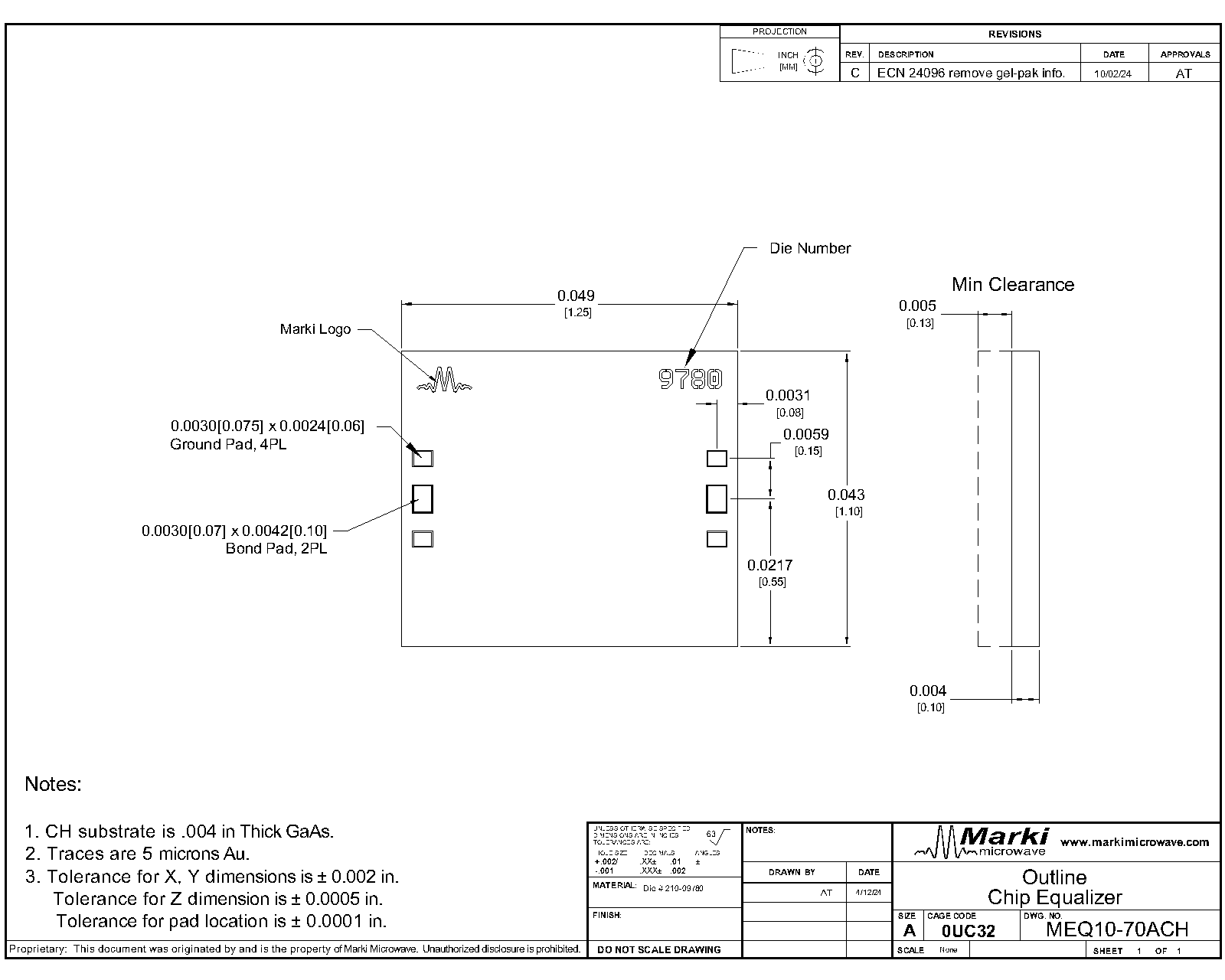

- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-06-04 | Initial Release |
MEQ10-70ACH
Passive GaAs MMIC 70 GHz Equalizer
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 1 | Input/Output | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Port 2 | Input/Output | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ10-70ACH
Passive GaAs MMIC 70 GHz Equalizer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 22 | mA |
| Port 2 DC Current | 22 | mA |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 1.25 x 1.1 mm |
MEQ10-70ACH
Passive GaAs MMIC 70 GHz Equalizer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=70GHz | 70 | 70 | - | 1.8 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 10 | - | dB |
| Return Loss | - | 0 | 70 | - | 25 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Freq=70GHz | 70 | 70 | - | 1.8 | - | dB |
| Insertion Loss at DC | Freq=0GHz | 0 | 0 | - | 10 | - | dB |
| Return Loss | - | 0 | 70 | - | 25 | - | dB |
MEQ10-70ACH
Passive GaAs MMIC 70 GHz Equalizer
Typical Performance Plots
MEQ10-70ACH
Passive GaAs MMIC 70 GHz Equalizer
