Device Overview

General Description

The MDPX-0710 is a broadband passive MMIC diplexer, a combination high pass and loss pass filter, capable of multiplexing low frequency DC to 7 GHz and high frequency 10 to 26.5 GHz signals. It can also be used as a reflectionless high pass or low pass filter when terminated with an internal/external 50 Ohm load. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-0710 is available as a connectorized module and as wire bondable die. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.

Photo of MDPX-0710CH

Features

  • 8.5 GHz Crossover Point
  • Low <1dB typical Insertion Loss in Pass band
  • High Stop Band Suppression
  • Reflectionless Filter
  • RoHS Compliant

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MDPX-0710CHPassive MMIC DC-7 GHz / 10-26.5 GHz Diplexer/Reflectionless FilterCH

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2024-04-22Initial Datasheet Release

Rev: - | Copyright © 2024 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MDPX-0710CH

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
GNDGround CH package ground path is provided through the substrate and ground bond pads.Equivalent circuit for the Ground
Pad 1RF Low Band Pad 1 is DC short to Pad 2 and open to Pad 3 and ground.Equivalent circuit for the RF Low Band
Pad 2Input/common Pad 2 is DC short to Pad 1 and open to Pad 3 and ground.Equivalent circuit for the Input/common
Pad 3RF High Band Pad 3 is DC open to ground and all other pads.Equivalent circuit for the RF High Band

Rev: - | Copyright © 2024 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Storage Temperature 125°C
Maximum Survivable Operating Temperature 100°C
Minimum Storage Temperature -65°C
Minimum Survivable Operating Temperature -55°C
Spec Guaranteed Operating Temperature 25°C

Package Information

ParameterDetailsRating
Dimensions-1.38 x 1.25 mm

Rev: - | Copyright © 2024 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed +25°C for bare die, measured in a 50Ω system.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
1 dBc High Passband Temp = 25°C
- -9.68--GHz
3 dBc High Passband Temp = 25°C
- -18.60--GHz
30 dBc High Pass Rejection Point Temp = 25°C
- -18.60--GHz
High Passband Return Loss Temp = 25°C
- --20-dB
High Pass Group Delay Temp = 25°C
- --174-ps
1 dBc Low Passband Temp = 25°C
- ---9.16GHz
3 dBc Low Passband Temp = 25°C
- ---9.49GHz
30 dBc Low Pass Rejection Point Temp = 25°C
- ---13.32GHz
Low Passband Return Loss Temp = 25°C
- --5-dB
Low Pass Isolation Temp = 25°C
- --12-dB
Low Pass Group Delay Temp = 25°C
- --256-ps
Crossover Isolation Temp = 25°C
- --42-dB
Crossover Frequency Temp = 25°C
- --9.01-GHz
Common Port Return Loss Temp = 25°C
- --21-dB
Impedance Temp = 25°C
- --50-Ω
1 dBc High Passband -- -10-26.5GHz
1 dBc Low Passband -- -0-7GHz
30 dBc Low Pass Rejection Point -4 7-19-dB
30 dBc Low Pass Rejection Point -0 4-51-dB
Common Port Return Loss -0 7-22-dB
Common Port Return Loss -10 26.5-21-dB
High Pass Filter, Pass Band Insertion Loss -10 26.5-0.9-dB
High Pass Filter, Pass Band Return Loss -10 26.5-21-dB
Impedance -- --50-Ω
Isolation -0 5-38-dB
Isolation -5 7-20-dB
Isolation -10 14-28-dB
Isolation -14 26.5-45-dB
Low Pass Filter, Pass Band Insertion Loss -0 7-0.85-dB
Low Pass Filter, Pass Band Return Loss -0 7-22-dB
Low Pass Filter, Stop Band Rejection -12 14-36-dB
Low Pass Filter, Stop Band Rejection -14 26.5-45-dB

Rev: - | Copyright © 2024 Marki Microwave LLC.

5

Rev: - | Copyright © 2024 Marki Microwave LLC.

6

Typical Performance Plots

Insertion Loss (dB) graph for MDPX-0710CH
Highpass - Lowpass Isolation (dB) graph for MDPX-0710CH
Insertion Loss (dB) graph for MDPX-0710CH
Insertion Loss (dB) graph for MDPX-0710CH
Return Loss (dB) graph for MDPX-0710CH
Return Loss (dB) graph for MDPX-0710CH
Band 1 Group Delay (ps) graph for MDPX-0710CH
Band 1 Group Delay (ps) graph for MDPX-0710CH

Rev: - | Copyright © 2024 Marki Microwave LLC.

7

Mechanical Data

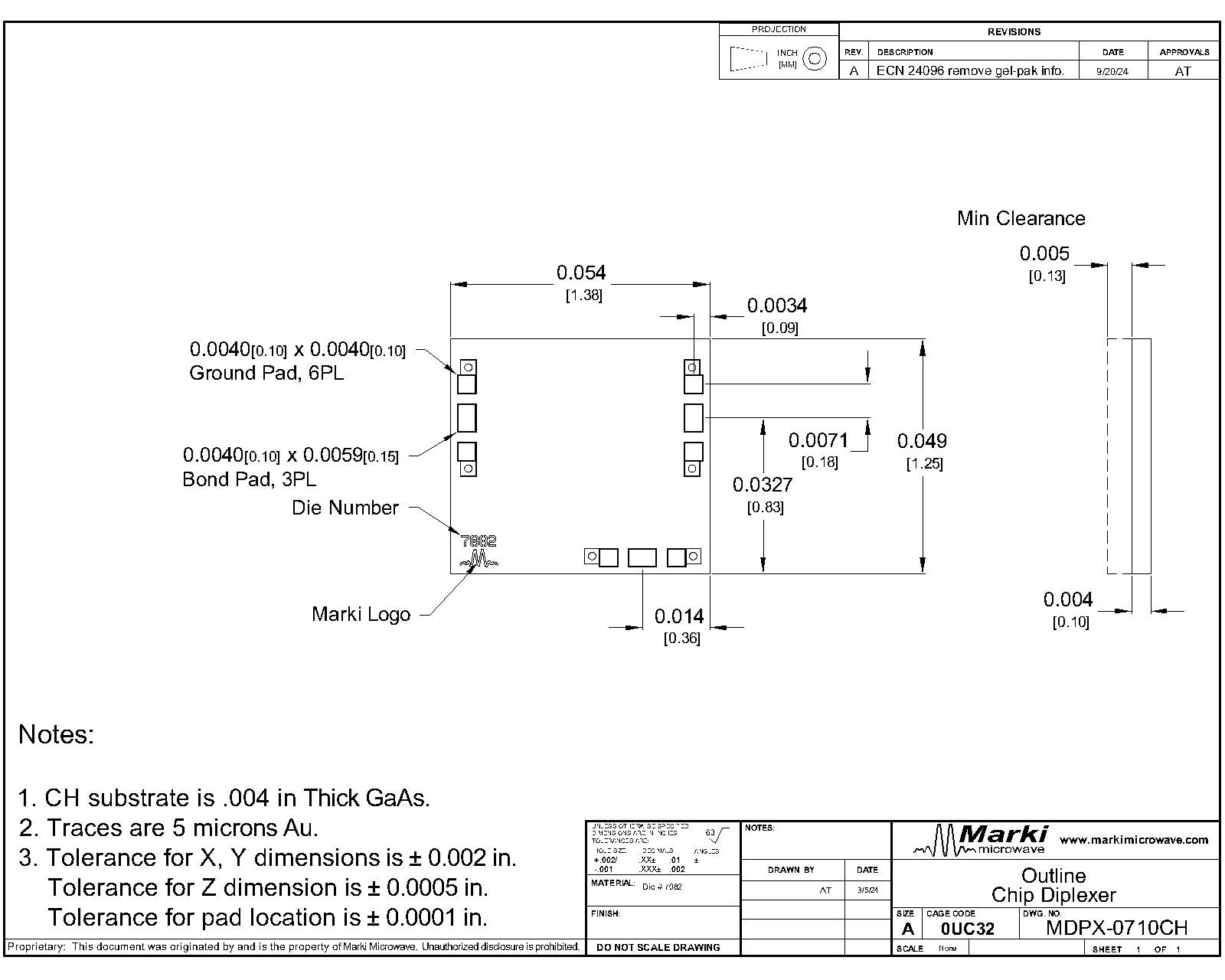

Outline Drawing

Download : Outline 2D Drawing
