Port Diagram

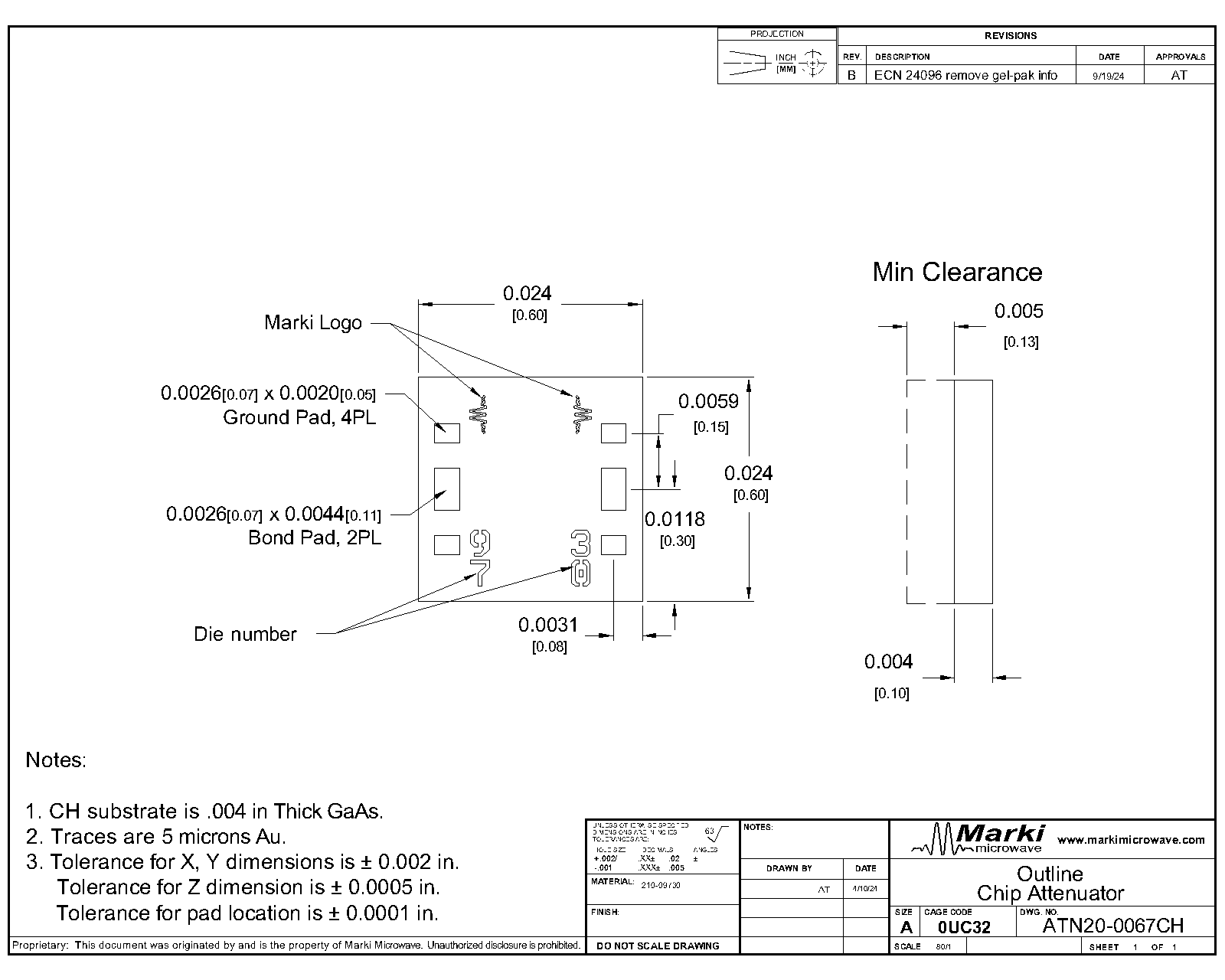

A top-down view of the ATN20-0067CH package outline drawing is shown below. The MMIC attenuators are symmetrical allowing Port 1 or Port 2 to be used as the input.

Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
The ATN20-0067CH is part of a family of precision GaAs MMIC fixed attenuators. The ATN20-0067CH provides a nominal 20dB attenuation over a DC-67GHz operating range. These attenuators are an ideal solution for attenuating a signal and they can be used in a wide range of applications. They are ideal for test equipment’s protection and signal overload prevention in various RF systems. A 50-ohm match is maintained over the entire operating frequency range
N/A
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN20-0067CH | Passive GaAs MMIC DC - 67 GHz 20dB Attenuator | CH | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN20-0067CH | Passive GaAs MMIC DC - 67 GHz 20dB Attenuator | CH | RoHS REACH | Released | EAR99 |
ATN20-0067CH
Passive GaAs MMIC DC - 67 GHz 20dB Attenuator
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-15 | Initial Release |
ATN20-0067CH
Passive GaAs MMIC DC - 67 GHz 20dB Attenuator
A top-down view of the ATN20-0067CH package outline drawing is shown below. The MMIC attenuators are symmetrical allowing Port 1 or Port 2 to be used as the input.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. | |
| Port 1 | Input/Output | Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors. | |
| Port 2 | Input/Output | Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors. |
ATN20-0067CH
Passive GaAs MMIC DC - 67 GHz 20dB Attenuator
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current at any Port | 100 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 2 | W |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 0.60 x 0.60 mm |
ATN20-0067CH
Passive GaAs MMIC DC - 67 GHz 20dB Attenuator
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 0 | 67 | - | 20 | - | dB |
| Attenuation Flatness | - | 0 | 67 | - | 0.8 | - | dB |
| Impedance | - | 0 | 67 | - | 50 | - | Ω |
| Return Loss | - | 0 | 67 | - | 35 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 0 | 67 | - | 20 | - | dB |
| Attenuation Flatness | - | 0 | 67 | - | 0.8 | - | dB |
| Impedance | - | 0 | 67 | - | 50 | - | Ω |
| Return Loss | - | 0 | 67 | - | 35 | - | dB |
ATN20-0067CH
Passive GaAs MMIC DC - 67 GHz 20dB Attenuator
ATN20-0067CH
Passive GaAs MMIC DC - 67 GHz 20dB Attenuator
