Port Diagram

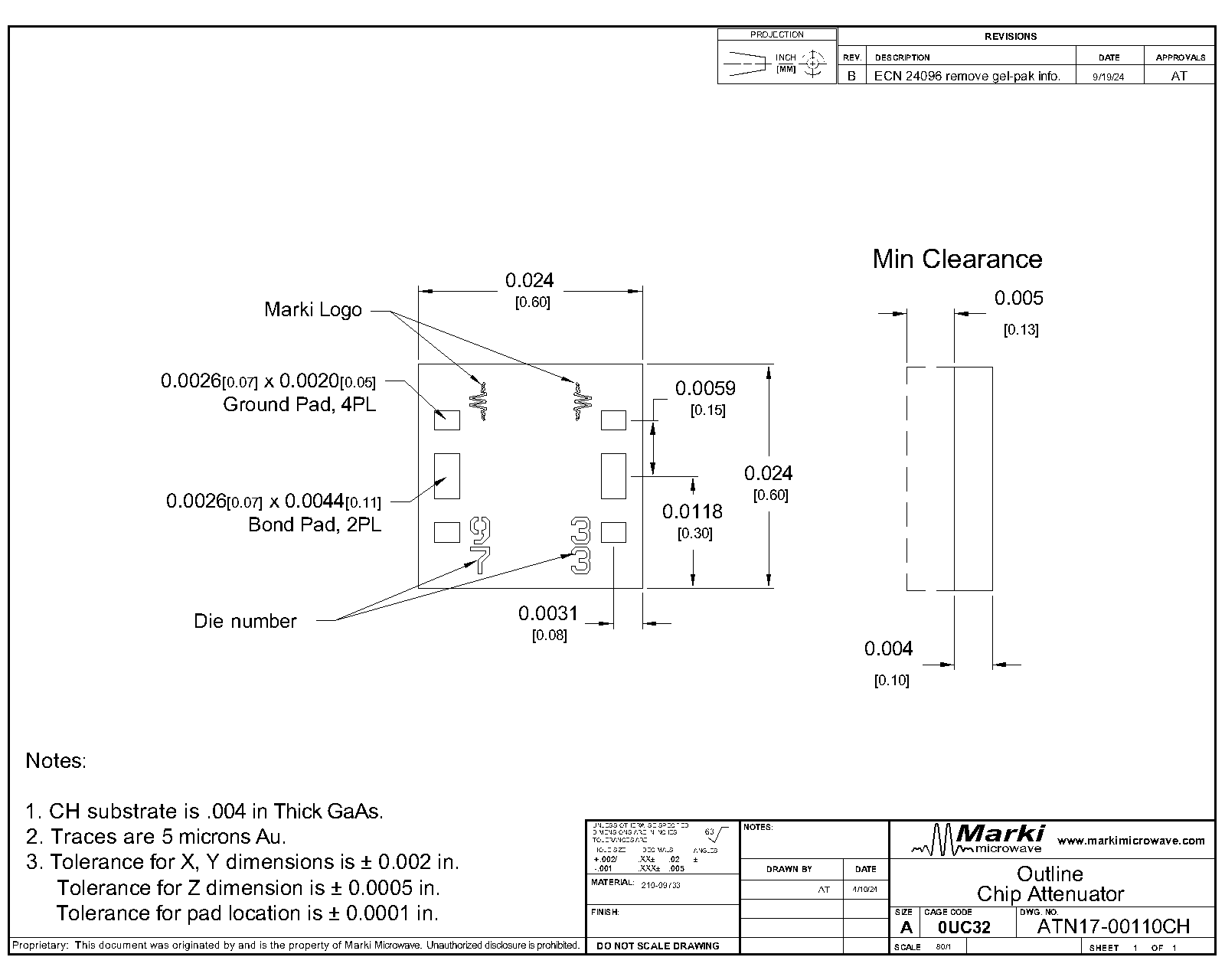

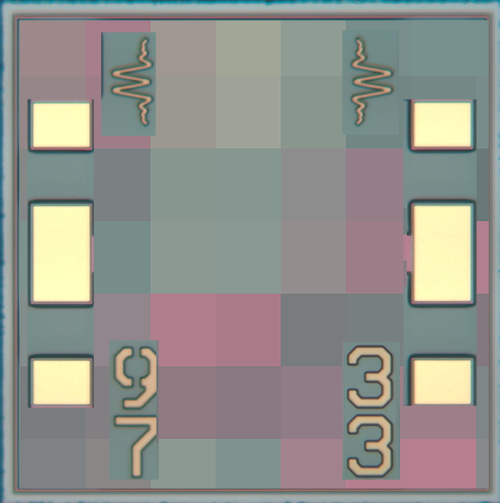

A top-down view of the ATN17-00110CH package outline drawing is shown below. The MMIC attenuators are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The ATN17-00110CH is part of a family of precision GaAs MMIC fixed attenuators. The ATN17-00110CH provides a nominal 17dB attenuation over a DC-110GHz operating range. These attenuators are an ideal solution for attenuating a signal and they can be used in a wide range of applications. They are ideal for test equipment’s protection and signal overload prevention in various RF systems. A 50-ohm match is maintained over the entire operating frequency range.
Features
- 17dB attenuation
- Additional attenuation values available between 0dB to 10dB in 1dB steps, 13dB, 15dB, 17dB, 20dB
- Excellent Return Loss
Applications
- Test Equipment
- Precision Characterization
- High Channel Count Systems
- Amplitude Matching
- 5G transceivers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN17-00110CH | Passive GaAs MMIC DC - 110 GHz 17dB Attenuator | CH | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN17-00110CH | Passive GaAs MMIC DC - 110 GHz 17dB Attenuator | CH | RoHS REACH | Released | EAR99 |
ATN17-00110CH
Passive GaAs MMIC DC - 110 GHz 17dB Attenuator
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-15 | Initial Release |
ATN17-00110CH
Passive GaAs MMIC DC - 110 GHz 17dB Attenuator
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input/Output | Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors |  |
| Port 2 | Input/Output | Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors | |
ATN17-00110CH
Passive GaAs MMIC DC - 110 GHz 17dB Attenuator
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current at any Port | 100 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 2 | W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 0.60 x 0.60 mm |
ATN17-00110CH
Passive GaAs MMIC DC - 110 GHz 17dB Attenuator
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 0 | 110 | - | 17 | - | dB |
| Attenuation Flatness | - | 0 | 110 | - | 1.3 | - | dB |
| Impedance | - | 0 | 110 | - | 50 | - | Ω |
| Return Loss | - | 0 | 110 | - | 29 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | - | 0 | 110 | - | 17 | - | dB |
| Attenuation Flatness | - | 0 | 110 | - | 1.3 | - | dB |
| Impedance | - | 0 | 110 | - | 50 | - | Ω |
| Return Loss | - | 0 | 110 | - | 29 | - | dB |
ATN17-00110CH
Passive GaAs MMIC DC - 110 GHz 17dB Attenuator
Typical Performance Plots
ATN17-00110CH
Passive GaAs MMIC DC - 110 GHz 17dB Attenuator
