Device Overview

General Description

The ATN15-0040CH is part of a family of precision GaAs MMIC fixed attenuators. The ATN15-0040CH provides a nominal 15dB attenuation over a DC-40GHz operating range. These attenuators are an ideal solution for attenuating a signal and they can be used in a wide range of applications. They are ideal for test equipment’s protection and signal overload prevention in various RF systems. A 50-ohm match is maintained over the entire operating frequency range.

Photo of ATN15-0040CH

Features

  • 15dB attenuation
  • Additional attenuation values available: 3dB, 6dB, 10dB, 20dB
  • Excellent Return Loss

Applications

  • Test Equipment
  • Precision Characterization
  • High Channel Count Systems
  • Amplitude Matching
  • 5G transceivers

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
ATN15-0040CHPassive GaAs MMIC DC - 40 GHz 15dB AttenuatorCH

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2026-02-26Initial Release

Rev: - | Copyright © 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
PadGround CH package ground path is provided through the substrate and ground bond pads.Equivalent circuit for the Ground
Port 1Input/Output Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors.Equivalent circuit for the Input/Output
Port 2Input/Output Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors.Equivalent circuit for the Input/Output

Rev: - | Copyright © 2026 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
DC Current at any Port 100mA
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF Power Handling 2W

Package Information

ParameterDetailsRating
Dimensions-0.60 x 0.75 mm

Rev: - | Copyright © 2026 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Attenuation 1Temp = 25°C
0 40-14.9-dB
Attenuation Temp = 25°C
0 40-14.7-dB
Return Loss 2Temp = 25°C
0 40-27-dB
Return Loss Temp = 25°C
0 40-31-dB
Attenuation Flatness 3Temp = 25°C
0 40-1.4-dB
Attenuation Flatness 4Temp = 25°C
0 40-1.3-dB

[1][2] Includes wirebonds and TL

[3][4] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)

Rev: - | Copyright © 2026 Marki Microwave LLC.

5

Typical Performance Plot- Bare Die

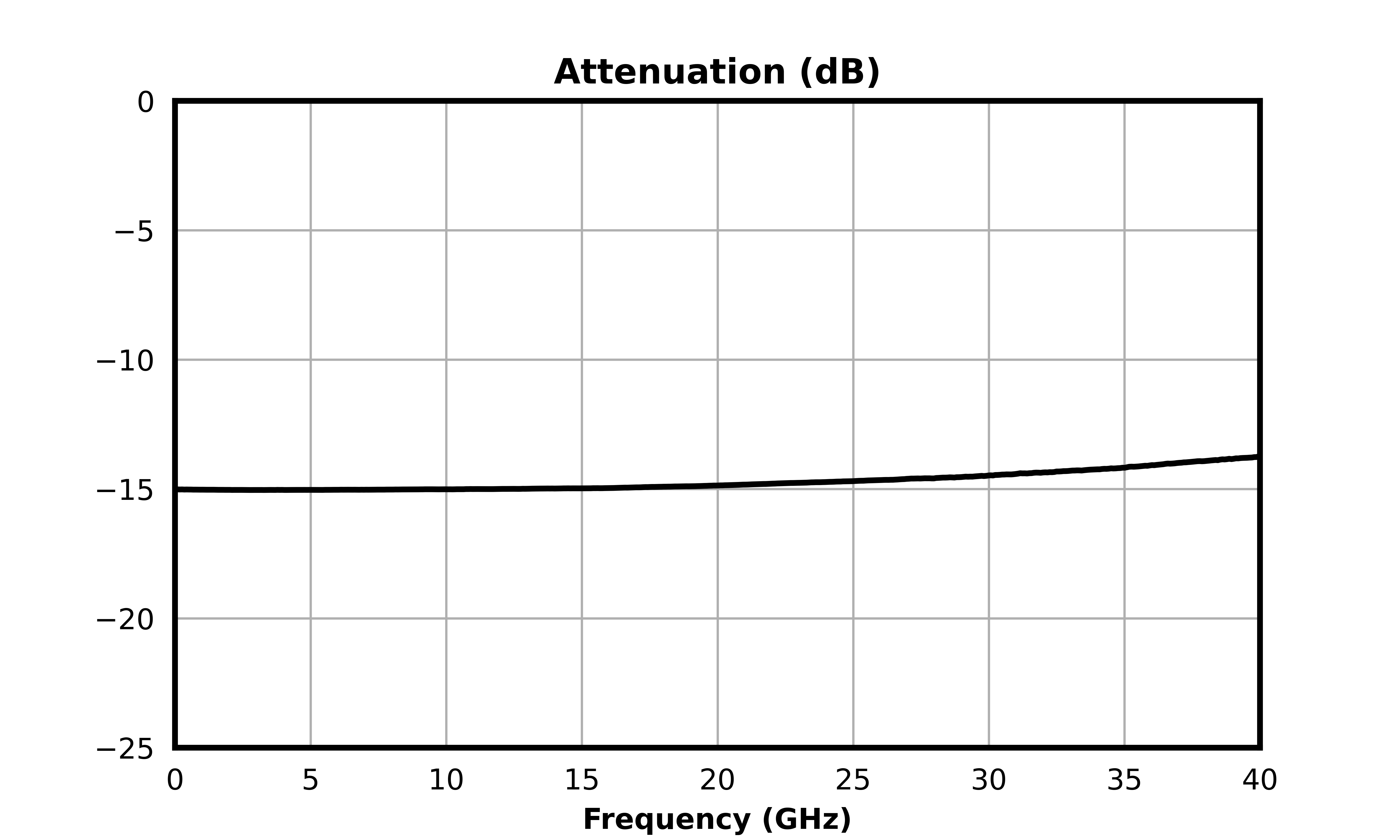

Attenuation (dB) graph for ATN15-0040CH

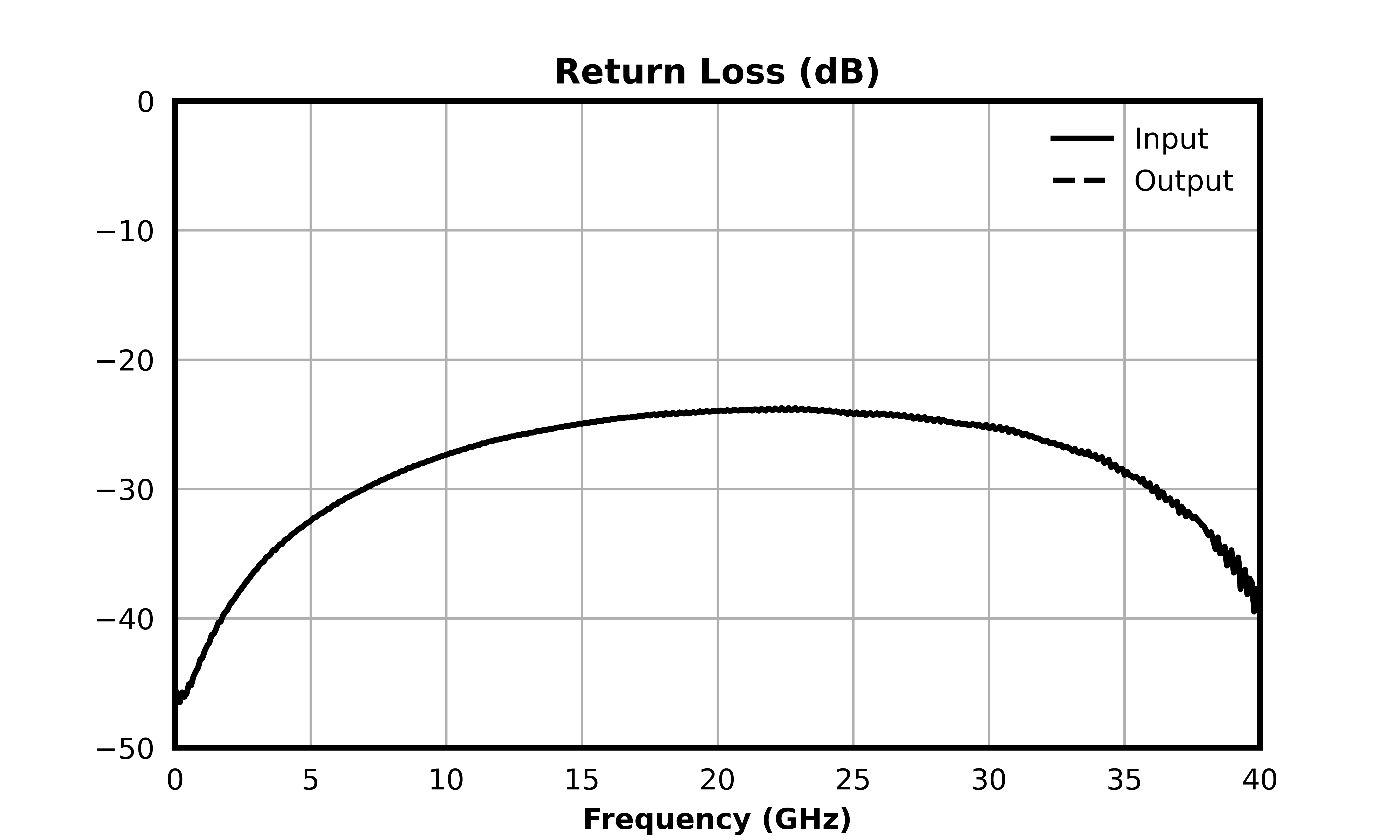

Return Loss (dB) graph for ATN15-0040CH

Rev: - | Copyright © 2026 Marki Microwave LLC.

6

Typical Performance Plot- Transmission Line and Bondwire Effect

The die is connected to Transmission lines with bond wires on both sides.

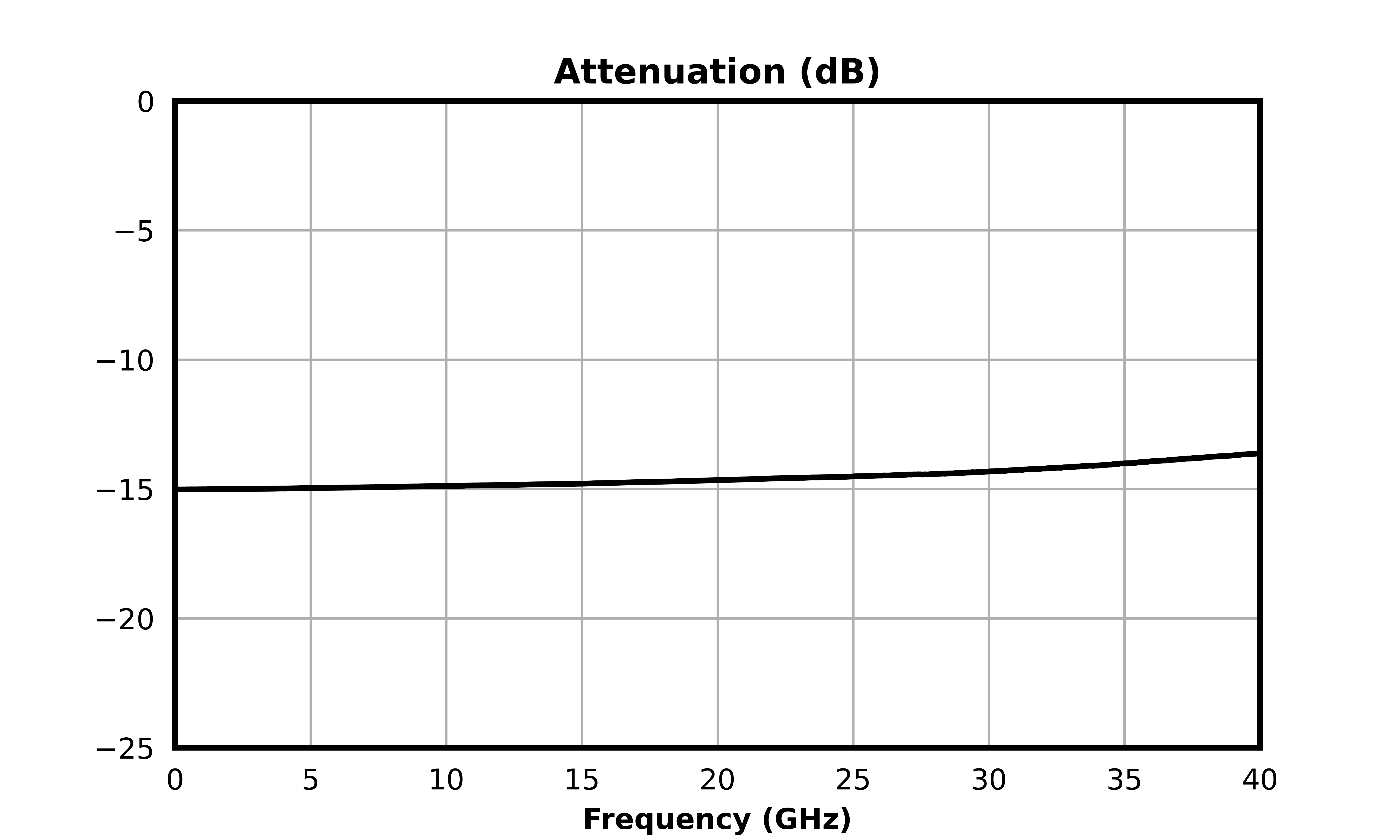

Attenuation (dB) graph for ATN15-0040CH

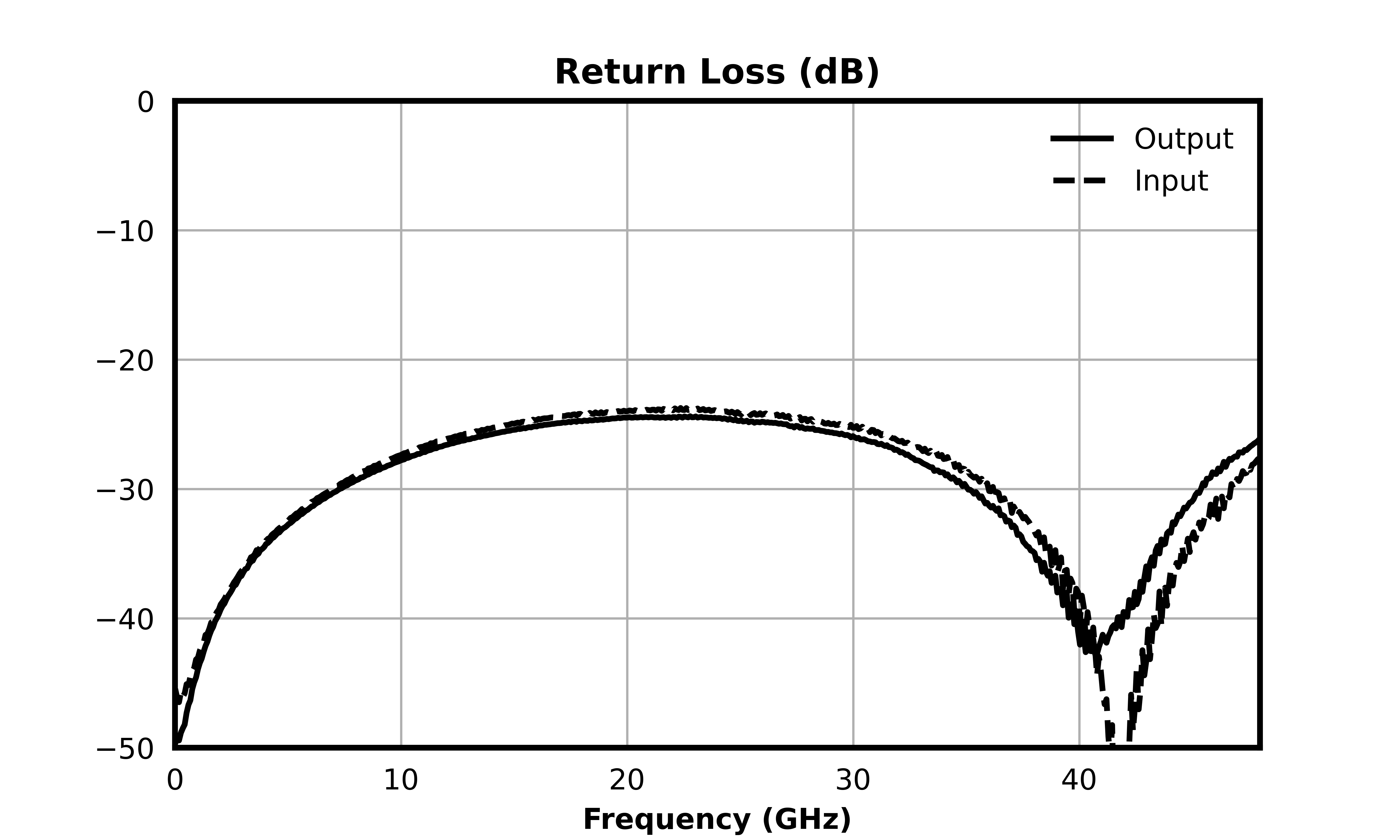

Return Loss (dB) graph for ATN15-0040CH

Rev: - | Copyright © 2026 Marki Microwave LLC.

7

Typical Performance Plot

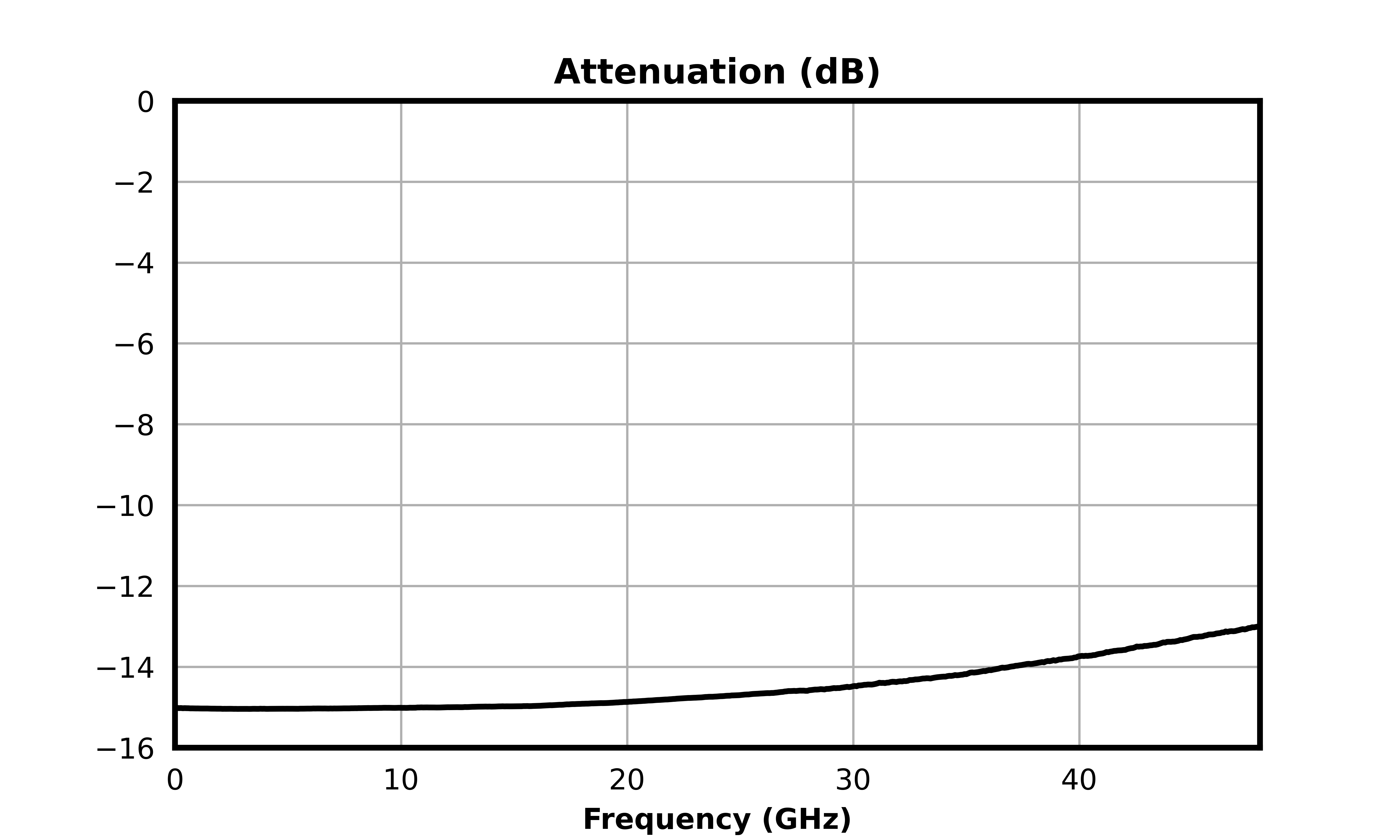

Attenuation (dB) graph for ATN15-0040CH

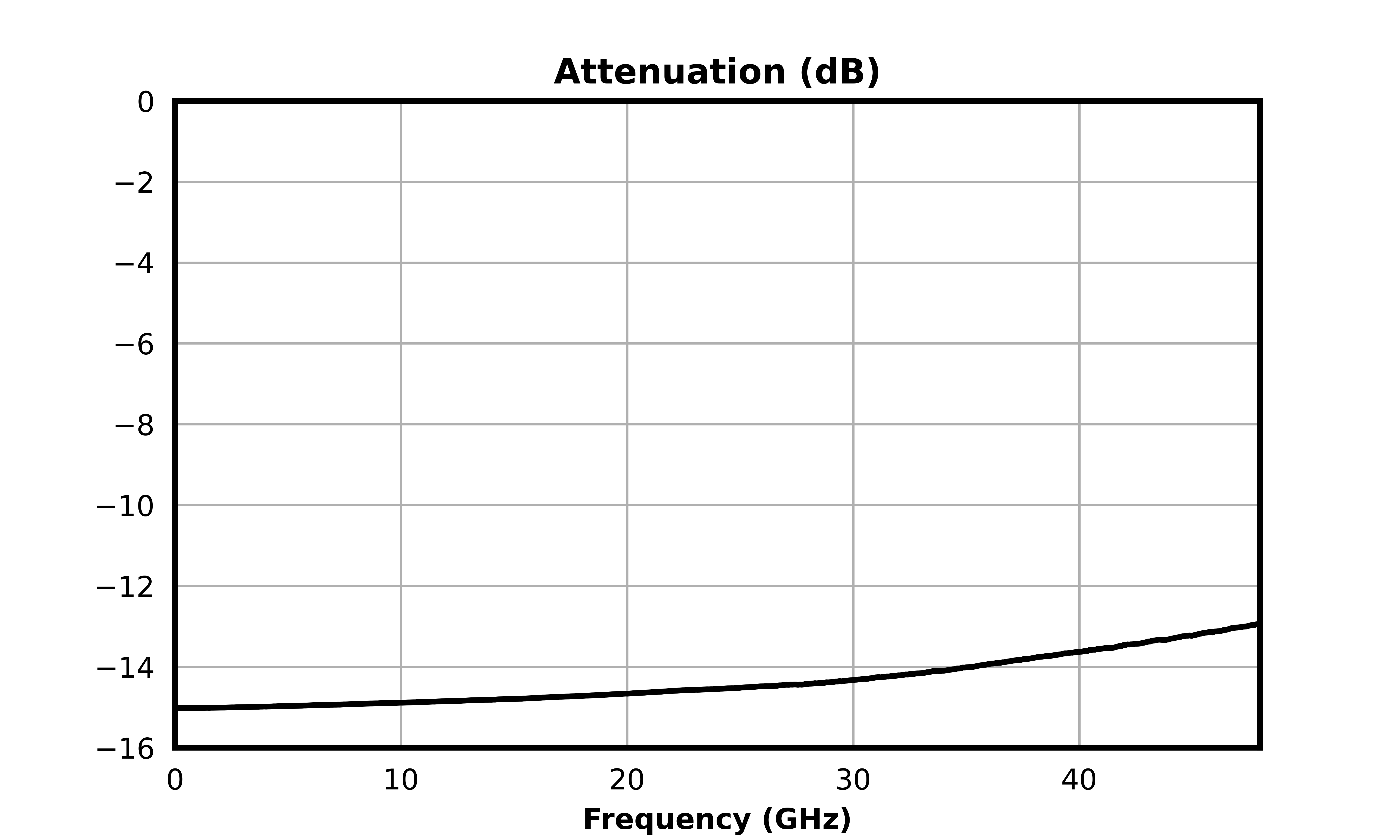

Attenuation (dB) graph for ATN15-0040CH

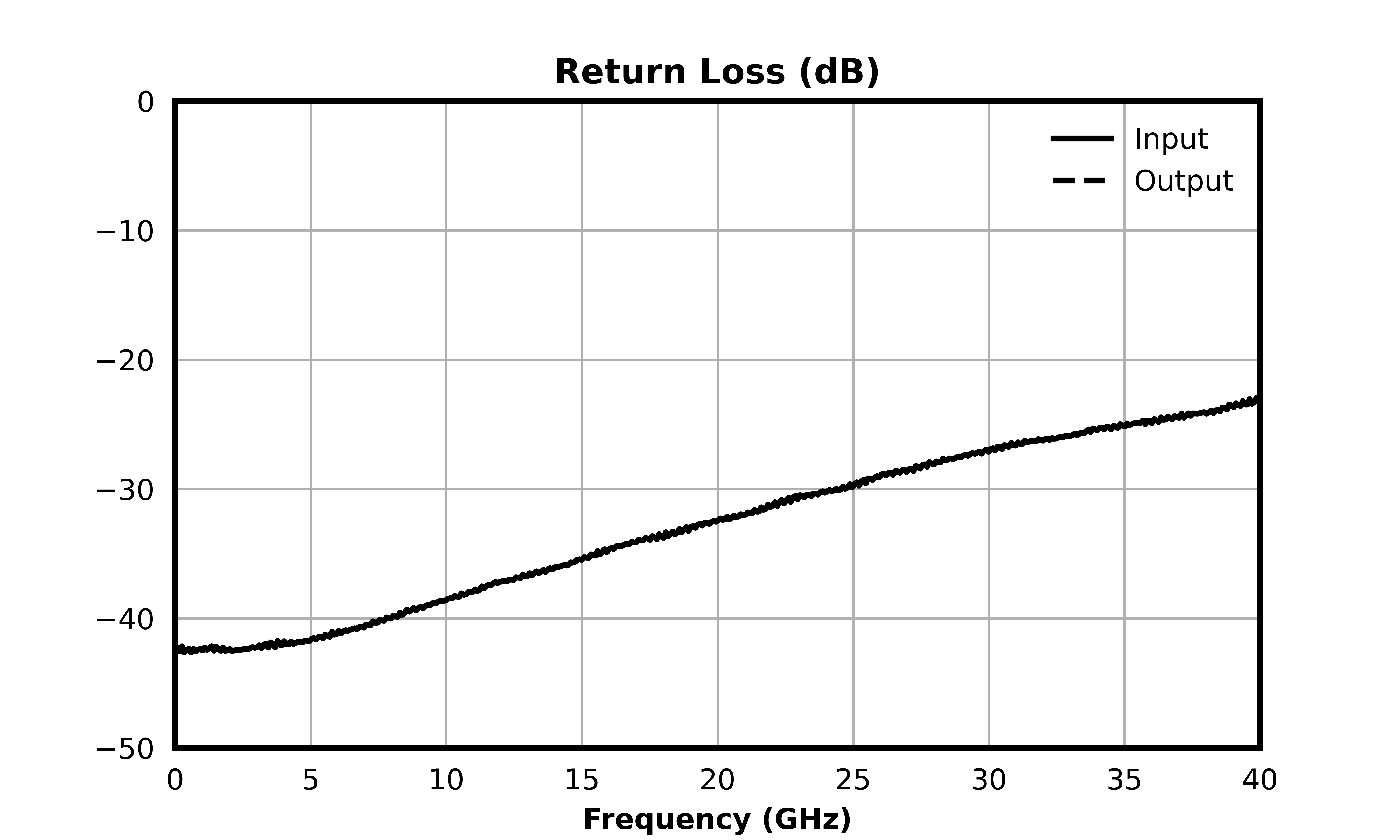

Return Loss (dB) graph for ATN15-0040CH

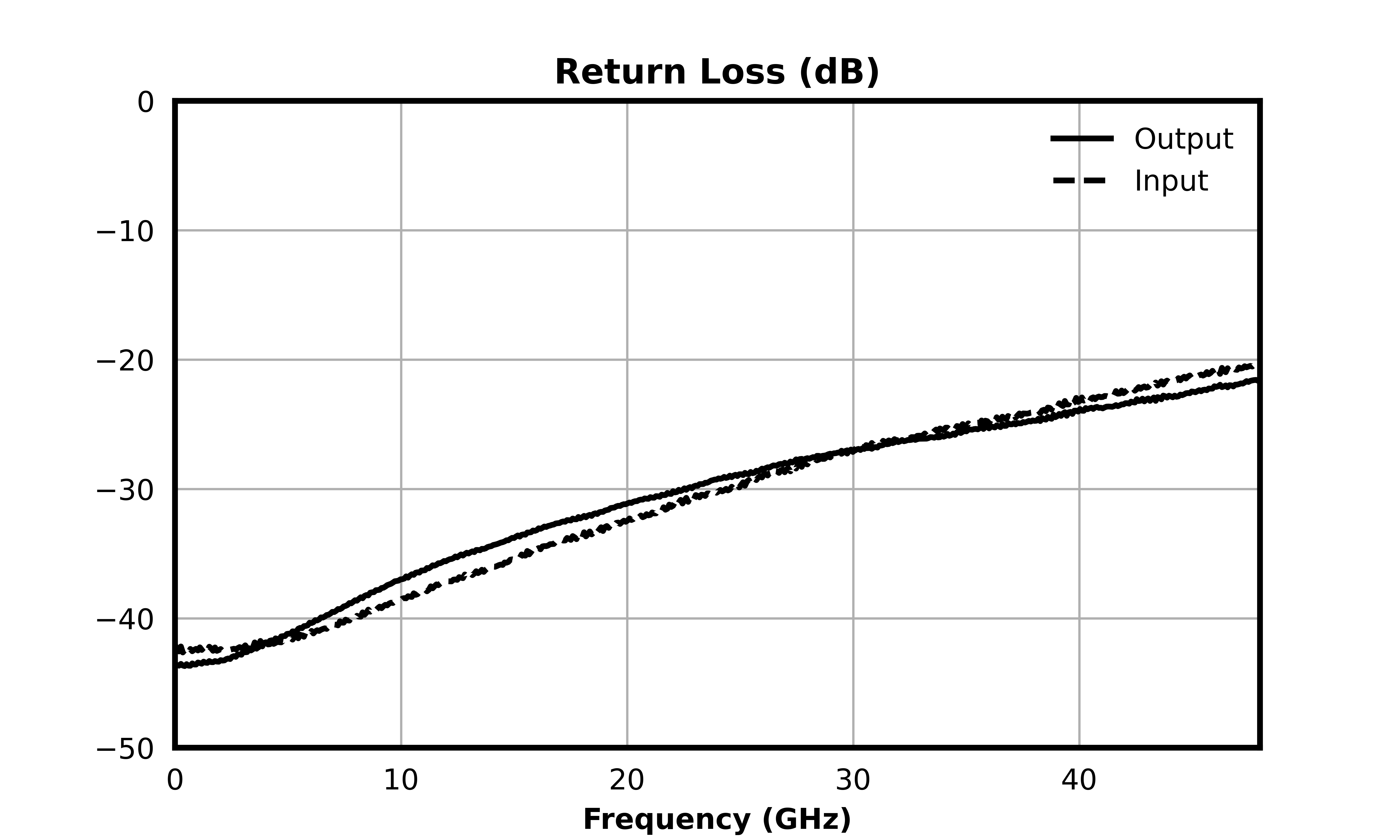

Return Loss (dB) graph for ATN15-0040CH

Rev: - | Copyright © 2026 Marki Microwave LLC.

8

Mechanical Data

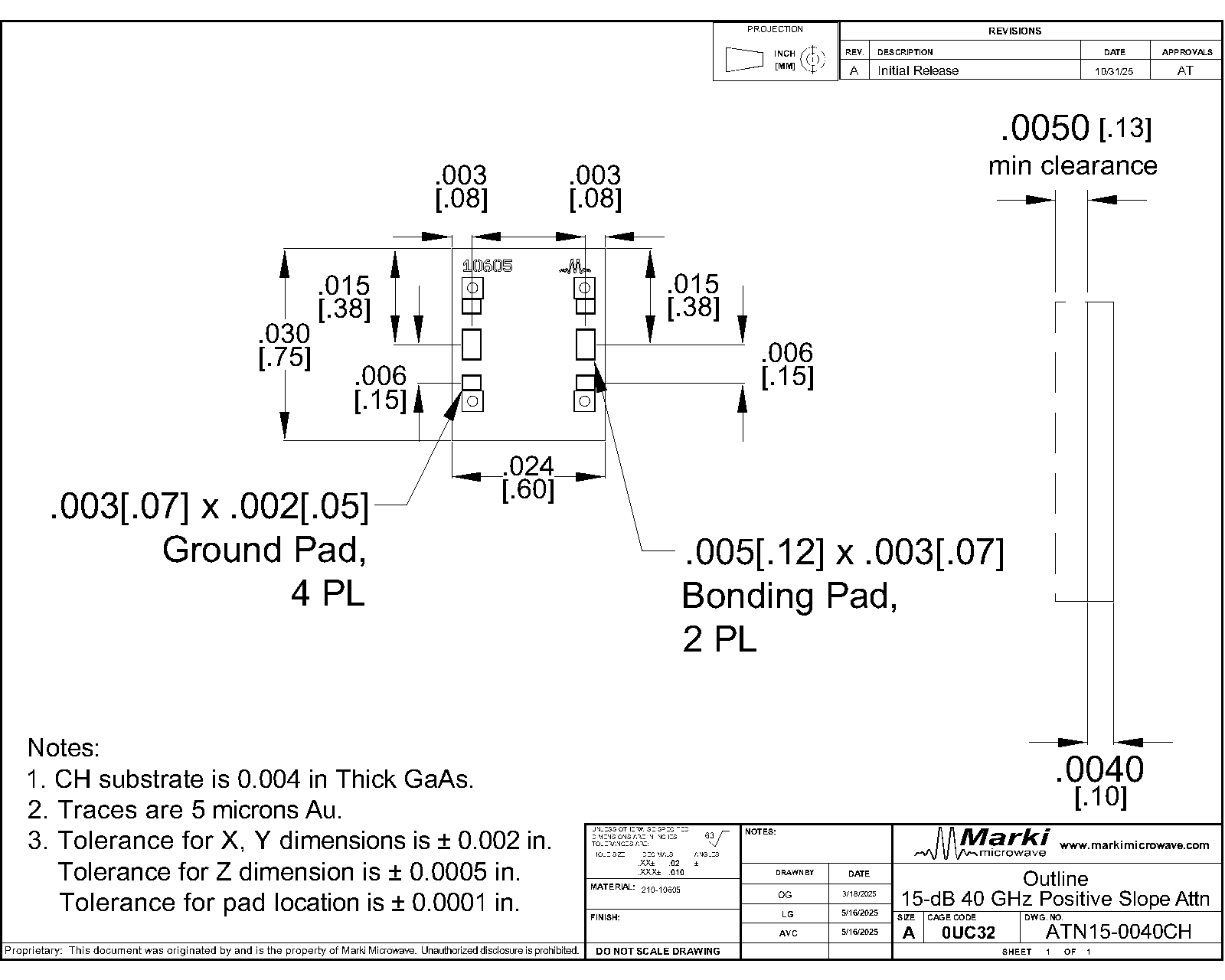

Outline Drawing

Download : Outline 2D Drawing

Outline Drawing

Rev: - | Copyright © 2026 Marki Microwave LLC.

9
