The ATN06-0040CH is part of a family of precision GaAs MMIC fixed attenuators. The ATN06-0040CH provides a nominal 6dB attenuation over a DC-40GHz operating range. These attenuators are an ideal solution for attenuating a signal and they can be used in a wide range of applications. They are ideal for test equipment’s protection and signal overload prevention in various RF systems. A 50-ohm match is maintained over the entire operating frequency range.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN06-0040CH | Passive GaAs MMIC DC - 40 GHz 6dB Attenuator | CH | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ATN06-0040CH | Passive GaAs MMIC DC - 40 GHz 6dB Attenuator | CH | RoHS REACH | Released | EAR99 |
ATN06-0040CH
Passive GaAs MMIC DC - 40 GHz 6dB Attenuator
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-02-26 | Initial Release |
ATN06-0040CH
Passive GaAs MMIC DC - 40 GHz 6dB Attenuator
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input/Output | Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors. |  |
| Port 2 | Input/Output | Port 1 and port 2 are DC connected to each other and ground through a T-network of resistors. | |
ATN06-0040CH
Passive GaAs MMIC DC - 40 GHz 6dB Attenuator
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current at any Port | 100 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 2 | W |
| Parameter | Details | Rating |
|---|---|---|

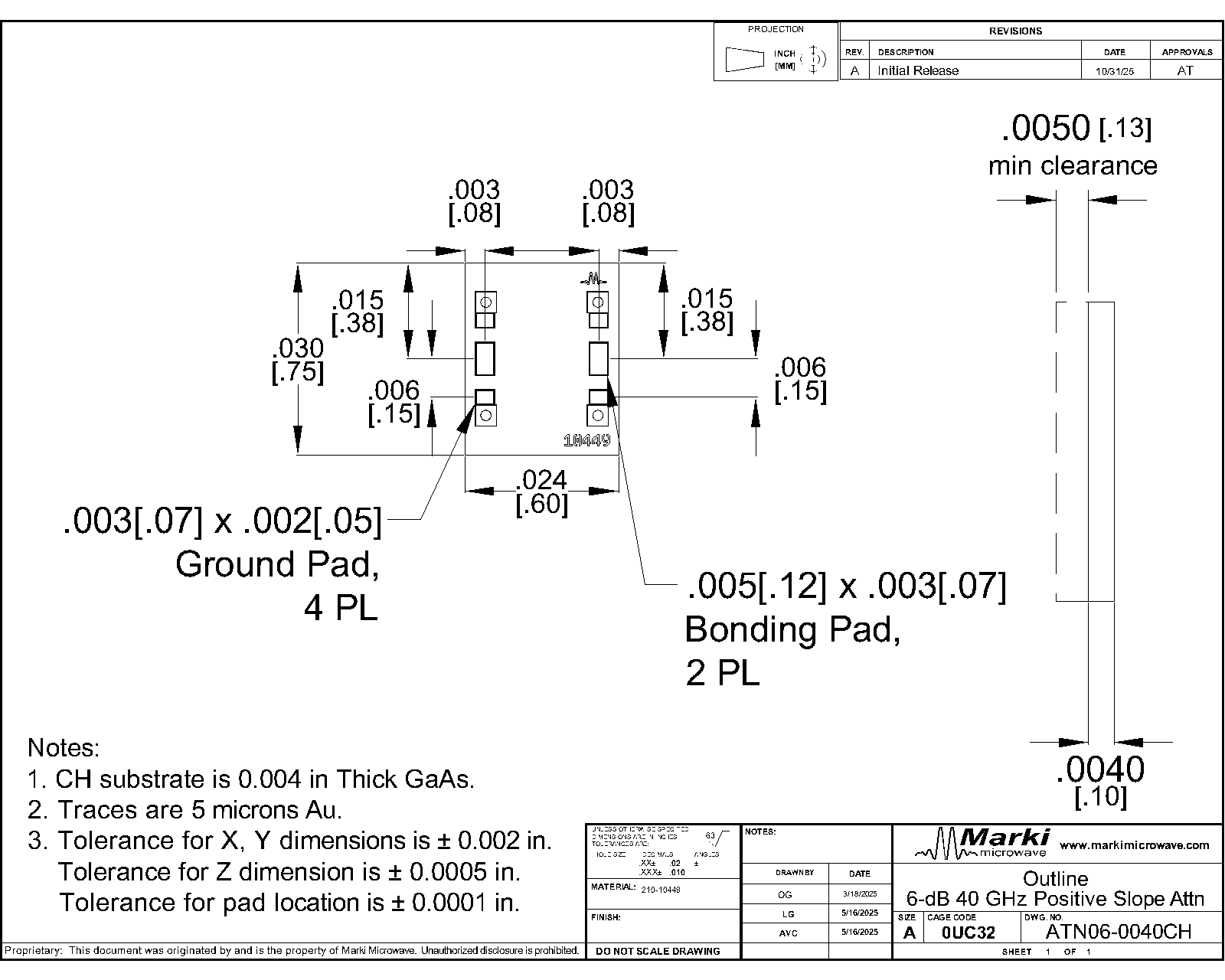

| Dimensions | - | 0.60 x 0.75 mm |
ATN06-0040CH
Passive GaAs MMIC DC - 40 GHz 6dB Attenuator
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% visually inspected and RF performance is guaranteed by sample testing.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|

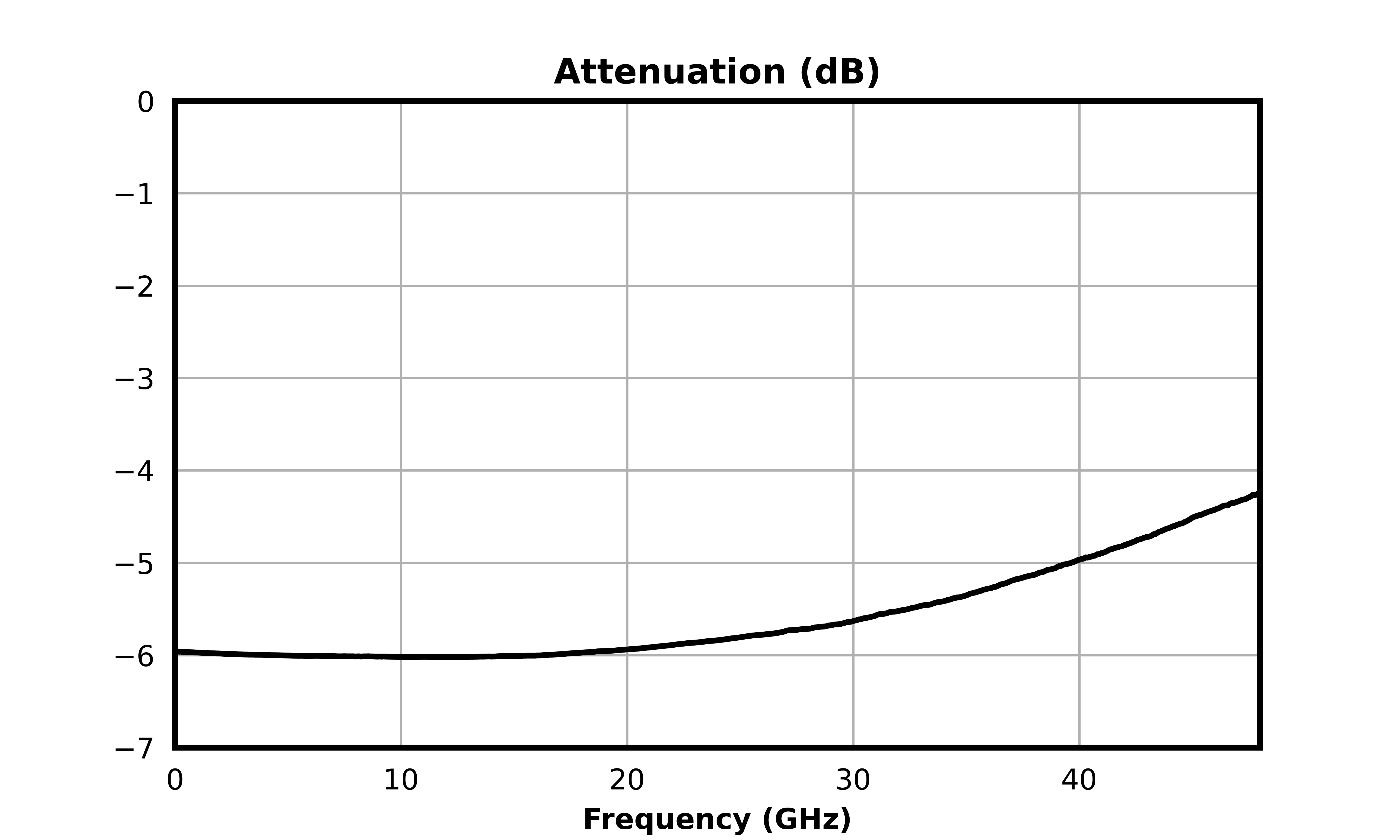

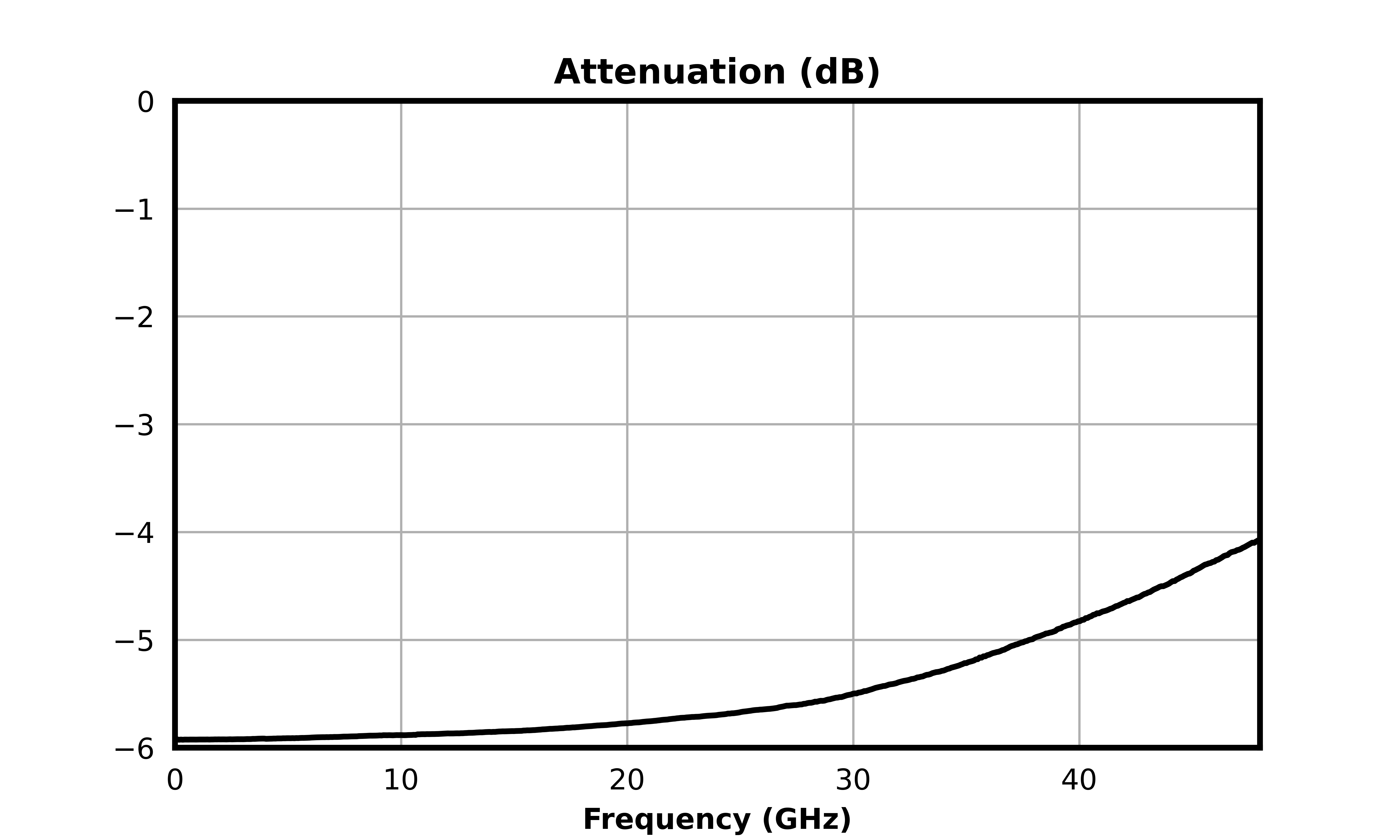

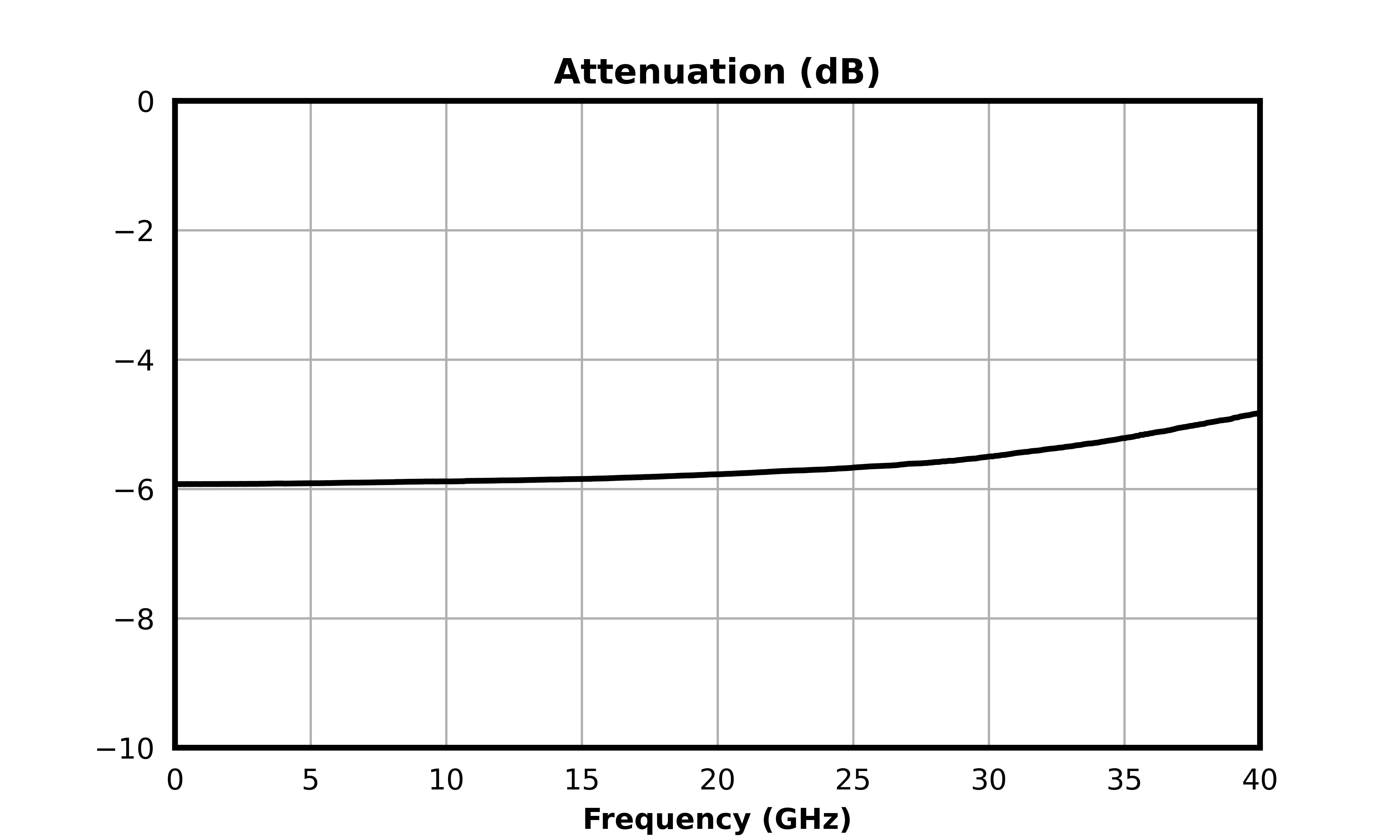

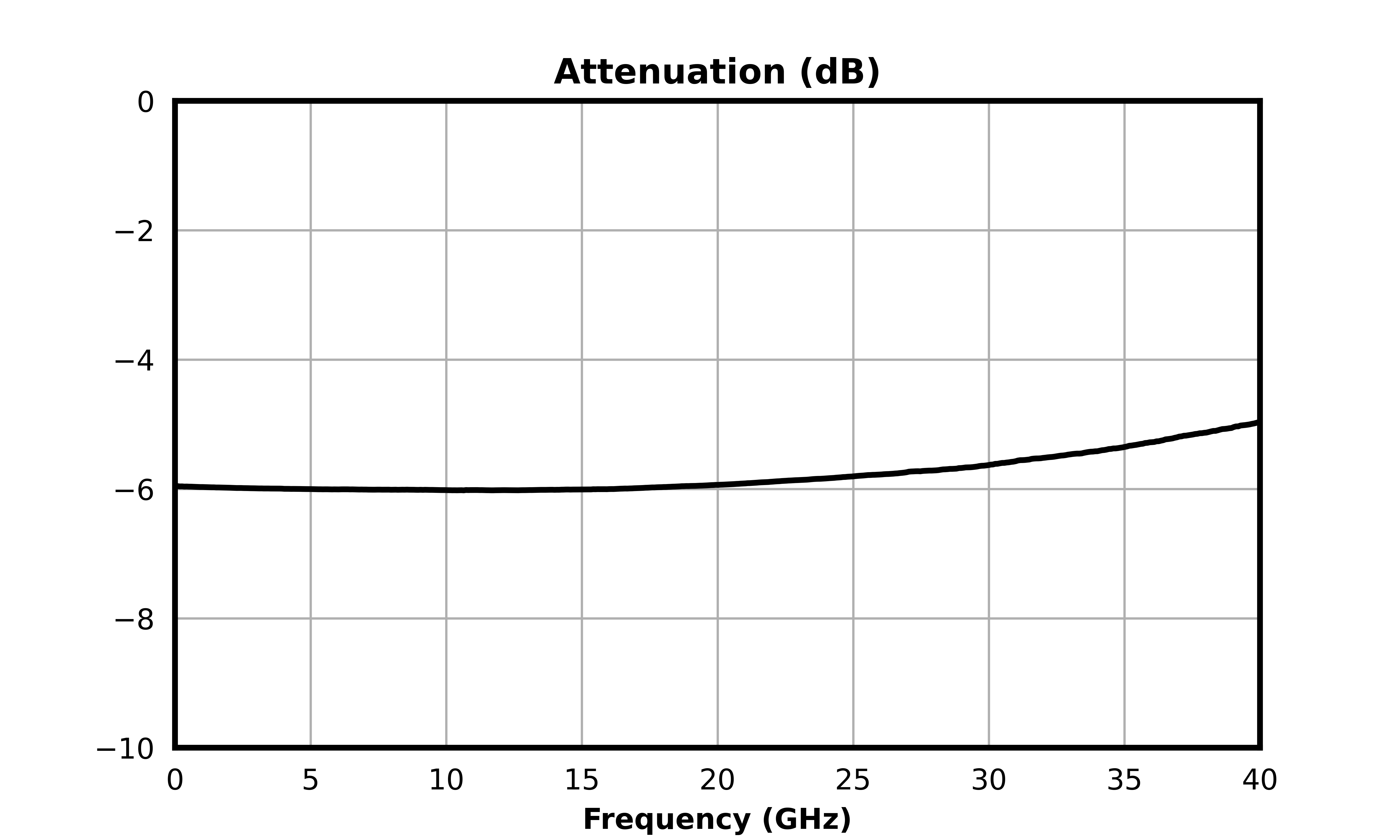

| Attenuation | Temp = 25°C | 0 | 40 | - | 5.8 | - | dB |
| Attenuation 1 | Temp = 25°C | 0 | 40 | - | 5.9 | - | dB |

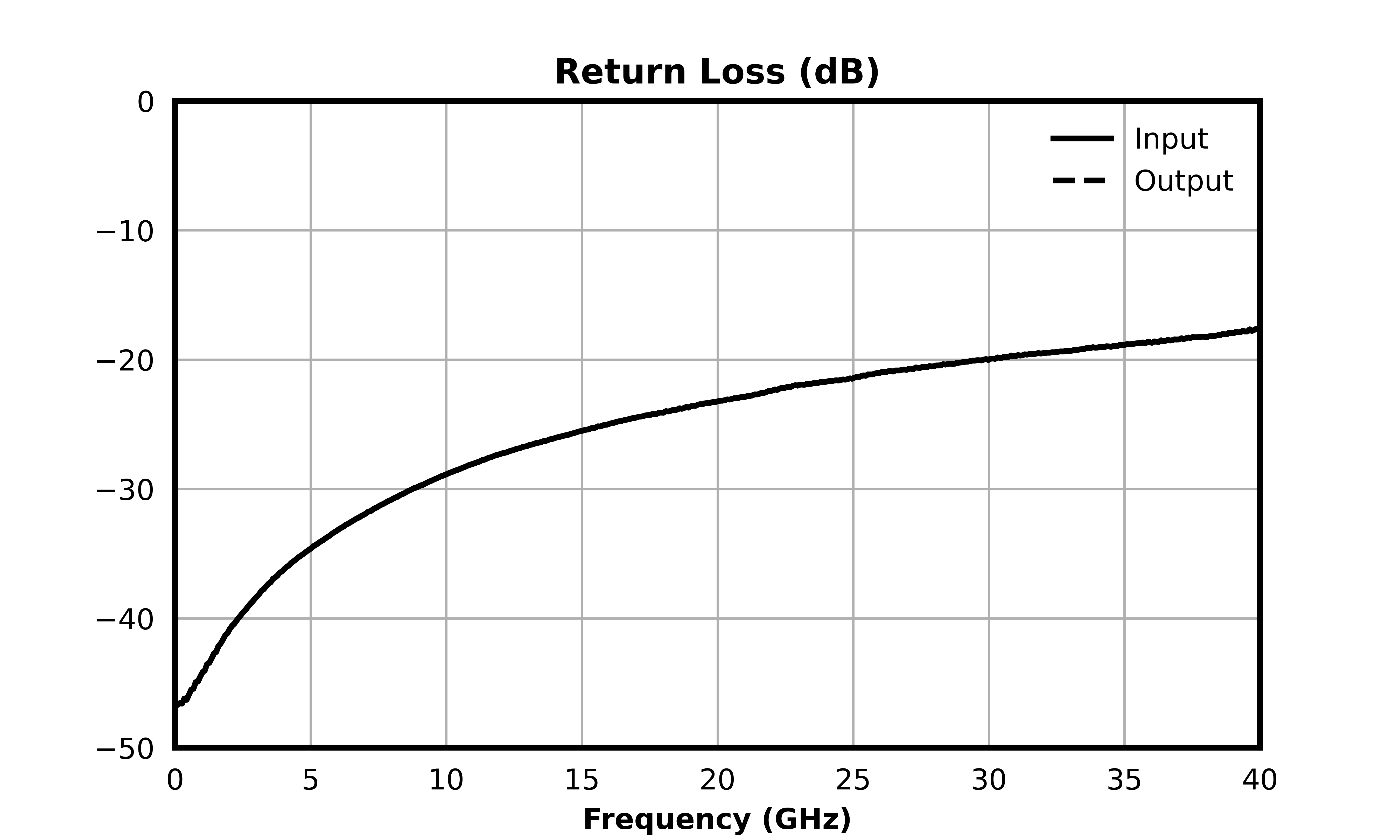

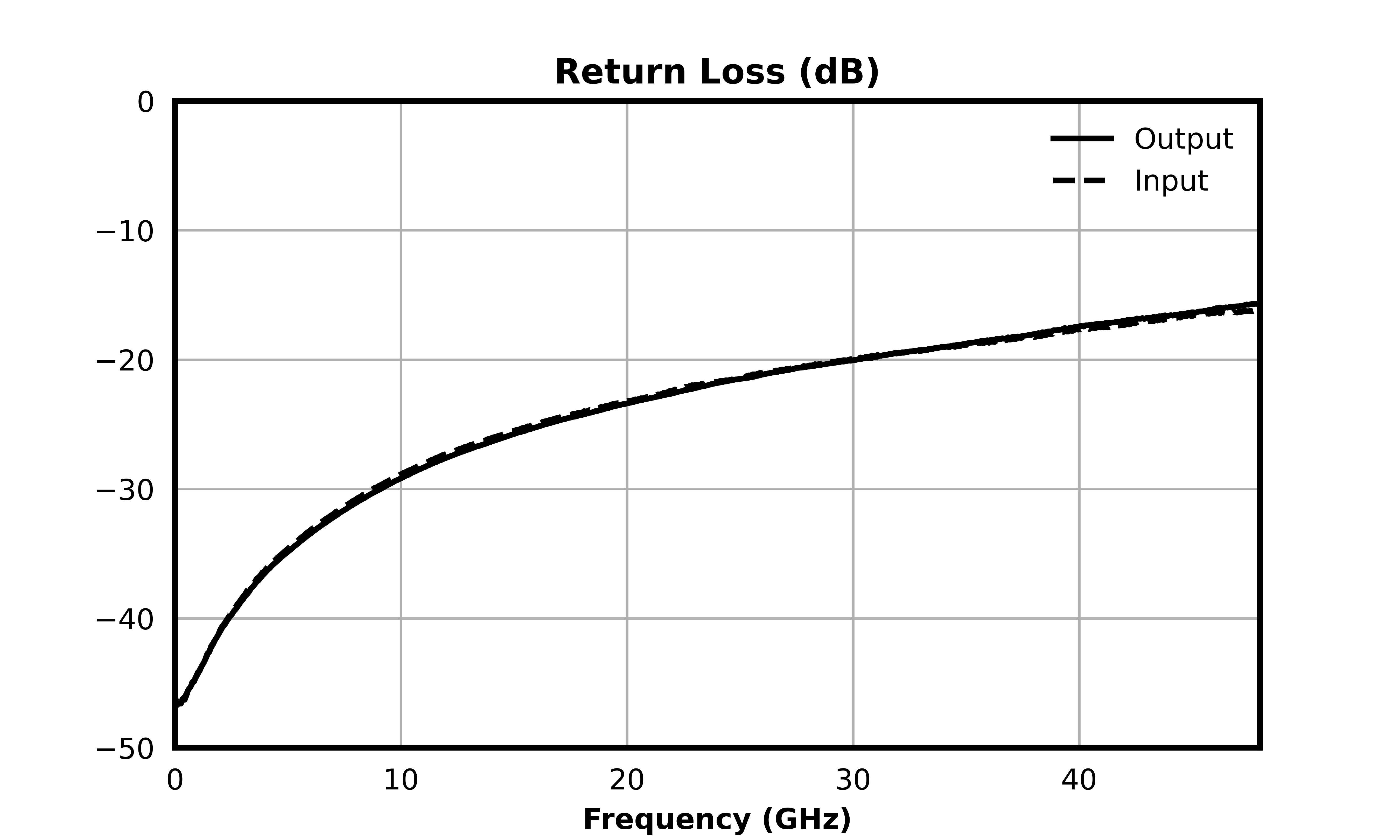

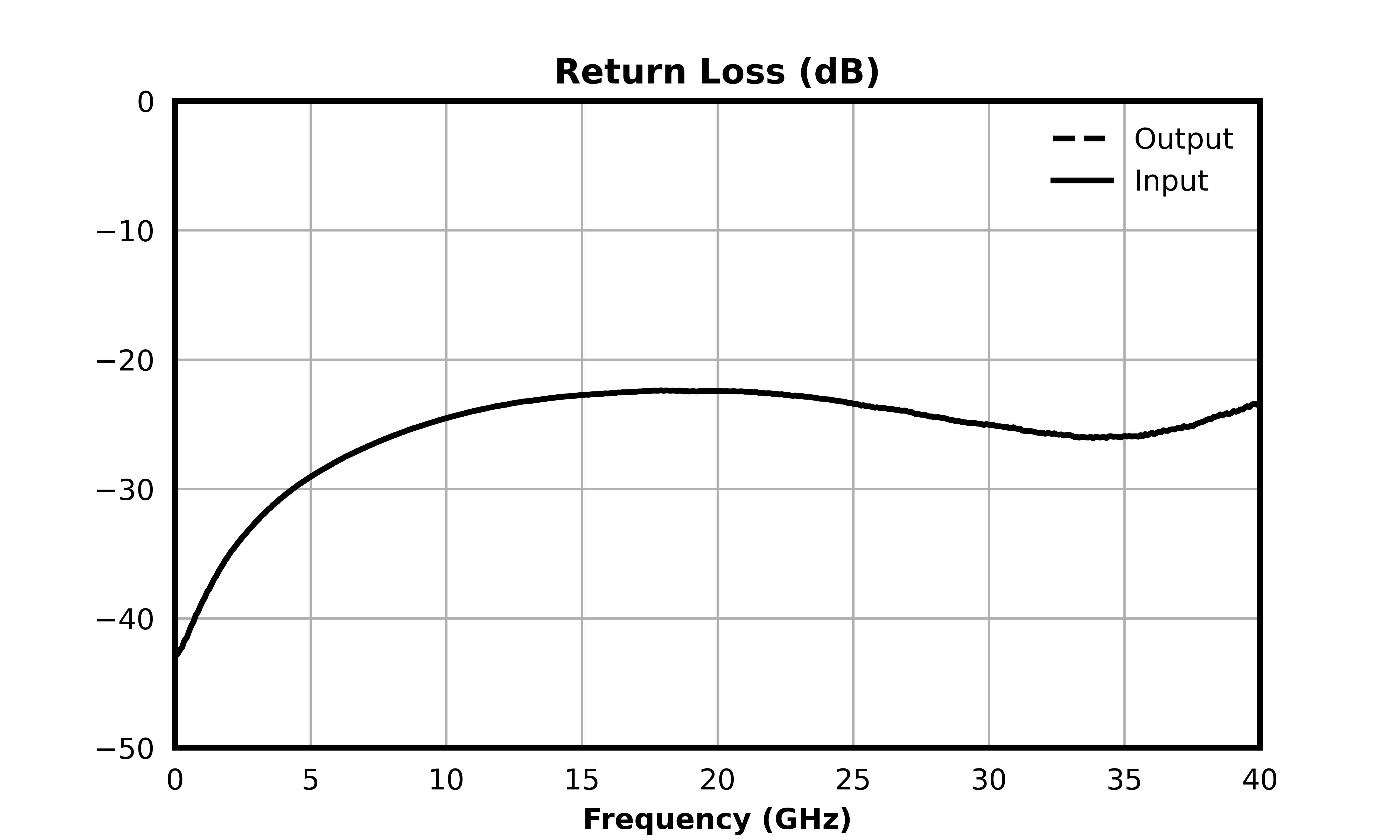

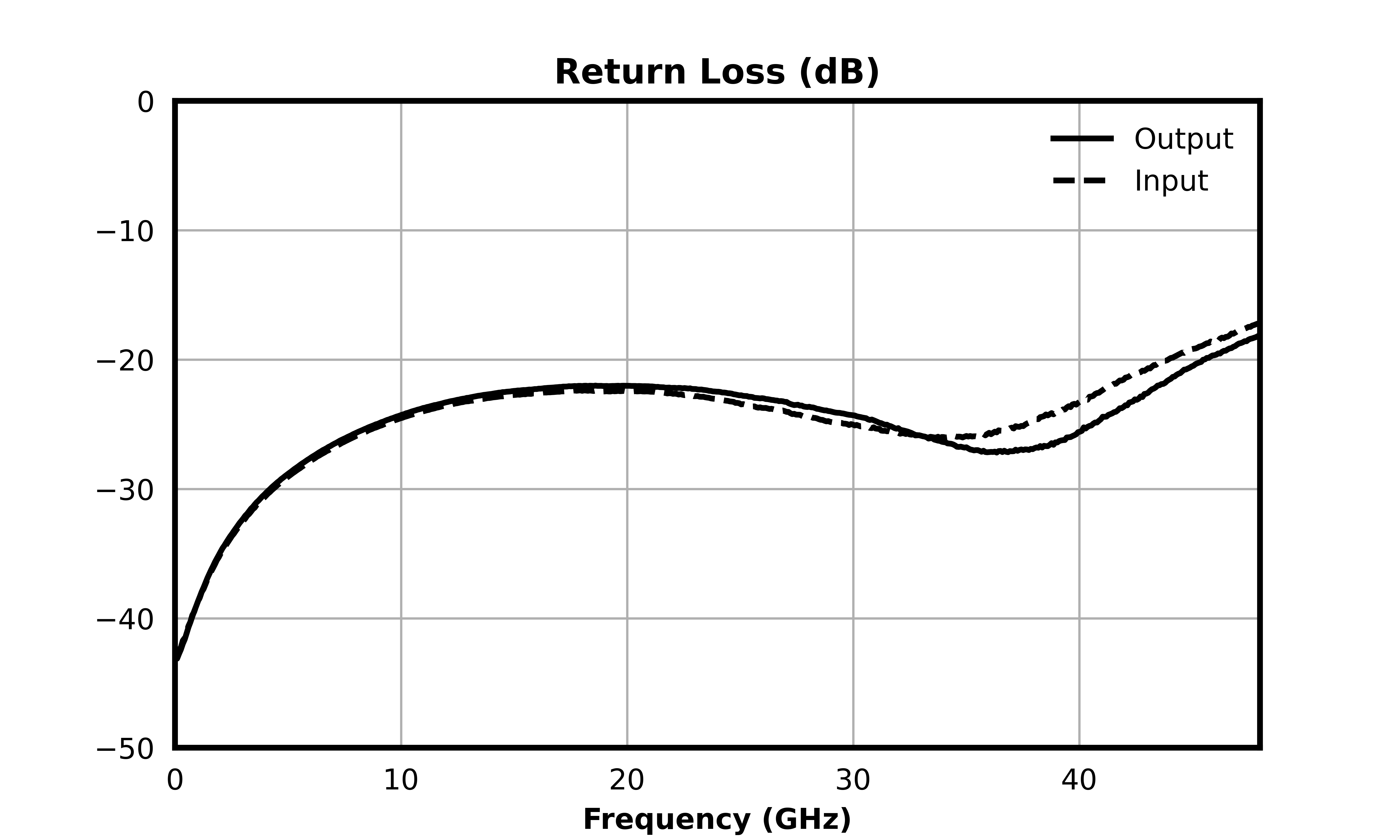

| Return Loss 2 | Temp = 25°C | 0 | 40 | - | 24 | - | dB |
| Return Loss | Temp = 25°C | 0 | 40 | - | 23 | - | dB |
| Attenuation Flatness 3 | Temp = 25°C | 0 | 40 | - | 1.1 | - | dB |
| Attenuation Flatness 4 | Temp = 25°C | 0 | 40 | - | 1.1 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | Temp = 25°C | 0 | 40 | - | 5.8 | - | dB |
| Attenuation 1 | Temp = 25°C | 0 | 40 | - | 5.9 | - | dB |
| Return Loss 2 | Temp = 25°C | 0 | 40 | - | 24 | - | dB |
| Return Loss | Temp = 25°C | 0 | 40 | - | 23 | - | dB |
| Attenuation Flatness 3 | Temp = 25°C | 0 | 40 | - | 1.1 | - | dB |
| Attenuation Flatness 4 | Temp = 25°C | 0 | 40 | - | 1.1 | - | dB |
[1][2] Includes wirebonds and TL
[3][4] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)
ATN06-0040CH
Passive GaAs MMIC DC - 40 GHz 6dB Attenuator
.png)
.png)
ATN06-0040CH
Passive GaAs MMIC DC - 40 GHz 6dB Attenuator
.png)
.png)
.png)
.png)
ATN06-0040CH
Passive GaAs MMIC DC - 40 GHz 6dB Attenuator
The die is connected to Transmission lines with bond wires on both sides.
.png)
.png)
