Device Overview
General Description
The ADM-8556 is a wideband low noise amplifier capable of providing 24 dB gain and a low 1.3 dB typical noise figure from 6 to 20 GHz. The ADM-8556 is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. ADM-8556 is available in bare die and connectorized module forms. The amplifier has excellent return losses and gain flatness.
Features
- 24 dB typical gain
- 1.3 dB typical noise figure
- Single Supply, Positive Only Bias
- Low power consumption
Applications
- Test and Measurement Equipment
- Radar and satellite communications
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADM-8556CH | 6 - 20 GHz Distributed Amplifier | CH | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| ADM-8556CH | 6 - 20 GHz Distributed Amplifier | CH | RoHS REACH | Released | EAR99 |
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations
- Operation
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-07-01 | Datasheet Initial Release |
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | Housing or ground lug must be connected to a DC/RF ground potential with high thermal and electrical conductivity. |  |
| RF In | RF Input | This is the amplifier’s RF Input port. It is RF matched to 50 Ω and has built-in DC blocking capacitors. |  |
| RF Out | RF Output | This is the amplifier’s RF Output port. This port is RF matched to 50Ω and has built-in DC blocking capacitors. | |
| Vb | Positive Bias Pin | The V B pad provides a required positive bias which supplies the current mirror. A higher voltage results in a higher current draw through the VD port. This port should be set to +3V for normal operation. |  |
| Vd | Drain Supply Pin | The VD pin supplies DC voltage to the drain of the amplifier IC This pin is nominally set at +3V with the VD pads bonded together. |  |
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime. Reliability limits are individual, instantaneous catastrophic limits only. Functional operation limits are indicated below. Operation of the device at multiple absolute maximum limits or for extended periods at a single limit can cause degradation and damage to the device
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Bias Current (Ib) | 10 | mA |
| Bias Supply Voltage (Vb) | 4 | V |
| Drain Current (Id) (RF Applied) | 175 | mA |
| Drain Supply Voltage (Vd) | 4 | V |
| Maximum Operating Temperature for MTTF > 1E6 hours | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature for MTTF > 1E6 hours | -40 | °C |
| Minimum Storage Temperature | -55 | °C |
| RF Power Handling | 15 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 1.00 x 1.35 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -40 | 25 | 85 | °C |
| Power Supply DC Voltage (Vd) | 2.5 | 3 | 3.5 | V |
| Power Supply DC Current (Id) (No RF Input) | 50 | 67 | 86 | mA |
| Bias Supply DC Voltage (Vb) | 2.5 | 3 | 3.5 | V |
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Electrical Specifications
Unless otherwise specified, electrical specifications apply at TA=+25°C, Vd = 3, Id = 75mA.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Saturated Output Power | - | 6 | 20 | - | 17 | - | dBm |
| Small Signal Gain | Vd = 3V, Id = 75mA, Pin = -20 dBm | 15 | 20 | 18 | 22 | - | dB |
| Current Consumption | Vd = 3V,
Id = 75mA,
no RF input
| 6 | 20 | - | 75 | - | mA |
| Input Return Loss | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 15 | - | dB |
| Noise Figure | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 1.3 | - | dB |
| Output IP3 | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 27 | - | dBm |
| Output P1dB | Vd = 3V,
Id = 75mA
| 6 | 20 | - | 16 | - | dBm |
| Output Return Loss | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 23 | - | dB |
| Reverse Isolation | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 50 | - | dB |
| Small Signal Gain | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 15 | 20 | 24 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Saturated Output Power | - | 6 | 20 | - | 17 | - | dBm |
| Small Signal Gain | Vd = 3V, Id = 75mA, Pin = -20 dBm | 15 | 20 | 18 | 22 | - | dB |
| Current Consumption | Vd = 3V,
Id = 75mA,
no RF input
| 6 | 20 | - | 75 | - | mA |
| Input Return Loss | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 15 | - | dB |
| Noise Figure | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 1.3 | - | dB |
| Output IP3 | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 27 | - | dBm |
| Output P1dB | Vd = 3V,
Id = 75mA
| 6 | 20 | - | 16 | - | dBm |
| Output Return Loss | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 23 | - | dB |
| Reverse Isolation | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 20 | - | 50 | - | dB |
| Small Signal Gain | Vd = 3V,
Id = 75mA,
Pin = -20 dBm
| 6 | 15 | 20 | 24 | - | dB |
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Typical Performance Plots
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Typical Performance Plots - Measured on ADM-8556PC Module
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Application Circuit
ADM-8556CH
6 - 20 GHz Distributed Amplifier
Mechanical Data

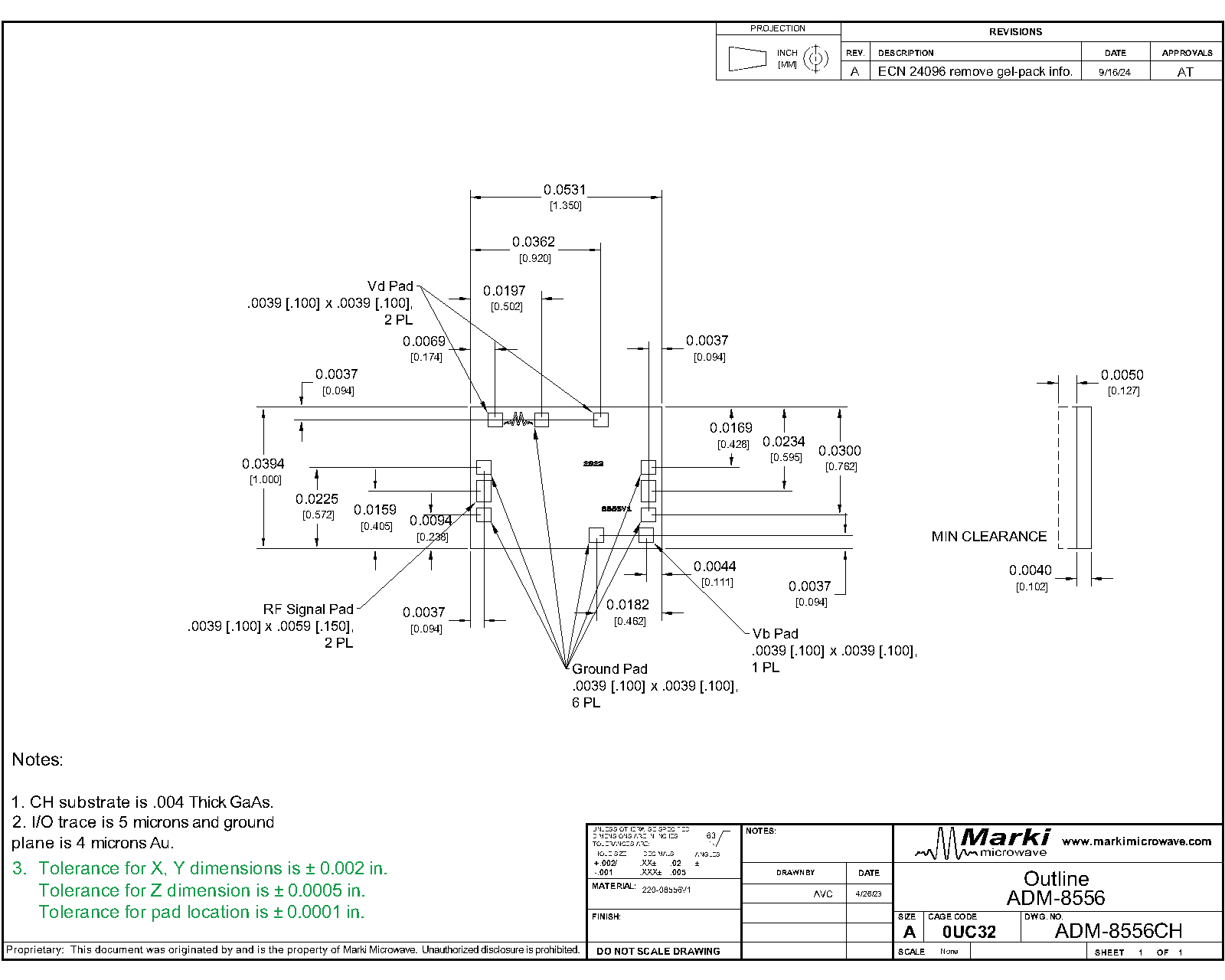

Outline Drawing
Download : Outline 2D Drawing
Notes:
- CH substrate is 0.004 thick GaAs.
- I/O trace is 5 microns and ground plane is 4 microns Au.
- Tolerance for X, Y dimensions is ± 0.002 in.
- Tolerance for Z dimensions is ± 0.0005 in.
- Tolerance for pad location is ± 0.0001 in.
