MMIQ-1040LSM-2_Low LO Drive Passive GaAs MMIC IQ Mixer

Part Number	Description	Package	Packing Size	Green Status	Product Lifecycle	Export Classification
MMIQ-1040LSM-2	Low LO Drive Passive GaAs MMIC IQ Mixer	QFN	-	REACH RoHS	Released	EAR99
EVAL-MMIQ-1040L	Evaluation Board, Low LO Drive Passive GaAs MMIC 10-40 GHz IQ Mixer	EVAL	-	REACH RoHS	Released	EAR99
MMIQ-1040L-2-TR	Tape and Reel, Low LO Drive Passive GaAs MMIC IQ Mixer	QFN	7"	REACH RoHS	Released	EAR99

Part Number	Description	Package	Packing Size	Green Status	Product Lifecycle	Export Classification
MMIQ-1040LSM-2	Low LO Drive Passive GaAs MMIC IQ Mixer	QFN	-	REACH RoHS	Released	EAR99
EVAL-MMIQ-1040L	Evaluation Board, Low LO Drive Passive GaAs MMIC 10-40 GHz IQ Mixer	EVAL	-	REACH RoHS	Released	EAR99
MMIQ-1040L-2-TR	Tape and Reel, Low LO Drive Passive GaAs MMIC IQ Mixer	QFN	7"	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2021-01-01	Datasheet Initial Release

Port Configuration and Functions

Port Diagram

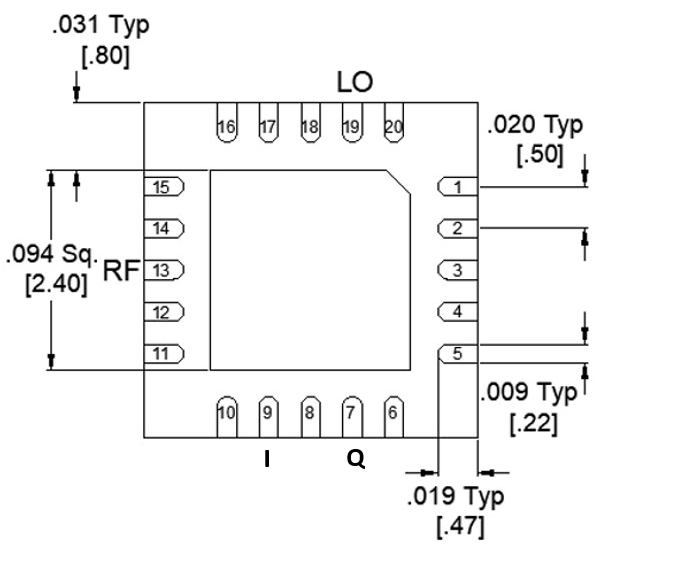

A bottom-up view of the MMIQ-1040L’s SMT package outline drawing is shown below. The mixer may be operated as either a downconverter or an upconverter. Use of the RF or I/Q as the input or output port will depend on the application. See Application Information for input and output port configuration for common applications.

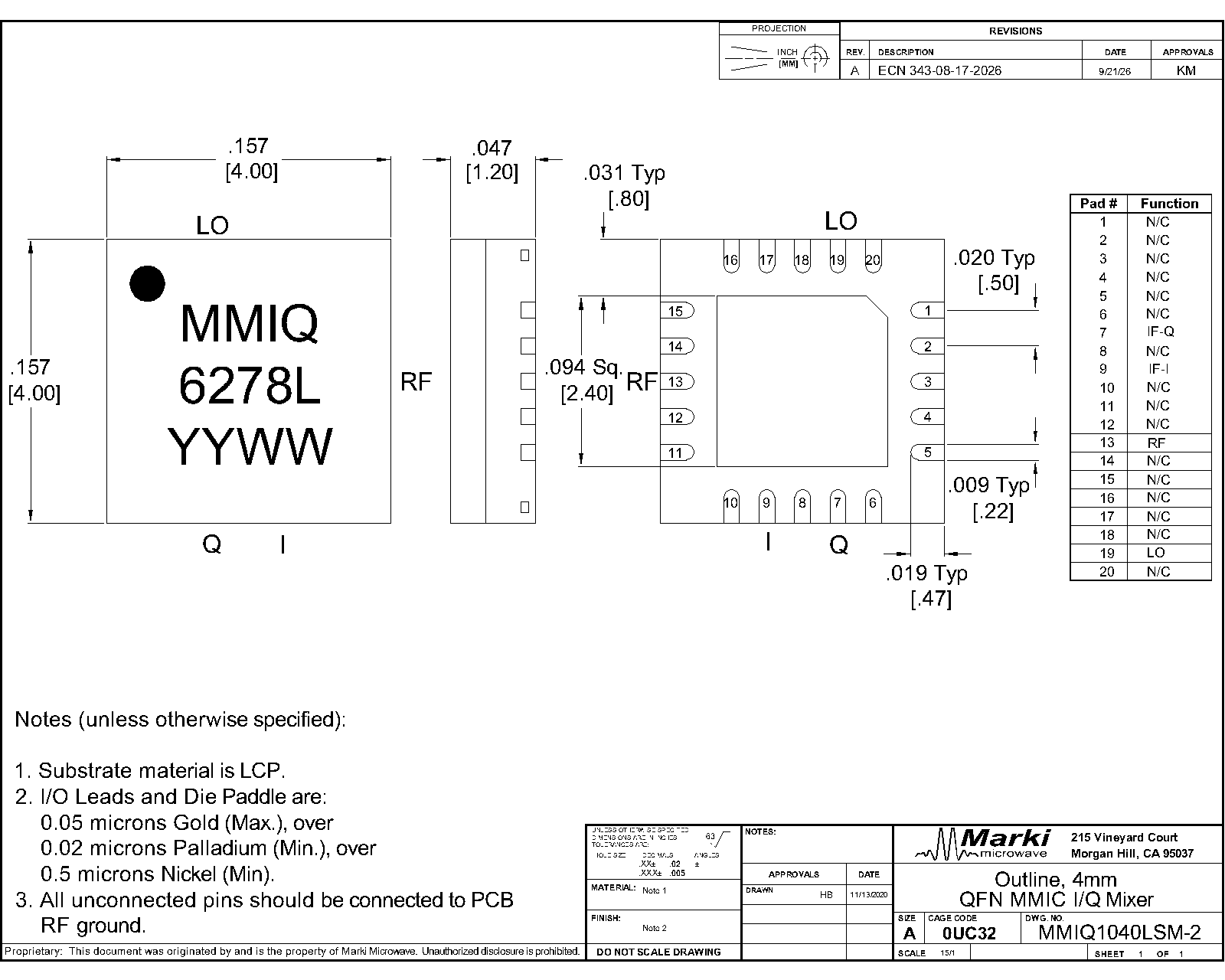

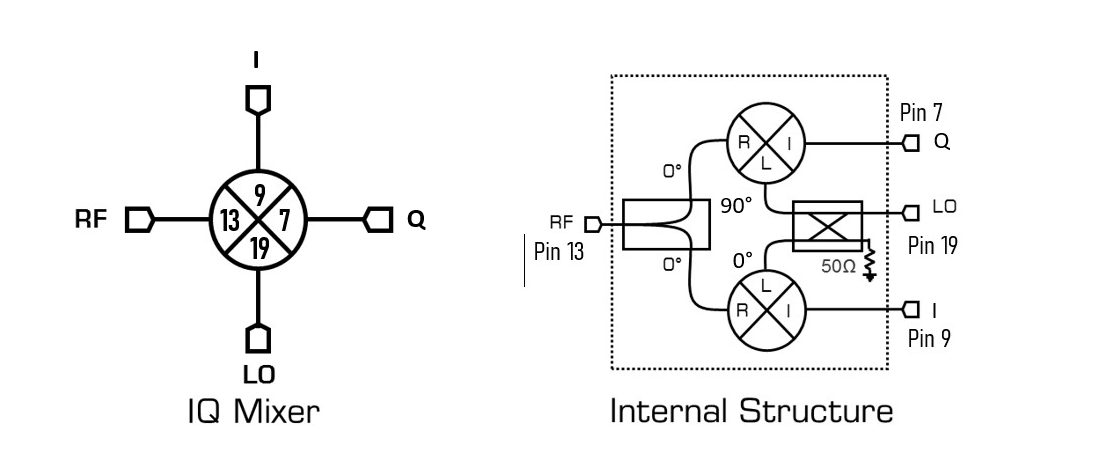

Diagram of the port configuration for MMIQ-1040LSM-2

Port Functions

Port	Function	Description
GND	Ground	SM package ground path is provided through the large center ground paddle.
Pad 13	RF Input / Output	Pad 13 is DC short and AC matched to 50Ω over the specified RF frequency range.
Pad 19	LO Input	Pad 19 is DC open and AC matched to 50Ω over the specified LO frequency range.
Pad 7	I Input / Output	Pad 7 is diode coupled and AC matched to 50Ω over the specified I port frequency range.
Pad 9	Q Input / Output	Pad 9 is diode coupled and AC matched to 50Ω over the specified Q port frequency range.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Pin 7 DC Current	30	mA
Pin 9 DC Current	30	mA
Power Handling, at any Port	26	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	4 x 4 mm
Moisture Sensitivity Level	-	MSL 1

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
RF/IF Input Power	-	-	5	dBm
LO Input Power	10	17	22	dBm
Ambient Temperature	-55	25	100	°C

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +17dBm sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	-	-	-	-	0.2	-	dB
Conversion Loss ¹	RF/LO = 10 - 40 GHz I = 0.2 - 10 GHz	10	40	-	16	-	dB
Conversion Loss ²	RF/LO = 10 - 40 GHz I = DC - 0.2 GHz	10	40	-	12	15	dB
Conversion Loss ³	RF/LO = 10 – 40 GHz I+Q = DC – 0.2GHz	10	40	-	9	-	dB
Conversion Loss ⁴	RF/LO = 10 - 40 GHz Q = 0.2 - 10 GHz	10	40	-	15	-	dB
Conversion Loss ⁵	RF/LO = 10 - 40 GHz Q = DC - 0.2 GHz	10	40	-	12	15	dB
IF Frequency Range	-	-	-	0	-	10	GHz
Image Rejection ⁶	RF/LO = 10 - 40 GHz I+Q = DC - 0.2 GHz	10	40	-	35	-	dBc
Input 1 dB Gain Compression Point, I	-	-	-	-	5	-	dBm
Input 1 dB Gain Compression Point, Q	-	-	-	-	7	-	dBm
Input IP3 ⁷	RF/LO = 10 - 38 GHz I = DC - 0.2 GHz	10	38	-	17	-	dBm
Isolation, LO to IF	IF/LO = 10 - 40 GHz	10	40	-	50	-	dB
Isolation, LO to RF	RF/LO = 10 - 40 GHz	10	40	-	50	-	dB
Isolation, RF to IF	RF/IF = 10 - 40 GHz	10	40	-	45	-	dB
LO Frequency Range	-	-	-	10	-	40	GHz
Noise Figure ⁸	RF/LO = 10 - 40 GHz I = DC - 0.2 GHz	10	40	-	12	-	dB
Noise Figure ⁹	RF/LO = 10 - 40 GHz Q = DC - 0.2 GHz	10	40	-	12	-	dB
Phase Balance	-	-	-	-	5	-	°
Q (Pin 9) Frequency Range	-	-	-	0	-	10	GHz
RF Frequency Range	-	-	-	10	-	40	GHz

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	-	-	-	-	0.2	-	dB
Conversion Loss ¹	RF/LO = 10 - 40 GHz I = 0.2 - 10 GHz	10	40	-	16	-	dB
Conversion Loss ²	RF/LO = 10 - 40 GHz I = DC - 0.2 GHz	10	40	-	12	15	dB
Conversion Loss ³	RF/LO = 10 – 40 GHz I+Q = DC – 0.2GHz	10	40	-	9	-	dB
Conversion Loss ⁴	RF/LO = 10 - 40 GHz Q = 0.2 - 10 GHz	10	40	-	15	-	dB
Conversion Loss ⁵	RF/LO = 10 - 40 GHz Q = DC - 0.2 GHz	10	40	-	12	15	dB
IF Frequency Range	-	-	-	0	-	10	GHz
Image Rejection ⁶	RF/LO = 10 - 40 GHz I+Q = DC - 0.2 GHz	10	40	-	35	-	dBc
Input 1 dB Gain Compression Point, I	-	-	-	-	5	-	dBm
Input 1 dB Gain Compression Point, Q	-	-	-	-	7	-	dBm
Input IP3 ⁷	RF/LO = 10 - 38 GHz I = DC - 0.2 GHz	10	38	-	17	-	dBm
Isolation, LO to IF	IF/LO = 10 - 40 GHz	10	40	-	50	-	dB
Isolation, LO to RF	RF/LO = 10 - 40 GHz	10	40	-	50	-	dB
Isolation, RF to IF	RF/IF = 10 - 40 GHz	10	40	-	45	-	dB
LO Frequency Range	-	-	-	10	-	40	GHz
Noise Figure ⁸	RF/LO = 10 - 40 GHz I = DC - 0.2 GHz	10	40	-	12	-	dB
Noise Figure ⁹	RF/LO = 10 - 40 GHz Q = DC - 0.2 GHz	10	40	-	12	-	dB
Phase Balance	-	-	-	-	5	-	°
Q (Pin 9) Frequency Range	-	-	-	0	-	10	GHz
RF Frequency Range	-	-	-	10	-	40	GHz

^[1]^[2]^[3]^[4]^[5] Measured as an I/Q down converter. (i.e., I and Q powers are not combined)

^[6] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.

^[7] Typical IIP3 is measured with I and Q ports combined with an external IF quadrature hybrid coupler.

^[8]^[9] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Typical Performance Plots

The test conditions and frequency plan below applies to all following sections, unless otherwise specified.

Mmiq 1040 Lsm 2 Performance Plot

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.

⁷ I+Q measurements taken with an external quadrature hybrid attached to the I and Q ports of the mixer. Orientation depends on up conversion or down conversion measurement.
