The MFBP-00060PSM passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00060PSM is available as a 5x5mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
N/A
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00060PSM | Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter | QFN | RoHS REACH |
Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFBP-00060PSM | Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter | QFN | RoHS REACH |
Released | EAR99 |
MFBP-00060PSM
Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-05-22 | Initial Release |
| A | 2025-03-06 | Port Function Description correction |
MFBP-00060PSM
Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter
| Port | Function | Description | Equivalent Circuit for Package |
|---|---|---|---|
| Ground Paddle | Ground | PSM package ground path is provided through the ground paddle and should be connected to RF ground. |
|
| Pin 20 | Input/Output | Pin 20 is DC short to ground for the PSM package. |
|
| Pin 5 | Input/Output | Pin 5 is DC short to ground for the PSM package. |
|
MFBP-00060PSM
Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 400 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 5 x 5 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MFBP-00060PSM
Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a PSM package with a sine wave input applied to Pin 5. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) |
Maximum Frequency (GHz) |
Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Configuration A, 25°C |
13.76 | 22.54 | - | - | - | GHz |
| 30 dBc Rejection Point | Configuration A, 25°C |
11.58 | 25.48 | - | - | - | GHz |
| 3 dBc Passband | Configuration A, 25°C |
13.47 | 23.47 | - | - | - | GHz |
| Center Freq | Configuration A, 25°C |
- | - | - | 17.61 | - | GHz |
| Group Delay | Configuration A, 25°C |
- | - | - | 220.30306 | - | ps |
| Impedance | Configuration A, 25°C |
- | - | - | 50 | - | Ω |
| Insertion Loss @ fc | Configuration A, 25°C |
- | - | - | 0.9545 | - | dB |
| Passband Return Loss | Configuration A, 25°C |
- | - | - | 17 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) |
Maximum Frequency (GHz) |
Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Configuration A, 25°C |
13.76 | 22.54 | - | - | - | GHz |
| 30 dBc Rejection Point | Configuration A, 25°C |
11.58 | 25.48 | - | - | - | GHz |
| 3 dBc Passband | Configuration A, 25°C |
13.47 | 23.47 | - | - | - | GHz |
| Center Freq | Configuration A, 25°C |
- | - | - | 17.61 | - | GHz |
| Group Delay | Configuration A, 25°C |
- | - | - | 220.30306 | - | ps |
| Impedance | Configuration A, 25°C |
- | - | - | 50 | - | Ω |
| Insertion Loss @ fc | Configuration A, 25°C |
- | - | - | 0.9545 | - | dB |
| Passband Return Loss | Configuration A, 25°C |
- | - | - | 17 | - | dB |
MFBP-00060PSM
Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter
All measurements are de-embedded from the fixture with AFR.
MFBP-00060PSM
Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter
MFBP-00060PSM
Passive GaAs MMIC 13.76-22.54 GHz Bandpass Filter

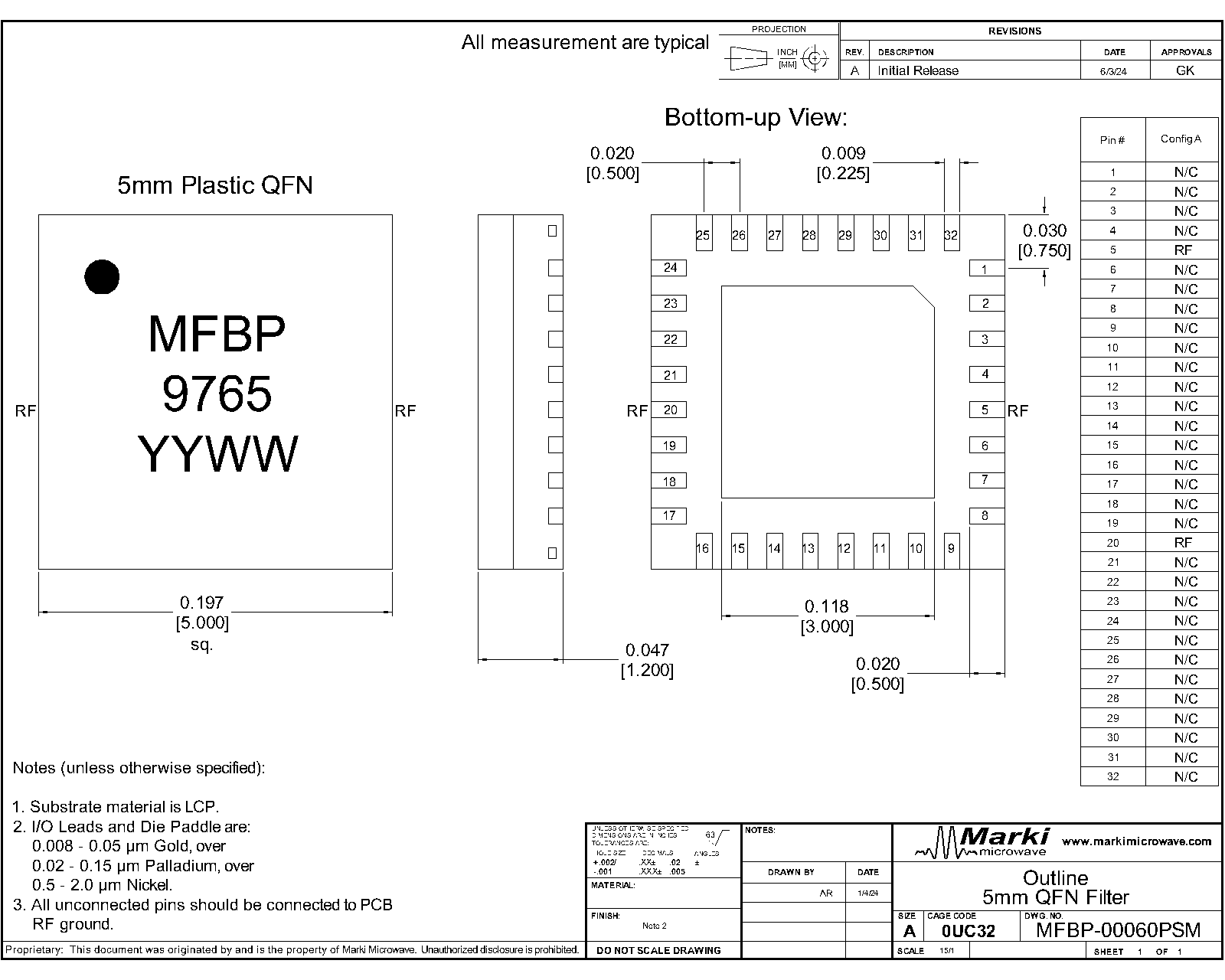

Download : Footprint Drawing
