Device Overview
General Description
The T3-18G is a high performance mixer featuring LO/RF from 10 MHz to 18 GHz and IF from 1 MHz to 10 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +15 dBm to +25 dBm. The T3-18G is offered in connectorized, surface mount, and drop-in style packaging, suitable for any type of system level integration. The T3-18G differs from its sister product the T3-18 in that the T3-18G is built using GaAs diodes instead of Si.
Features
- Ultra-Broadband RF, LO, and IF
- Compatible with Sine or Square-Wave LO
- Square-Wave LO delivers Industry-Leading Spurious, IP3, and P1dB Performance
Applications
- T3 Mixer Primer
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| T3-18GLS | TWO-TONE-TERMINATOR MIXER | S | Standard | Non-RoHS |
Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| T3-18GLS | TWO-TONE-TERMINATOR MIXER | S | Standard | Non-RoHS |
Released | EAR99 |
T3-18GLS
TWO-TONE-TERMINATOR MIXER
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2020-07-07 | Initial Release |
T3-18GLS
TWO-TONE-TERMINATOR MIXER
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | Equivalent Circuit for Package |
|---|---|---|---|---|
| IF | IF | SMAF | The IF port is DC blocked and AC matched to 50 Ohms from 1 MHz to 10 GHz. |
|
| LO | LO | SMAF | The LO port is DC short to ground and AC matched to 50 Ohms from 10 MHz to 18 GHz. Blocking capacitor is optional. |
|
| RF | RF | SMAF | The RF port is DC short to ground and AC matched to 50 Ohms from 10 MHz to 18 GHz. Blocking capacitor is optional. |
|
T3-18GLS
TWO-TONE-TERMINATOR MIXER
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| LO DC Current | 1 | A |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF DC Current | 1 | A |
| RF Power Handling (RF+LO), (L -Version) | 25 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 14.22 x 13.21 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 15 | - | 25 | - |
T3-18GLS
TWO-TONE-TERMINATOR MIXER
Electrical Specifications
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| IF Frequency Range | - | 0.01 | - | 10 | GHz |
| LO Frequency Range | - | 0.01 | - | 18 | GHz |
| RF Frequency Range | - | 0.01 | - | 18 | GHz |
| Conversion Loss | LO/RF=.01-14 GHz IF=.0001-5 GHz |
- | 9 | 13.5 | dB |
| Conversion Loss | LO/RF=.01-18 GHz IF=91MHz |
- | 8 | 12 | dB |
| Input IP3 | - | - | 28 | - | dBm |
| Isolation, LO to RF | - | - | 25 | - | dB |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| IF Frequency Range | - | 0.01 | - | 10 | GHz |
| LO Frequency Range | - | 0.01 | - | 18 | GHz |
| RF Frequency Range | - | 0.01 | - | 18 | GHz |
| Conversion Loss | LO/RF=.01-14 GHz IF=.0001-5 GHz |
- | 9 | 13.5 | dB |
| Conversion Loss | LO/RF=.01-18 GHz IF=91MHz |
- | 8 | 12 | dB |
| Input IP3 | - | - | 28 | - | dBm |
| Isolation, LO to RF | - | - | 25 | - | dB |
T3-18GLS
TWO-TONE-TERMINATOR MIXER

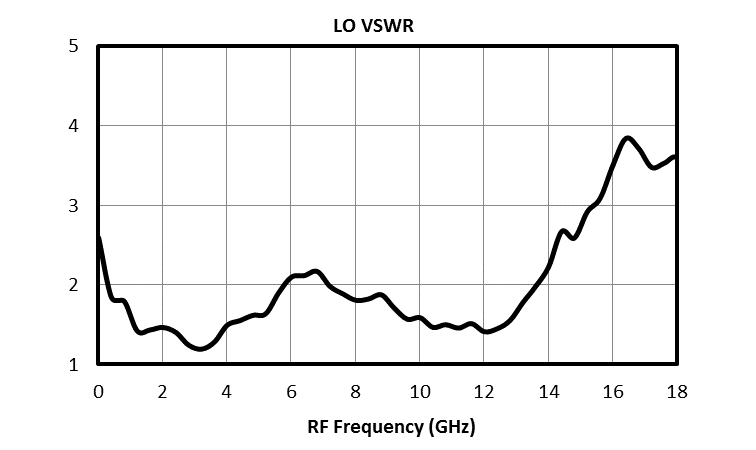

Typical Performance
