Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 2 | A |
| DC Voltage | 50 | V |
| Maximum Storage Temperature | 125 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 10 | W |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: sales@markimicrowave.com
Tech Support: support@markimicrowave.com
Device Overview
General Description

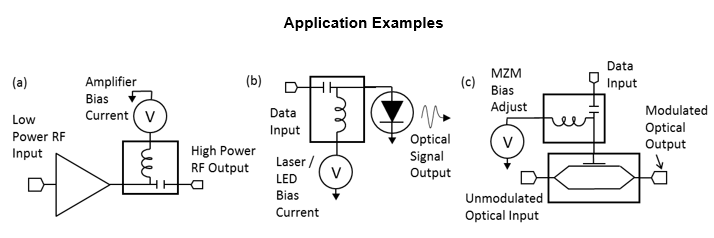

The BT2-0040 is constructed using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimizing the overall inductor size and using proprietary packaging techniques, the BT2-0040 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors. The extremely low cutoff and resonance free operation makes the BT2-0040 suitable for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.
Features
- Broadband: 200 kHz to 40 GHz
- Low Insertion Loss
- High Power
- Non-Resonant
- Compact Size
Applications
- Test and Measurement Equipment
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BT2-0040 | High Power Bias Tee | Standard | REACH RoHS |
Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BT2-0040 | High Power Bias Tee | Standard | REACH RoHS |
Released | EAR99 |
BT2-0040
High Power Bias Tee
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| B | 2020-04-01 | Performance vs Bias current plots |
| C | 2021-03-01 | Updated Spec Table and Low Frequency Plots |
BT2-0040
High Power Bias Tee
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | Equivalent Circuit for Package |
|---|---|---|---|---|
| Common | RF+DC | 2.92F | This port is DC blocked to the RF port and DC connected to the DC port through an internal RF choke. |
|
| DC | DC | 2.92F | This port is internally connected to an RF choke which is DC connected to the RF+DC port and DC blocked to the RF port. |
|
| RF | RF | 2.92F | This port is internally DC blocked to the RF+DC and DC ports. |
|
BT2-0040
High Power Bias Tee
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 23.5g |
| Dimensions | - | 15.24 x 36.07 mm |
BT2-0040
High Power Bias Tee
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) |
Maximum Frequency (GHz) |
Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Capacitance | - | - | - | - | 100 | - | nF |
| DC Port Isolation | - | 0.0002 | 1 | - | 50 | - | dB |
| DC Port Isolation | - | 1 | 40 | - | 30 | - | dB |
| DC Resistance | - | - | - | - | 0.5 | - | Ω |
| Inductance | - | - | - | - | 68 | - | μH |
| Insertion Loss | - | 0.0002 | 0.0003 | - | 2 | - | dB |
| Insertion Loss | - | 0.0003 | 40 | - | 1.5 | 2.5 | dB |
| Return Loss | - | 0.0002 | 40 | - | 14 | - | dB |
| Risetime/Falltime 1 | - | - | - | - | 10 | - | ps |
| Parameter | Test Conditions | Minimum Frequency (GHz) |
Maximum Frequency (GHz) |
Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Capacitance | - | - | - | - | 100 | - | nF |
| DC Port Isolation | - | 0.0002 | 1 | - | 50 | - | dB |
| DC Port Isolation | - | 1 | 40 | - | 30 | - | dB |
| DC Resistance | - | - | - | - | 0.5 | - | Ω |
| Inductance | - | - | - | - | 68 | - | μH |
| Insertion Loss | - | 0.0002 | 0.0003 | - | 2 | - | dB |
| Insertion Loss | - | 0.0003 | 40 | - | 1.5 | 2.5 | dB |
| Return Loss | - | 0.0002 | 40 | - | 14 | - | dB |
| Risetime/Falltime 1 | - | - | - | - | 10 | - | ps |
[1] Specified as 90%/10%. Calculated from 𝜏bt2 = (𝜏out2 - 𝜏in2)
BT2-0040
High Power Bias Tee
Typical Performance Plots
BT2-0040
High Power Bias Tee
Time Domain Performance Plots
Oscilloscope measurements of the BT2-0040 with a 10Gb/s PRBS pattern. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the bias tee.
