The MFLP-00029CSP1 MMIC surface mount lowpass filter is an ideal solution for extremely small form factor, high rejection filtering. The MFLP-00029CSP1 features a 12.9 GHz 3 dBc cutoff and 24 dB passband return loss. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFLP-00029CSP1 is available as a 1.5x1.5 mm CSP. Low unit to unit variation allows for accurate simulations using the provided S2P file.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00029CSP1 | Passive GaAs MMIC 12.9 GHz Lowpass Filter | CSP1 | RoHS REACH | Released | EAR99 |
| EVB-MFLP-00029 | Evaluation Board, Passive GaAs MMIC 12.9 GHz Lowpass Filter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00029CSP1 | Passive GaAs MMIC 12.9 GHz Lowpass Filter | CSP1 | RoHS REACH | Released | EAR99 |
| EVB-MFLP-00029 | Evaluation Board, Passive GaAs MMIC 12.9 GHz Lowpass Filter | EVB | RoHS REACH | Released | EAR99 |
MFLP-00029CSP1
Passive GaAs MMIC 12.9 GHz Lowpass Filter
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-09-30 | Initial Release |
MFLP-00029CSP1
Passive GaAs MMIC 12.9 GHz Lowpass Filter
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 80 | mA |
| Port 2 DC Current | 80 | mA |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: CSP1 | 0.04g |
| Dimensions | - | 1.50 x 1.50 mm |
| Moisture Sensitivity Level | - | MSL 3 |
MFLP-00029CSP1
Passive GaAs MMIC 12.9 GHz Lowpass Filter
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | - | 10.26 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | - | 12.9 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | - | 14.66 | - | - | - | GHz |
| Passband Return Loss | Temp = 25°C | - | - | - | 24 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 90 | - | ps |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | - | 10.26 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | - | 12.9 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | - | 14.66 | - | - | - | GHz |
| Passband Return Loss | Temp = 25°C | - | - | - | 24 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 90 | - | ps |
MFLP-00029CSP1
Passive GaAs MMIC 12.9 GHz Lowpass Filter

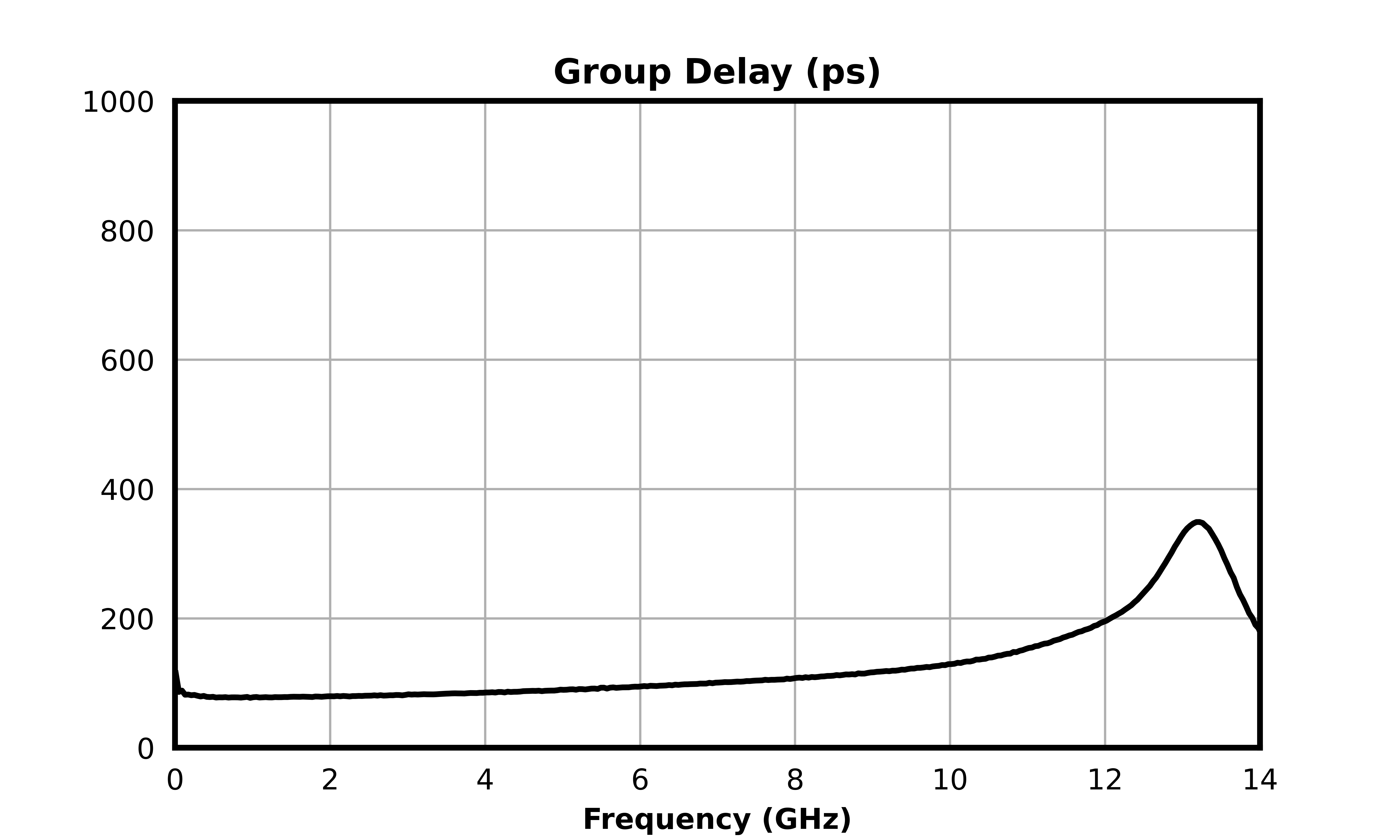

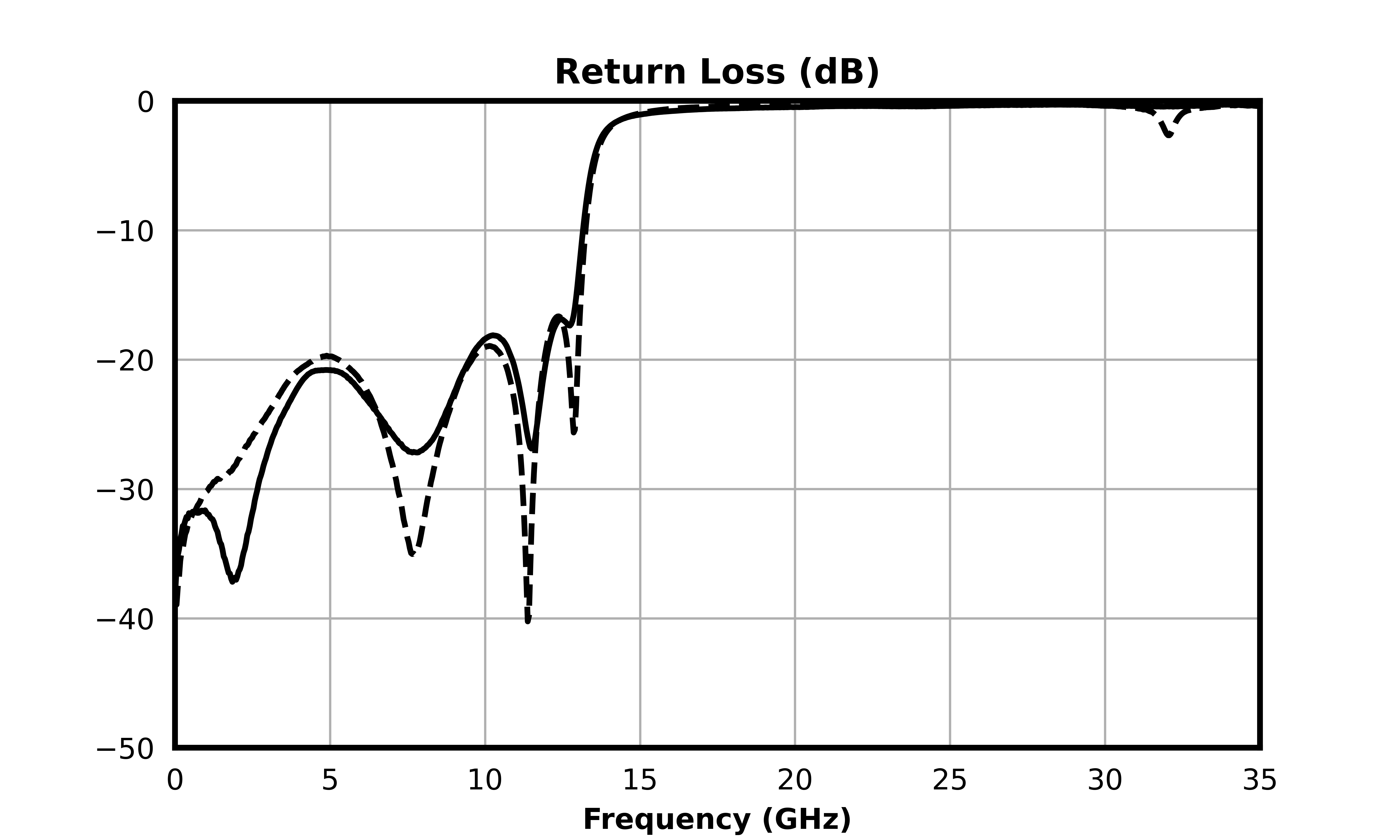

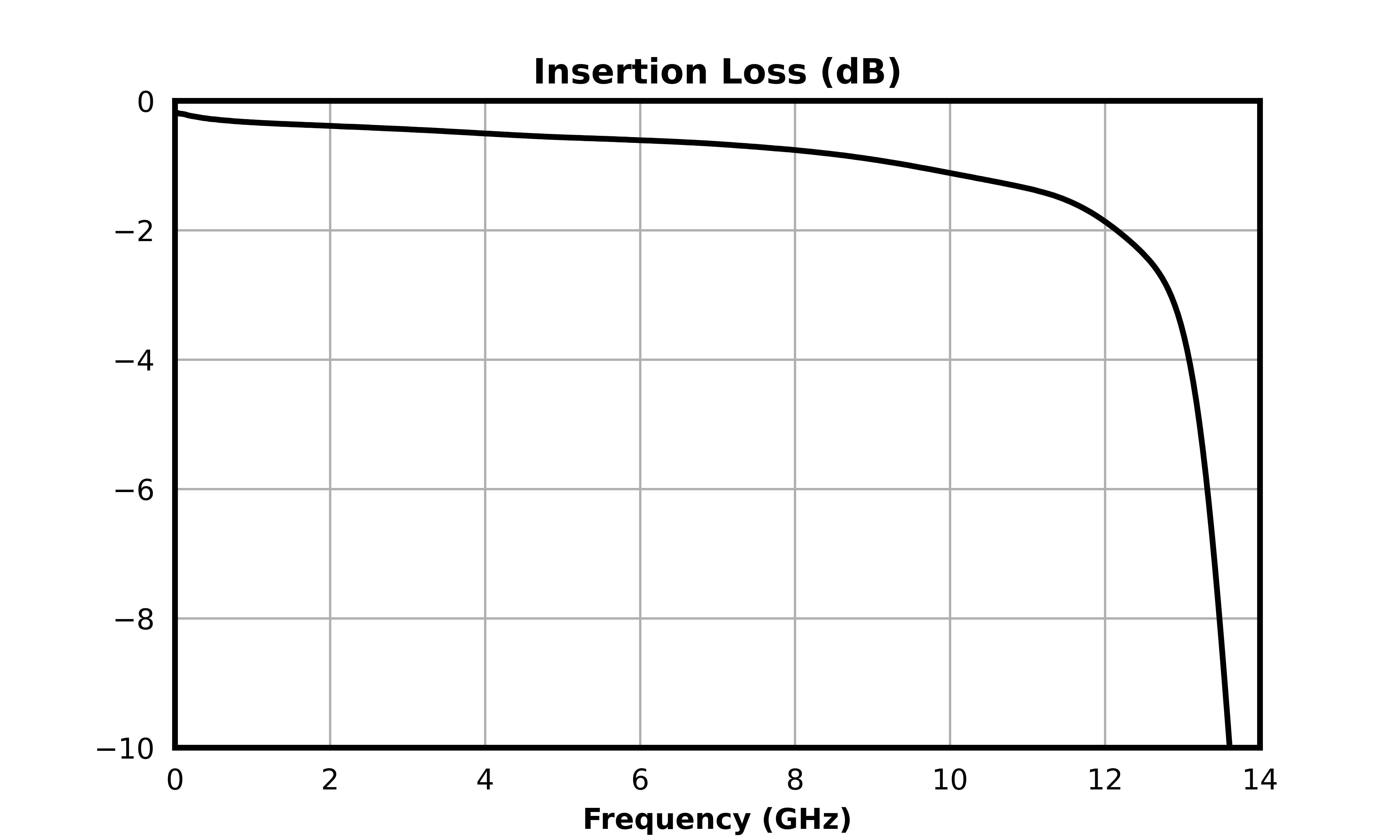

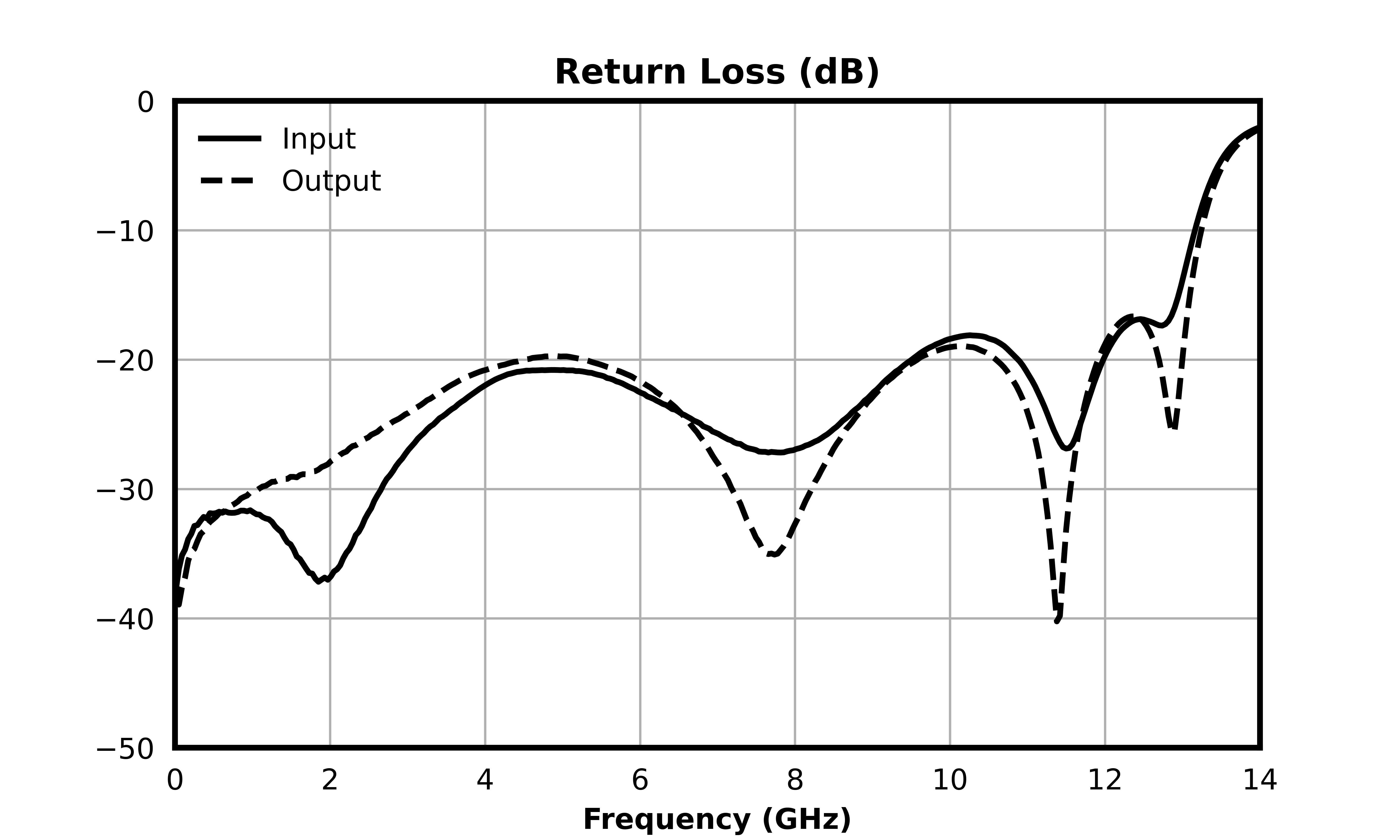

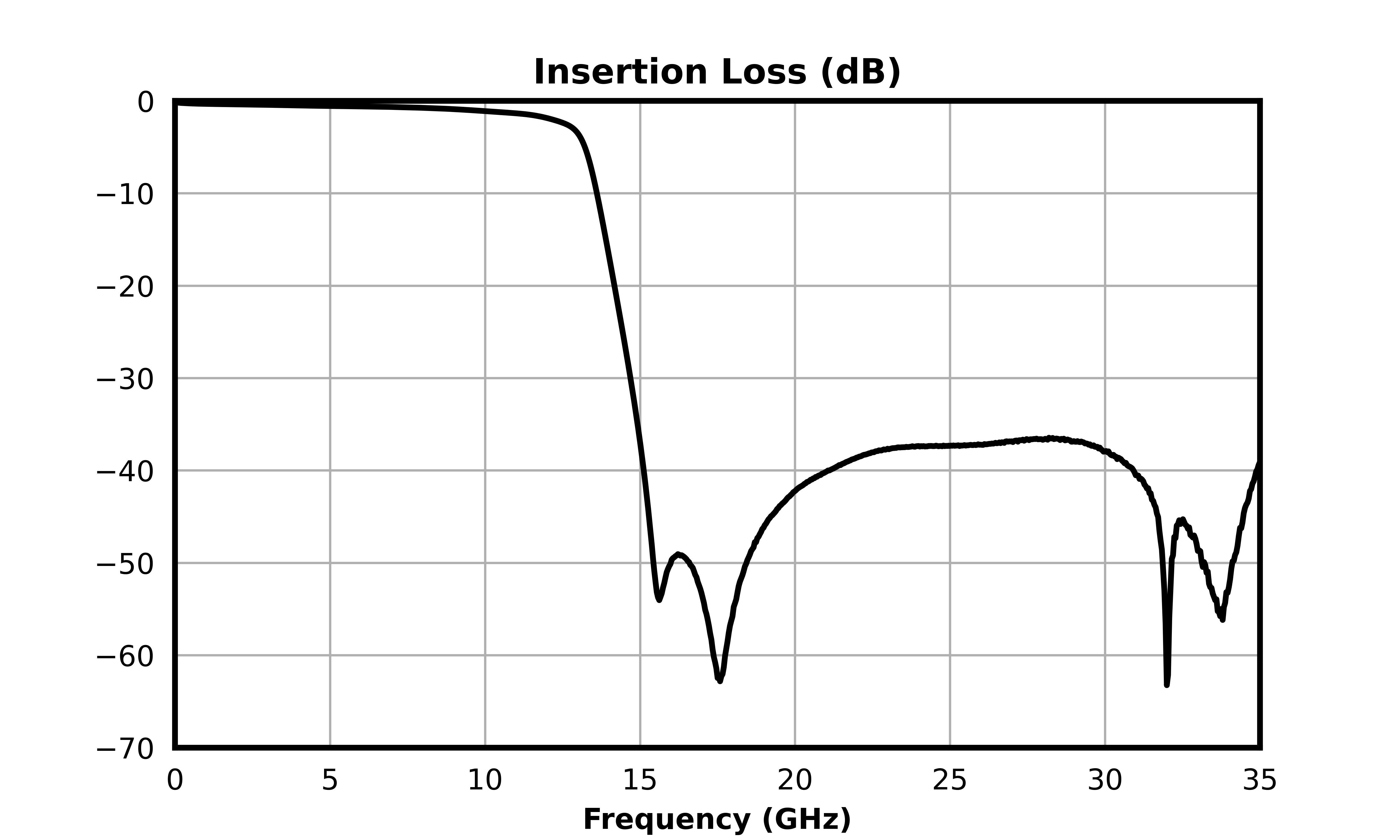

Typical performance is de-embedded from evaluation board using automatic fixture removal (AFR).
.png)
.png)
.png)
.png)
.png)
MFLP-00029CSP1
Passive GaAs MMIC 12.9 GHz Lowpass Filter
MFLP-00029CSP1
Passive GaAs MMIC 12.9 GHz Lowpass Filter
Download : Footprint Drawing
