Device Overview
General Description
M2 triple balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations. M2 mixers offer ultrabroadband overlapping frequency coverage on all 3 ports. Many M2 mixers have replaced with MM2 mixers with superior performance, repeatability, and availability. M2 mixers suitable for systems where an MM2 mixer is not available.
Features
- RF 1.0 to 20.0 GHz
- LO .5 to 20.0 GHz
- IF .001 to 6.0 GHz
- 7.5 dB Typical Conversion Loss
- 24 dB Typical LO to RF Isolation
- Ultra-Broadband RF, LO, and IF
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M2-0020LK | Triple-Balanced 0.5 - 20 GHz Mixer | K | Standard | Consult Factory | End of Life | EAR99 | T3-20GLS |
| M2-0020MK | Triple-Balanced 0.5 - 20 GHz Mixer | K | Standard | Consult Factory | End of Life | EAR99 | T3-20GLS |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M2-0020LK | Triple-Balanced 0.5 - 20 GHz Mixer | K | Standard | Consult Factory | End of Life | EAR99 | T3-20GLS |
| M2-0020MK | Triple-Balanced 0.5 - 20 GHz Mixer | K | Standard | Consult Factory | End of Life | EAR99 | T3-20GLS |

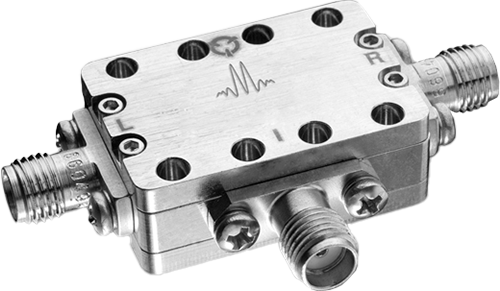

M2-0020MK
Triple-Balanced 0.5 - 20 GHz Mixer
Table Of Contents
M2-0020MK
Triple-Balanced 0.5 - 20 GHz Mixer
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | LO | SMAF | Port 1 is DC short for the K package. |  |
| Port 2 | IF | SMAF | Port 2 is diode connected for the K Package. |  |
| Port 3 | RF | SMAF | Port 3 is DC short for the K Package. | |
M2-0020MK
Triple-Balanced 0.5 - 20 GHz Mixer
Specifications

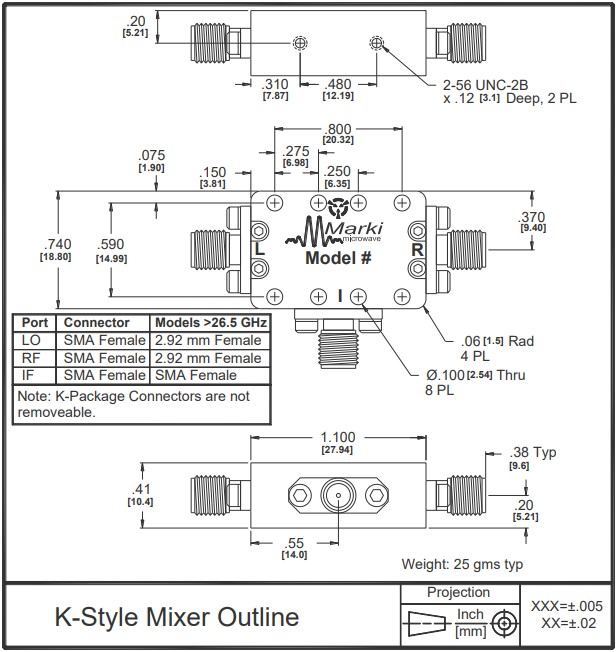

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: K | 25g |
| Dimensions | - | 20.32 x 18.80 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 16 | - | 19 | - |
M2-0020MK
Triple-Balanced 0.5 - 20 GHz Mixer
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO=0.5-20 GHz RF=1-20 GHz IF=0.001-2 GHz | - | 7.5 | 10 | dB |
| Conversion Loss | LO=0.5-20 GHz RF=1-20 GHz IF=2-4 GHz | - | 8 | 11.5 | dB |
| Input IP3 | LO=0.5-20 GHz RF=1-20 GHz M Diode drive level=16-19 dBm | - | 18 | - | dBm |
| Input P1dB | LO=0.5-20 GHz RF=1-20 GHz L Diode drive level=16-19 dBm | - | 8 | - | dBm |
| LO-IF Isolation | LO/RF=0.5-20 GHz | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=0.5-20 GHz | 15 | 24 | - | dB |
| RF-IF Isolation | LO/RF=0.5-20 GHz | - | 20 | - | dB |
| IF Frequency Range | - | 0.001 | - | 6 | GHz |
| RF Frequency Range | - | 1 | - | 20 | GHz |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO=0.5-20 GHz RF=1-20 GHz IF=0.001-2 GHz | - | 7.5 | 10 | dB |
| Conversion Loss | LO=0.5-20 GHz RF=1-20 GHz IF=2-4 GHz | - | 8 | 11.5 | dB |
| Input IP3 | LO=0.5-20 GHz RF=1-20 GHz M Diode drive level=16-19 dBm | - | 18 | - | dBm |
| Input P1dB | LO=0.5-20 GHz RF=1-20 GHz L Diode drive level=16-19 dBm | - | 8 | - | dBm |
| LO-IF Isolation | LO/RF=0.5-20 GHz | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=0.5-20 GHz | 15 | 24 | - | dB |
| RF-IF Isolation | LO/RF=0.5-20 GHz | - | 20 | - | dB |
| IF Frequency Range | - | 0.001 | - | 6 | GHz |
| RF Frequency Range | - | 1 | - | 20 | GHz |
M2-0020MK
Triple-Balanced 0.5 - 20 GHz Mixer
Typical Performance Plots
M2-0020MK
Triple-Balanced 0.5 - 20 GHz Mixer
