Device Overview
General Description
This general purpose high pass filter offers high stop band suppression and low insertion loss in the passband. These filters can be used to eliminate unwanted side bands during up-conversion or for removing spurious interference and noise. Filters with customized frequency cutoff, usable passband and stopband rejection are available upon customer request. Contact the factory for more details.
Features
- Low Insertion Loss
- High Stop Band Attenuation
- Compact Size
- User defined options available
Applications
- Test and Measurement Equipment
- SATCOM
- Radar
- RF Transceivers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| FH-2600 | 26 GHz Highpass Filter | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| FH-2600 | 26 GHz Highpass Filter | Standard | REACH RoHS | Released | EAR99 |
FH-2600
26 GHz Highpass Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-05-27 | Datasheet Initial Release |
FH-2600
26 GHz Highpass Filter

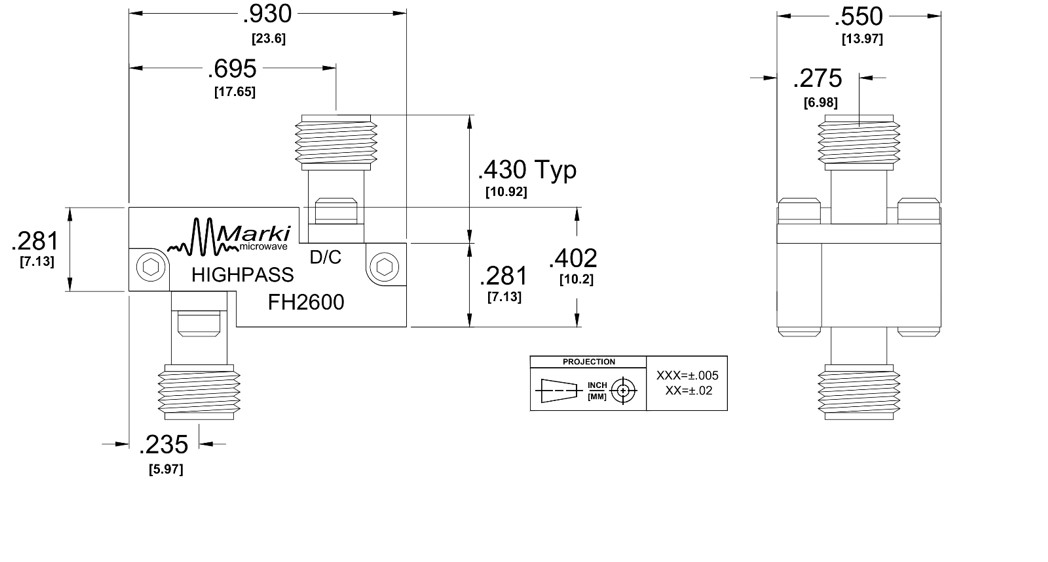

Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input/Output | 2.4F | Port 1 is DC open to Port 2 and GND. GND is provided through the case and RF connectors. |  |
| Port 2 | Input/Output | 2.4F | Port 2 is DC open to Port 1 and GND. GND is provided through the case and RF connectors. | |
FH-2600
26 GHz Highpass Filter
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 23.6 x 10.2 mm |
FH-2600
26 GHz Highpass Filter
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 25.75 | - | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 21.44 | - | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 25.13 | - | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 37.88 | - | GHz |
| Group Delay | Temp = 25°C | - | - | - | 141 | - | ps |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 0.9 | - | dB |
| Passband Return Loss | Temp = 25°C | - | - | - | 14 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 25.75 | - | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 21.44 | - | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 25.13 | - | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 37.88 | - | GHz |
| Group Delay | Temp = 25°C | - | - | - | 141 | - | ps |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 0.9 | - | dB |
| Passband Return Loss | Temp = 25°C | - | - | - | 14 | - | dB |
FH-2600
26 GHz Highpass Filter

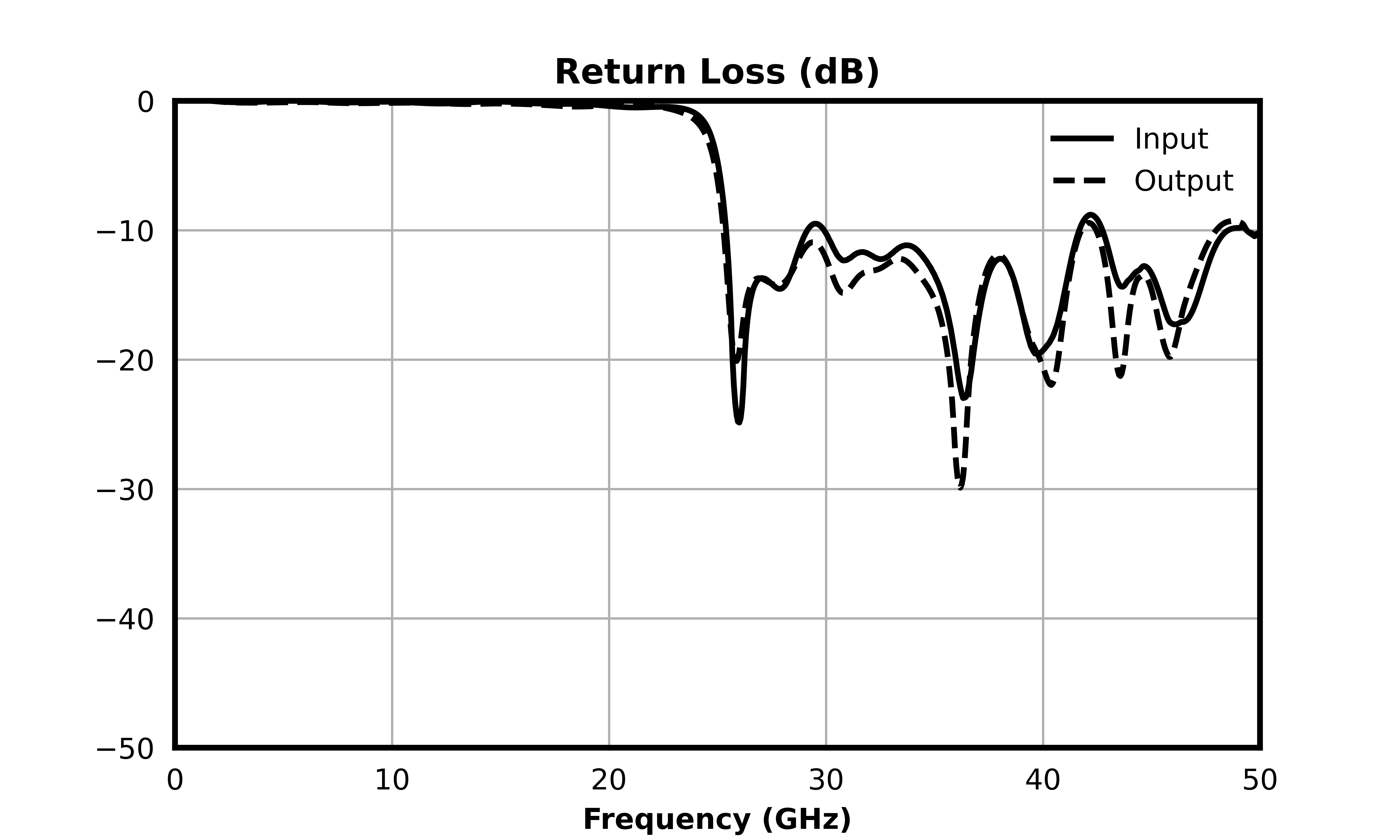

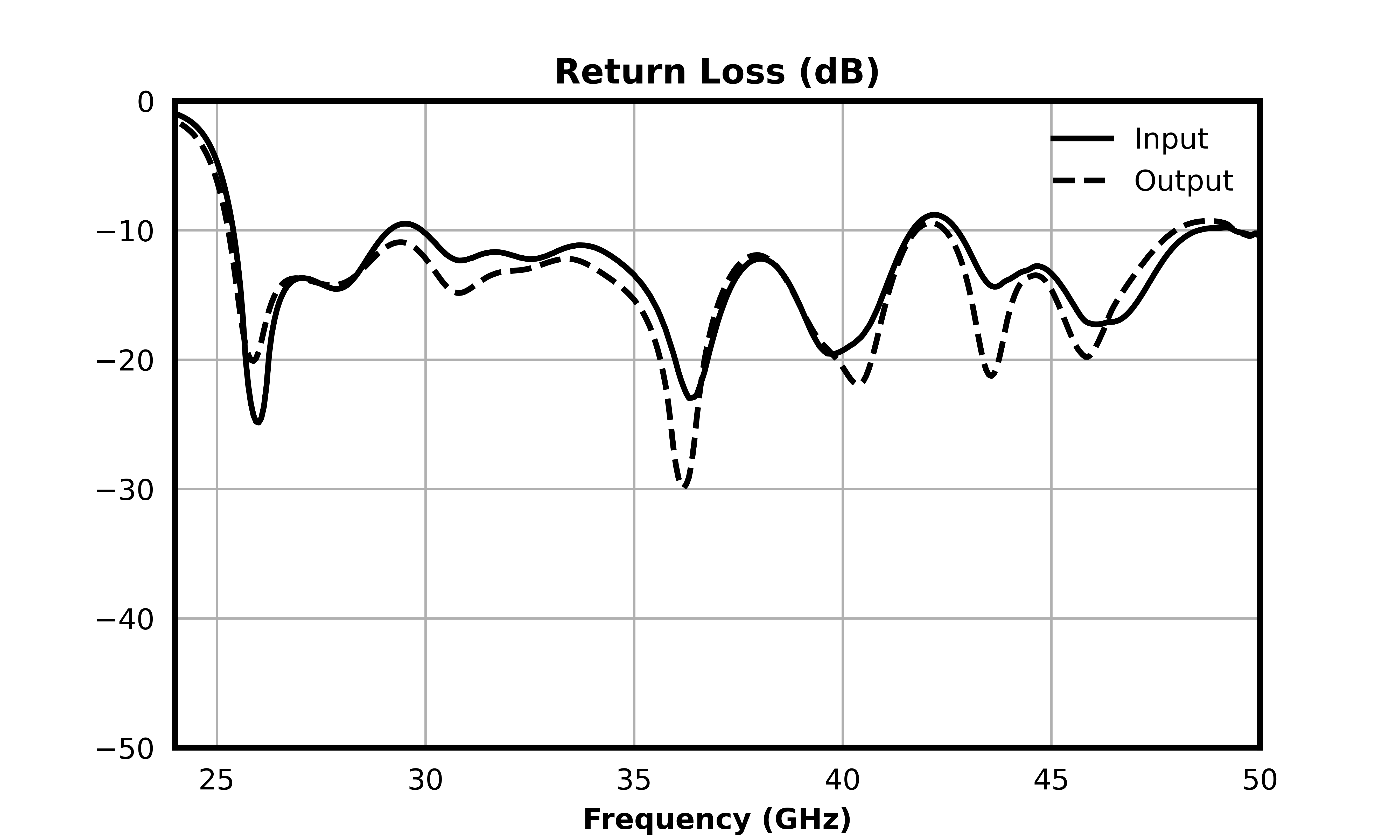

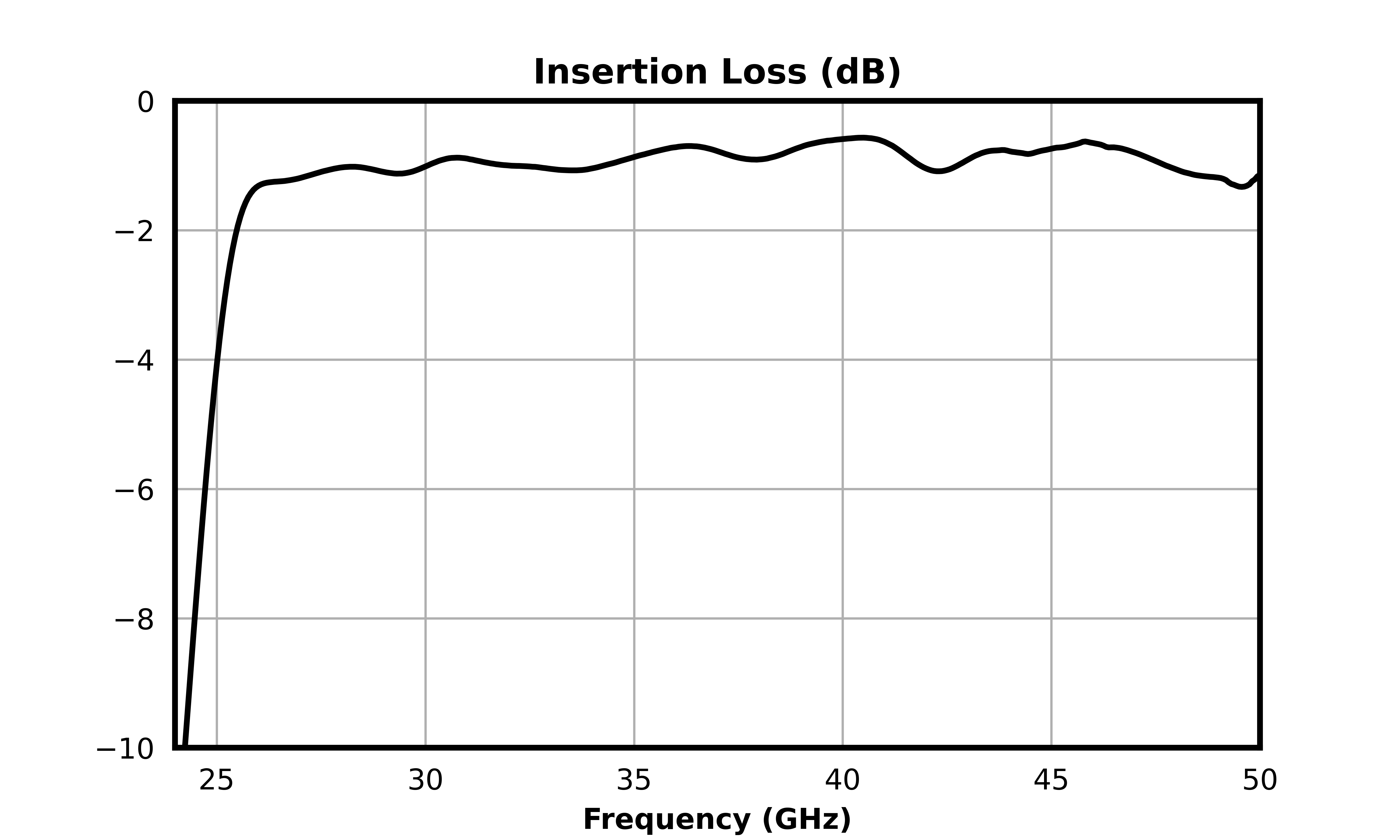

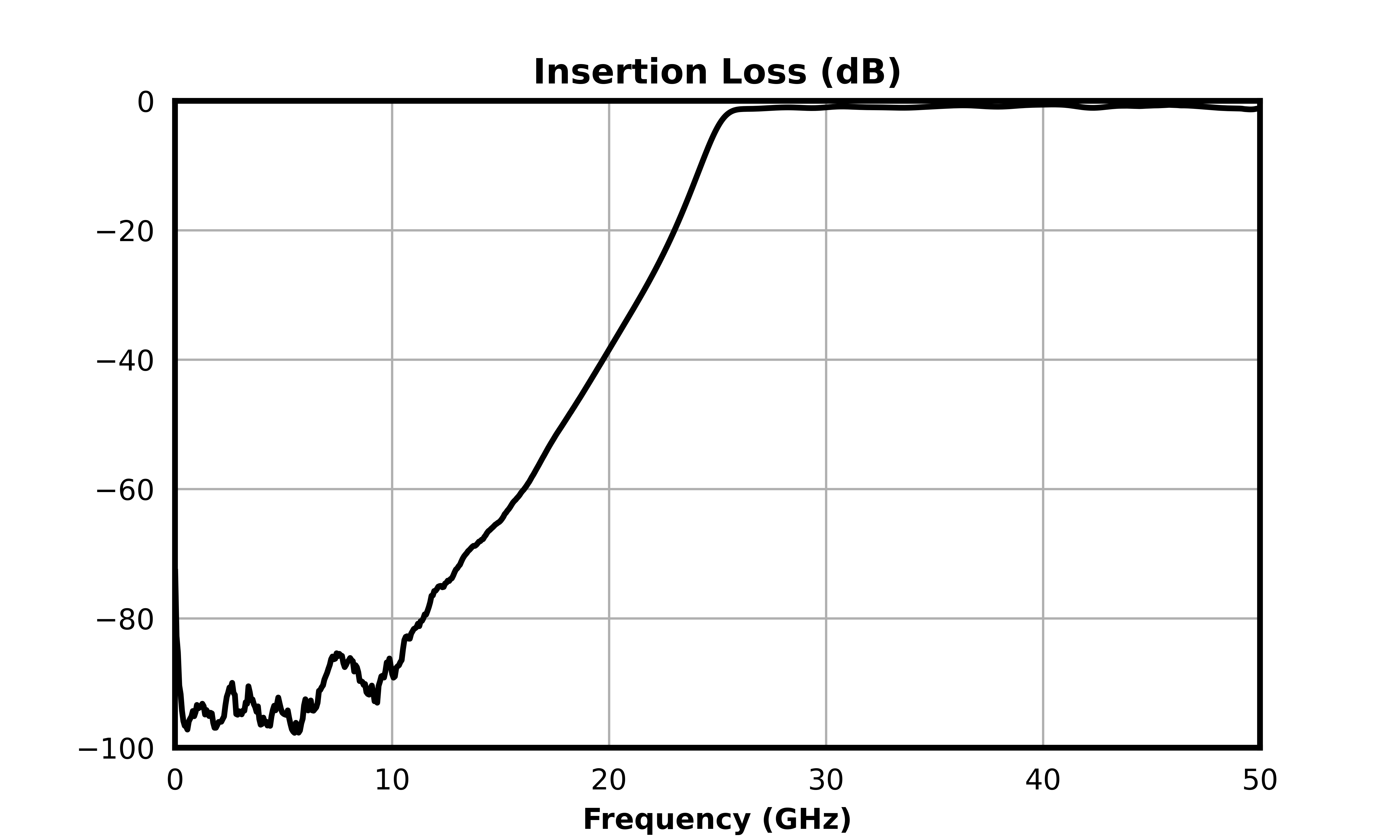

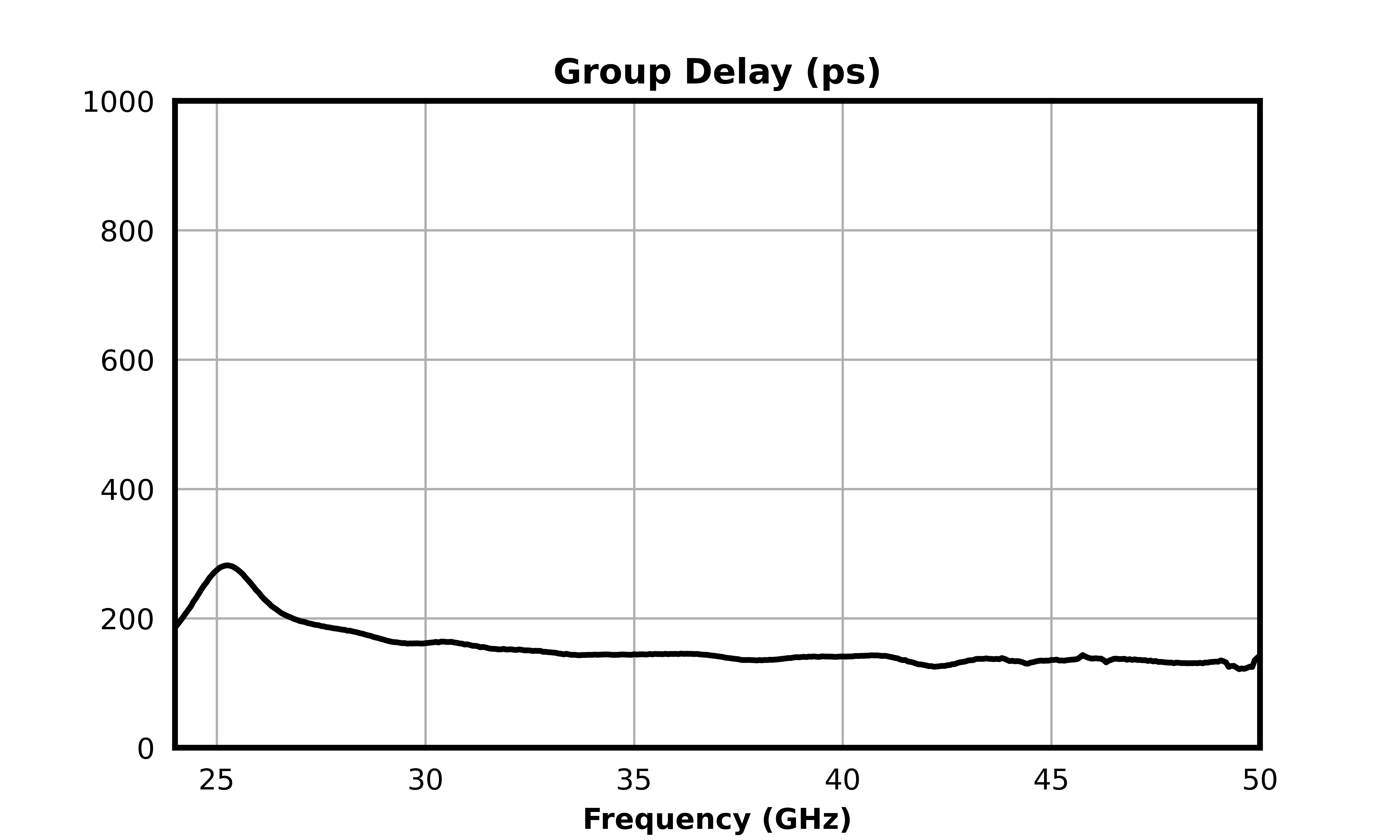

Typical Performance Plot
.png)
.png)
.png)
.png)
.png)
